161-3-009-0-T-LS0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 161-3-009-0-T-LS0

Preview

161-3-009-0-T-LS0: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal,; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

161-3-009-0-T-LS0 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal,

161-3-009-0-T-LS0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8298087308
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.087 inch
subject depth	0.177 inch
body length	0.709 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Dielectric withstand voltage	700VAC V
insulator material	THERMOPLASTIC
Plug contact pitch	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

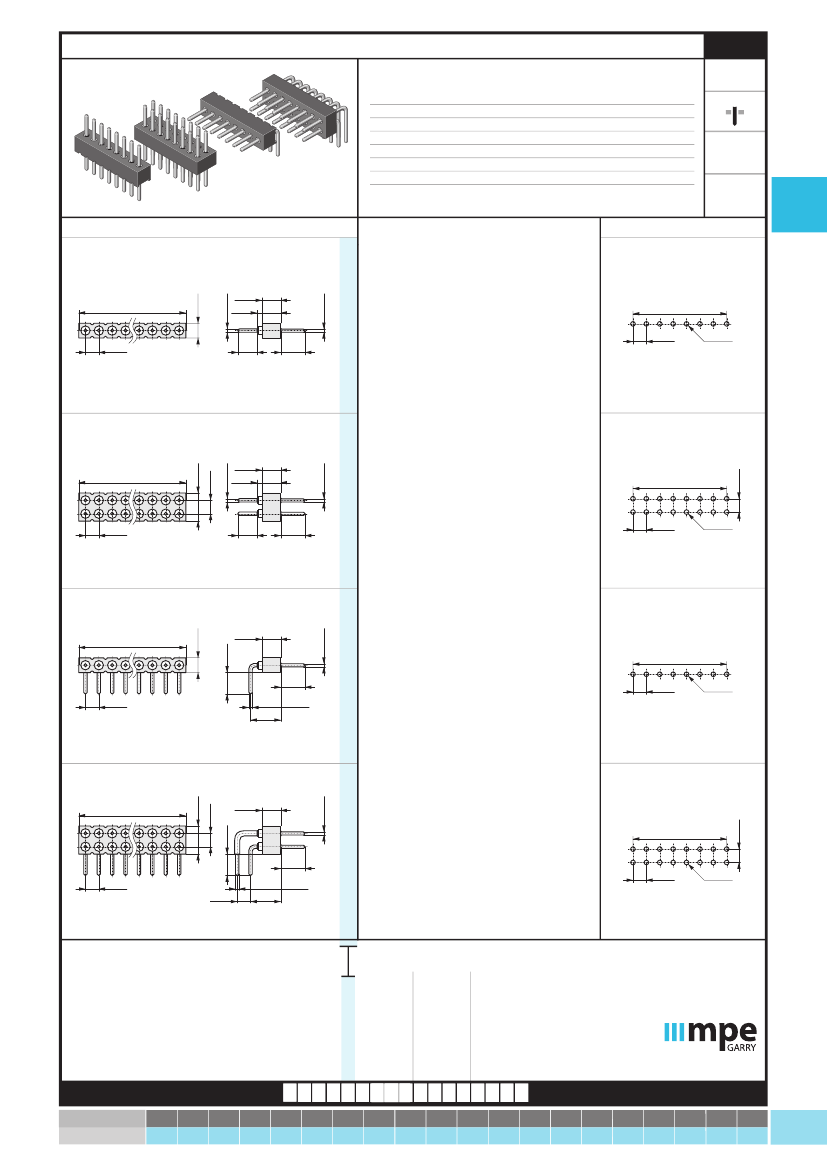

Pin Header with Turned Contacts 2,00 mm

Rated current

3,0 A

Rated voltage

150 V

RMS

/ V

DC

Withstand voltage

500 V

RMS

for one minute

Material contact

Copper alloy

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

161

pitch

termination

contact

size

max.

pincount

2,00

MPE-Garry GmbH • Schäfﬂerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

ø 0,47

Variation

PCB Layout

050 / 100

Product

group

3

ø0,50

n x 2,00

ø0,47

2,80

3,50

2,20

1

(n-1) x 2,00

2,00

ø0,70

2,00

2,90

3,60

4,20

2,00

ø0,50

2

(n/2-1) x 2,00

2,00

2,90

3,60

2,00

ø0,70

2,20

3,20

n x 2,00

ø0,47

2,80

3,60

2,00

4,50

ø0,50

3

(n-1) x 2,00

2,00

ø0,70

4,20

2,00

(n/2) x 2,00

2,80

3,20

ø0,47

4

3,60

ø0,50

(n/2-1) x 2,00

2,00

ø0,70

2,00

4,50

www.mpe-connector.de

Order code:

Mating series

see page

4-19 4-20 4-21

161-?-???-0-?-LS0

165 171 173

CS211215_V2

* No. of contacts:

Variation 1 = 002 - 050

Variation 2 = 004 - 100

Variation 3 = 002 - 050

Variation 4 = 004 - 100

Plating contact (T,F)

Variation (1,2,3,4)

Plating:

T = Sn

F = Au

No. of contacts *

(002,... - 100)

2,00

(n/2) x 2,00

ø0,47

2,80

3,50

3-37
