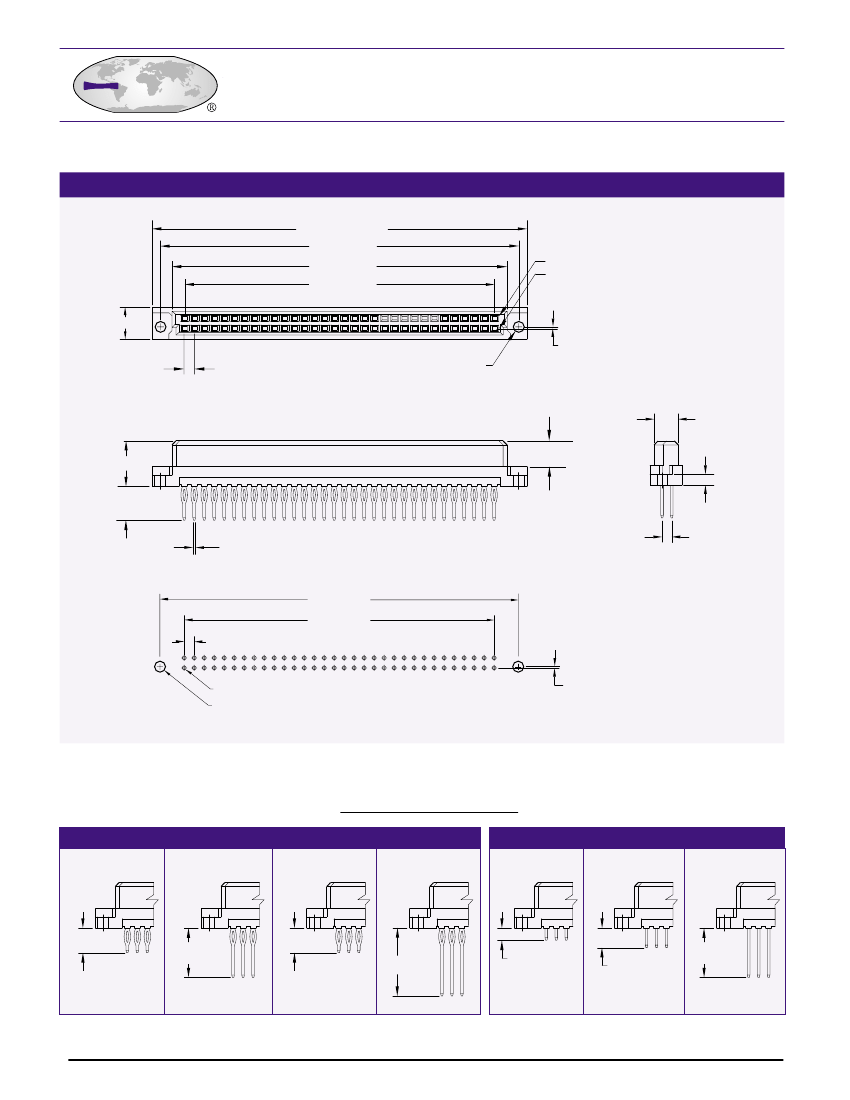

Type B, 64 Positions
Type B, B/2, B/3 Female Connectors
DIN 41612
95.00 [3.740] max.
90.00 [3.543]
85.00 [3.346]
78.74 [3.100]
1a
1b
8.10 [.319]
0.30 [.012]
2.54 [.100] Typical
Ø2.79[.110 ]
5.99 [.236]
6.40 [.252]
2.90 [.114]
11.6 [.457]
TAIL LENGTH
2.54 [.100]
.64 [.025] Typical
90.00 [3.543]
78.74 [3.100]
2.54 [.100] Typical
Ø 1.02 [.040]
Ø 2.80 [.110]
0.30 [.012]
Recommended P. C. Board Layout
Dimensions are in mm [inches]
TAIL LENGTH OPTIONS
Press Fit
Solder and Wire Wrap
1
2
3
4
5
6
7
5.00 [.197]
13.00 [.512]
6.00 [.236]
17.00 [.669]
2.92 [.115]
4.06 [.160]
13.00 [.512]
WWW.ECSCONN.COM

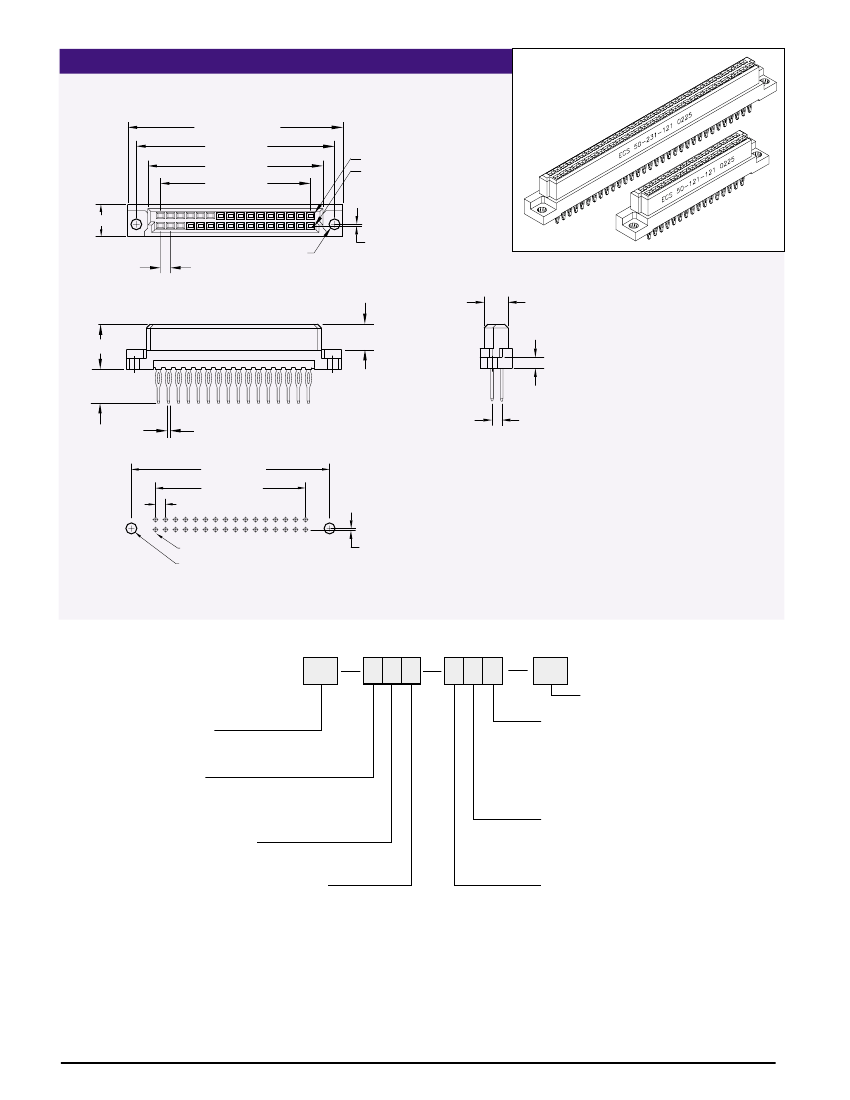

Type B/2, 32 Positions
55.00 [2.165] max.
50.00 [1.969]
44.40 [1.748]
38.10 [1.500]
8.10 [.319]
Ø 2.79 [.110]
2.54 [.100] Typical
1a
1b
0.30 [.012]
5.99 [.236]
6.40 [.252]
2.90 [.114]
11.6 [.457]
TAIL LENGTH
2.54 [.100]
.64 [.025] Typical
50.00 [1.969]
38.10 [1.500]
2.54 [.100] Typical
Ø 1.02 [.040]
Ø 2.80 [.110]
0.30 [.012]
Recommended P. C. Board Layout
Dimensions are in mm [inches]
PART NUMBERING
50
XXX
XXX
XX
MC
= Mounting Clip
Blank
= No Mounting Clip
SERIES CODE
BODY STYLE
TAIL PLATING
Type B, B/2, B/3 Female DIN
0
= B/3 ( 20 positions) not shown
1
= B/2 ( 32 positions)
2
= B ( 64 positions)
0
= 20
1
= 16
2
= 32
3
= 64
1
= Tin Lead
2
= Gold flash (.200" from pin tip)
3
= Gold plate 30µ” (.200" from pin tip)
4
= Gold plate 15µ” (.200" from pin tip)
NO. OF CONTACTS
MATING AREA PLATING
TAIL LENGTH
1
= 5.00 [.197]
2
= 13.00 [.512]
3
= 6.00 [.236]
4
= 17.00 [.669]
5
= 2.92 [.115]
6
= 4.06 [.160]
7
= 13.00 [.512]
1
= Class 1
2
= Class 2
3
= Class 3
CONTACT LOADING
1
= Row A and B fully populated
2
= Row A fully populated, Row B not populated
3
= Row B fully populated, Row A not populated
Consult Factory for other Loading Options
Press-Fit
Press-Fit
Press-Fit
Press-Fit
Dip Solder
Dip Solder
Dip Solder Wire Wrap
