Freescale Semiconductor
Data Sheet: Technical Data
Document Number: MPC8536EEC
Rev. 6, 09/2014
MPC8536E
MPC8536E PowerQUICC III
Integrated Processor
Hardware Specifications
• High-performance, 32-bit e500 core, scaling up to
1.5 GHz, that implements the Power Architecture®
technology
– 36-bit physical addressing
– Double-precision embedded floating point APU using
64-bit operands
– Embedded vector and scalar single-precision
floating-point APUs using 32- or 64-bit operands
– Memory management unit (MMU)
• Integrated L1/L2 cache
– L1 cache—32-Kbyte data and 32-Kbyte instruction
– L2 cache—512-Kbyte (8-way set associative)
• DDR2/DDR3 SDRAM memory controller with full ECC
support
– One 64-bit/32-bit data bus
– Up to 333-MHz clock (667-MHz data rate)
– Supporting up to 16 Gbytes of main memory
– Using ECC, detects and corrects all single-bit errors and
detects all double-bit errors and all errors within a nibble
– Invoke a level of system power management by
asserting MCKE SDRAM signal on-the-fly to put the
memory into a low-power sleep mode
– Both hardware and software options to support
battery-backed main memory
• Integrated security engine (SEC) optimized to process all
the algorithms associated with IPsec, IKE, SSL/TLS,
iSCSI, SRTP, IEEE Std 802.16e™, and 3GPP.
– XOR engine for parity checking in RAID storage
applications
• Enhanced Serial peripheral interfaces (eSPI)
– Support boot capability from eSPI
• Two enhanced three-speed Ethernet controllers (eTSECs)
with SGMII support
– Three-speed support (10/100/1000 Mbps)
– Two IEEE Std 802.3®, IEEE 802.3u, IEEE 802.3x,
IEEE 802.3z, IEEE 802.3ac, IEEE 802.3ab, and
IEEE Std 1588™-compatible controllers
MAPBGA–783
29 mm x 29 mm
•
•
•
•
•
•
•
•
•
•
•
•
– Support for various Ethernet physical interfaces: GMII,
TBI, RTBI, RGMII, MII, RGMII, RMII, and SGMII
– Support TCP/IP acceleration and QOS features
– MAC address recognition and RMON statistics support
– Support ARP parsing and generating wake-up events
based on the parsing results while in deep sleep mode
– Support accepting and storing packets while in deep
sleep mode
High-speed interfaces (multiplexed) supporting:
– Three PCI Express interfaces
– PCI Express 1.0a compatible
– One x8/x4/x2/x1 PCI Express interface
– Two x4/x2/x1 ports, or,
– One x4/x2/x1 port and Two x2/x1 ports
– Two SGMII interfaces
– Two Serial ATA (SATA) controllers support SATA I and
SATA I data rates
PCI 2.2 compatible PCI controller
Three universal serial bus (USB) dual-role controllers
comply with USB specification revision 2.0
133-MHz, 32-bit, enhanced local bus (eLBC) with memory
controller
Enhanced secured digital host controller (eSDHC) used for
SD/MMC card interface
– Support boot capability from eSDHC
Integrated four-channel DMA controller
Dual I
2
C and dual universal asynchronous
receiver/transmitter (DUART) support
Programmable interrupt controller (PIC)
Power management, low standby power
– Support Doze, Nap, Sleep, Jog, and Deep Sleep mode
– PMC wake on: LAN activity, USB connection or remote
wakeup, GPIO, internal timer, or external interrupt event
System performance monitor
IEEE Std 1149.1™-compatible, JTAG boundary scan
783-pin FC-PBGA package, 29 mm
×
29 mm
Freescale reserves the right to change the detail specifications as may be required
to permit improvements in the design of its products.
© 2009-2011, 2014 Freescale Semiconductor, Inc. All rights reserved.
Table of Contents
1
2
Pin Assignments and Reset States . . . . . . . . . . . . . . . . . . . . .3
1.1 Pin Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
2.1 Overall DC Electrical Characteristics . . . . . . . . . . . . . .21
2.2 Power Sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
2.3 Power Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . .26
2.4 Input Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
2.5 RESET Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . .31
2.6 DDR2 and DDR3 SDRAM . . . . . . . . . . . . . . . . . . . . . .32
2.7 eSPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
2.8 DUART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
2.9 Ethernet: Enhanced Three-Speed Ethernet (eTSEC),
MII Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
2.10 Ethernet Management Interface Electrical Characteristics
61
2.11 USB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
2.12 Enhanced Local Bus Controller (eLBC) . . . . . . . . . . . .66
2.13 Enhanced Secure Digital Host Controller (eSDHC) . . .75
2.14 Programmable Interrupt Controller (PIC) . . . . . . . . . . .77
2.15 JTAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
2.16 Serial ATA (SATA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
2.17 I
2
C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
2.18 GPIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
2.19 PCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
2.20 High-Speed Serial Interfaces . . . . . . . . . . . . . . . . . . . .91
2.21 PCI Express . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
3
2.23 Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
2.24 Thermal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Hardware Design Considerations . . . . . . . . . . . . . . . . . . . . 114
3.1 System Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
3.2 Power Supply Design and Sequencing . . . . . . . . . . . 114
3.3 Pin States in Deep Sleep State . . . . . . . . . . . . . . . . . 115
3.4 Decoupling Recommendations . . . . . . . . . . . . . . . . . 115
3.5 SerDes
Block
Power
Supply
Decoupling
Recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . 116
3.6 Connection Recommendations . . . . . . . . . . . . . . . . . 116
3.7 Pull-Up and Pull-Down Resistor Requirements . . . . . 116
3.8 Output Buffer DC Impedance . . . . . . . . . . . . . . . . . . 116
3.9 Configuration Pin Muxing . . . . . . . . . . . . . . . . . . . . . 117
3.10 JTAG Configuration Signals . . . . . . . . . . . . . . . . . . . 118
3.11 Guidelines for High-Speed Interface Termination . . . 120
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
4.1 Part Numbering Nomenclature . . . . . . . . . . . . . . . . . 122
4.2 Part Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
4.3 Part Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Package Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
5.1 Package Parameters for the FC-PBGA . . . . . . . . . . . 123
5.2 Mechanical Dimensions of the FC-PBGA . . . . . . . . . 124
Product Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . 125
4
5
6
7
MPC8536E PowerQUICC III Integrated Processor Hardware Specifications, Rev. 6
2
Freescale Semiconductor
Pin Assignments and Reset States
This figure shows the major functional units within the chip.
e500 Core
32-Kbyte
D-Cache
32-Kbyte
I-Cache
512-Kbyte
L2 Cache
Power
Management
MPC8536E
Performance
Monitor
Timers
Enhanced
Local Bus
SEC
OpenPIC
Coherency
Module
eSPI
DUART
2x I
2
C
64-bit
Async
DDR2/DDR3
Queue SDRAM Controller
with ECC
SD
MMC
USB
Host/
Device
ULPI
USB
Host/
Device
ULPI
USB
Host/
Device
ULPI
SATA
SATA
Gigabit
Gigabit
Ethernet
Ethernet
w/ IEEE 1588 w/ IEEE 1588
SGMII
SGMII
PCI 32
DMA
PCI-e
2 Lane SERDES
PCI-e
PCI-e
8 Lane SERDES
Figure 1. Chip Block Diagram
1
Pin Assignments and Reset States
NOTE
The naming convention of TSEC1 and TSEC3 is used to allow the splitting voltage rails
for the eTSEC blocks and to ease the port of existing PowerQUICC III software
NOTE
The UART_SOUT[0:1] and TEST_SEL pins must be set to a proper state during POR
configuration. See
Table 1
for more details.
MPC8536E PowerQUICC III Integrated Processor Hardware Specifications, Rev. 6
Freescale Semiconductor
3
Pin Assignments and Reset States
1.1
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
MDQ
[44]
GND
MBA
[0]
MA
[10]
MAPAR_
OUT
GND
MCK
[3]
MCK
[0]
MA
[3]
MA
[6]
MA
[11]
MAPAR_
ERR
GND
MDQ
[26]
MDQ
[30]
MDQS
[3]
MDQ
[25]
MDQ
[29]
MDQ
[11]
MDQ
[15]
MDQS
[1]
MDQ
[9]
MDQ
[8]
MDQ
[12]
MDQ
[0]
Pin Map
B
GVDD
MDQ
[40]
MDQ
[45]
MWE
MBA
[1]
NC
MA
[0]
MCK
[3]
MCK
[0]
GND

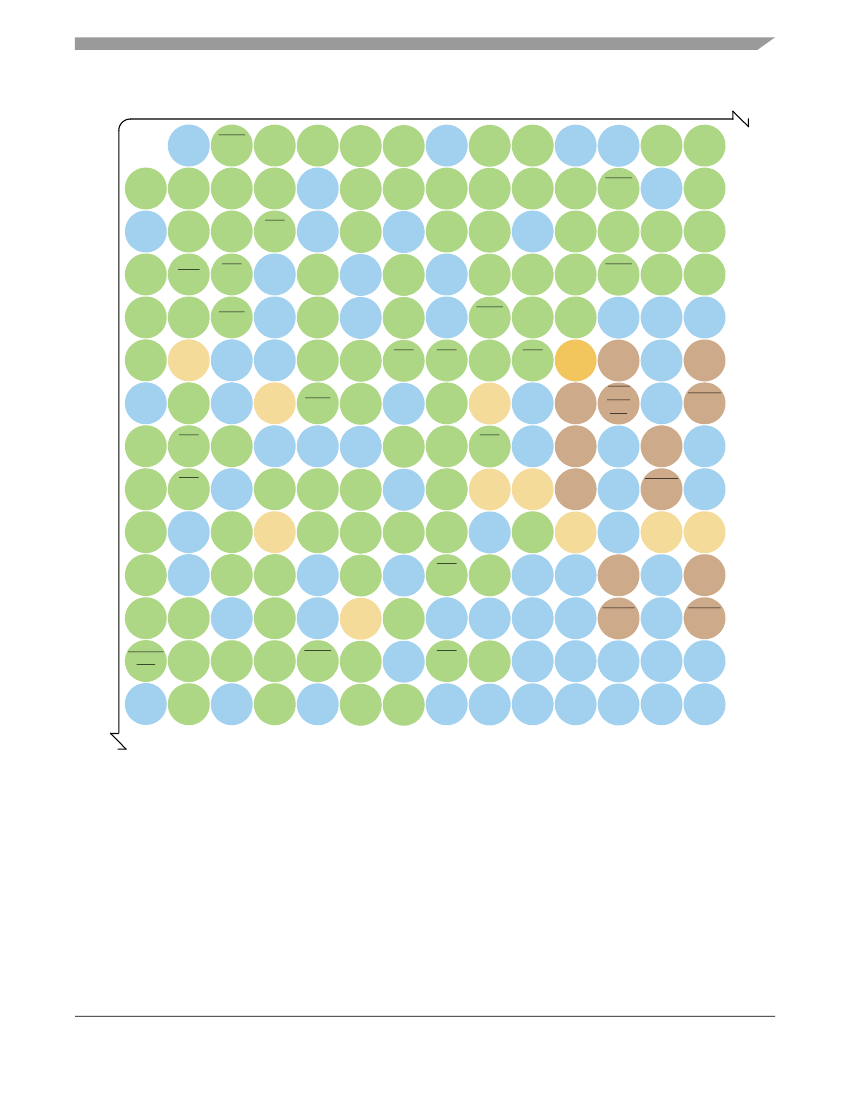

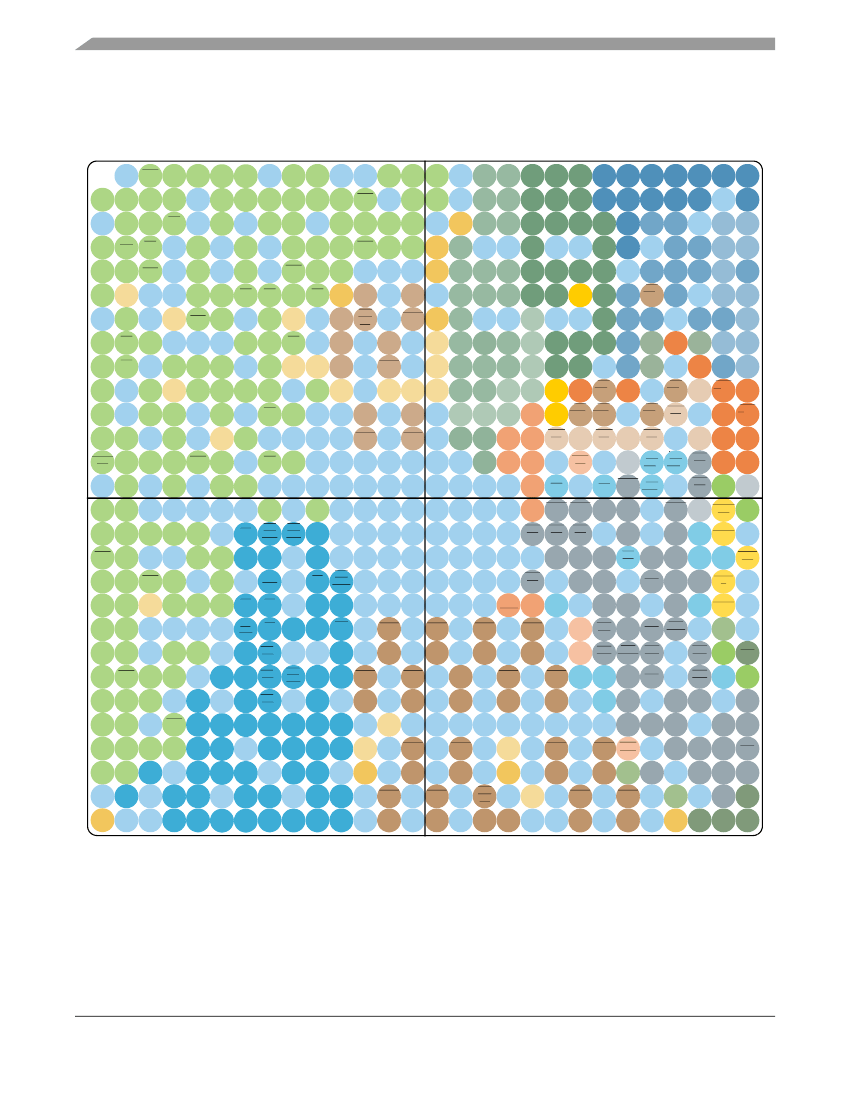

The following figures provide the pin map of the chip.
