Part Number

Search

8100612EA

Description

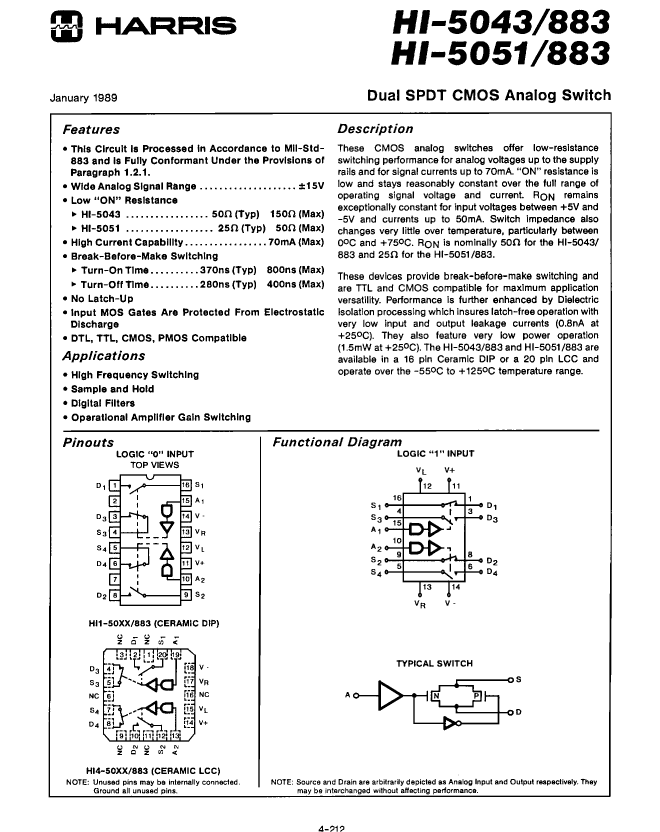

DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP16
CategoryAnalog mixed-signal IC    The signal circuit
File Size303KB,12 Pages
ManufacturerIntersil ( Renesas )
Websitehttp://www.intersil.com/cda/home/
Download Datasheet Parametric View All

8100612EA Online Shopping

Suppliers Part Number Price MOQ In stock
8100612EA - - View Buy Now

8100612EA Overview

DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP16

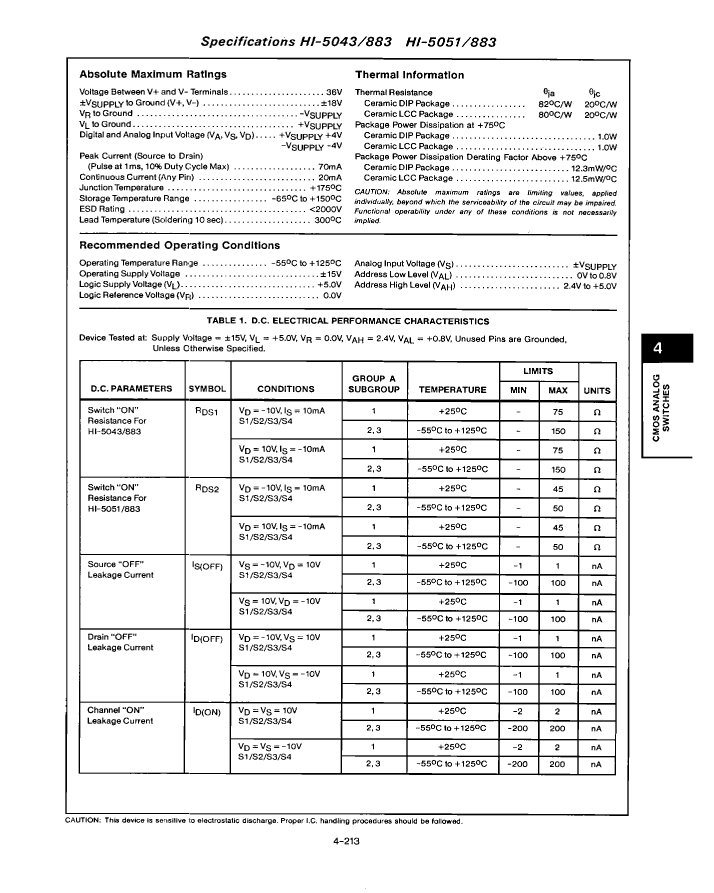

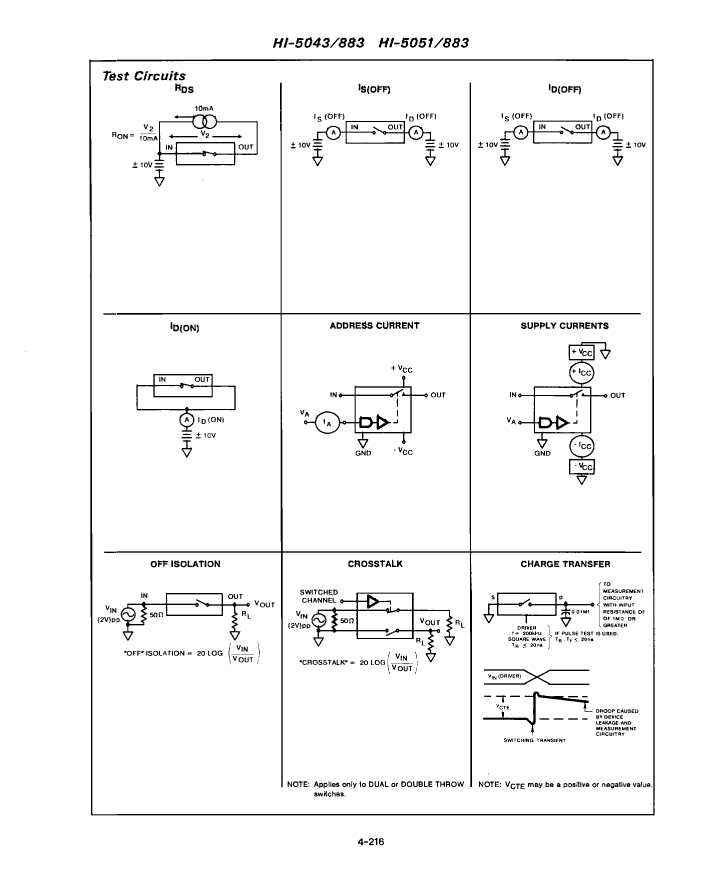

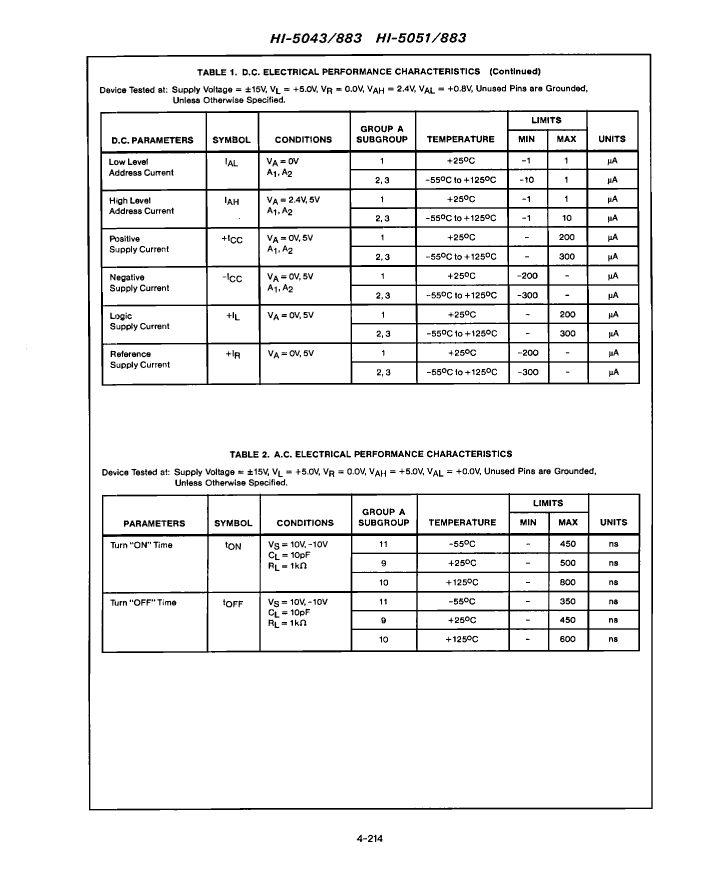

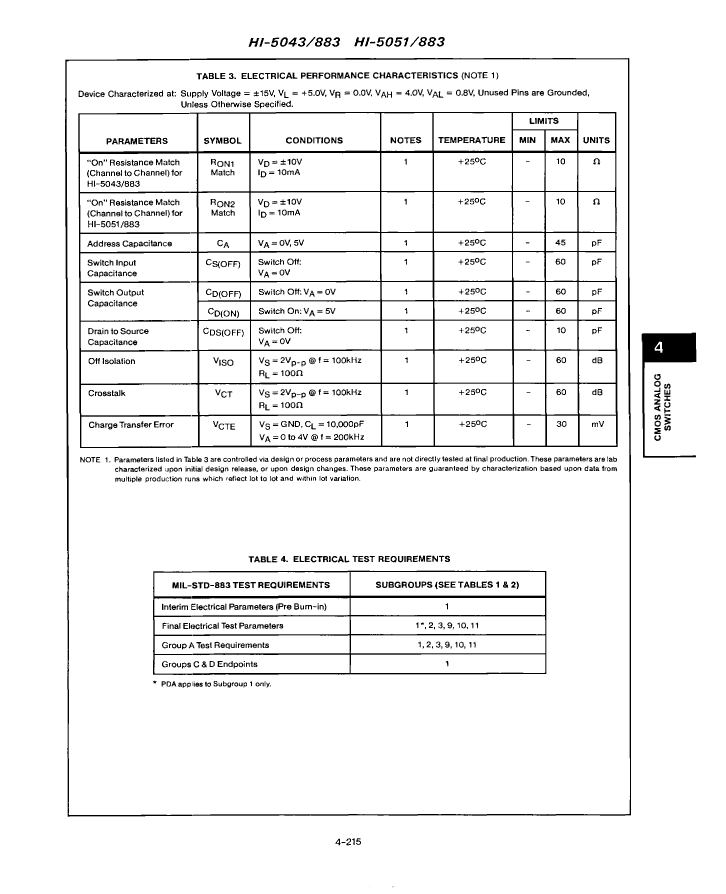

8100612EA Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1944457777
Parts packaging codeDIP
package instructionDIP, DIP16,.3
Contacts16
Reach Compliance Codenot_compliant
Analog Integrated Circuits - Other TypesSPDT
JESD-30 codeR-GDIP-T16
JESD-609 codee0
length19.5326 mm
Nominal Negative Supply Voltage (Vsup)-15 V
Number of channels1
Number of functions2
Number of terminals16
Nominal off-state isolation60 dB
On-state resistance matching specifications10 Ω
Maximum on-state resistance (Ron)75 Ω
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
outputSEPARATE OUTPUT
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5,+-15 V
Certification statusNot Qualified
Maximum seat height5.08 mm
Nominal supply voltage (Vsup)15 V
surface mountNO
Maximum disconnect time450 ns
Maximum connection time500 ns
switchBREAK-BEFORE-MAKE
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width7.62 mm
