Q21.999-JXS32P4-10-30/50-FU-AEC-LF datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> Q21.999-JXS32P4-10-30/50-FU-AEC-LF

Q21.999-JXS32P4-10-30/50-FU-AEC-LF: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size141KB，2 Pages; ManufacturerJauch; Websitehttp://www.jauchusa.com/; Environmental Compliance

Download Datasheet Parametric View All

Q21.999-JXS32P4-10-30/50-FU-AEC-LF Overview

Parallel - Fundamental Quartz Crystal,

Q21.999-JXS32P4-10-30/50-FU-AEC-LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7252476878
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Country Of Origin	Taiwan
YTEOL	7.2
Other features	AT CUT; AEC-Q200; TR, 7 INCH
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	21.999 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L3.2XB2.5XH0.7 (mm)/L0.126XB0.098XH0.028 (inch)
Series resistance	30 Ω
surface mount	YES
Terminal surface	GOLD OVER NICKEL

Preview

Download Datasheet

View All

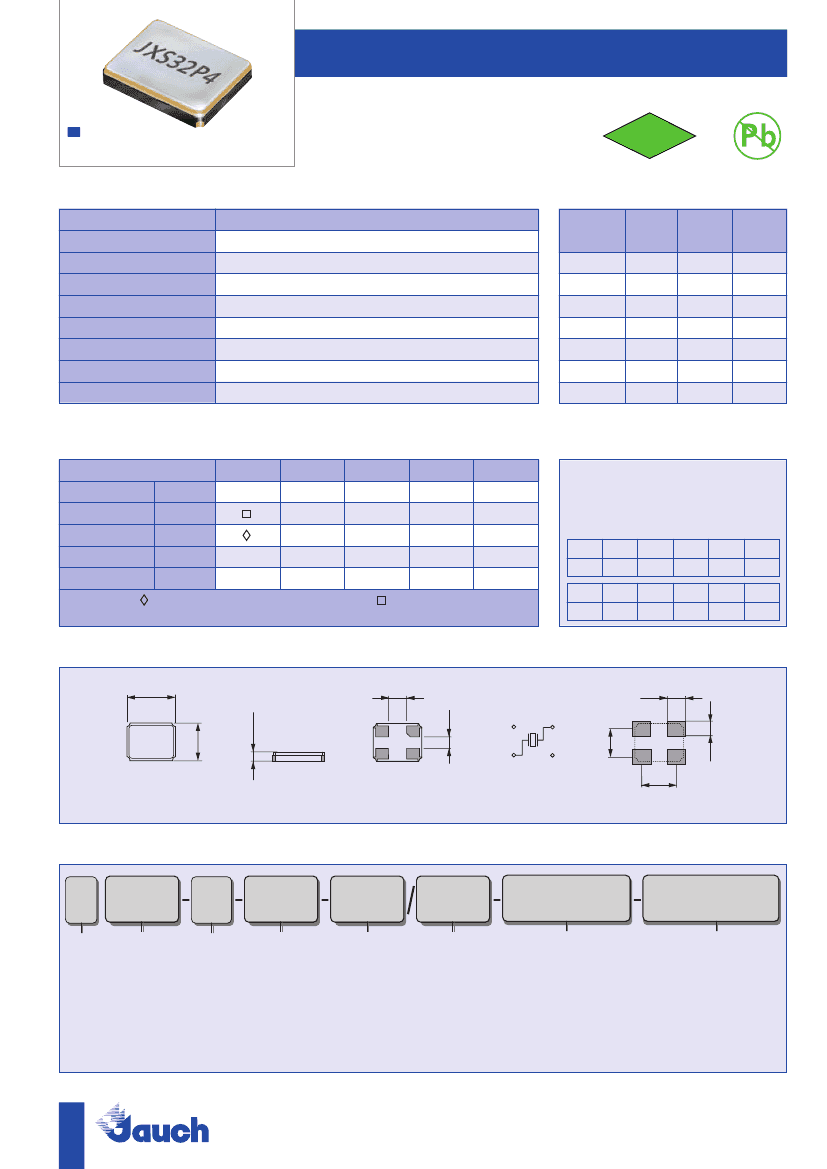

Quartz

SMD Crystal ·

Automotive

Crystal • JXE

JXS32P4

4 Pad Version

3.2 x 2.5 mm

actual size

seam sealed ceramic/metal package

all versions are AEC-Q200 qualified

HMR version with extended shock & vibration immunity

reflow soldering temperature: 260 °C max.

2002/95/EC

RoHS compliant

Pb free: pins / pads

RoHS

General Data

type

frequency range

frequency tolerance at 25 °C

load capacitance C

shunt capacitance C

storage temperature

shock resistance

drive level max.

aging

JXS32P4

10.0 ~ 54.0 MHz

(fund. AT-cut)

ESR

(series resistance Rs) at max. temp. range

vibration

mode

fund.-AT

ESR max.

300

100

ESR typ.

150

frequency

in MHz

10.0 ~ 11.999

12.0 ~ 12.999

13.0 ~ 15.999

16.0 ~ 18.999

(half sine pulse, 6.0 ms)*

(10 µW recommended)

19.0 ~ 21.999

22.0 ~ 29.999

30.0 ~ 54.000

± 10 ppm, ± 30 ppm, ± 50 ppm

12 pF standard

< 5 pF

-40 °C ~ +125 °C

> 100 g

100 µW

< ± 3 ppm first year

(option: 10 pF ~ 30.0 pF / series)

* optional HMR version: 3000G / half sine pulse / 0.3 ms

Frequency Stability vs. Temperature

± 15 ppm

-20 °C ~ +70 °C

-30 °C ~ +85 °C

-40 °C ~ +85 °C

-40 °C ~ +105 °C

-40 °C ~ +125 °C

STD.

T (-30/+85)

for frequencies < 20 MHz

± 20 ppm

± 30 ppm

± 50 ppm

± 100 ppm

Marking

frequency with load capacitance code

company code / date code / internal code

date code:

example:

Jan.

July

Febr.

Aug.

year/month

2A = 2012 January

Mar.

Sept.

Apr.

Oct.

May

Nov.

June

Dec.

available

for frequencies > 20 MHz, ask if available < 20 MHz

* best value for frequencies < 12.0 MHz

Dimensions

3.2

±0.1

0.7 max.

2.5

±0.1

1.2

±0.1

1.0

±0.1

1.9

±0.1

1.1

±0.1

2.3

±0.1

1.3

±0.1

#2 - #4: connected to lid

top view

side view

bottom view

crystal connection

pad layout

in mm

Order Information

Quartz

frequency

type

load capacitance

stability at

25 °C

10 = ± 10 ppm

30 = ± 30 ppm

50 = ± 50 ppm

stability vs.

temp. range

15 =

20 =

30 =

50 =

100 =

± 15 ppm

± 20 ppm

± 30 ppm

± 50 ppm

± 100 ppm

option 1

option 2

10.0 ~ 54.0 MHz

JXS32P4

12 pF standard

10 pF ~ 30 pF

S for series

blank = -20 °C ~ +70 °C AEC = AEC-Q200 qualified

T (-30/+85) = -30 °C ~ +85 °C HMR = high mechanical reliability

T1 = -40 °C ~ +85 °C

(3000g/half sine wave/0.3ms)

T2 = -40 °C ~ +105 °C

T3 = -40 °C ~ +125 °C

FU = for fundamental

frequencies

≥

20 MHz

Example: Q 28.0-JXS32P4-12-30/30-FU-AEC-LF

(Suffix LF = RoHS compliant / Pb free pads)

Jauch Quartz GmbH

•

e-mail: info@jauch.de

full data can be found under: www.jauch.de / www.jauch.co.uk / www.jauch.fr / www.jauchusa.com

All specifications are subject to change without notice

070512
