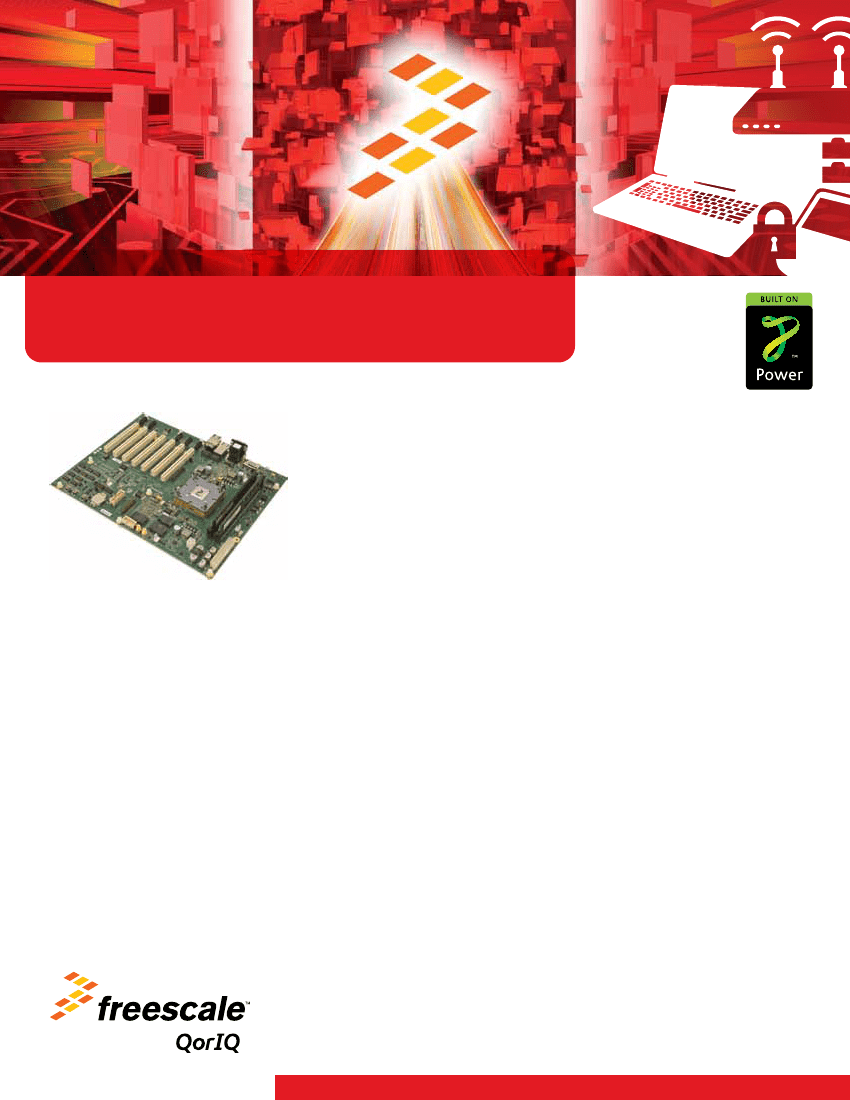

QorIQ Multicore Processor Development
P3041 Development System
development and performance evaluation
before the customer’s board is ready.
The P3041 processor is based upon the
e500mc core, built on Power Architecture
®
technology, offering speeds of 1200–1500
MHz. It has a three-level cache hierarchy with
32 KB of instruction and data cache per core,
128 KB of unified backside L2 cache per
core and 1 MB of shared frontside CoreNet
platform cache fronting the memory controller.
I/Os include 18 SerDes lanes running at up to
5 GHz, multiplexed across four PCI Express
®
Gen2 controllers, one 10 gigabit Ethernet (GE)
XAUI interface, four 1 GE SGMII interfaces,
four 2.5 Gbps SGMII interfaces, two Serial
RapidIO (version 1.3 with features of version
2.1) interfaces, two SATA 2.0 interfaces and
the high-speed Aurora debug interface. It has
a 64-bit DDR3 and DDR3L (low power) DRAM
interface with 8-bit ECC support running at
a data rate up to 1333 MHz. It includes two
USB 2.0 interfaces (including PHY), two dual
universal asynchronous receiver/transmitters
(DUARTs), an SD/MMC interface, a 32-bit
local bus, four I
2
C and SPI. It also includes the
accelerator blocks collectively known as the
Data Path Acceleration Architecture (DPAA)
that offload various tasks from the core,
including routine packet handling, security
algorithm calculation and pattern matching.
The P3041DS offers significant flexibility in
allocating its 18 SerDes lanes to various
functions. Its base configuration supports
two RGMII ports, two PCI Express x4 slots
(two lanes per slot), a x4 slot for Freescale’s
optional SGMII-PEX-RISER, a x4 slot for
Freescale’s optional XAUI-RISER, the Aurora
high-speed debug port and two SATA ports.
It can also be configured to support up to four
PCI Express slots of widths up to x8.
The P3041DS memory system supports
2 GB of DDR3 at 1333 MHz. It has 128 MB of
NOR flash, 1 GB of NAND flash, a 256 KB I
2
C
EEPROM as well as 16 MB of flash and 128
KB EEPROM of SPI-based memory. It also
includes two USB 2.0 receptacles and an SD
card slot.
The P3041DS is pre-loaded with an
Embedded Linux Essentials for QorIQ
Processors with Data Path Acceleration
development kit. This kit includes a 2.6.x.x
SMP Linux kernel, hugetlbfs for applications
with a large memory footprint, user space
DPAA for high-performance packet handling,
u-boot, the GCC tool chain and Mentor
System Builder, among many other features.
Overview
The P3041DS is a flexible development
system supporting the quad-core P3041
device. With its 1.5 GHz P3041 and rich
input/output (I/O) mix, the board is intended
for development of P3041 in networking and
Ethernet-centric applications, such as control
plane and mixed control plane/data plane
in switches, routers, base station network
interface cards, aerospace and defense and
factory automation.
The P3041DS can help shorten your time
to market. The board, which exercises
most capabilities of the device, can serve
as a reference for the customer’s hardware
development. It can also be used as a
debug tool to check behaviors on the
board compared to behaviors seen on
customer boards. It can be used for software
P3041DS
P3041DS
Control
Set Secondary PSes
Three Power Pools Supported by Three
Independent, Programmable Regulations
VDD_CA
Regulators
VDD_CB
Platform Serdes
DDR3 Regulator 1.5v/1.35v
8-bit
PromJet Emulator
NOR Flash
NAND Flash
16-bit
16-bit
8-bit
Slot 1
SGMIII (1:4) or XAUI #1 or SGMII #5
SATA 1/2
Local Bus 16/8-bit
SPI Flash
4/8-bit SD/MMC
USB 2.0
10/100/1G RGMII
SYS/PEX Clocks
2
SPI
MMC
USB x2
x2
DUART
x2
x2
Bank3 14, 15
Bank1 8
Bank1 0, 1
Bank1 2, 3
Bank1 4, 5
Bank1 6, 7
x2
x2
x2
x1
JTAG
IC
2
Board
Control:
Switches,
RST Center
COP Legacy Connection
3
Flash/RCW, RTC/PWR Center/
Thermometer Monitor
DDR3
µDIMM
PCIe #1 x2/x4/x8 or SRIO2 x4
PCIe #3 x2
PCIe #2 x2/x4 or SRIO1 x4 or SRIO2 x2
or SGMII [1:2] or SGMII [1:4]
SRIO1 x2 or SGMII [3:4]
PCIe #4 x1 or PCIe #2 x1
Aurora
PCIe #3 x1/x4 or SGMII [1:4] or XAUI #1
Slot 2
Slot 7
Slot 4
Slot 6
Slot 5
Slot 3
ATX PS
System
Control
Logic
FPGA
P3041
DDR3
x2
Freescale Technology
Bank1 9
Bank3 16, 17
Bank2 10, 11, x4
12, 13
P3041DS Board Features
Processor
• P3041, 1.5 GHz core with 1333 MHz
DDR3 data rate
• Multiple SysClk inputs for generating
various device frequencies
PCI Express
• Six x4 PCI Express slots
• Can support Freescale’s XAUI-RISER and
SGMII-PEX-RISER option cards
DUART
• Two DUARTs
Debug
• JTAG/COP
• Aurora high-speed connector
SATA
• Two vertical SATA connectors
Memory
• 2 GB unbuffered DDR3 240-pin µDIMM
module with ECC (72-bit bus), 1333 MHz
data rate
• 128 MB NOR flash
• 1 GB NAND flash
• SPI-based 128 MB flash
• SPI-based 128 KB EEPROM
• SD connector to interface with an SD
memory card
Other
USB 2.0
• Two High-Speed USB controllers
• One Type A and one MicroAB receptacle
• IEEE
®
1588 connector for Symmetricom
option card
• Temperature sensor
• Eight general-purpose I/Os
Ethernet
• Supports two 10/100/1000 ports with no
add-in cards
• dTSEC4 and dTSEC5 as RGMII to Vitesse
VSC8244 PHY
• Optional SGMII-PEX-RISER expands
10/100/1000 port count to five
• 10 GE supported with optional XAUI-
RISER card
For more information, visit
freescale.com/QorIQ
