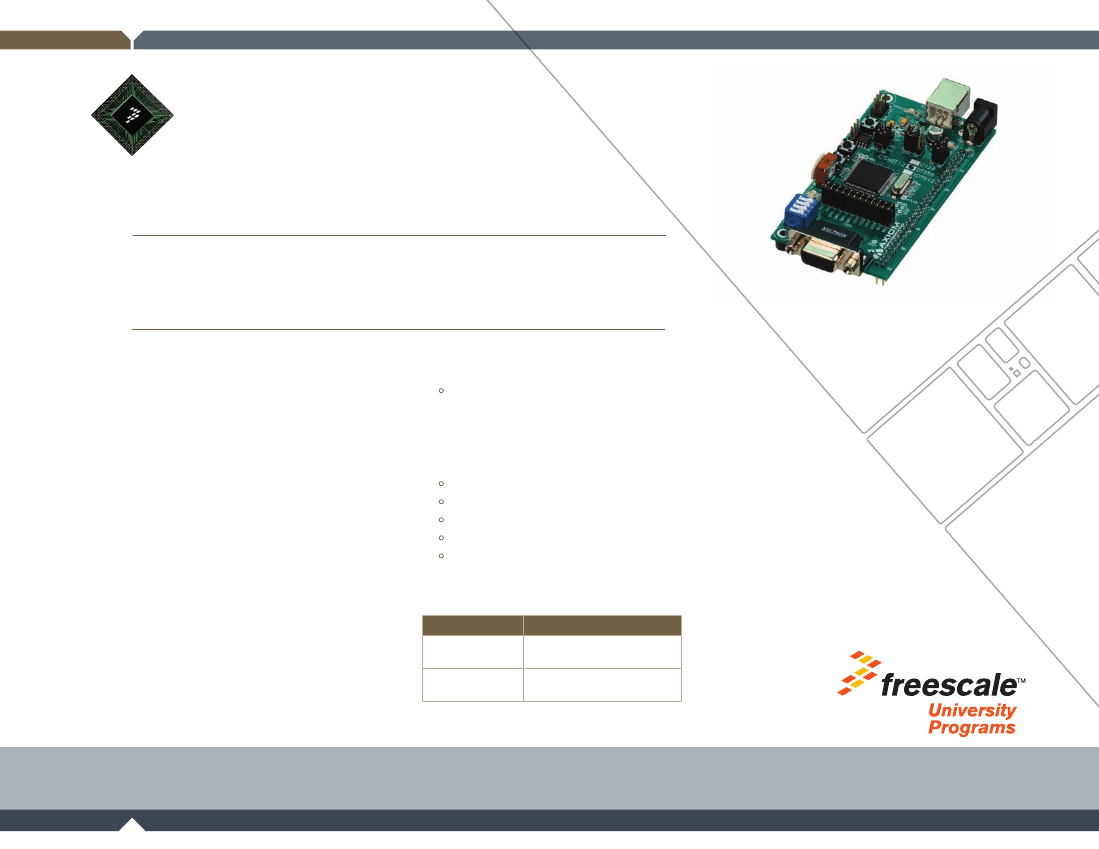

16-bit Modular Student Learning Kit
Featuring the HCS12 “C” family
Excellent beginner’s architecture to teach and learn
Several easy-to-use textbooks based on the
HCS12 processor
Common Course Applications
• Motor control
• Sensor monitoring and control systems
Use for courses/projects which:
• Include average memory requirements
• Require a wide array of peripherals
• Are targeted for novice to
intermediate level
This application module can be:
• Used Independently
Each kit includes required hardware,
Freescale CodeWarrior
™
Development
software, and informational CD
• Connected to the Freescale project
board (PBMCUSLK) for:
Increased I/O features
A more hands-on approach
Acceptance of multiple microcontrollers
Integrated USB-BDM interface
Larger bread-board area
To order, search by part number
on www.freesale.com.
Part Number
Description
APS12C128SLK
PBS12C128SLK
Independent Application
Module (pictured)
Project Board and
Application Module Bundle
Features
MC9S12C128 MCU, 80 QFP
• 128 KB flash EEPROM
• 2 KB RAM
• Timer/PWM
• SCI and SPI communications ports
• Key wake-up port
• BDM debug port
• CAN 2.0 module
• Analog comparator
• 8 MHz internal bus operation default
• 25 MHz bus operation using internal PLL
Integrated USB-BDM
• Allows for debug, programming and
epower to board and device
RS-232 transceiver w/ DB9 connector
4 MHz Clock Oscillator
Low Voltage Reset Supervisor
Flexible Power Input Sources
Selectable through Jumpers
• USB cable: 5V DC, 500 mA max
• 5V DC to 12V DC Power Jack: 2.5/5.5 mm
barrel connector, center positive
• MCU port connector
User Components Provided
• One 4-pos DIP switch
• Two push button switches
• Four LED indicators
Connectors
• 60-pos pin-header providing access to
MCU I/O signals
• 2.0mm barrel connector power input
• 6-pin BDM interface connector
• 3-pos CAN interface connector
• DB9 connector
Specifications
• Module Size: 3.8” x 2.0"
• Power Input: +9V typical, +6V to
+20V range
• Supplied with USB cable, manual and
resource CD
Freescale and the Freescale logo are trademarks or registered trademarks of Freescale Semiconductor, Inc.
in the U.S. and other countries. All other product or service names are the property of their respective owners.
© Freescale Semiconductor, Inc. 2008
Document Number: APS12C128SLK
REV 0
