C1210C391JGRAL7082 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> C1210C391JGRAL7082

C1210C391JGRAL7082: DescriptionCeramic Capacitor, Multilayer, Ceramic, 2000V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00039uF, Surface Mount, 1210, CHIP; CategoryPassive components capacitor; File Size1MB，23 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C1210C391JGRAL7082 Overview

Ceramic Capacitor, Multilayer, Ceramic, 2000V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00039uF, Surface Mount, 1210, CHIP

C1210C391JGRAL7082 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	7032364777
package instruction	, 1210
Reach Compliance Code	compliant
Country Of Origin	Mexico
ECCN code	EAR99
YTEOL	6.08
capacitance	0.00039 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.5 mm
JESD-609 code	e0
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 13 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	2000 V
size code	1210
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	2.5 mm

Preview

Download Datasheet

View All

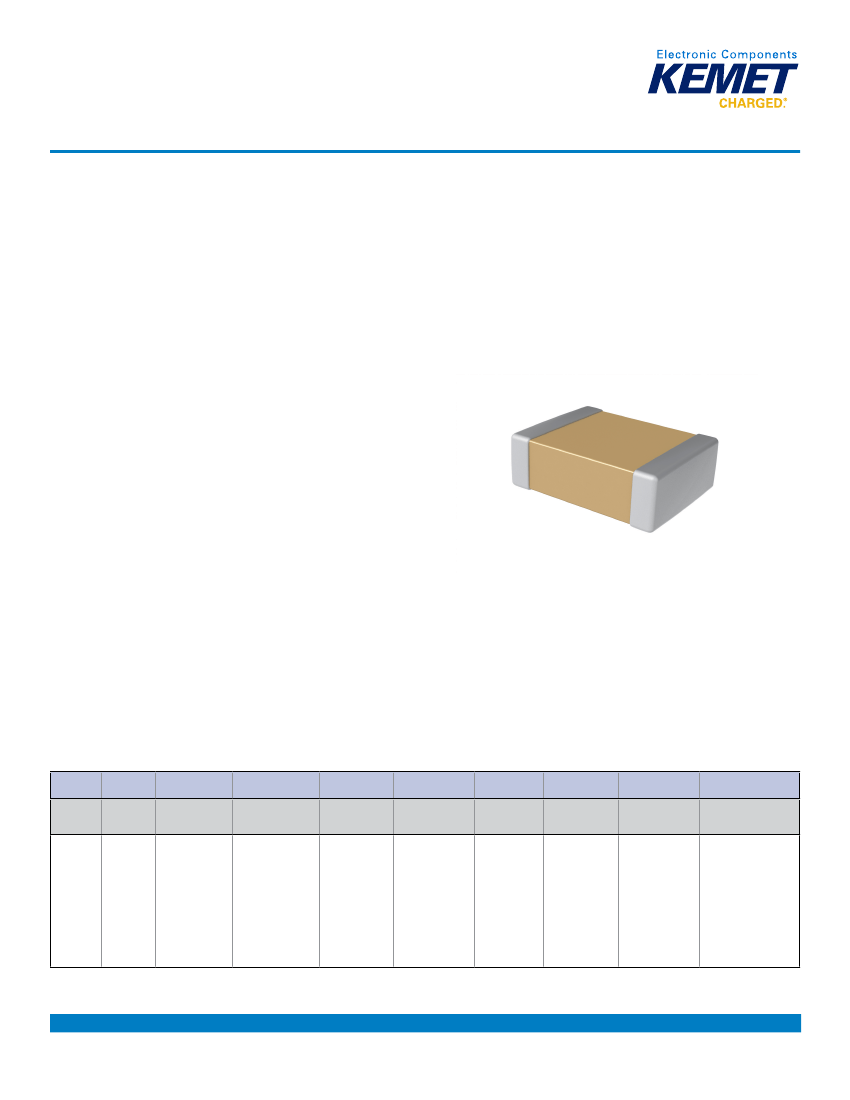

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage X7R Dielectric, 500 – 3,000 VDC

(Commercial Grade)

Overview

KEMET’s High Voltage surface mount MLCCs in X7R

Dielectric feature a 125°C maximum operating temperature

and are considered “temperature stable.” The Electronics

Industries Alliance (EIA) characterizes X7R dielectric as a

Class II material. Components of this classification are fixed,

ceramic dielectric capacitors suited for bypass and decoupling

applications or for frequency discriminating circuits where Q

and stability of capacitance characteristics are not critical. X7R

exhibits a predictable change in capacitance with respect to

time and voltage and boasts a minimal change in capacitance

with reference to ambient temperature. Capacitance change is

limited to ±15% from -55°C to +125°C.

Available in a variety of case sizes and industry leading CV

values (capacitance/voltage), these devices exhibit low leakage

current and low ESR at high frequencies. Conventional uses

include both snubbers and filters in applications such as

switching power supplies and lighting ballasts. Their exceptional

performance at high frequencies has made high voltage MLCC's

the preferred dielectric choice of design engineers worldwide.

In addition to their use in power supplies, these capacitors

are widely used in industries related to automotive (hybrid),

telecommunications, medical, military, aerospace, semiconductors

and test/diagnostic equipment.

In addition to Commercial Grade, Automotive Grade devices

are available which meet the demanding Automotive Electronics

Council's AEC-Q200 qualification requirements.

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Ordering Information

Ceramic

1210

154

Capacitance

Code (pF)

Two significant

digits + number

of zeros.

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

Rated Voltage

(VDC)

C = 500

B = 630

D = 1,000

F = 1,500

G = 2,000

Z = 2,500

H = 3,000

Dielectric

R = X7R

Failure Rate/

Design

A = N/A

Termination

Finish

C = 100%

Matte Sn

L = SnPb (5%

Pb minimum)

Packaging/Grade

(C-Spec)

See "Packaging

C-Spec Ordering

Options Table"

below

Case Size

Specification/

(L" x W")

Series

0603

0805

1206

1210

1808

1812

1825

2220

2225

C = Standard

Additional termination finish options may be available. Contact KEMET for details.

One world. One KEMET

C1010_X7R_HV_SMD • 11/12/2015
