Surface Mount and Through-Hole Multilayer Ceramic Capacitors
KPS-MCC High Temperature 200°C SMPS Stacks
50 – 2,000 VDC (Industrial Grade)
Overview

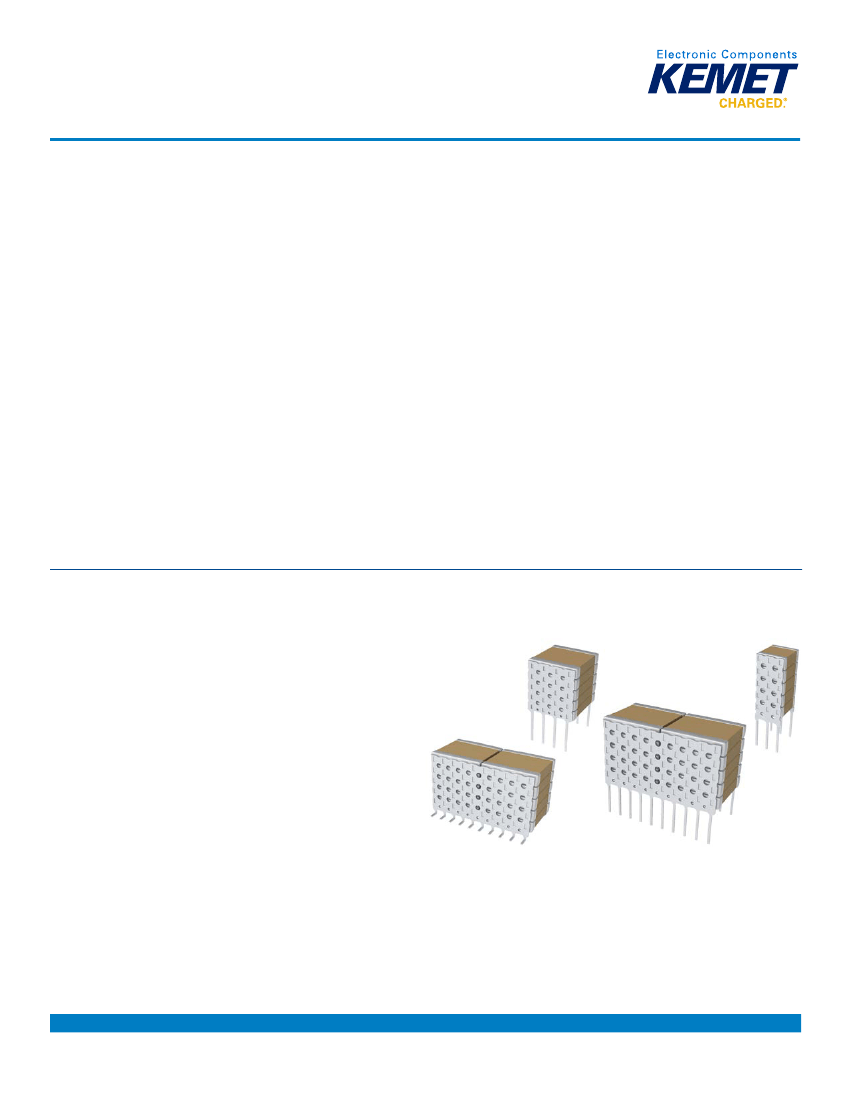

KEMET Power Solutions - Military Case Code (KPS-MCC)
High Temperature SMPS Ceramic Stacked Capacitors
combine a robust and proprietary C0G/NPO base metal
electrode (BME) dielectric system with a durable lead-
frame technology for high temperature and high power
SMPS applications. These devices are specifically
designed to withstand the demands of harsh industrial
environments such as down-hole oil exploration and
automotive/avionics engine compartment circuitry.
The KPS-MCC is constructed with large chip multilayer
ceramic capacitors (MLCCs), horizontally stacked and
secured to a lead-frame termination system, using a high
melting point (HMP) solder alloy. The lead-frame isolates
the MLCCs from the printed circuit board (PCB), while
establishing a parallel circuit configuration. Mechanically
isolating the capacitors from the PCB improves mechanical
and thermal stress performance, while the parallel circuit
configuration allows for bulk capacitance in the same or
smaller design footprint.
KEMET’s high temperature C0G capacitors are temperature-
compensating and are well suited for resonant circuit
applications, or for those where Q and stability of
capacitance characteristics are required. They exhibit no
change in capacitance with respect to time and voltage, and
boast a negligible change in capacitance with reference to
ambient temperature. Capacitance change is limited to ±30
ppm/ºC from −55°C to +200°C. In addition, these capacitors
exhibit high insulation resistance with low dissipation factor
at elevated temperatures up to +200°C. They also exhibit
low ESR at high frequencies and offer greater volumetric
efficiency over competitive high temperature BME ceramic
capacitor devices.
Benefits
• Straight Pin lead wires for "through-hole" mounting
• Formed "J" and "L" lead wires for surface mounting
• Operating temperature range of −55° to +200°C
• Military-style case codes (MCC) 3, 4, and 5
• DC voltage ratings of 50 – 2,000 V
• Capacitance offerings ranging from 4.7 nF – 2.0 µF
• Industrial grade
• High frequency performance and bulk capacitance in a
reduced footprint
• Low ESR and ESL
• High thermal stability
• High ripple current capability
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1094_KPS-MCC_200C_STACKS • 4/13/2020
1
Surface Mount and Through-Hole Multilayer Ceramic Capacitors
KPS-MCC High Temperature 200°C SMPS Stacks, 50 – 2,000 VDC (Industrial Grade)
Applications
•
•
•
•
Industrial
Down-hole
Defense and aerospace
Hybrid and Electric Vehicles (HEVs, BEVs)
• SMPS
• Input and output filtering on power supplies,
often found on “capacitor banks“
• Snubber circuits and DC link
• Resonator circuits
Ordering Information
L1
Product Family
L1
G
N
30
Case Size/
Case Code
(CC)
30 = CC3
40 = CC4
50 = CC5
C
Rated
Voltage
(DC)
5 = 50 V
1 = 100 V
2 = 200 V
C = 500 V
B = 630 V
D = 1,000 V
F = 1,500 V
G = 2,000 V
106
Capacitance
Code (pF)
Two
Significant
Digits and
number of
zeros
K
Capacitance
Tolerance
J = ±5%
K = ±10%
A
Lead/
Termination
Finish
A = Silver
H = Solder
Coated (60/40)
02
Number
of Chips
01 - 10
Dielectric
Lead
Classification/
Configuration
1
Characteristic
G=
200°C C0G
(BME)
N = Straight pin
L = Formed "L"
J = Formed "J"
1
Lead configuration and dimension details are outlined in the "Dimensions" section of this document. Additional lead configurations may be available.
Contact KEMET for details.
Lead Configurations – Inches (Millimeters)
Lead Style
Symbol
N
L
J
Lead Style
(N) Straight
(L) Formed
(J) Formed
L
Lead Length
0.250 minimum
(6.35)
0.055 ±0.005
(1.4 ±0.127)
0.055 ±0.005
(1.4 ±0.127)
Additional lead configurations may be available. Contact KEMET for details.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1094_KPS-MCC_200C_STACKS • 4/13/2020
2
Surface Mount and Through-Hole Multilayer Ceramic Capacitors
KPS-MCC High Temperature 200°C SMPS Stacks, 50 – 2,000 VDC (Industrial Grade)

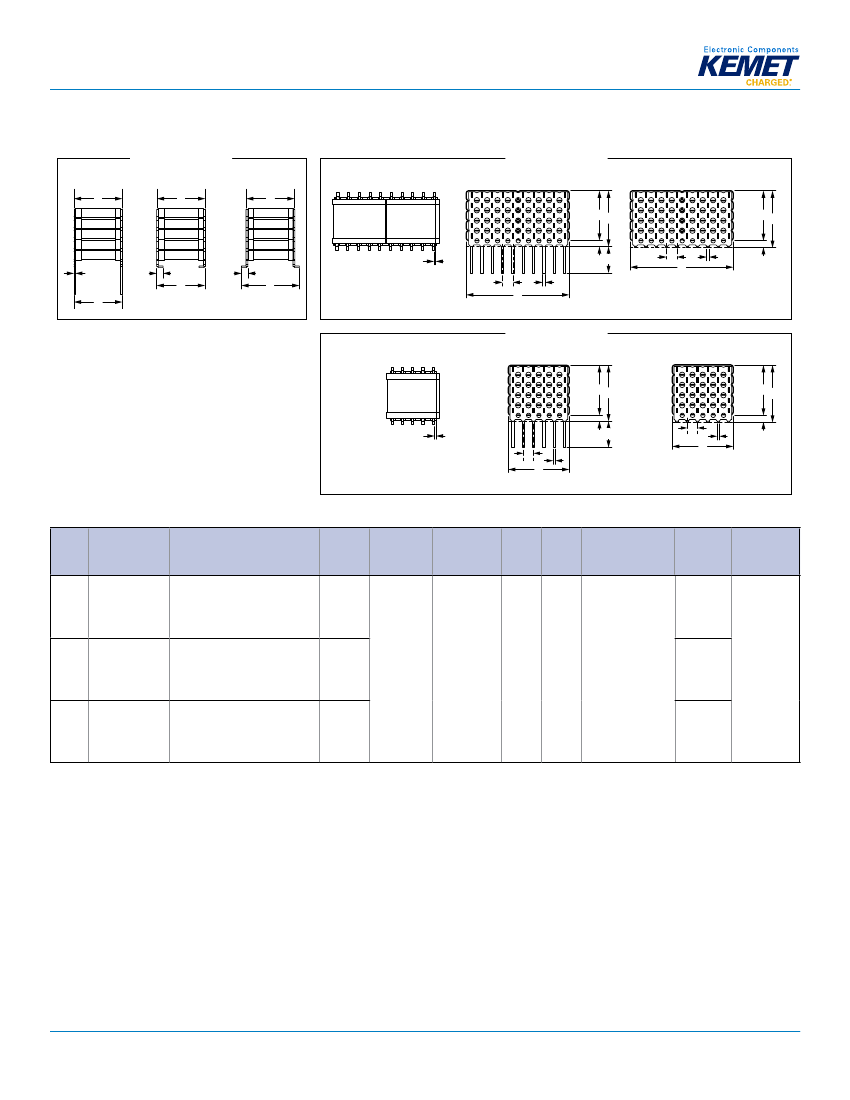

Dimensions – Inches (Millimeters)
Case Codes 3, 4 and 5
Straight Lead (N)
E
Formed J Lead (J)
E
Formed L Lead (L)
C
A B
A B
Case Code 3
Straight Lead (N)
Formed J and L Lead (J/L)
Seating Plane
LEAD ALIGNMENT
Pin Thickness
0.01 (0.25)
F L
H
D
K
L
C
L
E
Note:
Lead alignment within pin rows
shall be 0.01” maximum.
D
H
K
Seating Plane
F
C
Case Codes 4 and 5
Straight Lead (N)
Formed J and L Lead (J/L)
A B
A B
Seating Plane
LEAD ALIGNMENT
Note:
Lead alignment within pin rows
shall be 0.01” maximum.
F L
H
D
K
H
D
Seating Plane
K
F
Case
Code
C
Lead Spacing
2
±0.025 (0.635)
0.450
(11.43)
E
Length
D Width
±0.025
(0.635)
A
Height
Maximum
B
Height
Maximum
H
Lead
Pitch
K
Lead
Width
F
Seating Plane
1
±0.010 (0.250)
Number
of Leads
Per Side
10
Mounting
Technique
3
For straight lead (N) and (J) lead:
E = 0.5 (12.7) maximum
1.01
For (L) lead: E = 0.54 (13.7)
(25.64)
±0.035
For straight lead (N) and (J)
lead: E = 0.44 (11.18) maximum
For (L) lead: E = 0.49 (12.45)
±0.035
For straight lead (N) and (J)
lead: E = 0.3 (7.62) maximum
For (L) lead: E = 0.34 (8.64)
±0.035
0.40
(10.16)
Refer to
Product
Ordering
Table 1
4
0.400
(10.16)
For straight
lead (N), add
0.07 inch to
dimension "A"
For (L) and
(J) lead add
0.08 inches to
dimension "A"
0.1
(2.54)
0.02
(0.5)
For straight lead
(N), seating plane is
0.055
For (L) and (J) lead,
seating plane is
0.070
4
Solder reflow
only
5
0.250
(6.35)
0.25
(6.35)
3
1
2
Seating plane is the distance between the circuit board and the bottom of the lowest capacitor in the stack.
Lead spacing dimension from outside of lead frame.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1094_KPS-MCC_200C_STACKS • 4/13/2020
3
Surface Mount and Through-Hole Multilayer Ceramic Capacitors
KPS-MCC High Temperature 200°C SMPS Stacks, 50 – 2,000 VDC (Industrial Grade)
Environmental Compliance
KPS-MCC part types ≥ 500 V with silver (Ag) plating are RoHS compliant with exemption 7a.
Electrical Parameters/Performance Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to +25°C
and 0 VDC Applied (TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
Dielectric Withstanding Voltage (DWV)
1
–55°C to +200°C
±30 ppm/°C (up to 200°C)
0%
250% of rated voltage for voltage rating of < 500 V
130% of rated voltage for voltage rating of ≥ 500 to < 1,000 V
120% of rated voltage for voltage rating of ≥ 1,000 V
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
0.1%
1,000 MΩ µF or 100 GΩ
(Rated voltage applied for 120 ±5 seconds at 25°C)
Parameters/Characteristics
Dissipation Factor (DF) Maximum Limit at 25°C
2
Insulation Resistance (IR) Minimum Limit at 25°C
3
1
2
DWV is the voltage a capacitor can withstand for a short period of time. It exceeds the nominal and continuous working voltage of a capacitor.
Capacitance and dissipation factor (DF) measured under the following conditions:
1 MHz ±100 kHz and 1.0 ±0.2 V
rms
if capacitance ≤ 1,000 pF.
1 kHz ±50 Hz and 1.0 ±0.2 V
rms
if capacitance > 1,000 pF.
3
To obtain IR limit, divide MΩ - µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Note: When measuring capacitance, it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known
as Automatic Level Control (ALC). The ALC feature should be switched to "ON."
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1094_KPS-MCC_200C_STACKS • 4/13/2020
4
Surface Mount and Through-Hole Multilayer Ceramic Capacitors
KPS-MCC High Temperature 200°C SMPS Stacks, 50 – 2,000 VDC (Industrial Grade)
