PTC04
Programmer for Melexis PTC devices
Features and Benefits
Universal programming utility
Fast development
Fast plug-in for software applications
Atmega128 Core
Firmware updatable via RS232 and USB
FPGA updatable via RS232 and USB
3 High Current Programmable Supplies
1 High Speed Fast
16 bit Level Settings
16 bit differential Measurements
4 analog comparators
Vector Generator
I2c to Daughter Board
Mountable in 19” Rack
Applications
Experimental tool for Lab and Prototyping
Production Equipment for Serial Programming
Characterization tool by using mini-tester mode
Ordering Information
Part No.
PTC04
PTC04-DB-HALL01
PTC04-DB-HALL03
PTC04-DB-HALL04
PTC04-DB-HALL05
PTC04-DB-90316
PTC04-DB-PRESSURE01
PTC04-DB-SPI
PTC04-DB-FastLoader
PTC04-DB-xxxxx
PTC04-19-x (with x equal to 1 till 4)
Description
Programmer Unit
(Full Set: including adapter, cables, software)
Daughter Board 1st generation Linear Hall sensors products
Daughter Board 2nd generation Linear Hall and current Sensors
Daughter Board PSI5 interface products
Daughter Board Current sensor products
Daughter Board Triaxis sensor products
Daughter Board Pressure sensors products
Daughter Board SPI interface products
Daughter Board LIN interface products
Other Daughter Boards for future products
19”Rack with build in x number of PTC04
3901290014501
Rev. 1.7
Page 1 of 19
Data Sheet PTC04
January 2014
PTC04
Programmer for Melexis PTC devices
Accessories
Part No.
PTC04-TestBench-Magnetic
PTC-TestBench-4SIP-0x
PTC-TestBench-tssop-so8-0x
Magnet-T01
Magnet-T02
Magnet-T03
Magnet-T04
Description
Magnetic utility for evaluating samples on PTC04
PCB with 4SIP socket
PCB with SO Socket and TSSOP Socket
Magnet for testing Vertical packaged devices (4SIP-VA,
VB and VC)
Magnet for testing Horizontal packaged devices with a
perpendicular field (SO, TSSOP…)
Magnet for testing Horizontal packaged devices with a
rotating field (SO, TSSOP…)
Magnetic coil for testing Horizontal packaged devices
with a perpendicular field (SO, TSSOP…)
Software Environment MPT (Windows)
Including Calibration Software and update tools
DLL for Mini-Tester (Windows)
DLL’s for all supported products (Windows)
User Interface for most support products (Windows)
3901290014501
Rev. 1.7
Page 2 of 19
Data Sheet PTC04
January 2014
PTC04
Programmer for Melexis PTC devices

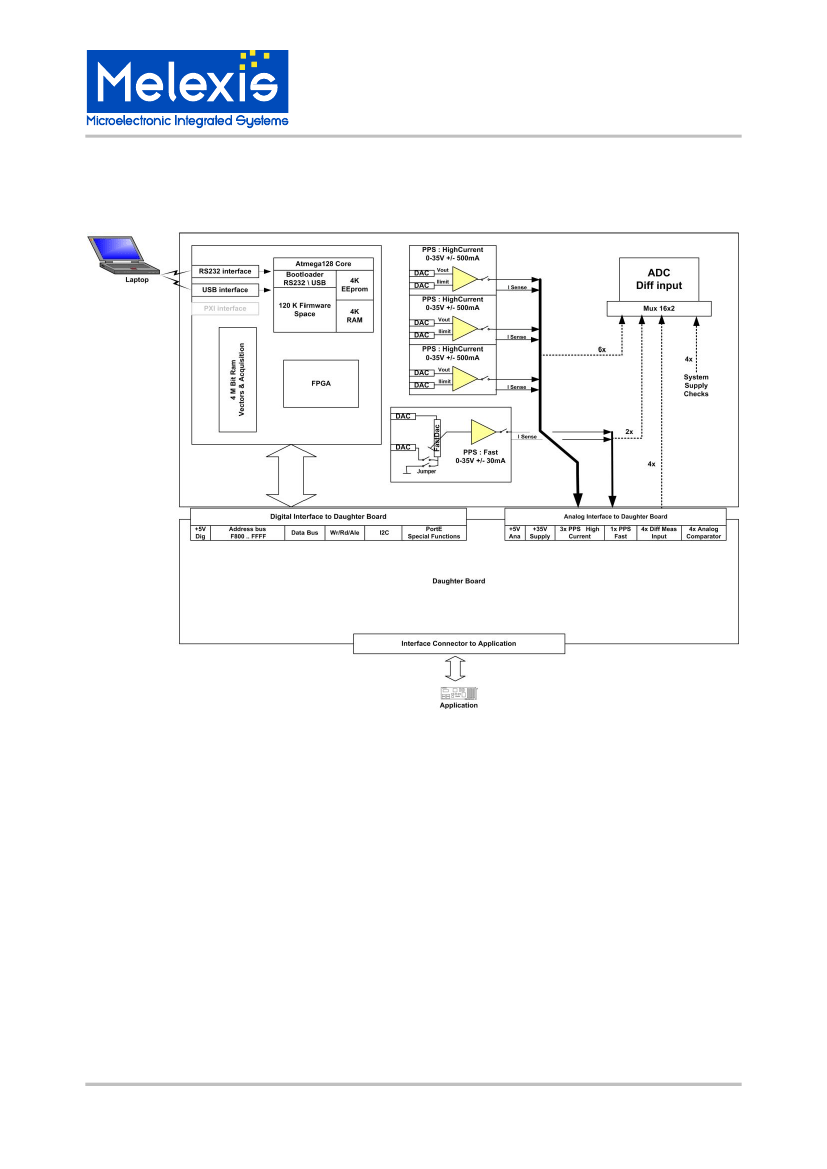

1. Functional Diagram
2. Description
The PTC-04 programmer was designed for efficient, precise calibration of the Melexis families of
programmable ICs. The programmer is designed to be easily adapted to a standard PC and to an
application module to allow calibration of programmable sensor ICs within the operating environment. The
PTC-04 programmer contains its own programmable power supply and measurement circuitry. The
programmer is similar to a standard EEPROM programmer, but adds many special features such as 16 bit
voltage and current measurement capability, and configuration options that will accommodate users from
the prototyping phase directly into production. An IBM compatible PC is required (not included) to load
software to the programmer and control the functions of the programmer.
Communication is done through a standard RS-232 null modem cable to a COM port of the PC or via
USB. The PC requires no custom configuration, allowing the programmer to be used with any PC with a
COM port speed of 115.2kbs or a standard USB 1.1 or USB 2.0 interface.
3901290014501
Rev. 1.7
Page 3 of 19
Data Sheet PTC04
January 2014
PTC04
Programmer for Melexis PTC devices
TABLE OF CONTENTS
FEATURES AND BENEFITS ....................................................................................................................... 1
APPLICATIONS ............................................................................................................................................ 1
ORDERING INFORMATION......................................................................................................................... 1
ACCESSORIES ............................................................................................................................................ 2
1. FUNCTIONAL DIAGRAM...................................................................................................................... 3
2. DESCRIPTION ....................................................................................................................................... 3
3. GLOSSARY OF TERMS ....................................................................................................................... 5
4. ABSOLUTE MAXIMUM RATINGS ....................................................................................................... 5
5. PTC04 ELECTRICAL SPECIFICATIONS ............................................................................................. 5
5.1. S
YSTEM
P
OWER
S
UPPLY
................................................................................................................................. 5
5.2. P
ROGRAMMABLE
H
IGH
C
URRENT
P
OWER
S
UPPLY
1-3 ................................................................................... 6
5.3. P
ROGRAMMABLE
F
AST
P
OWER
S
UPPLY
4 ....................................................................................................... 7
5.4. M
EASUREMENT SYSTEM
................................................................................................................................. 8
5.5. F
UNCTION
T
IMINGS
......................................................................................................................................... 8
6. UNIQUE FEATURES ............................................................................................................................. 9
6.1. M
INI
T
ESTER
................................................................................................................................................... 9
6.2. A
NALOGUE
V
ECTOR
G
ENERATOR
................................................................................................................... 9
6.3. A
CQUISITION MEMORY
.................................................................................................................................... 9
6.4. P
ORT
E A
TMEGA
128 ....................................................................................................................................... 9
7. MAIN BOARD DESCRIPTION ............................................................................................................ 10
7.1. B
OARD
L
AYOUT
............................................................................................................................................ 10
7.2. P
OWER
S
UPPLIES
........................................................................................................................................... 10
7.3. P
OWER
S
UPPLY SYSTEM CHECK
.................................................................................................................... 11
7.4. S
UPPLY
C
ONNECTOR
..................................................................................................................................... 11
7.5. LED I
NDICATORS
.......................................................................................................................................... 11
7.6. USB C
ONNECTOR
......................................................................................................................................... 11
7.7. RS 232 C
ONNECTOR
..................................................................................................................................... 11
7.8. R
ESET BUTTON
.............................................................................................................................................. 11
7.9. D
AUGHTER BOARD
C
ONNECTORS
................................................................................................................. 12
8. DAUGHTER BOARD CONCEPT ........................................................................................................ 14
8.1. B
ACKGROUND
............................................................................................................................................... 14
8.2. R
EQUIREMENTS
............................................................................................................................................. 14
9. RS 232 COMMUNICATION WITH HOST ........................................................................................... 15
9.1. C
ONNECTOR
.................................................................................................................................................. 15
9.2. C
ABLE
........................................................................................................................................................... 15
9.3. S
ETTINGS
...................................................................................................................................................... 15
10. USB COMMUNICATION WITH HOST ................................................................................................ 16
10.1. C
ONNECTORS
................................................................................................................................................ 16
10.2. C
ABLE
........................................................................................................................................................... 16
10.3. S
ETTINGS
...................................................................................................................................................... 16
11. MEASUREMENT SYSTEM ................................................................................................................. 17
11.1. C
HANNELS
.................................................................................................................................................... 17
11.2. C
ONVERSION TIME
........................................................................................................................................ 17
11.3. A
CCURACY
................................................................................................................................................... 17
12. ESD PRECAUTIONS ........................................................................................................................... 17
13. MECHANICAL OUTLINES .................................................................................................................. 18
14. DISCLAIMER ....................................................................................................................................... 19
3901290014501
Rev. 1.7
Page 4 of 19
Data Sheet PTC04
January 2014
PTC04
Programmer for Melexis PTC devices
3. Glossary of Terms
PTC04:
DB:
The programmer (including the applicable DB)
Daughter board
4. Absolute Maximum Ratings
Supply Voltage (External input)
Reverse Voltage Protection
Supply Current
PPS 1,2,3 Output
PPS 1,2,3 Current (peak value)
PPS 4 : Output Current, I
OUT
(peak value)
Operating Temperature Range, T
A
Operating Temperature Range, T
S
48V
Yes
1 A Fused
34 V
500mA
50 mA
25
C
0C – 55
C
Exceeding the absolute maximum ratings may cause permanent damage. Exposure to absolute-
maximum-rated conditions for extended periods may affect device reliability.
5. PTC04 Electrical Specifications
5.1. System Power Supply
DC Operating Parameters T
A
= 25-35
o
C, V ext = 48V (unless otherwise specified)
Parameter
DC System Power Supply
System Current Consumption
Daughter Board Analog Power Supply *
500
Daughter Board Digital Power Supply
5
500
* Depends on the DC System Power Supply
Symbol
Vext_in
IExt_in
Test Conditions
Min
23
0.1
Typ
48
Max
48.2
1.2
36
Unit
V
A
V
mA
V
mA
3901290014501
Rev. 1.7
Page 5 of 19
Data Sheet PTC04
January 2014
