Since its foundation in 1946, the LEMO company has been the inventor of the fast latching Push-Pull system in the field
of professional connectors. This system was patented in 1957. In 1991 the company patented a new latching system for
DIN 1.0/2.3 and 1.6/5.6 connectors; in 1997 for a hermaphroditic system and in 2008 for an inverted system.
The LEMO Group contributed to the definition of international connector standards, such as the NIM-CAMAC CD/N 549
for nuclear research with the 00.250 series and the ANSI/SMPTE 304/311M, EBU R100 and ARIB BTA S-1005B standards
with the 3K.93C fibre optic series in the professional HD TV sector.
The modular design of LEMO products provides for unlimited number of connector combinations. This vast choice
makes it possible to find the ideal connector configuration to meet the majority of market requirements: for medical or
measurement instruments, machines, audio-video broadcast equipment, telecommunications, the defence market or
nuclear research.
The selection of the right connector for a project is an important and sometimes difficult process.
LEMO offers professional support for finding the best solution for you. You are welcome to contact LEMO subsidiaries
and local partners for technical and sales assistance.
For some applications unique design is required. LEMO studies your requirements and provides the connector that
corresponds to your specific needs.
UL Recognition
LEMO connectors are recognized by the Underwriters
Laboratories (UL). The approval of the complete system
(LEMO connector, cable and your equipment) will be eas-
ier because LEMO connectors are approved.
REACH declaration
REACH concerns all industrial sectors as well as all the par-
ticipants in the supply chain. As far as REACH regulation is
concerned, LEMO is a producer of items made from fin-
ished products.
In cooperation with our suppliers and according to our
supply channels, we are kept informed about their proce-
dures of pre-registration and we guarantee the safety
of utilisation of the items that we supply to you. The Euro-
pean Chemical Agency (ECHA) has published a List of
Substance of Very High Concern (SVHC) on its webpage.
We declare that LEMO articles do not contain any sub-
stance of Very High Concern (SVHC).
CE marking
CE marking
means that the appliance or equipment
bearing it complies with the protection requirements of
one or several European safety directives.
CE marking
applies to complete products or equip-
ment,
but not to electromechanical components, such
as connectors.
RoHS
LEMO connector specifications exceed the requirements
of the RoHS directive (2011/65/EU) of the European
Parliament and the latest amendments.
This directive specifies the restrictions of the use of
hazardous substances in electrical and electronic
equipment marketed in Europe.
ISO 9001: 2008 certification
Since 1990, all LEMO sales subsidiaries and production
plants are integrated in a unique global Quality manage-
ment system. This continuously improving system guar-
antees a service and quality level that meets the highest
customer requirements.
Permanent training programmes ensure that every LEMO
employee has the necessary know-how to perform a
good job and to be able to apply new working methods.
Production tools include automatic control devices and
error detection systems enabling zero defect.
u
al
i
t
y
S
dQ
ie
tem
ys
Cer
ti
IS
f
O9
08
0
01:20
Reg. No. 10472 - 03

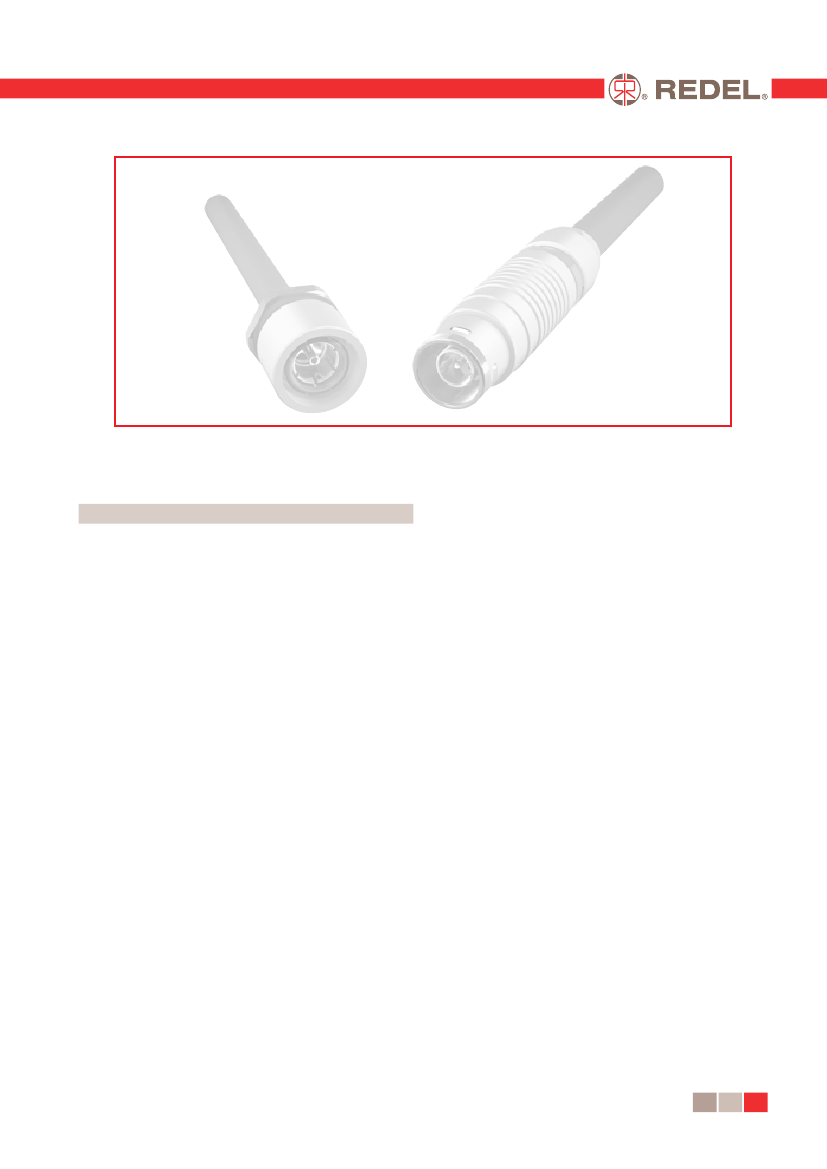

REDEL's engineering department, in cooperation with LEMO's R&D Laboratory, have
made a large number of improvements to the existing REDEL
F
series connectors, in
order to improve electrical performance, as well as other technical aspects.

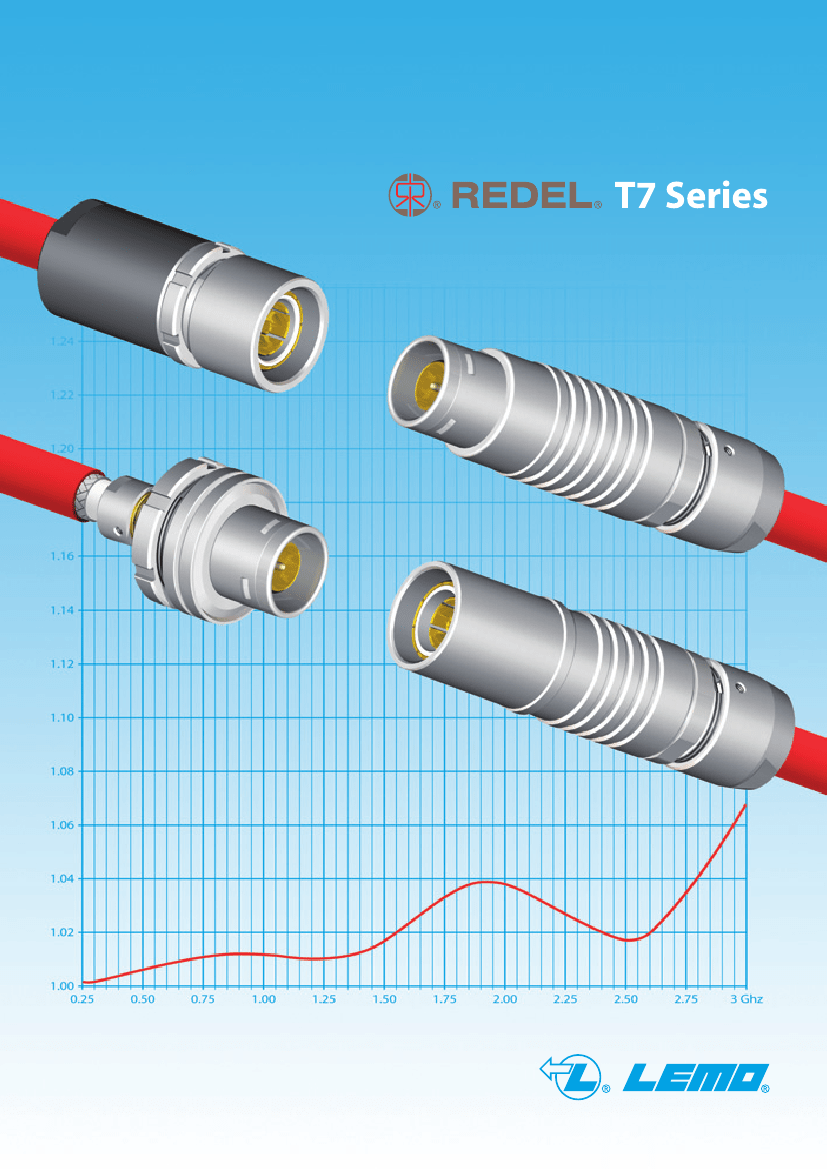

This new connector series is called "T7 series" and is
TOTALLY COMPATIBLE WITH
THE EXISTING REDEL F SERIES.
These connectors are used in all
triax HDTV
applications. They guarantee a
protection index of
IP68
(standard IEC 60529) and adapt to a larger range of triaxial
cables. At the same time, new models have been created to be able to meet our
customers' highest expectations.
The REDEL company is readily available to design new models which are not shown
in this catalogue, in order to meet our customers' current and future needs.
Index
Models and interconnections
...............................................................................................................................................................................................................................................................................
page 2
Plug and socket composition
................................................................................................................................................................................................................................................................................
page 3
Technical characteristics
................................................................................................................................................................................................................................................................................................
page 4
Recommended triaxial (75Ω) cables
..........................................................................................................................................................................................................................................................
page 5
Part numbering system
...................................................................................................................................................................................................................................................................................................
page 6
Part number conversion table
.............................................................................................................................................................................................................................................................................
page 7
Models
.........................................................................................................................................................................................................................................................................................................................................................
page 8
Plugs
........................................................................................................................................................................................................................................................................................................................................
page 8
Sockets
.................................................................................................................................................................................................................................................................................................................................
page 12
Adaptors
............................................................................................................................................................................................................................................................................................................................
page 17
Accessories
...........................................................................................................................................................................................................................................................................................................................................
page 20
Tooling
........................................................................................................................................................................................................................................................................................................................................................
page 22
Patch panels
.......................................................................................................................................................................................................................................................................................................................................
page 24
Cable assembly
.............................................................................................................................................................................................................................................................................................................................
page 25
Triax fibre optic Meerkat converter
.............................................................................................................................................................................................................................................................
page 26
LEMO SA structure
..................................................................................................................................................................................................................................................................................................................
page 28
LEMO 5 SA structure
............................................................................................................................................................................................................................................................................................................
page 29
REDEL SA structure
.................................................................................................................................................................................................................................................................................................................
page 30
COELVER SA structure
........................................................................................................................................................................................................................................................................................................
page 31
REDEL KfT structure
...............................................................................................................................................................................................................................................................................................................
page 32
1

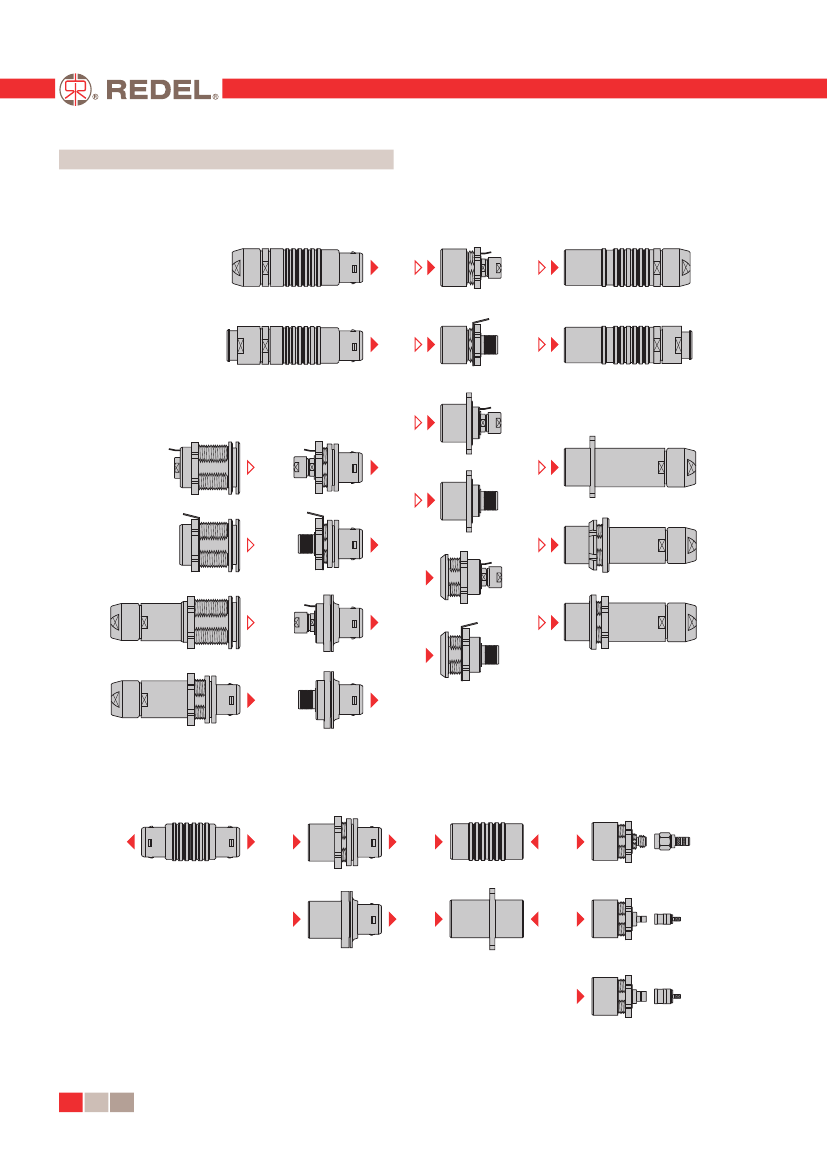

Models and Interconnections
Plugs
Fixed sockets
Free sockets
FAZ
FNZ
PCZ
FAZ
FNZ
PCZ
Fixed plugs
FMZ
Fixed sockets
FBZ
FCZ
FMZ
PTZ
FBZ
FCZ
FLZ
PAZ
FDZ
FPZ
FLZ
PSZ
FEZ
FDZ
Adaptators
AFF
ADF
AEE
AMA
ADZ
AED
AMB
AMZ
2

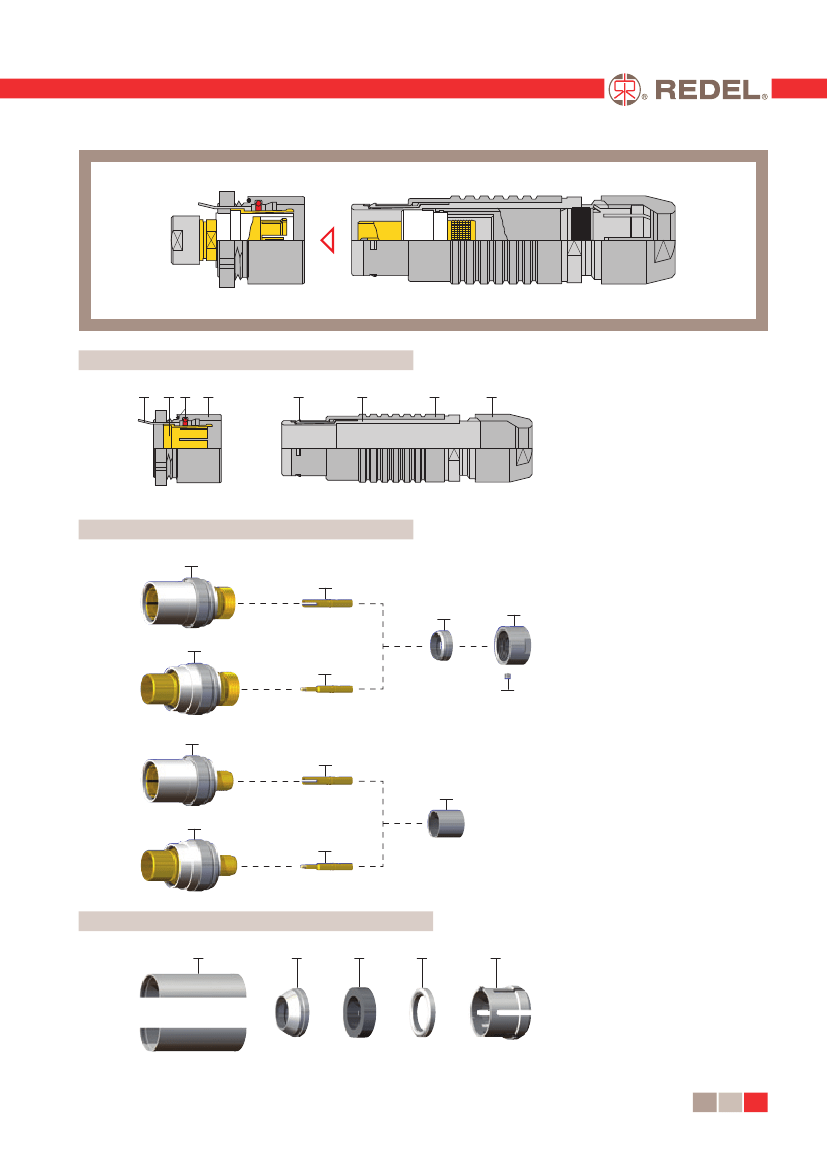

Shell components
2
3 4
1
5
6
1
7
1
2
3
4
5
6
7
Outer shell
Earthing contact
Earthing crown
O-rings
Latch sleeve
Inner sleeve
Collet nut
Coax components
1
2
5
3
4
7
8
2
10
9
4
6
1
Female contact carrier
(nut tightning)
2
Female contact
3
Male contact carrier
(nut tightning)
4
Male contact
5
Earthing cone
6
Collet nut
7
Security screw
8
Female contact carrier
(crimping)
9
Male contact carrier
(crimping)
10
Crimping tube
Cable clamping system components
1
2
3
4
5
1
2
3
4
5
Split insert
Earthing cone
Gasket
Metal washer
Collet
3
