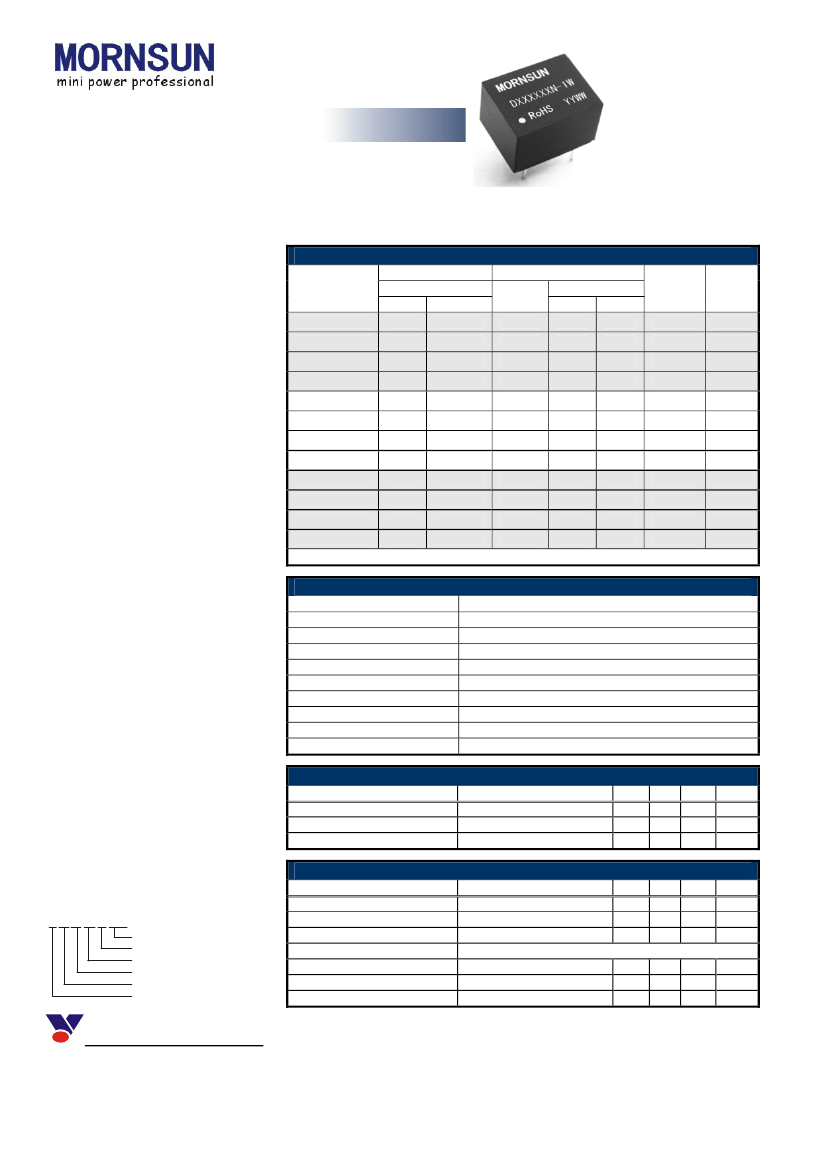

D_N-1W Series
FIXED INPUT ISOLATED & UNREGULATED
1W OUTPUT TWIN INDEPENDENT OUTPUT
MINIATURE DIP PACKAGE
FEATURES
●
Efficiency up to 81%
●
Small Footprint
●
Super miniature DIP Package
●
Twin Output Voltage
●
1KVDC Isolation
●
Temperature Range: -40
°C
~+85
°C
●
Industry Standard Pinout
●
UL94-V0 Package
●
No Heat sink Required
●
No External Component Required
●
PCB Mounting
●
RoHS
Compliance
RoHS
multi-country patent protection
Output
Io1, Io2 (mA)
Vo1, Vo2
(VDC)
Max
Min
5
9
12
15
5
9
12
15
5
9
12
15
100
56
42
33
100
56
42
33
100
56
42
33
10
6
4
3
10
6
4
3
10
6
4
3
PRODUCT PROGRAM
Part
Number
D050505N-1W
D050909N-1W
D051212N-1W
D051515N-1W
D120505N-1W
D120909N-1W
D121212N-1W
D121515N-1W
D240505N-1W
D240909N-1W
D241212N-1W
D241515N-1W
Input
Voltage (VDC)
Nominal
Range
5
5
5
5
12
12
12
12
24
24
24
24
4.5~5.5
4.5~5.5
4.5~5.5
4.5~5.5
10.8~13.2
10.8~13.2
10.8~13.2
10.8~13.2
21.6~26.4
21.6~26.4
21.6~26.4
21.6~26.4
Efficiency
(%, Typ)
72
75
78
79
74
76
79
80
74
76
80
81
Package
Style
DIP
DIP
DIP
DIP
DIP
DIP
DIP
DIP
DIP
DIP
DIP
DIP
APPLICATIONS
The D_N-1W Series are specially designed
for applications where a group of polar power
supplies are isolated from the input power
supply in a distributed power supply system
on a circuit board.
These products apply to:
1) Where the voltage of the input power
supply is fixed (voltage variation
≤±
10%);
2) Where isolation is necessary between input
and output (isolation voltage =1000VDC);
3) Where the regulation of the output voltage
and the output ripple and noise are not
demanding.
Such as: purely digital circuits, ordinary low
frequency analog circuits and IGBT power
device driven circuits, etc.
These products don’t apply to:
1) Where the input supply voltage is varied
(variation
≥±
10%), otherwise our company’s
WRA series is recommended;
2) Where the isolation voltage between input
and output is required to be
>
1000VDC,
otherwise our company’s ED Series of
products are recommended;
3) Circuits in which the output voltage
regulation is demanding, otherwise our
company’s IF Series or WRF Series are
recommended;
4) The output load’s actual power
consumption is less than 0.25W, otherwise
our company’s D_N-0.25W Series are
recommended.
Note: here
Io1and Io2 are corresponded with Vo1and Vo2
.
COMMON SPECIFICATION
Short circuit protection
Temperature rise at full load
Cooling
No load power consumption
Operation temperature range
Storage temperature range
Lead temperature*
Storage humidity range
Case material
MTBF
1 second
25
°
C MAX, 15
°
C TYP
Free air convection
10% nominal power (typical)
-40
°
C
~
+85
°
C
-55
°
C
~
+125
°
C
300
°
C (1.5mm from case for 10 seconds)
≤95%
Plastic(UL94-V0)
>3,500,000 hours
ISOLATION SPECIFICATIONS
Item
Isolation voltage
Isolation resistance (Vin/Vout)
Isolation resistance (Vo1/Vo2)
Test condition
Tested for 1 minute
Test at 500VDC
Test at 500VDC
Min
1000
1000
1000
Typ
Max
Units
VDC
MΩ
MΩ
OUTPUT SPECIFICATIONS
Item
Output power
Line regulation
Load regulation
Output voltage accuracy
Temperature drift
Output ripple
Switching frequency
Test condition
For Vin change of 1%
10% to 100% full load
See tolerance envelope graph
100% full load
20MHz Bandwidth
Full load, nominal input
Min
0.1
Typ
Max
1
1.2
15
0.03
75
Units
W
%
%
%/
°
C
mVp-p
KHz
MODEL SELECTION
D050505N-1W
Rated Power
Package Style
The Secend Output Voltage
The First Output Voltage
Input Voltage
Product Series
50
100
MORNSUN Science& Technology Ltd.
Address: 8th floor 8th building Huangzhou
Industrial District, Guangzhou, China
Tel: 86-20-38601850
Fax: 86-20-38601272
Http: //www.mornsun-power.com
Note:
1.All specifications measured at TA=25
°C
, humidity<75%, nominal input voltage and rated output load unless
otherwise specified.
2.See below recommended circuits for more details.
MORNSUN reserves the copyright
Edition: A
NOV-2005
Page 1 of 2

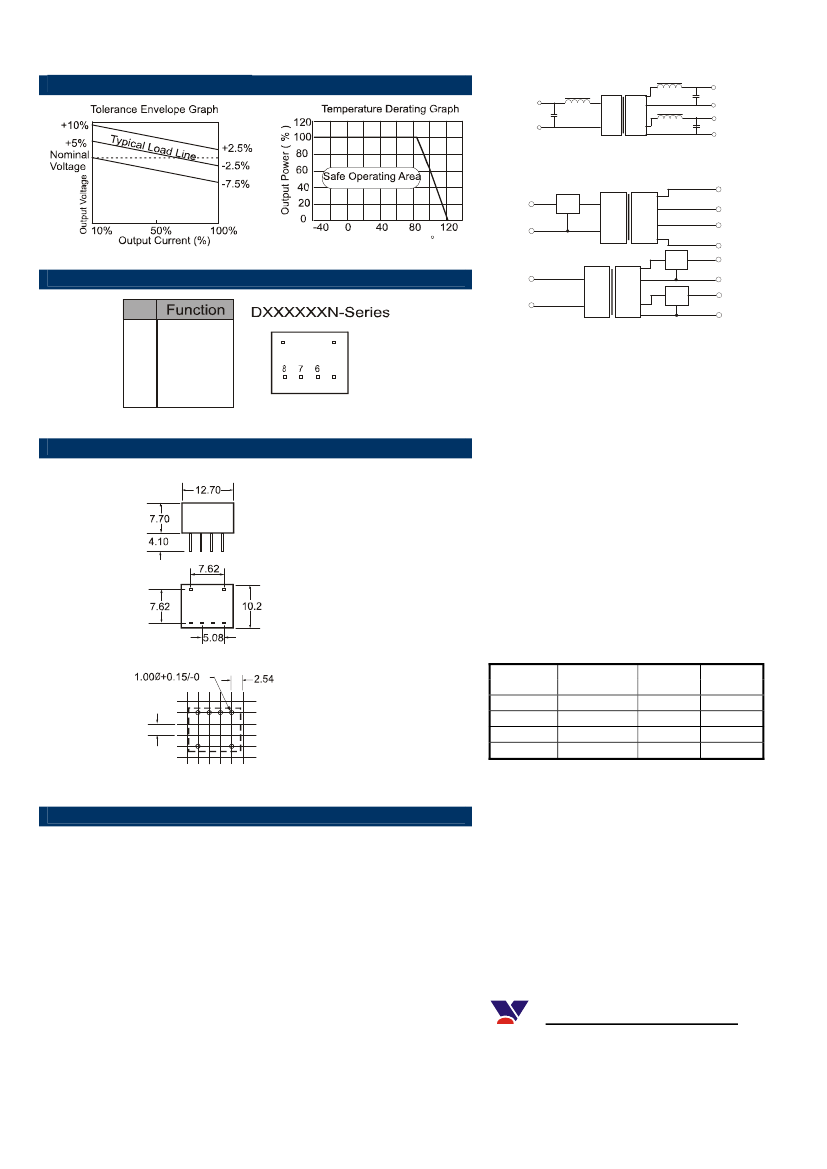

TYPICAL CHARECTERISTICS
Vin
L
L
C
GND
+Vo1
C
DC DC
<Figure 1>
L
C
0V1
+Vo2
0V2
Vo1
Vin
REG
DC DC
REG
0V1
Vo2
0V2
+Vout
0V
Ambient Temperature
(
C
)
GND
FOOTPRINT DETAILS
Pin
1
4
5
6
7
8
GND
Vin
+Vo1
0V1
+V02
0V2
1
4
5
Vin
DC DC
GND
REG
+Vout
0V
<Figure 2>
Overload Protection
Under normal operating conditions, the output
circuit of these products has no protection
against over-current and short-circuits. The
simplest method is to connect a self-recovery
fuse in series at the input end or add a circuit
breaker to the circuit.
OUTLINE DIMENSIONS& RECOMMENDED FOOTPRINT
DXXXXXXN-1W Package
Side View
Output
Voltage
Regulation
Over-voltage Protection Circuit
and
The simplest device for output voltage
regulation, over-voltage and over-current
protection is a linear voltage regulator with
overheat protection that is connected to the
input or output end in series (see Figure 2).
1
4
8
7
6 5
Bottom View
DXXXXXXN-1W Footprint
2.54
External Capacitor Table
V
in
5VDC
External
capacitor
4.7uF
2.2uF
1uF
--
V
out
5VDC
9VDC
12VDC
15VDC
External
capacitor
10uF
4.7uF
2.2uF
1uF
87 6 5
1
4
12VDC
24VDC
--
Note: All Pins on a 2.54mm pitch; All Pin diameters are 0.50 mm; all dimensions in mm.
APPLICATION NOTE
Filtering
In some circuits which are sensitive to noise and ripple, a filtering capacitor
may be added to the DC/DC output end and input end to reduce the noise
and ripple. However, the capacitance of the output filter capacitor must be
proper. If the capacitance is too big, a startup problem might arise. For every
channel of output, provided the safe and reliable operation is ensured, the
greatest capacitance of its filter capacitor sees the external capacitor table.
To get an extremely low ripple, an “LC” filtering network may be connected
to the input and output ends of the DC/DC converter, which may produce a
more significant filtering effect. It should also be noted that the inductance
and the frequency of the “LC” filtering network should be staggered with the
DC/DC frequency to avoid mutual interference (see figure 1).
Requirement On Output Load
To ensure this module can operate efficiently and reliably, a minimum load is
specified for this kind of DC/DC converter in addition to a maximum load
(namely full load). During operation, make sure the specified range of input
voltage is not exceeded, the minimum output load is
not less than 10%
of
the full load, and that this product should never be operated under no load!
MORNSUN reserves the copyright
MORNSUN Science& Technology Ltd.
Address: 8th floor 8th building, Huangzhou Industrial
District, Guangzhou, China
Tel: 86-20-38601850
Fax: 86-20-38601272
Http: //www.mornsun-power.com
Edition: A
NOV-2005
Page 2 of 2
