REVISION E
DO NOT
SCALE FROM
THIS PRINT
Pb THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
BE25M-XXXXX-XX.X-XX-XXXX
CABLE CALLOUT END 1
25M: CCA-25M CABLE WITH
PRB3-P-C-X-ST-CA5 CONNECTOR
(SEE SHEET 2).
OVERALL CABLE LENGTH (MILLIMETERS)
(SEE NOTES 8 & 9)
0100-9999 [3.9 - 393.7]
(STOCKED LENGTHS AS FOLLOWS)
-0152: (6 INCHES)
-0305: (12 INCHES)
-0457: (18 INCHES)
-0914: (36 INCHES)
No. OF PHASE MATCHED CABLES
-01: NO PHASE MATCHING (1 CABLE
FOR THIS PART NUMBER)
-02: (2 CABLES FOR THIS PART NUMBER)
-04: (4 CABLES FOR THIS PART NUMBER)
-06: (6 CABLES FOR THIS PART NUMBER)
-08: (8 CABLES FOR THIS PART NUMBER)
C
CABLE STRIPPING DIMENSIONS
PER CONFIGURATIONS
(SEE TABLE 1)(SEE NOTES 10, 11,12,13)
"A" mm
"B" mm
"C" mm
C
FIG 2
END 2 CONNECTOR
(SEE NOTE 15)
-01BJ: SMA-J-C-X-ST-BH5 (SEE SHEET 2)
-01SP: SMA-P-C-X-ST-CA5 (SEE SHEET 2)
-SCC3: PRB3-P-C-X-ST-CA5 (STD. FERRULE)(SEE SHEET 2)
-00SJ: SMP-J-C-XX-ST-CA5 (SEE SHEET 2)
-00RJ: SMP-J-C-XX-RA-CA5 (SEE SHEET 2)
END 2 PLATING OPTION
1: GOLD ALL COMPONENTS
7. ALTERNATE GOLD MEDIUM/ GOLD FLASH
8. ALTERNATE HEAVY GOLD/MEDIUM GOLD
(SEE SHEET 2 FOR PLATING SPECIFICS)
"D" mm
"E" mm
C
C
PHASE MATCHING SPEC
-00.0: NO PHASE MATCHING
* -02.0: 2.0 PICO-SECOND
** -05.0: 5.0 PICO-SECONDS
-10.0: 10.0 PICO-SECONDS
(SEE NOTE 14)
* NOT AVAILABLE WITH -0457 AND -0914 CABLE LENGTH
**NOT AVAILABLE WITH -0914 CABLE LENGTH
PATENT NUMBER
7,544,093
END 1
25M: PRB3-P-C-H-ST-CA5
END 2
(VARIABLE, SEE PART CALLOUT)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION
2. CABLE CUT LENGTH:
= (LENGTH: XXXX) - (SUBTRACTOR FOR END 1) - (SUBTRACTOR FOR END 2)
(SEE TABLE 1 FOR SUBTRACTORS)
3. ASSEMBLY TO BE 100% TESTED FOR OPENS & SHORTS
4. ASSEMBLY TO BE 100% HI-POT TESTED PER TABLE 1
5. AFTER FINAL ELECTRICAL TESTS, LABEL EACH CABLE ASSEMBLY WITH 1 LABEL -ET
6. CRITICALS ON CONNECTOR PRINTS TO BE CHECKED IN PROCESS.
7. FINISHED ASSEMBLIES TO BE PACKAGED IN OPAQUE BAGS. LOCK WASHERS AND NUTS TO
BE SHIPPED UNASSEMBLED. GASKETS TO BE INSTALLED ON CABLE.
8. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS
9. CABLE LENGTHS LONGER THAN 1000 MILLIMETERS ARE NOT SUPPORTED BY S.I. TEST DATA
10. PRODUCTION OF STRIP AND TIN FOR CENTER DIELECTIC USE: A
11. PRODUCTION OF STRIP AND TIN FOR SHIELD USE: D=A+B
12. PRODUCTION OF STRIP AND TIN FOR JACKET USE: E=A+B+C
13. DIM "A", "B", AND "C" HAVE A MINIMUM VALUE OF 0.0mm & A MAXIMUM VALUE OF 9.9mm.
14. PARTS TO BE PHASE MATCHED PER CO-HD-WI-3062-M.
15. FERRULE AND SPRING ARE FREE FLOATING AND ARE NOT STATIONARY.
LENGTH: XXXX
(SEE TABLE 2 FOR TOLERANCE)
(SEE NOTE 2 FOR CABLE CUT LENGTH)
C
BE25M-01SPX-00.0-00-XXXX SHOWN
C
C
FIG 1
F:\DWG\MISC\MKTG\BE25M-XXXXX-XX.X-XX-XXXX-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS [INCHES].
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TOLERANCES ARE:
DECIMALS
.X: 0.3 [.01]
2
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
SEE END 1 AND END 2 ASSEMBLY PRINTS
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.

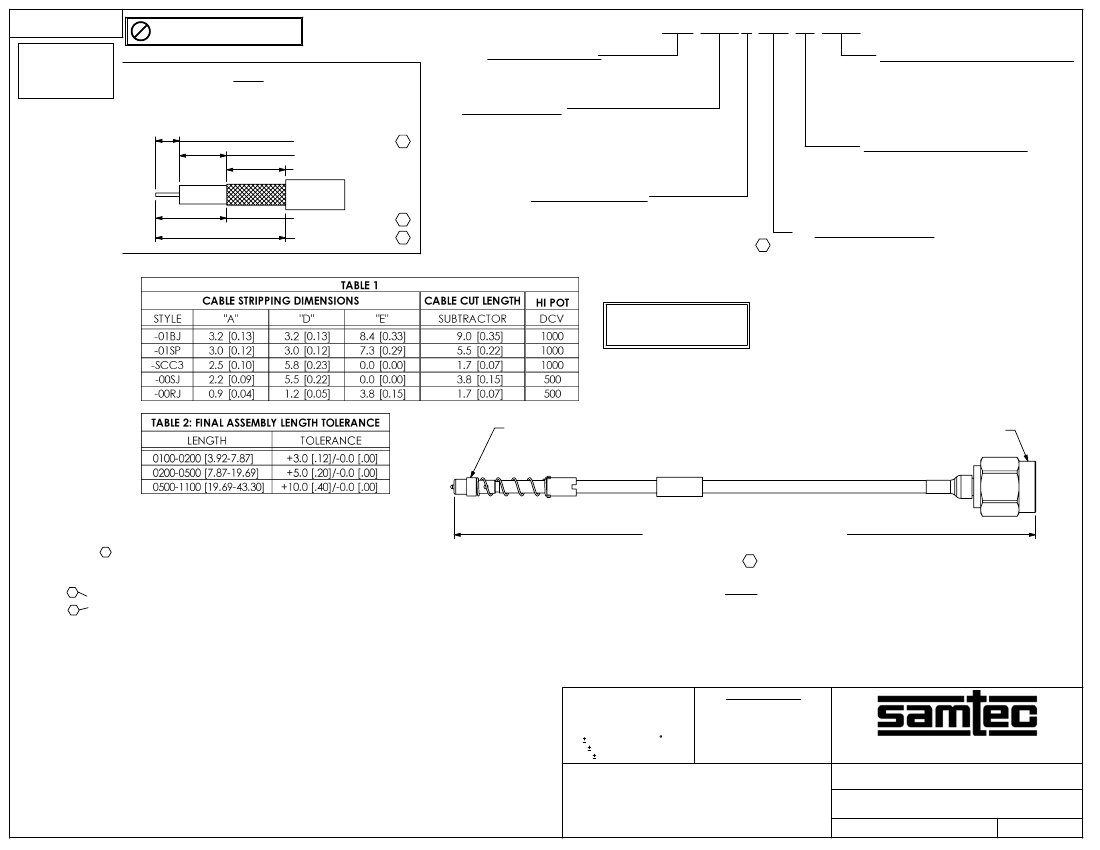

BULLSEYE 25X CABLE ASSEMBLY
BE25M-XXXXX-XX.X-XX-XXXX
TALON Z
01/07/2010
BY:
SHEET
1
OF
2
