FFSD-16-D-1.00-01-N-RN2 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> FFSD-16-D-1.00-01-N-RN2

FFSD-16-D-1.00-01-N-RN2: DescriptionCable Assembly; CategoryThe connector Connector bracket; File Size215KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

FFSD-16-D-1.00-01-N-RN2 Overview

Cable Assembly

FFSD-16-D-1.00-01-N-RN2 Parametric

Parameter Name	Attribute value
Objectid	1353740990
Reach Compliance Code	compliant
Connector bracket type	CABLE ASSEMBLY

Preview

Download Datasheet

View All

REVISION AG

DO NOT

SCALE FROM

THIS PRINT

NOTES:

1. HIDDEN LINES ARE USED TO SHOW POLARIZATION

WHEN USING -N OPTION.

REPRESENTS A CRITICAL DIMENSION.

3. FFSD CABLE ASSEMBLIES ARE LEAD FREE.

4. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED

FOR SHORTS AND OPENS.

5. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 630V.

6. STRAIN RELIEF TO WITHSTAND 5LB[22N] STRAIGHT PULL.

7. NOTE DELETED.

8. WHEN CUTTING CABLE TO LENGTH, CONDUCTORS MAY

NOT EXTEND PAST THE CABLE INSULATION.

9. REFERENCE FFSD-XX-XX-X-N-XXX FOR CONNECTOR ASSEMBLY

DIMENSIONS AND ITS REQUIREMENTS.

FFSD-XX-X-XX.XX-01-X-X-XXX

OPTION

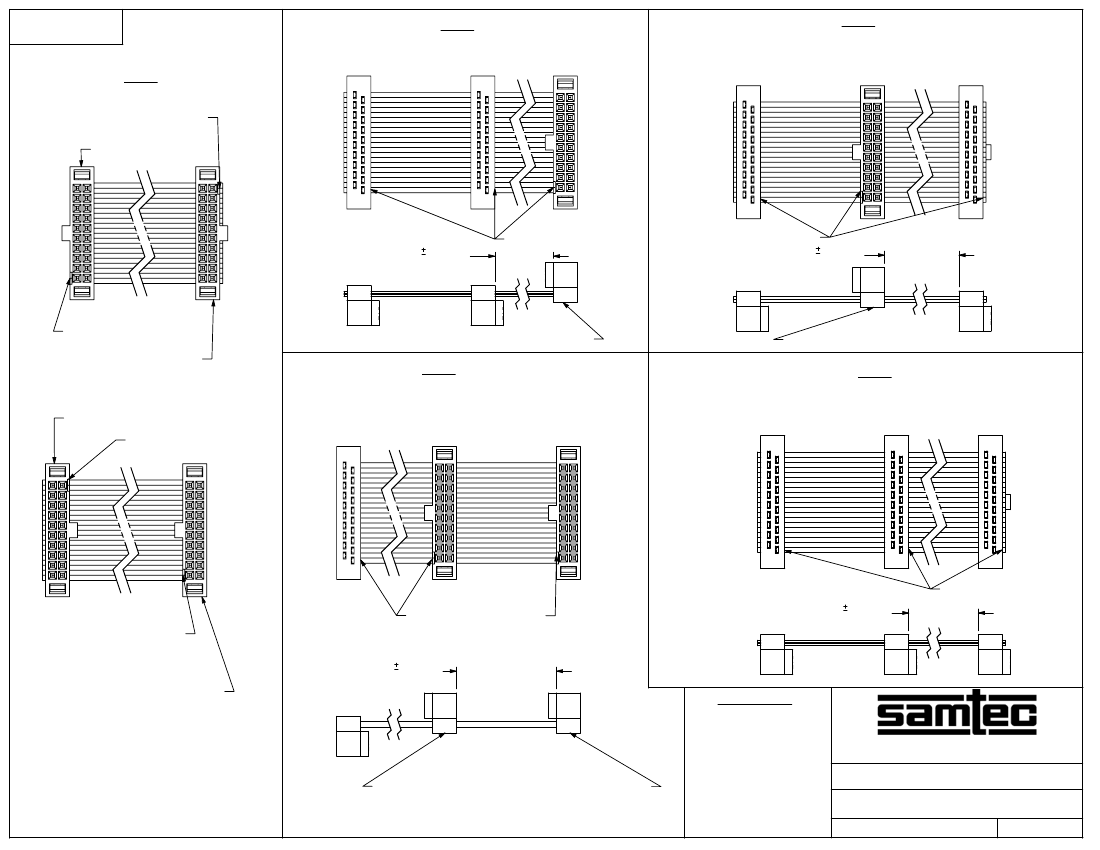

-RW: REVERSE WIRING

(NOT AVAILABLE WITH -RN1 OR -RN2)

-D"XX": DAISY CHAIN (MINIMUM 2.00[50.8],

1.00[25.4] INCREMENTS)

AG -R: REVERSED

(NOT AVAILABLE WITH -M OR -O)

(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)

-RN1: REVERSE POLARIZATION NOTCH

(NOT AVAILABLE WITH -RW OR -RN2)

-RN2: REVERSE POLARIZATION NOTCH

(NOT AVAILABLE WITH -RW OR -RN1)

AG -M: MIDDLE REVERSE

(NOT AVAILABLE WITH -R OR -O)

(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)

AG -O: OUTSIDE REVERSE

(NOT AVAILABLE WITH -R OR -M)

(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)

-SR: STRAIN RELIEF

(NOT AVAILABLE WITH -O, -M,

-R, OR -DXX)

(SOLD AS ASSEMBLIES ONLY)

STANDARD POLARIZATION NOTCH

-N: POLARIZATION NOTCH

(NOT AVAILABLE IN -02 THRU -04)

(LEAVE BLANK FOR -02, -03, -04)

No OF POSITIONS

-02 THRU -25

(PER ROW)

END ASSEMBLY

-S: SINGLE END

-D: DOUBLE END

ASSEMBLY LENGTH

-D"XX", -R, -M & -O OPTION: 2.00[50.8] MINIMUM

ALL OTHER OPTION: 1.00[25.4] MINIMUM

LEAD STYLE

PLATING OPTIONS

- LEAVE BLANK FOR STANDARD, USE C-67-L

-S: USE C-67-S

-F: USE C-67-F

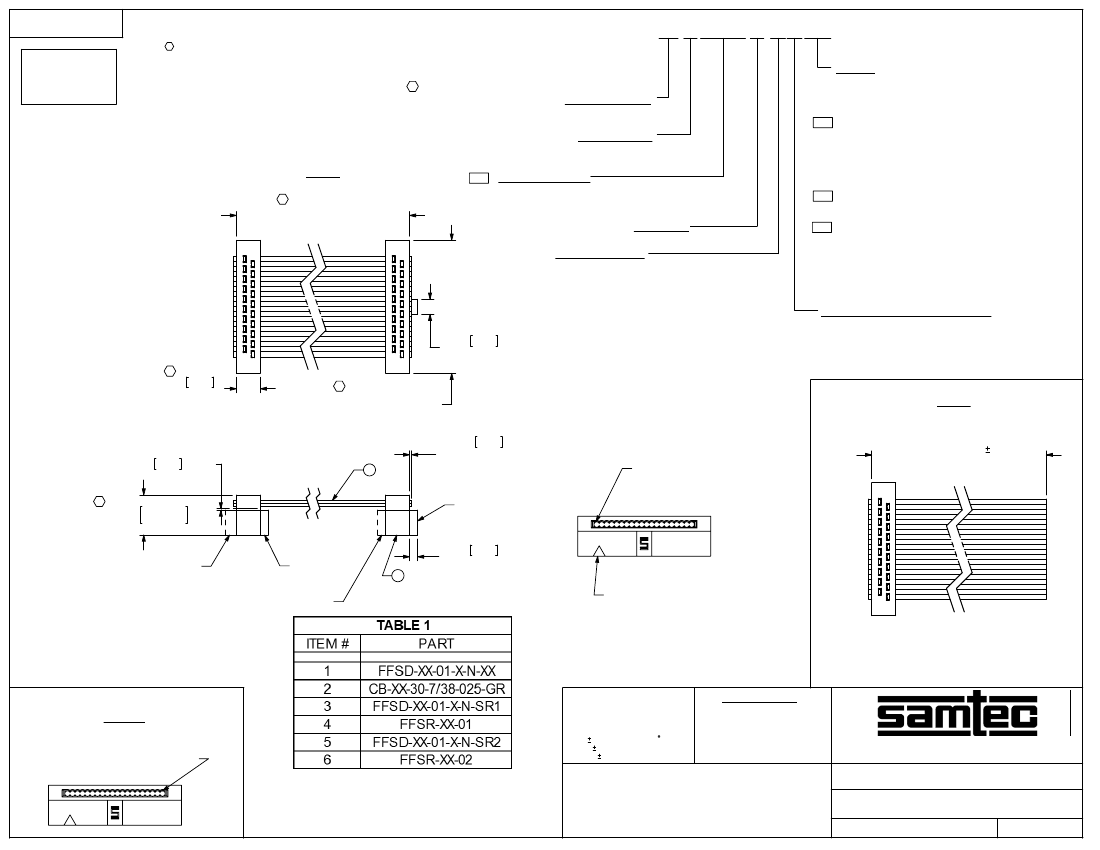

(FFSD-10-D-XX.XX-01-X-N SHOWN)

XX.XX[XX.X x 25.4] ±.13[3.2]

(SEE NOTE 8)

FIG 1

.075 1.91

REF

.120 3.05

REF

(No OF POS x .050[1.27])

+ .165[4.19] REF

.010 0.25 MAX

CABLE OVERHANG

(SEE NOTE 8)

-N OPTION

(FFSD-10-S-XX.XX-01-X-N SHOWN)

(SAME AS FIG 1, DIFFERENT AS SHOWN)

XX.XX[XX.X x 25.4] .13[3.2]

(SEE NOTE 8)

FIG 2

.006 0.15 MAX

COLORED WIRE TO SIDE

OF FIRST POS INDICATOR

.200

- .003

5.08

- 0.08

+.006

+0.15

-RN1 OPTION

-N OPTION

-RN2 OPTION

.040 1.02

REF

NOTCH DENOTES

FIRST POSITION

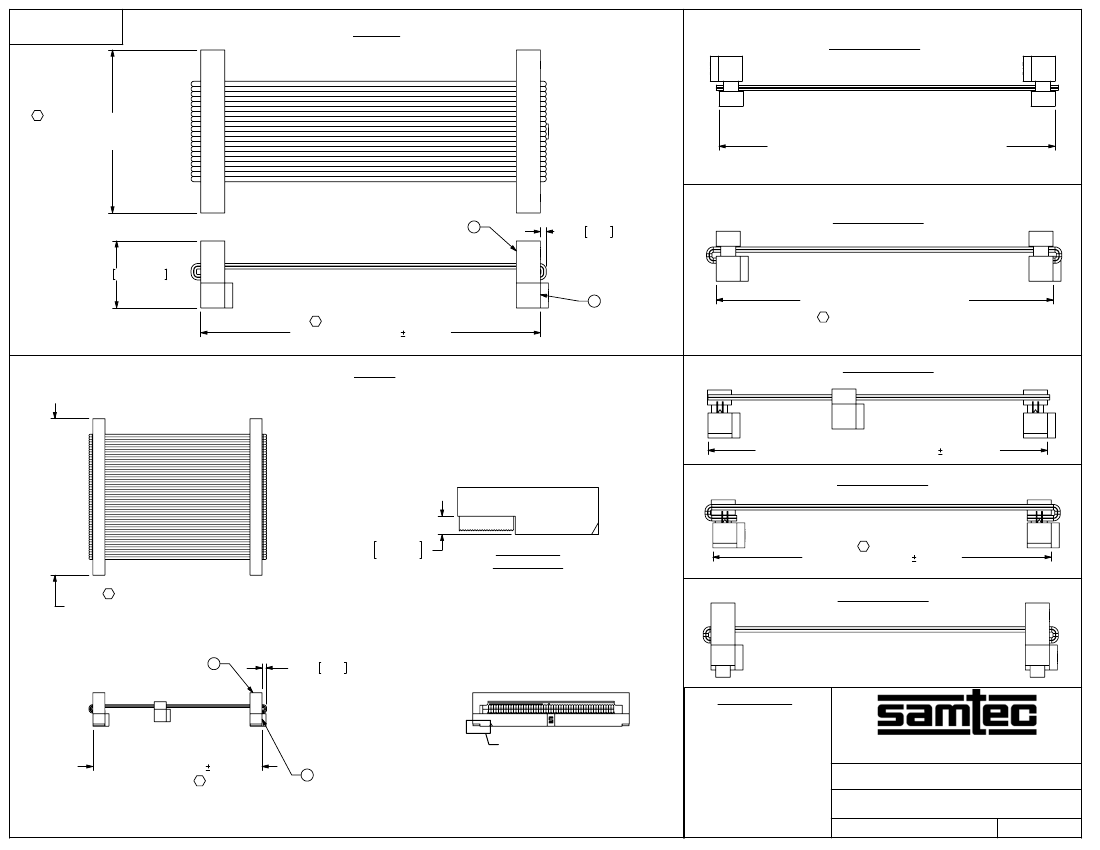

(FFSD-10-X-XX.XX-01-X-N-RW SHOWN)

COLORED WIRE TO OPPOSITE

SIDE OF FIRST POS. INDICATOR

FIG 11

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

F:\DWG\MISC\MKTG\FFSD-XX-X-XX.XX-01-X-X-XXX-MKT.SLDDRW

INSULATORS: PBT, COLOR: BLACK

CONTACT: BeCu

WIRE: 30 AWG, 7/38, TINNED, STRANDED WITH

GRAY PVC INSULATOR

PLATING: .000010 GOLD OVER .000050 NICKEL

REMAINDER: .000200 REF TIN OVER .000050 NICKEL

.050 x .050 DOUBLE ROW FEMALE IDC ASSEMBLY

DWG. NO.

FFSD-XX-X-XX.XX-01-X-X-XXX

02/15/2008

SHEET

BY:

T NEWTON
