REVISION R
DO NOT
SCALE FROM
THIS PRINT
.118 REF
02
TSH-1XX-XX-XX-DX-XX
((No OF POS +2) x .07874) .010
C
(No OF POS -1)
x .07874
No OF POSITIONS
-05 THRU -48
(PER ROW)
LEAD STYLE
-01: .126 (USE T-1S13-07-XX-2)
-04: .075 (USE T-1S13-04-XX-2)
-05: .065 (USE T-1S13-20-XX-2)
.203 REF
.112
REF
01
.07874 REF
.158 REF
PLATING SPECIFICATION
OPTION
-LC: LOCKING CLIP (-DV ONLY)
(USE LC-09-TM)
(SEE FIG 3, SHEET 2, SEE NOTE 14)
-A: ALIGNMENT PIN (-DV ONLY)
(USE TMSH-XX-D-ES-XX-A)
(SEE FIG 3, SHEET 2)
*-M: METAL PICK & PLACE PAD
(-DV ONLY, USE LMP-04)
(SEE FIG 4, SHEET 2)
-TR: TAPE & REEL
(34 POSITION MAX ,-DV ONLY)
ROW SPECIFICATION (SEE NOTE 12)
-D: DOUBLE THROUGH (SEE FIG 2)
(USE TMSH-XX-D-ES)
-DV: DOUBLE VERTICAL (SEE FIG 1)
(USE TMSH-XX-D-ES)
* = FOR EXISTING CUSTOMERS ONLY
.020 SQ REF
((No OF POS x .07874)
+ .023) REF
.051 REF

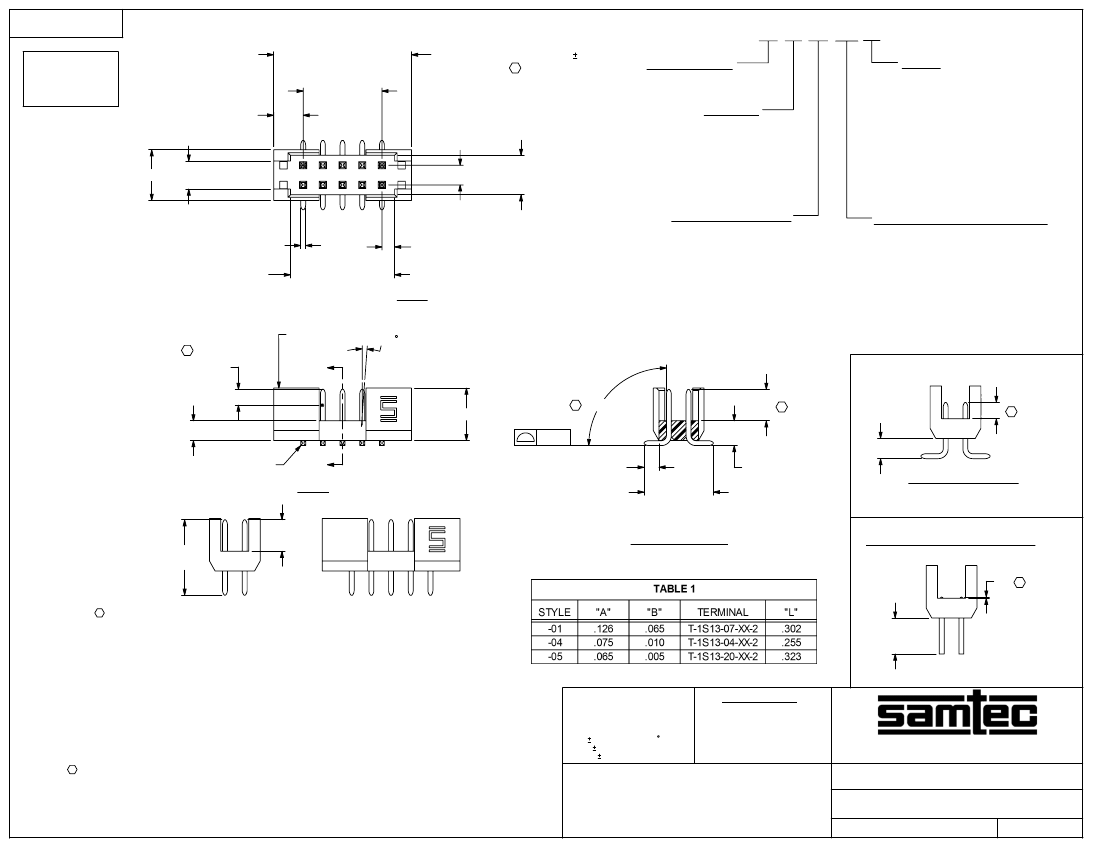

FIG 1
TSH-105-01-XX-DV SHOWN
TMSH-XX-D-XX-ES
2 MAX SWAY
(ANY DIRECTION)
-G: 20µ" GOLD IN CONTACT AREA, 3µ" ON TAIL
-T: MATTE TIN CONTACT AND TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-L: 15µ" LIGHT SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA, 3µ" ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-TM: MATTE TIN CONTACT AND TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-LM: 15µ" LIGHT SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
CONTACT AREA
(SEE NOTE 9)
C
"A"
.210 REF
.079 REF
T-1S13-XX-XX-2
"A"
.0060
C
90°±3°
"A"
C
"B"
.081
C
.060 REF
.277±.010
(SEE NOTE 10)
TSH-105-01-XX-D SHOWN
"A"
"L"
REF
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY TO BE WITHIN .0060.
3. BURR ALLOWANCE: .0015 MAX.
4. MAXIMUM CUT FLASH: .020.
5. MINIMUM PUSHOUT FORCE: 1.0 LB.
6. MAXIMUM ALLOWABLE BOW: .002 INCH/INCH AFTER ASSEMBLY.
7. MEASURED AT BEND RADIUS, NOT AT TIP OF PIN.
8. ALL POSITIONS AND ALL OPTIONS TO BE TUBED.
9. GOLD PLATING TO BE ON POST, TIN PLATING ON TAIL (ONLY APPLIES
TO SELECTIVE PLATING OPTIONS).
10. SURFACE MOUNT STYLE -05: TAILS TO BE SHEARED TO ACHIEVE DIM.
11. PRINT CREATED FROM TMSH-ASM REVISION E. SEE TMSH-ASM FOR
REVISION HISTORY.
12. SEE TSH-1XX-XX-X-XX-XX FOR -DH & -RA ROW SPECIFICATIONS.
C
13. ORIENTATE PINS TO REDUCE THE NUMBER OF BANDOLIER MARKS IN
THE POST AREA. (SEE TABLE 2).
14. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC
OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC
RECOMMENDS MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE
-LC OPTION.
FIG 2
.099
- .002
(SEE NOTE 7)
+.005
IN-PROCESS (-DV)
SECTION "A"-"A"
STYLE -05 IN-PROCESS (-DV)
"B"
C
.144±.010
(SEE NOTE 10)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01
.XXX: .005
.XXXX: .0020
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
INSULATOR: LCP, UL 94 VO
COLOR: BLACK
TERMINAL: PHOS BRONZE, ALLOY No 510
F:\DWG\MISC\MKTG\TSH-1XX-XX-XX-DX-XX-MKT.SLDDRW
2mm END SHROUD TERMINAL ASSEMBLY
TSH-1XX-XX-XX-DX-XX
07-02-2010
SHEET
1
OF
2
BY:
DEAN P
REVISION R

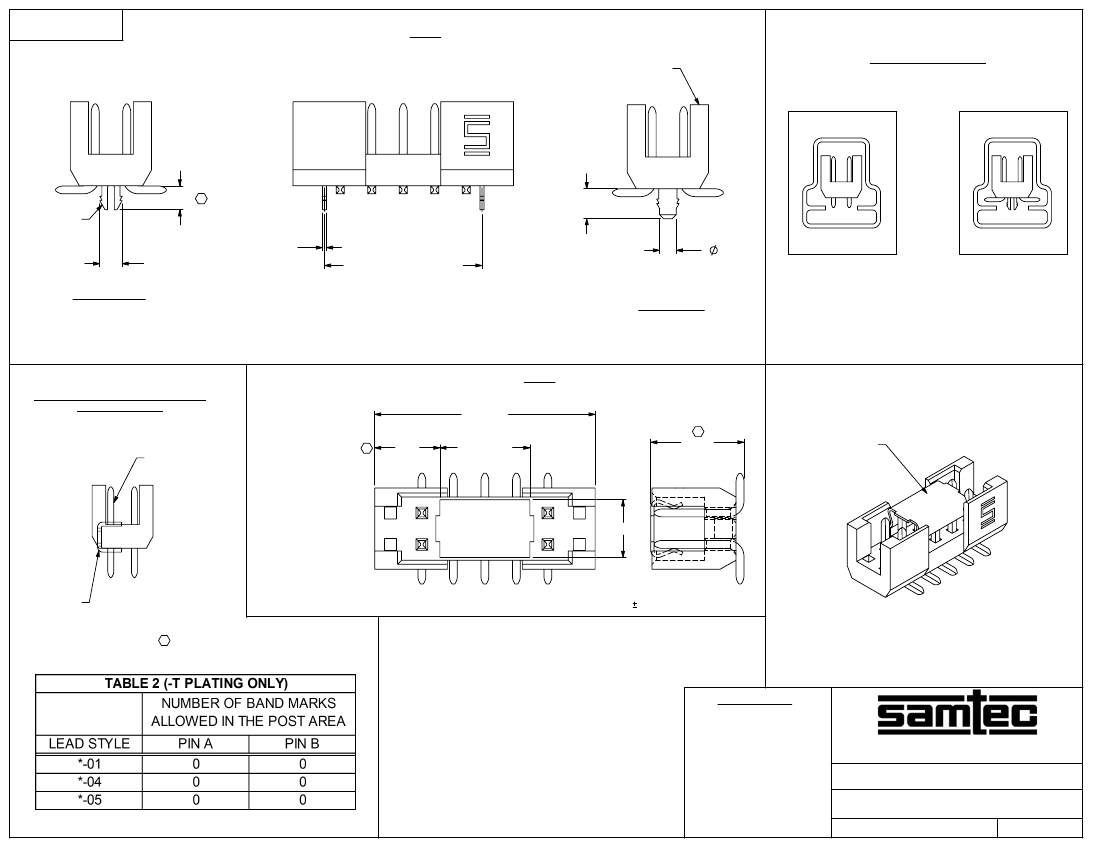

FIG 3
-LC & -A OPTIONS (-DV ONLY)
TMSH-XX-D-ES-XX-A
PACKAGING VIEW
.060
LC-09-TM
C
.075 REF
.010 REF
.056 REF
(No OF POS x .07874)
.042 REF
-LC OPTION
-A OPTION
TSH-1XX-XX-XX-D-XX
TUBE: PT-1-24-04-15
PLUG: TP-09
TSH-1XX-XX-XX-DV-XX
TUBE: PT-1-24-04-15
PLUG: TP-09
IN-PROCESS BANDOLIER REF VIEW
-T PLATING ONLY
-M: PICK & PLACE PAD OPTION (-DV ONLY)
FIG 4
"R" REF
C
POST AREA
"S"
.225 REF
.233
C
LMP-04
.144 REF
BANDOLIER
(REF)
(SEE NOTE 13)
(SEE TABLE 2)
C
"R" = (No OF POS + 2) x .07874
"S" = {("R" - .239) / 2} .020
F:\DWG\MISC\MKTG\TSH-1XX-XX-XX-DX-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.25
2mm END SHROUD TERMINAL ASSEMBLY
* PINS TO BE FLIPPED OPPOSITE OF SELECTIVE
PLATING BEFORE BEING INSERTED
TSH-1XX-XX-XX-DX-XX
07-02-2010
SHEET
2
OF
2
BY:
DEAN P
