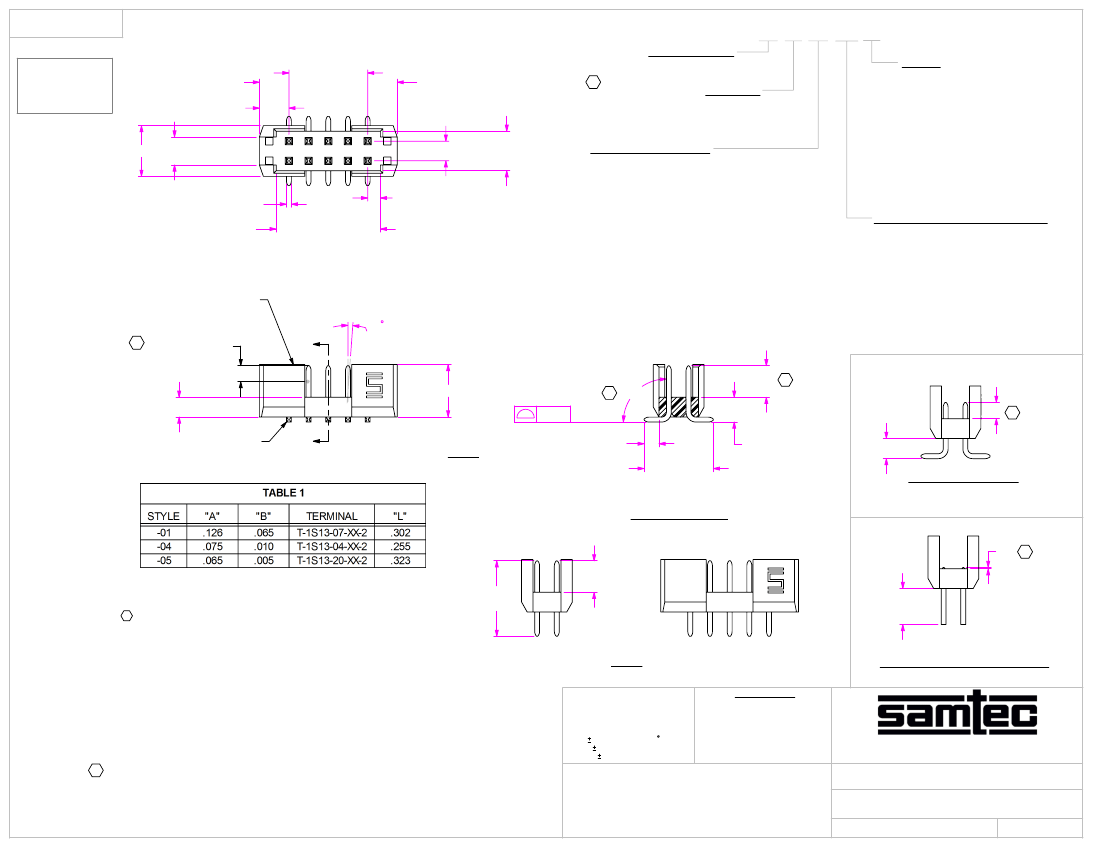

REVISION T
DO NOT
SCALE FROM
THIS PRINT
(No OF POS -1)
x .07874
.118 REF
.112
REF
01
02
TSH-1XX-XX-XX-DX-XX
((No OF POS + 2) x .07874)±.010
C
No OF POSITIONS
-05 THRU -48
(PER ROW)
LEAD STYLE
-01: .126 (USE T-1S13-07-XX-2)
-04: .075 (USE T-1S13-04-XX-2)
-05: .065 (USE T-1S13-20-XX-2)
OPTION
-LC: LOCKING CLIP (-DV ONLY)
(USE LC-09-TM)
(SEE FIG 3, SHEET 2, SEE NOTE 14)
-A: ALIGNMENT PIN (-DV ONLY)
(USE TMSH-XX-D-ES-XX-A)
(SEE FIG 3, SHEET 2)
*-M: METAL PICK & PLACE PAD
(-DV ONLY, USE LMP-04)
(SEE FIG 4, SHEET 2)
-TR: TAPE & REEL
(34 POSITION MAX ,-DV ONLY)
ROW SPECIFICATION (SEE NOTE 12)
-D: DOUBLE THROUGH (SEE FIG 2)
(USE TMSH-XX-D-ES)
-DV: DOUBLE VERTICAL (SEE FIG 1)
(USE TMSH-XX-D-ES)
* = FOR EXISTING CUSTOMERS ONLY
.203 REF
.07874 REF
.158 REF
.020 SQ REF
((No OF POS x .07874)
+ .023) REF
.051 REF
TMSH-XX-D-XX-ES
C CONTACT AREA
(SEE NOTE 9)
2 MAX SWAY
(ANY DIRECTION)
"A"
PLATING SPECIFICATION
-G: 20µ" GOLD IN CONTACT AREA,
3µ" ON TAIL
-T: MATTE TIN CONTACT AND TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA,
3µ" ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-TM: MATTE TIN CONTACT AND TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
"A"
C
.210 REF
.079 REF
T-1S13-XX-XX-2
"A"
.0060
C
90°±3°
"B"
C
.060 REF
.277±.010
(SEE NOTE 10)
.099
- .002
(SEE NOTE 7)
+.005
TSH-105-01-XX-DV SHOWN
FIG 1
.081
IN-PROCESS (-DV)
SECTION "A"-"A"
"B"
C
"A"
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY TO BE WITHIN .0060.
3. BURR ALLOWANCE: .0015 MAX.
4. MAXIMUM CUT FLASH: .020.
5. MINIMUM PUSHOUT FORCE: 1.0 LB.
6. MAXIMUM ALLOWABLE BOW: .002 INCH/INCH AFTER ASSEMBLY.
7. MEASURED AT BEND RADIUS, NOT AT TIP OF PIN.
8. ALL POSITIONS AND ALL OPTIONS TO BE TUBED.
9. GOLD PLATING TO BE ON POST, TIN PLATING ON TAIL (ONLY APPLIES
TO SELECTIVE PLATING OPTIONS).
10. SURFACE MOUNT STYLE -05: TAILS TO BE SHEARED TO ACHIEVE DIM.
11. PRINT CREATED FROM TMSH-ASM REVISION E. SEE TMSH-ASM FOR
REVISION HISTORY.
12. SEE TSH-1XX-XX-X-XX-XX FOR -DH & -RA ROW SPECIFICATIONS.
C 13. ORIENTATE PINS TO REDUCE THE NUMBER OF BANDOLIER MARKS IN
THE POST AREA. (SEE TABLE 2).
14. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC
OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC
RECOMMENDS MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE
-LC OPTION.
"L"
REF
.144±.010
(SEE NOTE 10)
TSH-105-01-XX-D SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
FIG 2
STYLE -05 IN-PROCESS (-DV)
*
PROPRIETARY NOTE
*
.XX: .01
.XXX: .005
.XXXX: .0020
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
INSULATOR: LCP, UL 94 VO
COLOR: BLACK
TERMINAL: PHOS BRONZE, ALLOY No 510
F:\DWG\MISC\MKTG\TSH-1XX-XX-XX-DX-XX-MKT.SLDDRW
2mm END SHROUD TERMINAL ASSEMBLY
TSH-1XX-XX-XX-DX-XX
07-02-2010
SHEET
1
OF
2
BY:
DEAN P
REVISION T

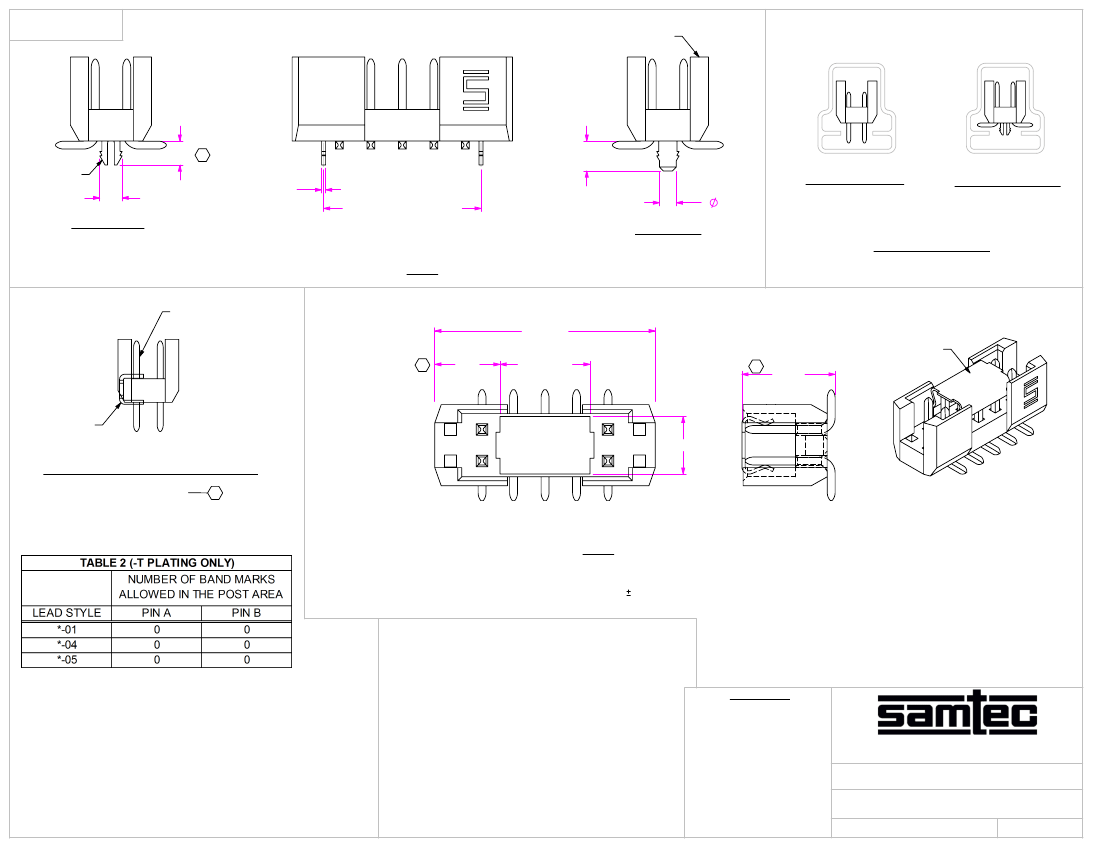

TMSH-XX-D-ES-XX-A
.060
C
LC-09-TM
.056 REF
.010 REF
(No OF POS x .07874)
.075 REF
TSH-1XX-XX-XX-D-XX
.042 REF
TUBE: PT-1-24-04-15
PLUG: TP-09
TSH-1XX-XX-XX-DV-XX
TUBE: PT-1-24-04-15
PLUG: TP-09
-LC OPTION
-A OPTION
FIG 3
PACKAGING VIEW
-LC & -A OPTIONS (-DV ONLY)
POST AREA
"R" REF
LMP-04
C
"S"
.225 REF
C
.233
BANDOLIER
(REF)
.144 REF
IN-PROCESS BANDOLIER REF VIEW
-T PLATING ONLY
(SEE NOTE 13)
(SEE TABLE 2)
C
-M: PICK & PLACE PAD OPTION (-DV ONLY)
"R" = (No OF POS + 2) x .07874
"S" = {("R" - .239) / 2} .020
FIG 4
* PINS TO BE FLIPPED OPPOSITE OF SELECTIVE
PLATING BEFORE BEING INSERTED
F:\DWG\MISC\MKTG\TSH-1XX-XX-XX-DX-XX-MKT.SLDDRW
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.25
2mm END SHROUD TERMINAL ASSEMBLY
TSH-1XX-XX-XX-DX-XX
07-02-2010
SHEET
2
OF
2
BY:
DEAN P
