Film capacitors – AC capacitors
Motor run capacitors
B32356 – MotorCap™ P2 Compact

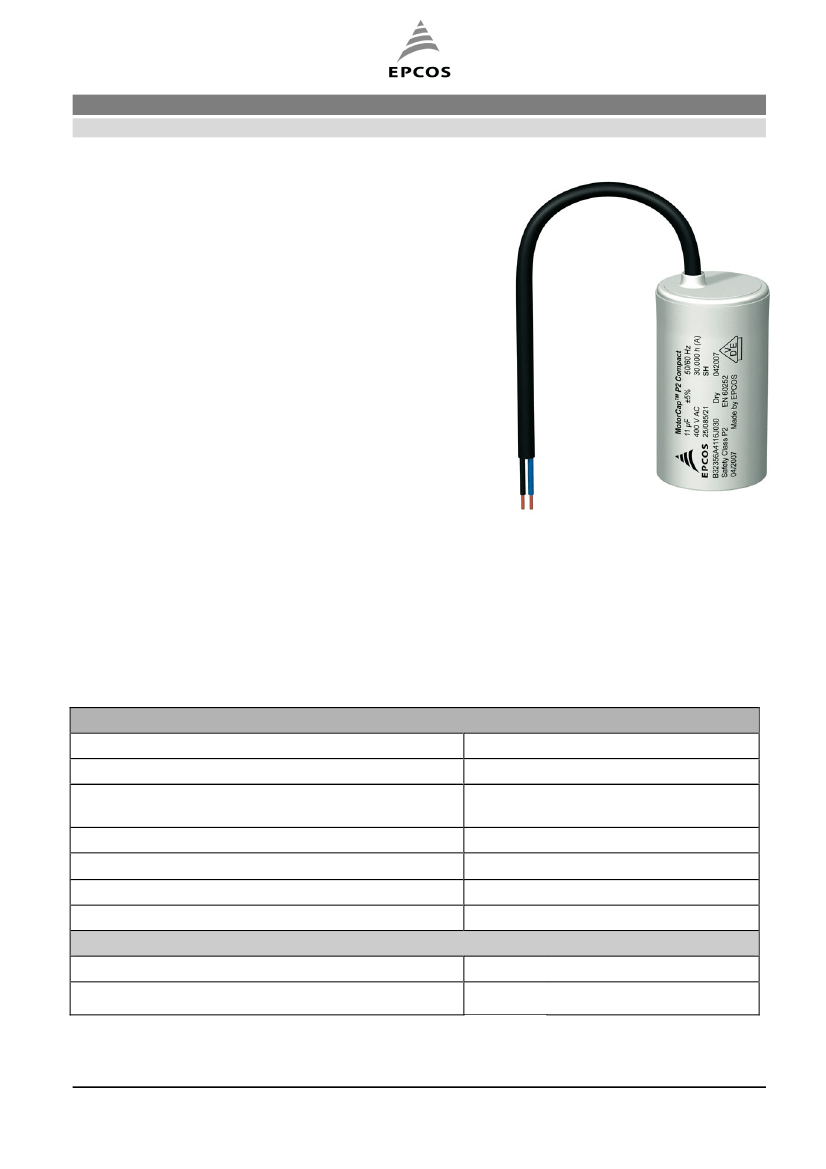

Construction
Dielectric: polypropylene film
Electrode: segmented metallized film
Plastic can and top material to IEC 60335-1
Dry type
Features
Self-healing properties
Low dissipation factor
P2 safety class to IEC 60252-1 2001-02
High insulation resistance
Case IP 53 protected
IEC/EN 60335 compatible
Typical applications
For general sine wave applications,
mainly as motor run capacitor
Terminals
Twin core cable type PP 2 × 0.50 mm
2
, 600 V, 95 °C
Connectors on request
Mounting parts (optional)
Threaded stud at bottom of can (M8, max. torque = 5 Nm)
Locking clip for mounting into a hole of Ø 8 mm
Technical data and specifications
Reference standards
Safety class to IEC 60252-1 2001-02
Life expectancy to IEC 60252 2001
Rated capacitance C
R
Tolerance
Rated voltage V
R
Rated frequency f
R
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
1.1 · V
R
1.3 · I
R
(V
R
= rated voltage)
(I
R
= rated current)
IEC 60252-1 2001-02 / EN 60252 2001
P2
400 V/85 °C:
450 V/85 °C:
2.0 ... 20 µF
±5%,
other tolerances upon request
400 V AC, 450 V AC
50/60 Hz
30000 h (class A)
10000 h (class B)
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 2 of 6
January 2008
Film capacitors – AC capacitors
Motor run capacitors
B32356 – MotorCap™ P2 Compact
Test data
AC test voltage terminal to terminal V
TT
Insulation resistance R
ins
or time constant
τ
at 20 °C, rel. Humidity
≤
65%
(minimum as-delivered values)
Dissipation factor tan
δ
at 20 °C
Maximum rate of voltage rise dV/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Mechanical and thermal properties
Ball pressure test to IEC 60309-1 sec. 27.3
Plastic can and top disk material
UL 94 V2 compatible
Glow wire test to IEC 60695-2-1/0 and -2-1/1
Test temperature 550 °C for I
R
≤
0.5 A
Test temperature 750 °C for I
R
> 0.5 A
Part is compatible to EN 60335-1
Tracking Test to IEC 60112 solution A
Protection class to IEC 60529 2001
Compatibility to RoHS
Compliance to directive 2002/95/EC
> 250 V
IP 53
Self-extinguishing within 2 seconds of
withdrawing glow wire without igniting
wrapping tissue to GWIT
20 N at 125 °C
Compliant to EN 60252
25/085/21 to IEC 60068-1
–25 °C
+85 °C
21 days
2 · V
R
, 2 s
3000 s
≤
1.0 · 10
-3
(120 Hz)
10 V/μs
Approvals
VDE – 400 V/85 °C: 30000 h (class A)
VDE – 450 V/85 °C: 10000 h (class B)
C
US UL 810 files E106388
Approved Component 10000 AFC up to 450 V
Approved
Approved
See table for approved ratings
Protected
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 3 of 6
January 2008
Film capacitors – AC capacitors
Motor run capacitors
B32356 – MotorCap™ P2 Compact

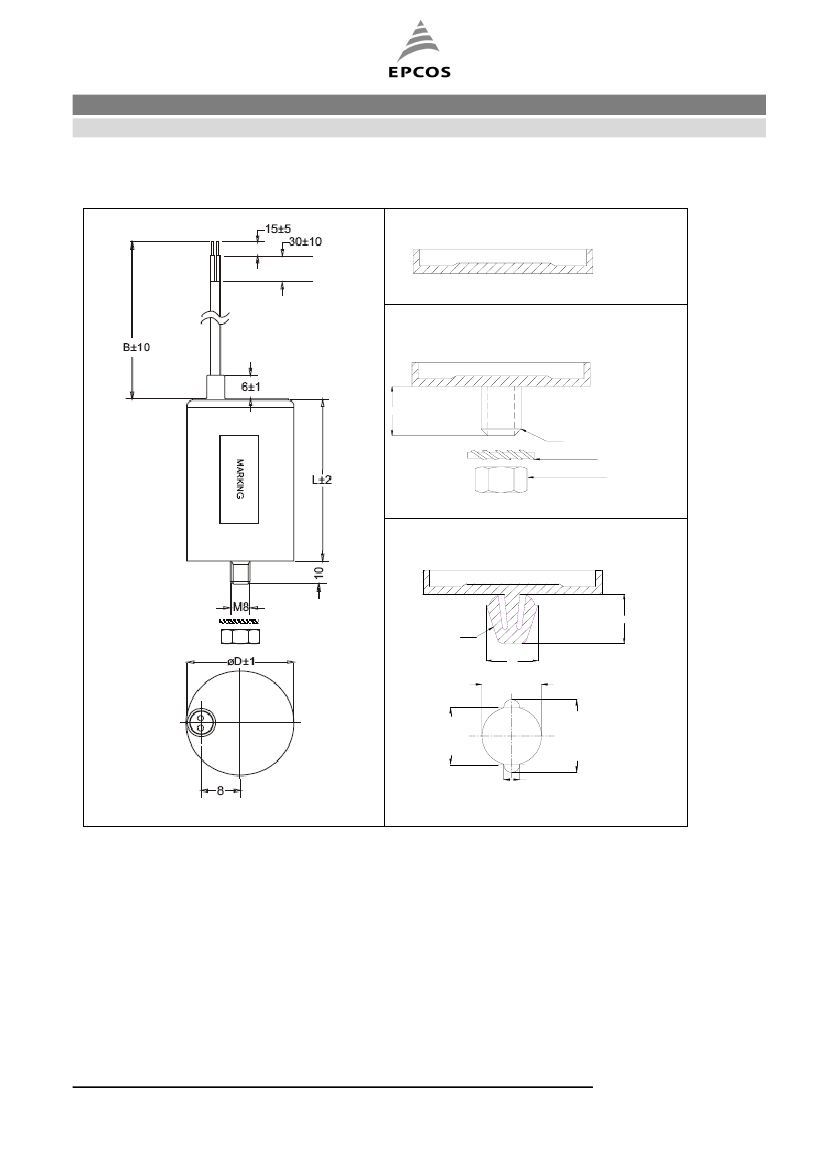

Dimensional drawing
Mounting options
* = 1, 2: can without mounting
* = 3, 4: can with M8 bolt
10
Stud M8x1.25
Star Washer 8mm
Nut M8x1.25
* = 5, 6: locking clip
10
M8-sized
M-Clip
fast fixation
10
Ø8.2+0.2/-0
10.2+0.1/-0
2.0±0.05
Ø2.2+0.1/-0
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 4 of 6
January 2008
Film capacitors – AC capacitors
Motor run capacitors
B32356 – MotorCap™ P2 Compact
Ordering codes and packing units
V
R
V AC
400/450
C
R
µF
2.0
2.5
3.0
4.0
5.0
5.0
6.0
7.0
7.5
8.0
9.0
10.0
11.0
12.0
13.0
15.0
17.5
20.0
Max. dimensions
d×l
mm
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
32 × 62
35 × 62
35 × 62
35 × 62
35 × 71
35 × 71
35 × 71
40 × 72
40 × 72
40 × 72
45 × 72
50 × 96
50 × 96
B32356B4205J0*#
B32356B4255J0*#
B32356B4305J0*#
B32356B4405J0*#
B32356B4505J0*#
B32356B4505J1*#
B32356B4605J0*#
B32356B4705J0*#
B32356B4755J0*#
B32356B4805J0*#
B32356B4905J0*#
B32356B4106J0*#
B32356B4116J0*#
B32356B4126J0*#
B32356B4136J0*#
B32356B4136J0*#
B32356B4176J5*#
B32356B4206J0*#
Ordering code
Packing units
pcs.
150
150
150
150
150
150
150
150
150
50
50
50
50
50
50
50
50
50
Composition of ordering code:
*: construction
1
plastic can
2
plastic can with UL approval
3
plastic can with M8 bolt
4
plastic can with M8 bolt, with UL approval
5
plastic can with locking clip available for diameters 30 mm, 32 mm and 35 mm,
others on request
6
plastic can with locking clip, with UL approval, available for diameters 30 mm, 32 mm
and 35 mm, others on request
#: cable length (dimension ‘b’ in drawing)
2
200 mm
3
300 mm
other lengths on request
U
Please read “Applications warning, installation and maintenance instructions” and the “General Safety Data Sheet for Power
Capacitors” issued by ZVEI, which are available on the internet at
www.epcos.com/ac_capacitors,
to ensure optimum performance and to
prevent products from failing, and in worst case, bursting and fire. Information given in the data sheet reflects typical specifications. You are
kindly requested to approve our product specifications or request our approval for your specification before ordering.
