PL71L-211: DescriptionRF Twinaxial Connector, Male, Cable Mount, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerTrompeter Electronics

Download Datasheet Parametric View All

PL71L-211 Overview

RF Twinaxial Connector, Male, Cable Mount, Crimp Terminal, Plug,

PL71L-211 Parametric

Parameter Name	Attribute value
Objectid	1990098302
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	RF TWINAXIAL CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	PL71L
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	0.5 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP

Preview

Download Datasheet

View All

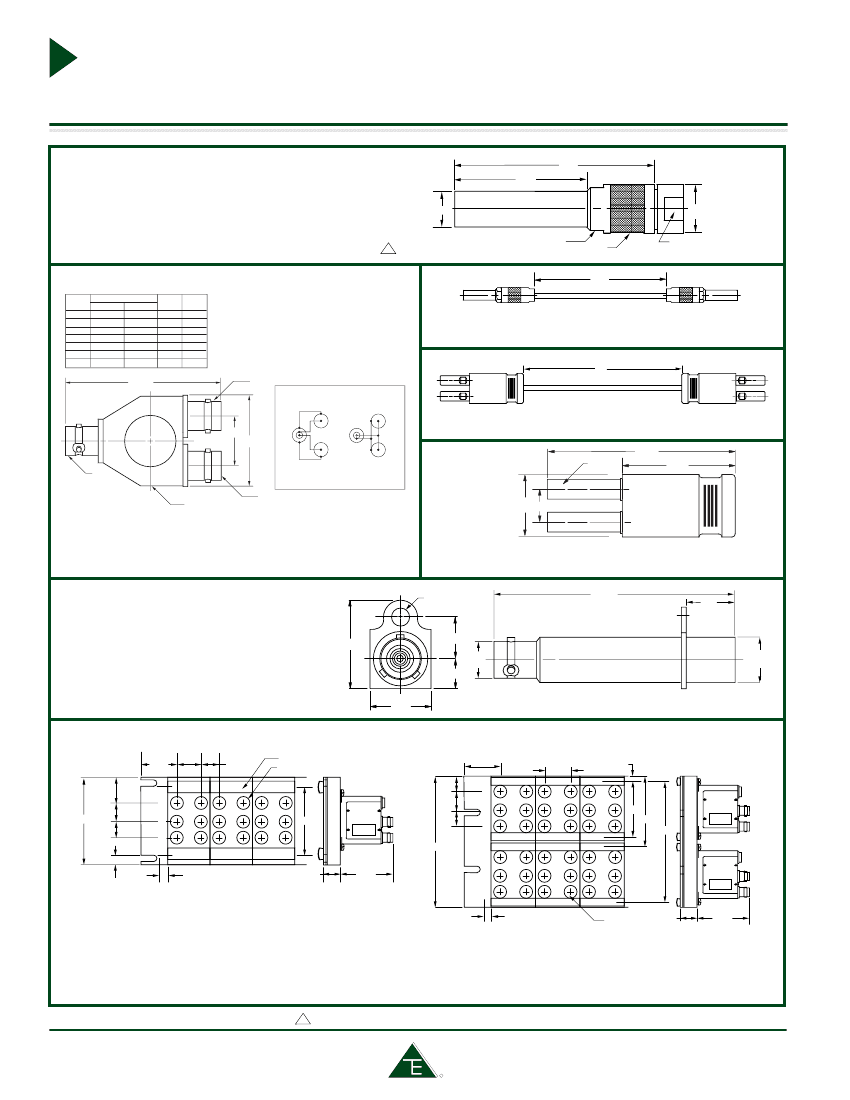

56

Standard twinax/triax patching

PL71L-9 Shown

2.514

1.689

.374

Twinax Patch Plug

PL71L-

.437 WRENCH FLATS

;;;;;;

.513 DIA MAX

.500

DIA

.437 FLATS

1

DASH

NO.

-1

-2

-3

-4

-5

-6

-7

CONNECTOR TYPE

P1 & P2

P3

BJ20

BJ77

PL21

BJ77

PL21

BJ77

BJ20

BJ377

BJ20

PL3155

BJ20

PL375

UPL21

BJ77

B DIM

A

DIM

1.166

1.185

1.166

1.186

B

DIM

1.988

2.177

2.256

1.988

2.385

2.666

2.256

P1

SCHEMATICS

Black

P1

.625

A DIM

P2

Black

-3/-7

P3

Red

P1

;;

"L"

LENGTH

;;;

Twinax

Triax

PTWL-L-Z

PTRL-L-Z

Twinax Patch Cord

Triax

"L"

LENGTH IN INCHES

Twinax Dual Patch Cord

LPTWL-78 Shown

.374

DIA TYP

TROMPETER

ELECTRONICS

DPLTWLS-L-Z

3.969

2.250

P3

Red

-1/-2/-4/-5/-6

.60 THK

P2

1.20 .625

Fixed Paralleling Jacks

2 BNC jacks to 1 TRB jack

2 BNC plugs to 1 TRB jack

305-0138-(see

chart)

Twinax Looping Plug

Triax

.156 DIA MTG HOLE

2.660

LPTWL-Z

LPTRL-Z

.570

.812

.375

.380

DIA

.281

.445

DIA

Twinax Patch Jack

TRB 3-lug

J72L

.560

JSISM-60

1.404

1.000

TYP

.688

TYP

STD. 2 DSI (.580 WIDE)

.450 DIA THRU

1.404

.625

JSISM-120

1.000

.204

1.046

M

.750

2.650

.750

3.483

.625

S

L

.625

S

L

2.218

2.608

4.826

5.234

.420

.330 MAX

.660

2.077

M

S

L

Front-loading Modular Panels

For use with J74MST-R Patch Jacks (pg. 57)

Panel

Modules/

Jacks/

Dimensions

Panels

Module

Panel

19" X 3.483

10

2

20

19" X 2.34"

10

4

40

Part

Number

.330 MAX TYP

.450 DIA THRU

120 HOLES

.660

2.077

JSISM-60

JSISM-120

R-Resistance (1/2 W1%), Z- Denotes Cable Impedance.

1

- Refers to Cable Group Table, see pages 91-133. Standard and Sub-miniature Panels, see pages 51-54

Trompeter Products Catalog - T21 Military/Aerospace

ISO 9001

Registered

R

(800) 982-2629

Fax: (818) 706-1040

www.trompeter.com

TROMPETER

ELECTRONICS

TROMPETER

ELECTRONICS
