PS1S35A-116GCB-U datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> PS1S35A-116GCB-U

Preview

PS1S35A-116GCB-U: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size175KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS1S35A-116GCB-U Overview

Board Connector, 16 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug

PS1S35A-116GCB-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.14 inch
body length	1.6 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PS1S
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	20u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

F

emale Header 2.54mm

Material

Insulator:Polyester,UL 94V-0

◎

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

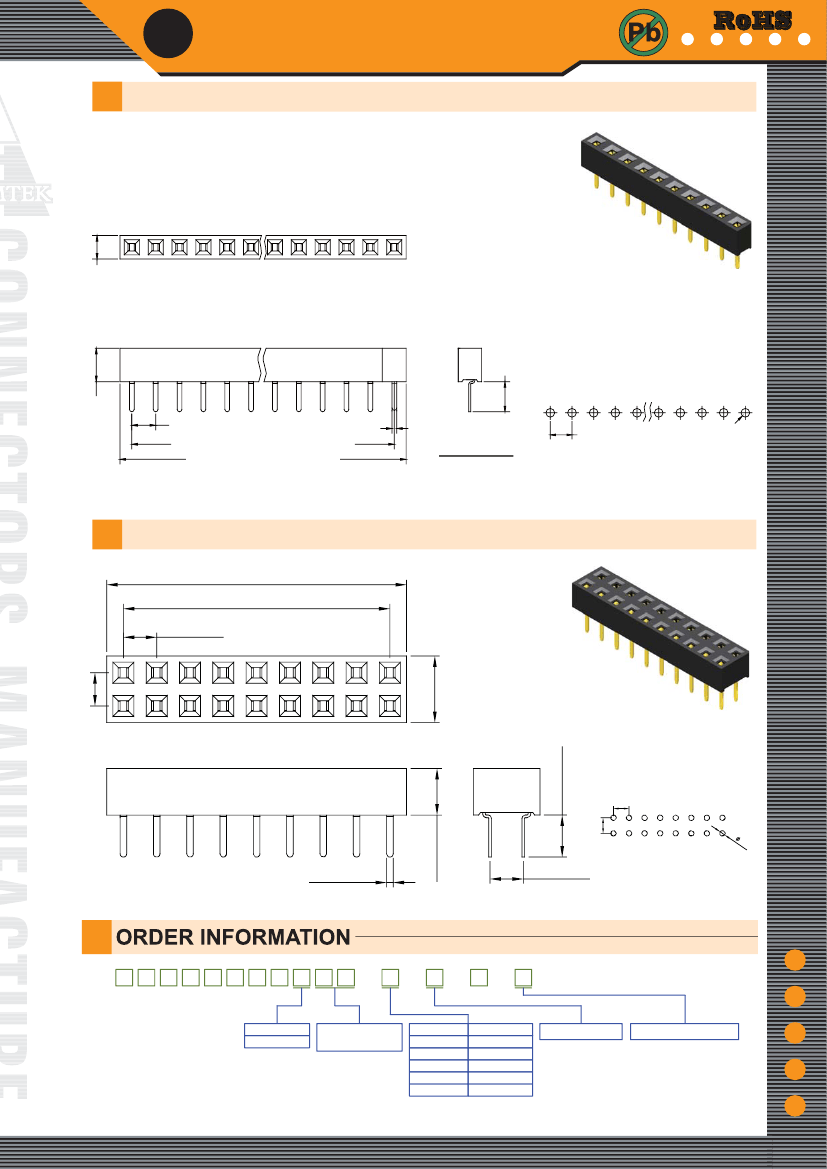

Female Header 2.54mm 1 Row H=3.55mm Contact Straight Type

Specifications

Current Rate:3 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

1

2

3

2.50±0.15

3.55±0.15

SECTION A-A

Recommended P.C.B Layout(TOP Side)

(PCB BOARD TOLERANCE±0.05)

Part No.:PS1S35A-1XX-U

Female Header 2.54mm 2 Row H=3.55mm Contact Straight Type

2.54 x No. of Positions±0.30

2.54 x (No. of Contacts/2-1)±0.20

2.54±0.10

5.08±0.20

3.20±0.25

2.54

3.55±0.20

ø

0

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

0.9

0

2.54

0.50x0.20

2.54±0.25

Part No.:PS1S35A-2XX-U

P S 1 S 3 5 A - X X X

X

B

-

X

1:Single Row

2:Dual Row

No. of Contacts Per Row

(02~40)

◎G:Gold

Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

◎B:Black

Insulator

U:RoHS + Nylon 6T

◎:Standard

Recommended

www.amtek-co.com.tw

2-121

.9

0

2.54±0.10

0.50x0.20

2.54xNo.of Contacts-2.54±0.20

2.54xNo.of Positions±0.30

3.20±0.25
