CMD4D11NP-3R3MB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CMD4D11NP-3R3MB

CMD4D11NP-3R3MB: DescriptionGeneral Purpose Inductor, 3.3uH, 20%, 1 Element, Ferrite-Core, SMD, 1716, ROHS COMPLIANT; CategoryPassive components inductor; File Size115KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CMD4D11NP-3R3MB Overview

General Purpose Inductor, 3.3uH, 20%, 1 Element, Ferrite-Core, SMD, 1716, ROHS COMPLIANT

CMD4D11NP-3R3MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	1716
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1716
structure	Unshielded
core material	Ferrite
DC Resistance	0.174 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CMD
Number of functions	1
Number of terminals	4
Package height	1.2 mm
Package length	4.3 mm
Package form	SMT
Package width	4.1 mm
method of packing	Box
Maximum rated current	0.77 A
series	CMD4D11
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

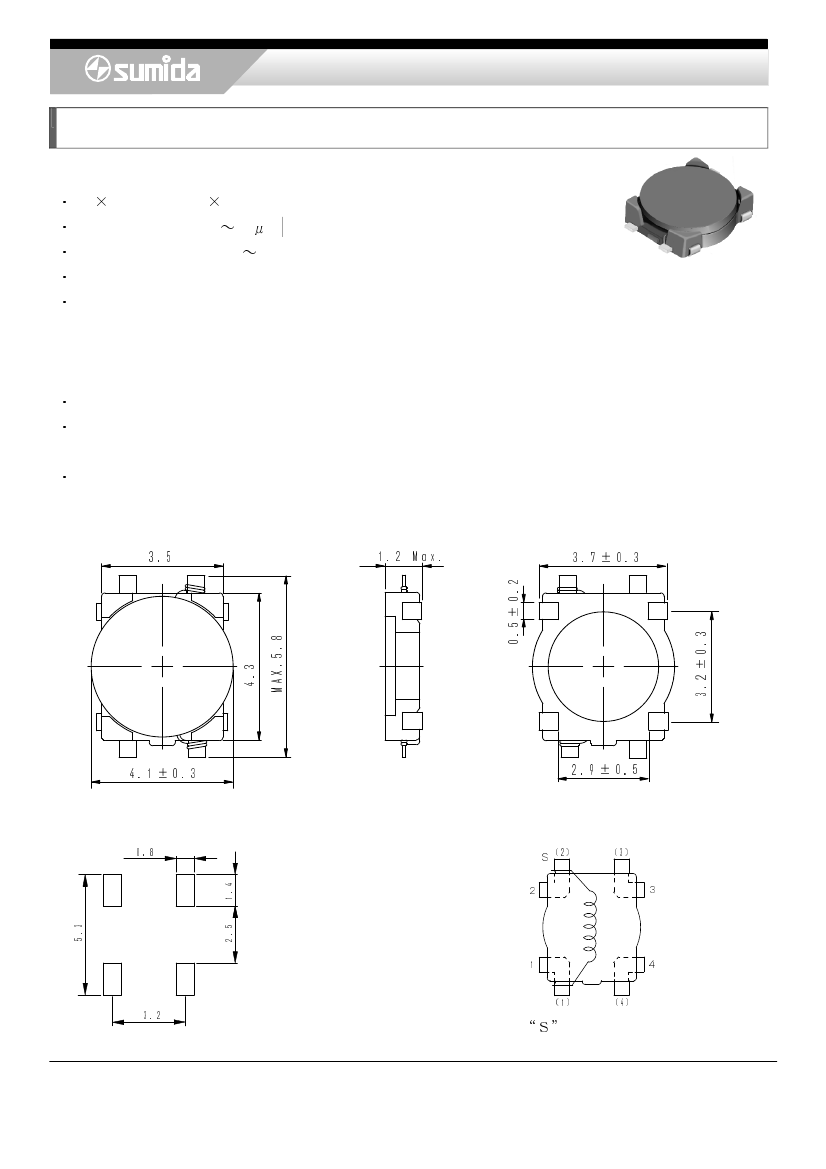

Power Transformers <SMD Type: CMD Series>

Type: CMD4D11

◆

Product Description

5.8 4.4mm Max.(L W),1.2mm Max.Height.

Inductance range: 2.2 47 H.

Rated current range: 180 950mA.

4 Terminal pins’ type gives a flexible design as inductors or transformers(SEPIC,ZETA circuit).

In addition to the standards versions used as power inductors shown here, custom designs as

transformers(SEPIC,ZETA circuit) and inductors are also available.

◆

Feature

Magnetically unshielded construction.

Ideally used in portable devices such as Mobilephone,DSC/DVC,MP3,PDA, etc as DC-DC Converter

inductors, specially suitable for White LED drive.

RoHS Compliance.

◆

Dimensions (mm)

3.0± 7. 3

.xaM 2.1

5.3

◆

Land Pattern (mm)

8.0

◆

Schematics(Bottom)

is winding start.

Please refer to the sales offices on our website for a representative near you

www.sumida.com

３

４

5.0± 9.2

)4(

)3(

)1(

)2(

Ｓ

”Ｓ“

２

１

μ ½

3.0± 1.4

2.3

・

× ・

・

1/2

CMD4D11NP-3R3MB Related Products

	CMD4D11NP-3R3MB	CMD4D11NP-100MB	CMD4D11NP-220MC	CMD4D11NP-2R2MB	CMD4D11NP-220MB	CMD4D11NP-6R8MB	CMD4D11NP-330MB	CMD4D11NP-150MB	CMD4D11NP-4R7MB	CMD4D11NP-470MB
Description	General Purpose Inductor, 3.3uH, 20%, 1 Element, Ferrite-Core, SMD, 1716, ROHS COMPLIANT	General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD, 1716, ROHS COMPLIANT	inductor 22uh 20% smd	General Purpose Inductor, 2.2uH, 20%, 1 Element, Ferrite-Core, SMD, 1716, ROHS COMPLIANT	General Purpose Inductor, 22uH, 20%, 1 Element, Ferrite-Core, SMD, 1716, ROHS COMPLIANT	General Purpose Inductor, 6.8uH, 20%, 1 Element, Ferrite-Core, SMD, 1716, ROHS COMPLIANT	General Purpose Inductor, 33uH, 20%, 1 Element, Ferrite-Core, SMD, 1716, ROHS COMPLIANT	General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 1716, ROHS COMPLIANT	General Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, 1716, ROHS COMPLIANT	General Purpose Inductor, 47uH, 20%, 1 Element, Ferrite-Core, SMD, 1716, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	1716	1716	1716	1716	1716	1716	1716	1716	1716	1716
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	1716	1716	1716	1716	1716	1716	1716	1716	1716	1716
structure	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
core material	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
DC Resistance	0.174 Ω	0.457 Ω	1.066 Ω	0.116 Ω	1.066 Ω	0.296 Ω	1.647 Ω	0.676 Ω	0.216 Ω	2.843 Ω
Nominal inductance(L)	3.3 µH	10 µH	22 µH	2.2 µH	22 µH	6.8 µH	33 µH	15 µH	4.7 µH	47 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CMD	CMD	CMD	CMD	CMD	CMD	CMD	CMD	CMD	CMD
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4	4
Package height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Package length	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	4.1 mm	4.1 mm	4.1 mm	4.1 mm	4.1 mm	4.1 mm	4.1 mm	4.1 mm	4.1 mm	4.1 mm
method of packing	Box	Box	Tape	Box	Box	Box	Box	Box	Box	Box
Maximum rated current	0.77 A	0.5 A	0.3 A	0.95 A	0.3 A	0.62 A	0.24 A	0.4 A	0.75 A	0.18 A
series	CMD4D11	CMD4D11	CMD4D11	CMD4D11	CMD4D11	CMD4D11	CMD4D11	CMD4D11	CMD4D11	CMD4D11
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Maker	SUMIDA	-	SUMIDA	SUMIDA	-	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA
