44248-0077 datasheet, PDF - EEWORLD Datasheet

44248-0077: DescriptionTelecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, Locking Mech, Jack; CategoryThe connector The connector; File Size734KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

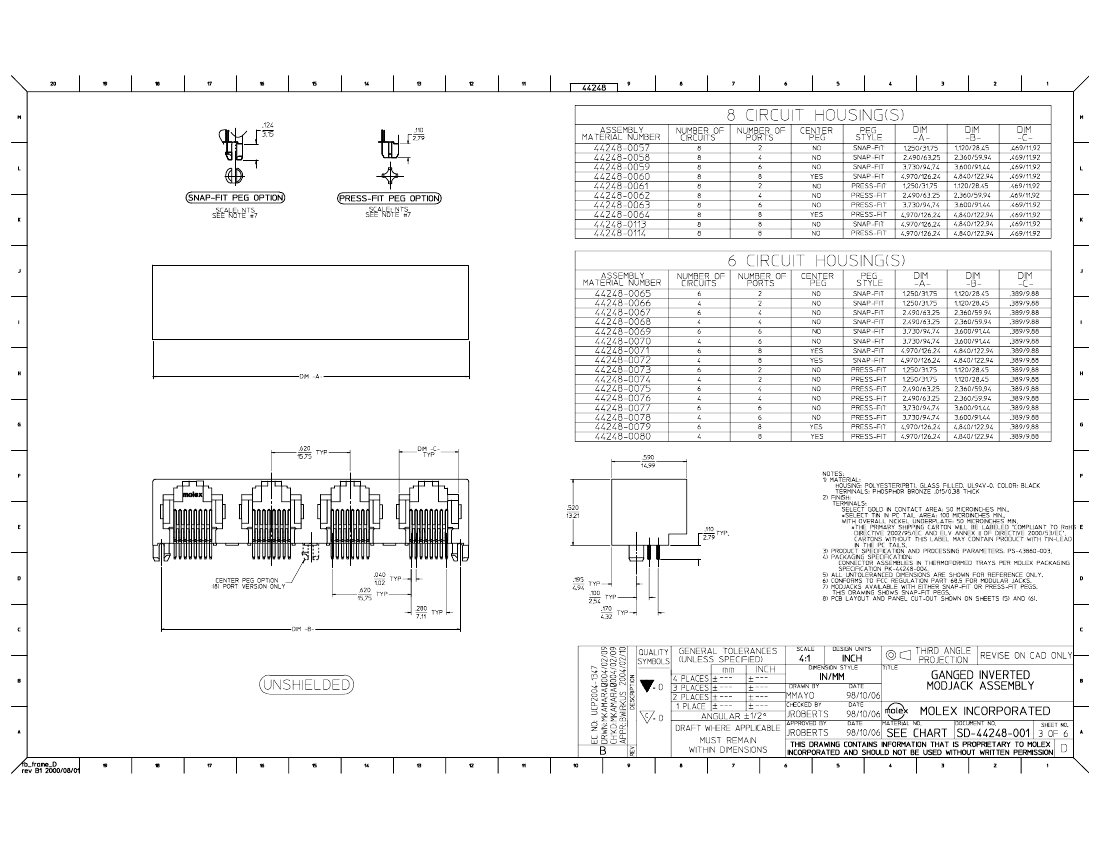

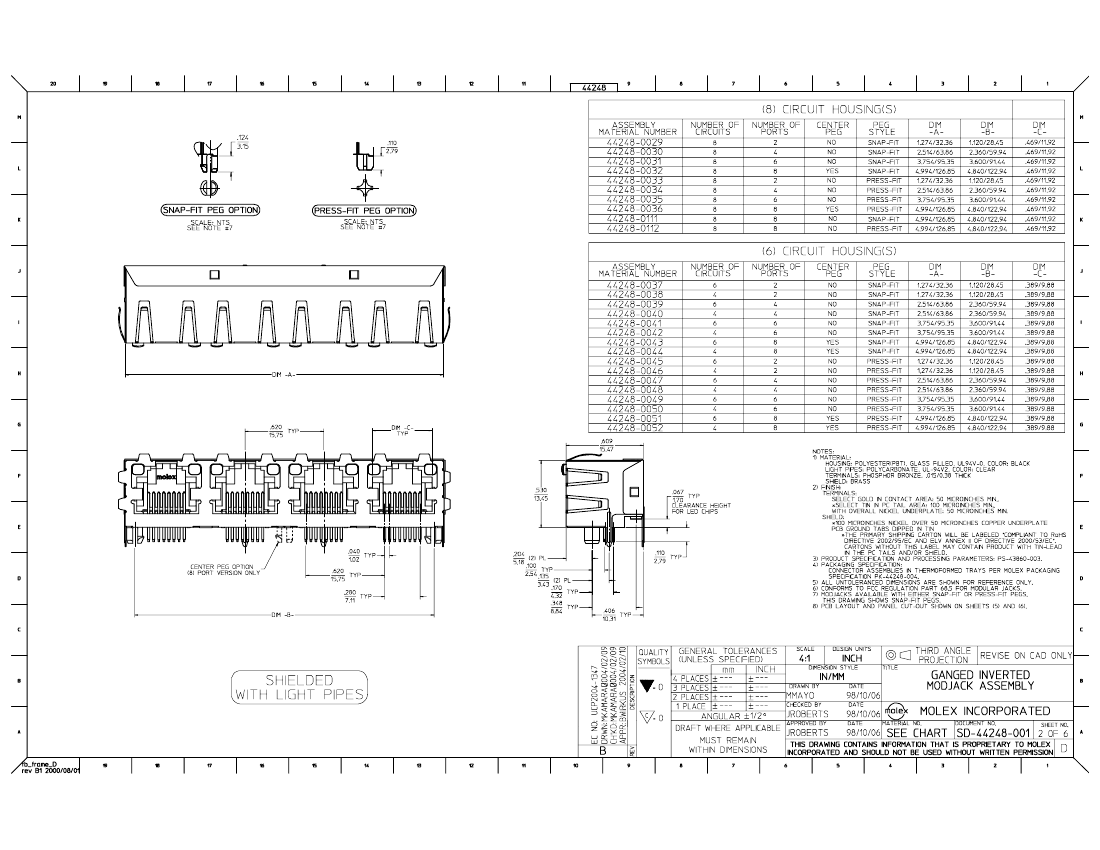

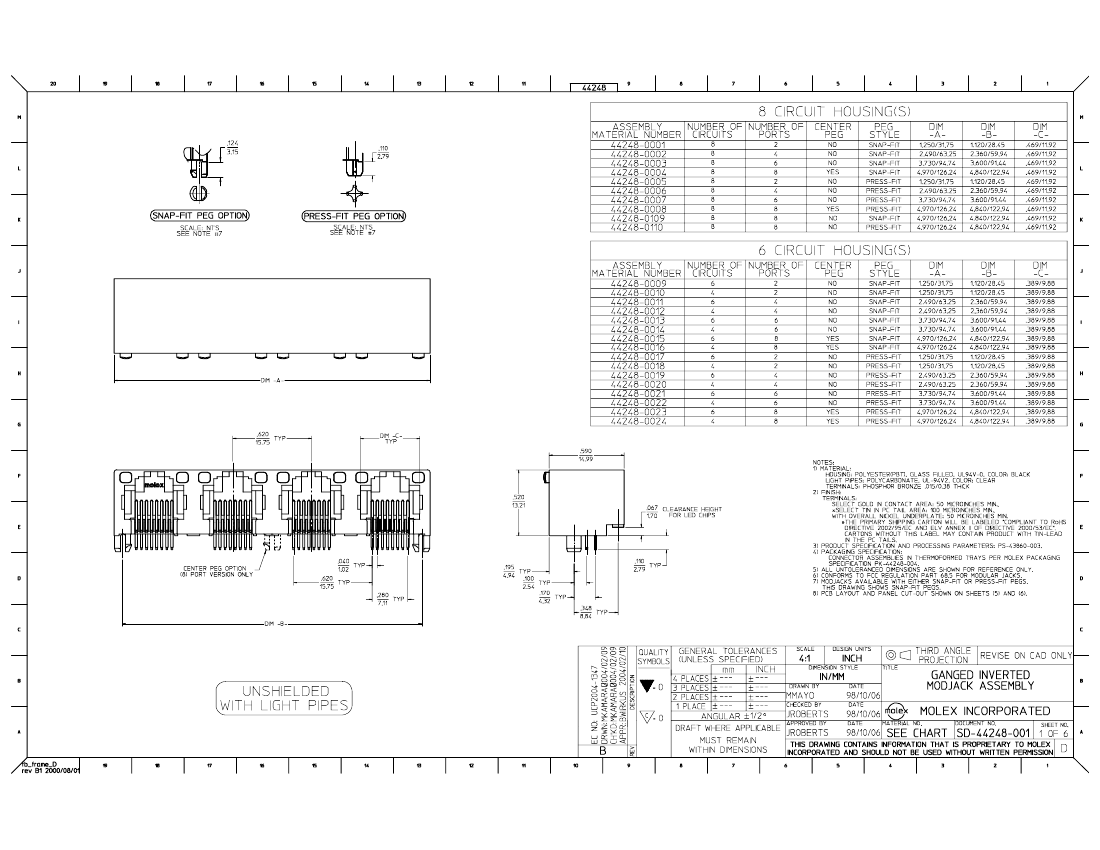

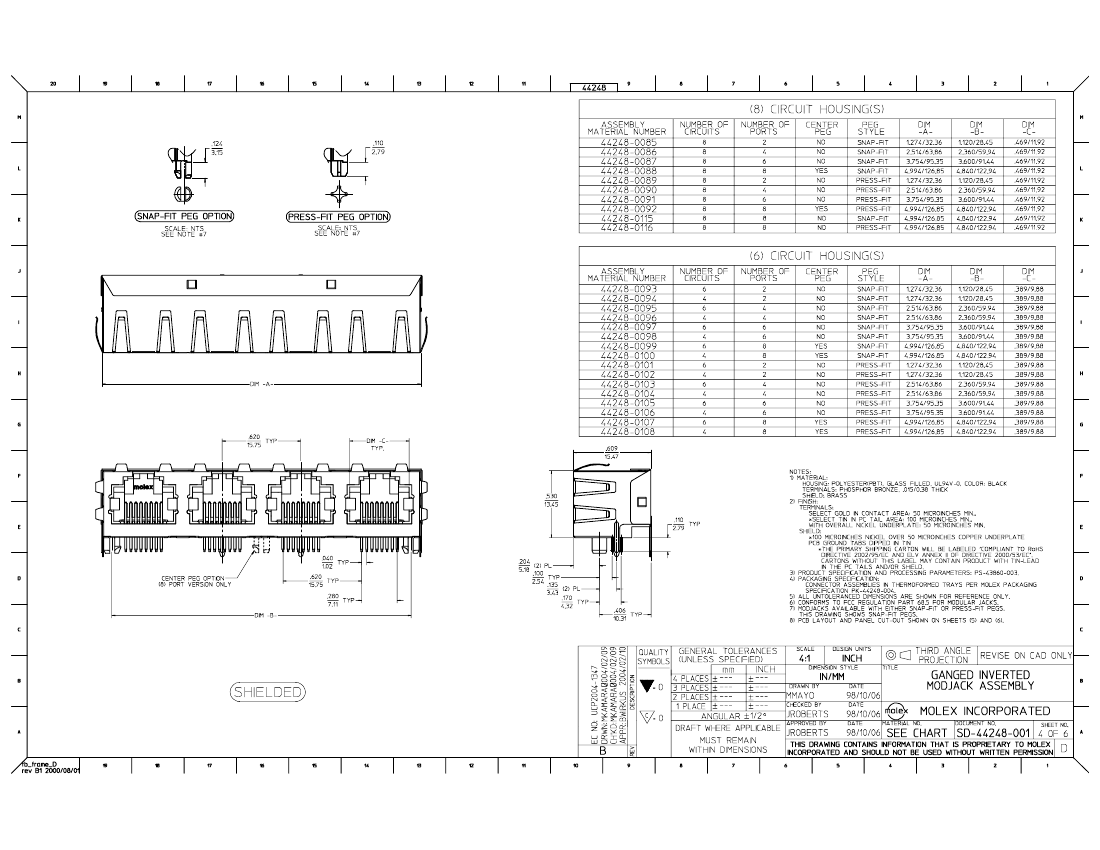

44248-0077 Overview

Telecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, Locking Mech, Jack

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	6 PORT 6-POSITION EACH
Board mount options	COMPLIANT BOARDLOCK
body width	0.52 inch
subject depth	0.59 inch
body length	3.73 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	10 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	22.24 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of ports	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE

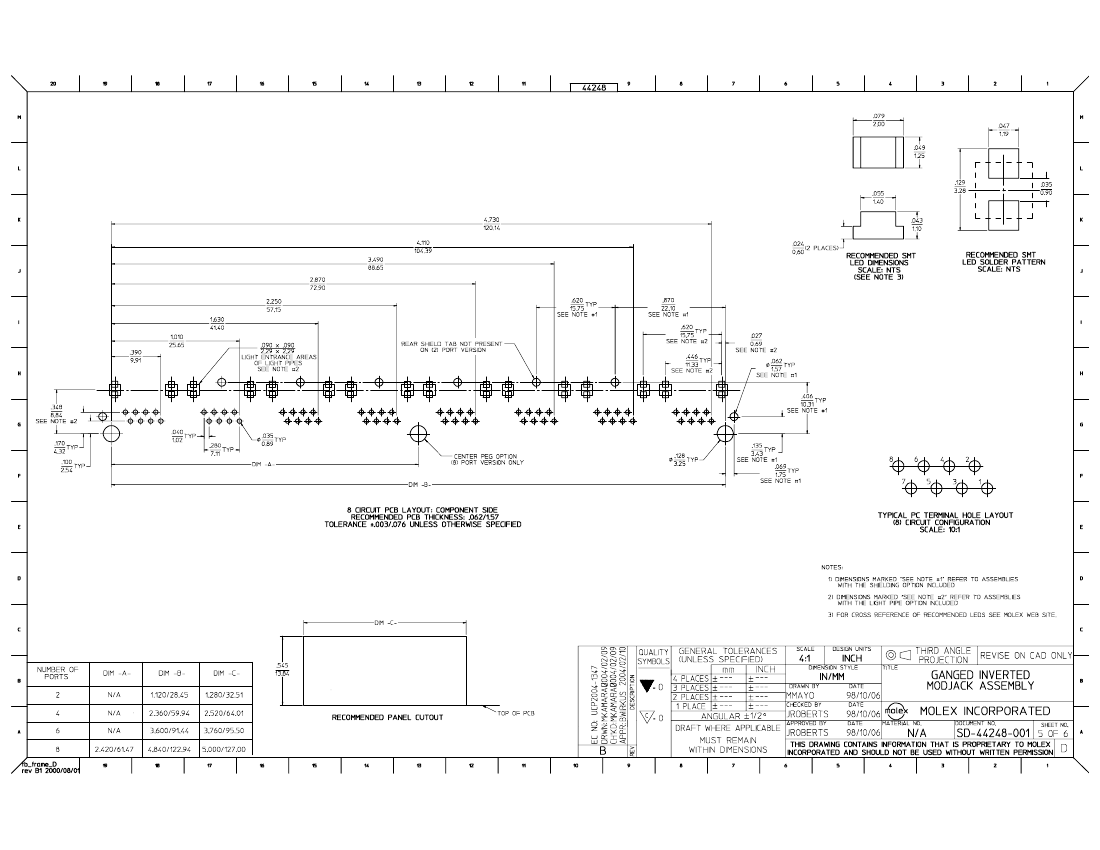

PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYESTER
Terminal length	0.11 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1
