8223072722902 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8223072722902

8223072722902: DescriptionRack and Panel Connector, 72 Contact(s), Female, Solder Terminal; CategoryThe connector The connector; File Size145KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

8223072722902 Overview

Rack and Panel Connector, 72 Contact(s), Female, Solder Terminal

8223072722902 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
Connector type	RACK AND PANEL CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (100)
Contact completed and terminated	GOLD (10) OVER NICKEL (100)
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED DIALLYL PHTHALATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	8223
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	72
Base Number Matches	1

Preview

Download Datasheet

View All

Varicon

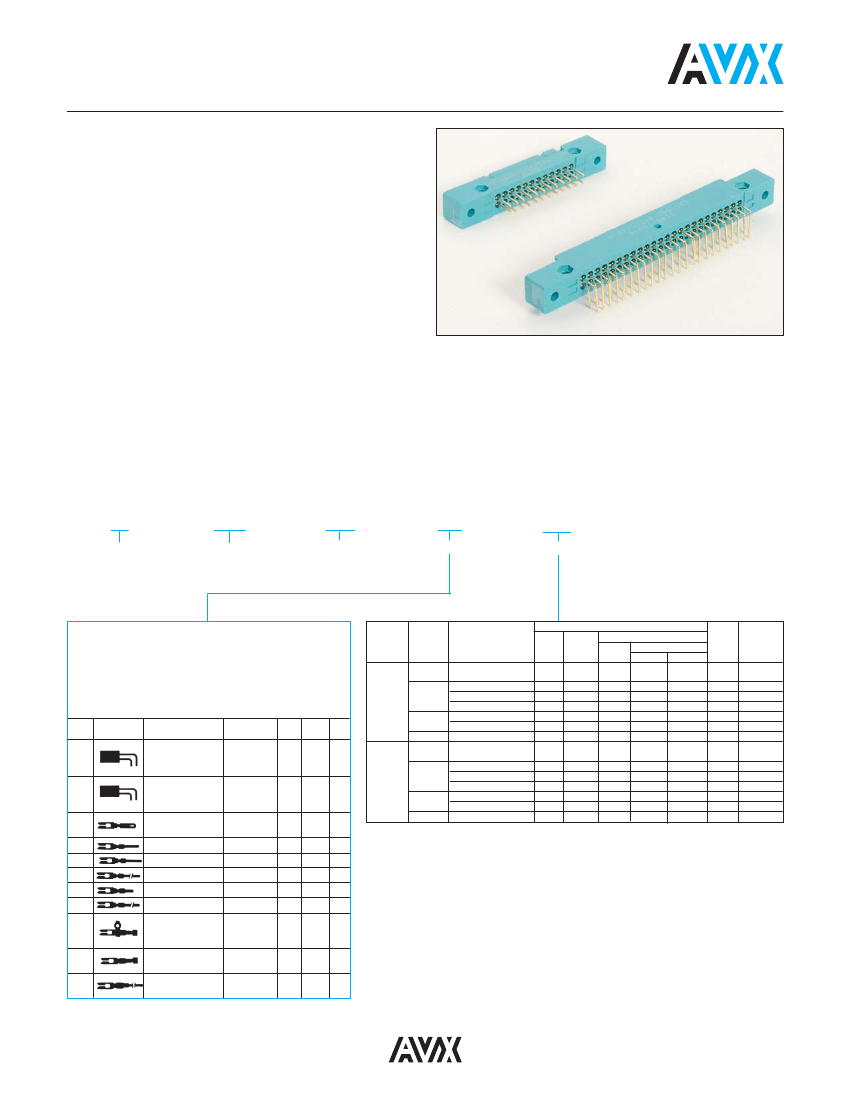

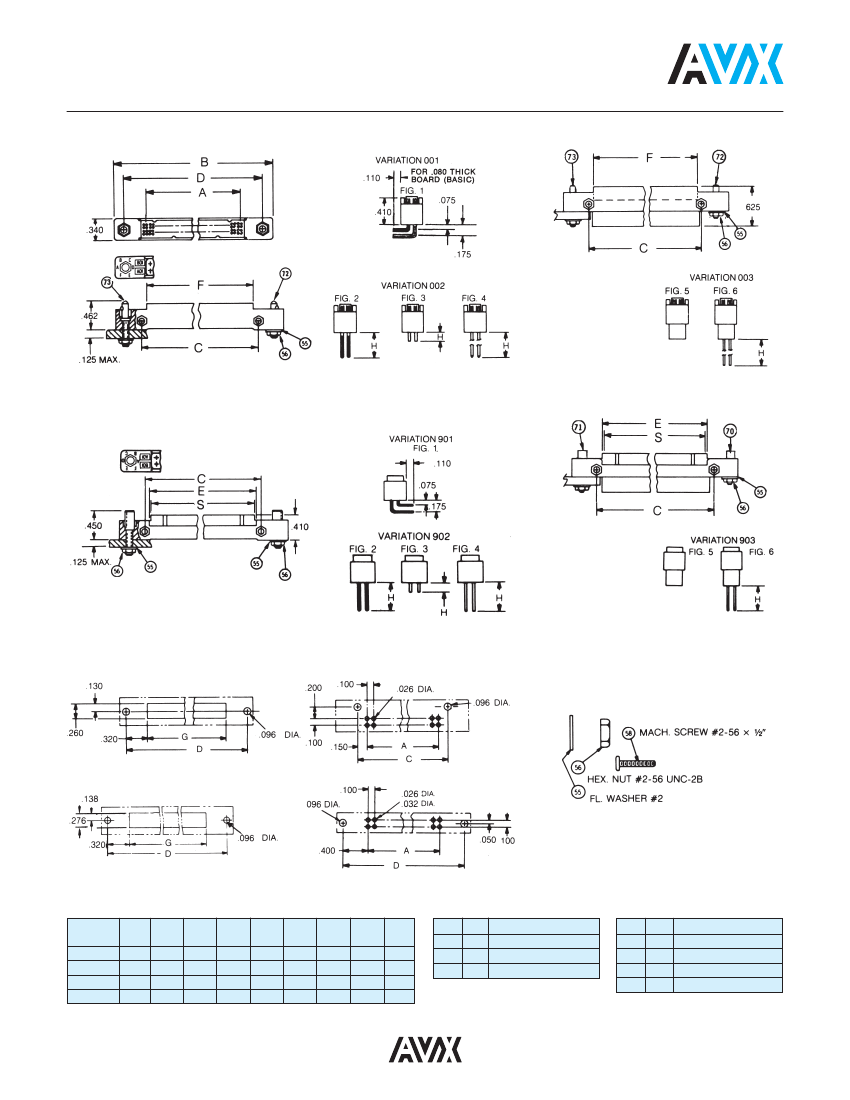

Series 8223 – 0.100" Dual Row Square Grid

FEATURES

•

Wide range of contact terminations including wire

wrapping, P.C. solder tail, wire hole, wire crimp

•

For

⁄

" P.C. card

•

Polarity and keying are built into the connector body

to prevent mismating

•

Perpendicular or parallel connector mounting

•

Proven Varicon

contact reliability

•

Protected male; recessed female contacts

TECHNICAL SPECIFICATIONS

CONTACTS

Current Rating:

5 amperes with 22 AWG wire

Contact Resistance:

6 milliohms, maximum

Contact Material and Plating:

Phosphor Bronze

Nickel plate, 50 to 100 micro-

inches, followed by gold plate.

10 microinches minimum

INSULATORS

Material:

Dielectric Withstanding

Diallyl Phthalate, glass-filled,

Voltage:

flame resistant, per MIL-M-14-F, Sea Level: 1,000 Volts rms

Type SDGF

Insertion/Withdrawal Force:

Insulation Resistance:

2 to 8 ounces per contact

5,000 megohms, minimum

ORDERING CODE

8223

024

Number of Contacts

024, 048, 072 & 096

000

Contact Code

001

Variation Code

Use three digit code number when contacts are to

be factory installed. If contacts are to be supplied

loose, or contact tails to be formed, use three zeros

(000) in contact code section. Note that the wire

crimp tail contacts can only be ordered as separate

items by part numbers.

Code

000

Insulator

Type

Variation

001

Contact Style

Formed Contact Terminal

PC Terminal

Wire Hole Terminal

PC Straight Terminal

Crimp Contact

Wrappable Removable

Formed Contact Terminal

PC Terminal

Wire Hole Terminal

PC Straight Terminal

Crimp Contact

Wrappable Removable

Formed Contact Terminal

Cover

Accessories

Refer

Guide Pins Sockets (R)

Threaded

Bracket

Keying

Figure

Locking Lkg. Kyg.

Board

Thickness

.080 2.03

.062 1.57

Male

(Exposed

Contacts)

002

003

004

901

Profile

Description

Coined Tail Formed

90° after installing

(Max. 0236 Diag.)

Coined Tail Formed

90° after installing

(Max. 0236 Diag.)

Wire Hole Tail

(.032 x .050)

P.C. Tail .020 Sq.

Crimp Contact

(Reel 3000)

22-30 AWG

Part No.

60 8223 0223

60 8223 0213

60 8223 0243

60 8223 0253

H Board

Dim. Thk. Fig.

.080

.062

Female

(Exposed

Contacts)

.093 2.36

.080 2.03

.062 1.57

902

903

904

000

.093

.093 2.36

722

721

736

737

753

771

000

60 8200 1613 .162

60 8200 1623 .228

60 8200 1633 .259

60 8200 1643 .541

60 8200 1653 .103

60 8200 1663 .462

60 8216 0323

000

491

Crimp Contact (Loose)

60 8216 0313

22-30 AWG

Wrappable/Removable

60 8216 0413 .560

Contact (.025 Sq.)

8223072722902 Related Products

	8223072722902	008223096753100	8223024753002	8223072736902	8223072721902	8223048721002	8223072737002	8223024000004
Description	Rack and Panel Connector, 72 Contact(s), Female, Solder Terminal	Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Rack and Panel Connector, 24 Contact(s), Male, Solder Terminal	Rack and Panel Connector, 72 Contact(s), Female, Solder Terminal	Rack and Panel Connector, 72 Contact(s), Female, Solder Terminal	Rack and Panel Connector, 48 Contact(s), Male, Solder Terminal	Rack and Panel Connector, 72 Contact(s), Male, Solder Terminal	Rack and Panel Connector, 24 Contact(s), Male, Solder Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli	compliant	compli
Connector type	RACK AND PANEL CONNECTOR	BOARD CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)
Contact completed and terminated	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)
Contact point gender	FEMALE	MALE	MALE	FEMALE	FEMALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	8223	8223	8223	8223	8223	8223	8223	8223
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	72	96	24	72	72	48	72	24
Maker	AVX	AVX	AVX	AVX	AVX	AVX	-	AVX
empty shell	NO	-	NO	NO	NO	NO	NO	NO
insulator material	GLASS FILLED DIALLYL PHTHALATE	-	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE
