PT1,5/9-3,5-HPA1,3,5,7,9 datasheet, PDF

Datasheet> All Categories > The connector> terminals> PT1,5/9-3,5-HPA1,3,5,7,9

PT1,5/9-3,5-HPA1,3,5,7,9: DescriptionBarrier Strip Terminal Block,; CategoryThe connector terminals; File Size97KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

PT1,5/9-3,5-HPA1,3,5,7,9 Overview

Barrier Strip Terminal Block,

PT1,5/9-3,5-HPA1,3,5,7,9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	not_compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/in/products/1702258

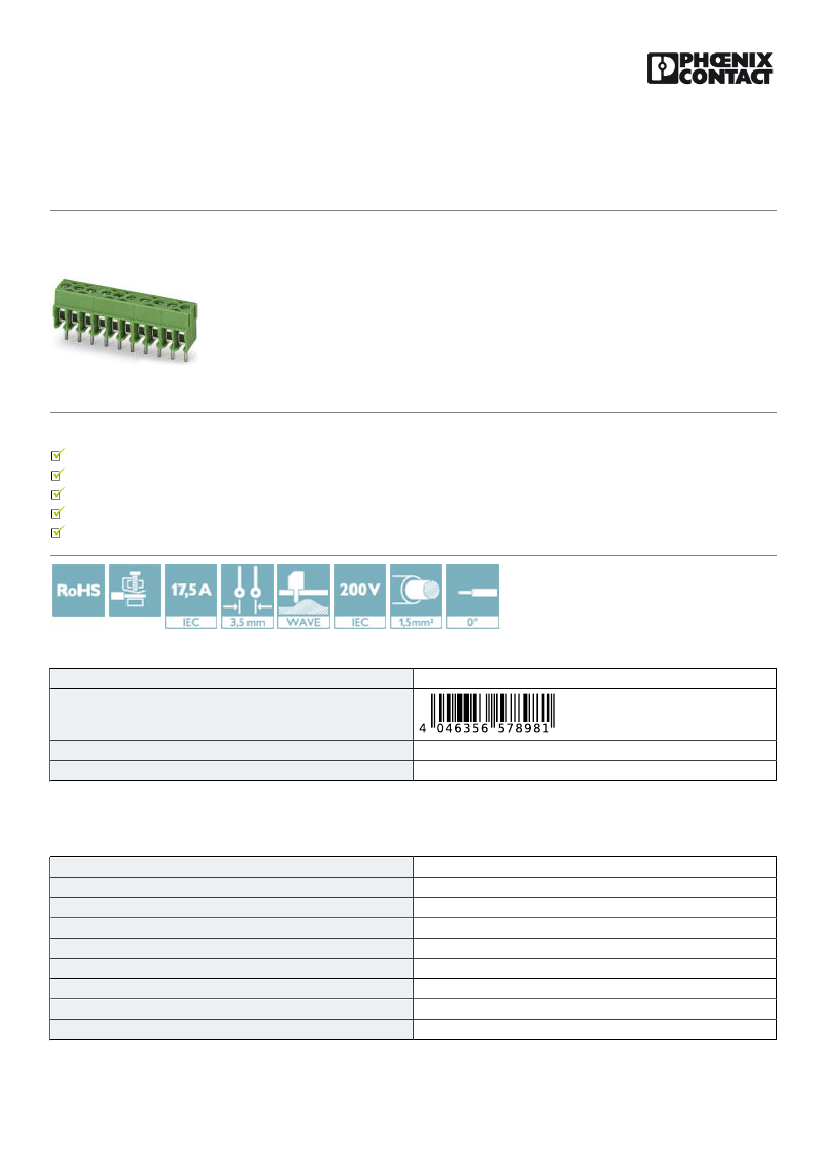

PT 1,5/ 9-3,5-H PA 1,3,5,7,9 - 1702258

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PCB terminal block, nominal current: 17.5 A, nom. voltage: 200 V, pitch: 3.5 mm, number of positions:

9, connection method: Screw connection with wire protector, mounting: Wave soldering, conductor/PCB

connection direction: 0 °, color: green

The figure shows a 10-position

version of the product

Your advantages

Well-known connection principle allows worldwide use

Low temperature rise, thanks to maximum contact force

High terminal block capacity thanks to rectangular terminal block space

Allows connection of two conductors

The latching on the side enables various numbers of positions to be combined

Key Commercial Data

Packing unit

GTIN

Custom tariff number

4046356578981

85369010

Technical data

Dimensions

Length [ l ]

Pitch

Dimension a

Width [ w ]

Height

Height [ h ]

Solder pin [P]

Pin spacing

Hole diameter

7.55 mm

3.5 mm

28 mm

31.5 mm

9.15 mm

13.65 mm

4.5 mm

3.5 mm

1.2 mm

01/12/2019 Page 1 / 4
