ZP4-110-48-G3T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> ZP4-110-48-G3T

ZP4-110-48-G3T: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric View All

ZP4-110-48-G3T Overview

Board Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle

ZP4-110-48-G3T Parametric

Parameter Name	Attribute value
Objectid	1162344868
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	2
Other features	NONE
Board mount options	PEG
body width	0.165 inch
subject depth	0.177 inch
body length	1.89 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7404 mm
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	48

Preview

Download Datasheet

View All

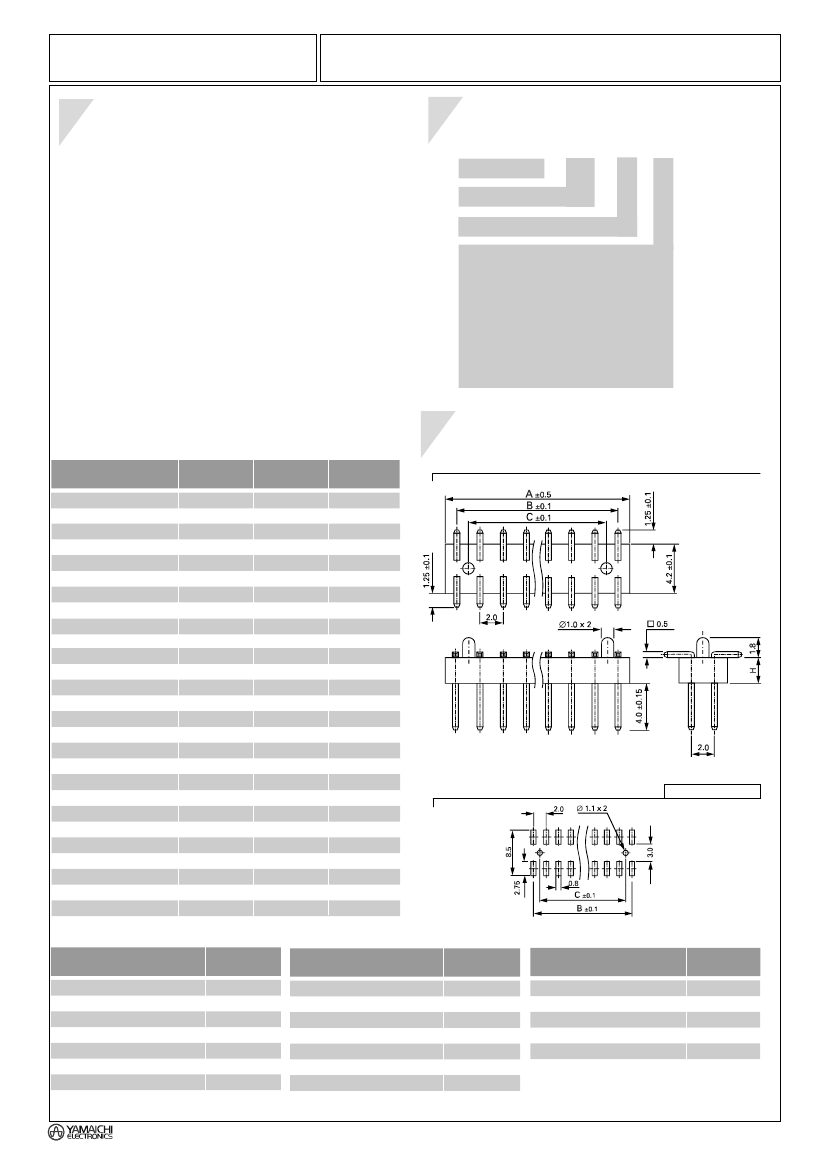

ZP4 Series

Specifications

Header for SMD

(Various Heights)

Part Number

(Details)

ZP4

Series No.

Plastic Height

(see table)

Voltage Rating:

150 V AC

Current Rating:

1.5A

Operating Temperature Range: –40°C to +105°C

Withstanding Voltage:

500 V for 1 minute

- *** - ** - G*

Materials and Finish

Housing:

UL 94V-0 listed

Terminals:

Brass

Contact Plating:Selective Gold or Gold over Nickel

No. of Contact Pins (8 to 60)

Mating Face Plating:

G2T = Selective Gold

G3T = 10µ“ Selective Gold

G4T = 15µ“ Selective Gold

G5T = 30µ“ Selective Gold

G2 = Gold Flash

G3 = 10µ“ Gold over Nickel

G4 = 15µ“ Gold over Nickel

G5 = 30µ“ Gold over Nickel

Features

Pin count from 8 to 60

Applicable Dimensions

(Reference Only)

Dimensional Information

Part Number

ZP4-***-08-G*

ZP4-***-10-G*

ZP4-***-12-G*

ZP4-***-14-G*

ZP4-***-16-G*

ZP4-***-18-G*

ZP4-***-20-G*

ZP4-***-22-G*

ZP4-***-24-G*

ZP4-***-26-G*

ZP4-***-28-G*

ZP4-***-30-G*

ZP4-***-32-G*

ZP4-***-34-G*

ZP4-***-36-G*

ZP4-***-38-G*

ZP4-***-40-G*

ZP4-***-42-G*

ZP4-***-44-G*

ZP4-***-46-G*

ZP4-***-48-G*

ZP4-***-50-G*

ZP4-***-52-G*

ZP4-***-54-G*

ZP4-***-56-G*

ZP4-***-58-G*

ZP4-***-60-G*

Dim. A

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

36.0

38.0

40.0

42.0

44.0

46.0

48.0

50.0

52.0

54.0

56.0

58.0

60.0

Dim. B

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

36.0

38.0

40.0

42.0

44.0

46.0

48.0

50.0

52.0

54.0

56.0

58.0

Dim. C

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

36.0

38.0

40.0

42.0

44.0

46.0

48.0

50.0

52.0

54.0

56.0

Outline Connector Dimensions

Recommended PCB Layout

Top View

YAMAICHI ELECTRONICS - Munich 089 / 45109-0

Part Number and Details for Plastic Height

Part Number

ZP4-080-**-G*

ZP4-085-**-G*

ZP4-090-**-G*

ZP4-095-**-G*

ZP4-100-**-G*

ZP4-105-**-G*

ZP4-110-**-G*

Dim. H

1.5

2.0

2.5

3.0

3.5

4.0

4.5

Part Number

ZP4-115-**-G*

ZP4-120-**-G*

ZP4-125-**-G*

ZP4-130-**-G*

ZP4-135-**-G*

ZP4-140-**-G*

ZP4-145-**-G*

Dim. H

5.0

5.5

6.0

6.5

7.0

7.5

8.0

Part Number

ZP4-150-**-G*

ZP4-155-**-G*

ZP4-160-**-G*

ZP4-165-**-G*

ZP4-170-**-G*

ZP4-175-**-G*

Dim. H

8.5

9.0

9.5

10.0

10.5

11.0

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER
