Transient Voltage Suppressor
3KP SERIES
3000W Axial Leaded Transient Voltage
Suppressors - 5.0V-220V
Features
•
Axial lead type devices for through hole design.
•
3kW peak pulse power capability with a 10/1000us
waveform, repetition rate (duty cycle): 0.01% .
•
Excellent clamping capability.
•
Low incremental surge resistance.
•
Fast response time from 0V to V
BR
, typically less than
1 ps for uni-directional & 5 ns for bi-directional types.
•
Glass passivated chip junction .
•
Lead-free parts meet environmental standards of
MIL-STD-19500 /228
•
Suffix "-H" indicates Halogen-free part, ex.3KP5.0A-H.
Formosa MS
Package outline
P600
.360(9.10)
.340(8.60)
1.0(25.4)
MIN.
.360(9.10)
.340(8.60)
Mechanical data
•
Epoxy : UL94-V0 rated flame retardant
•
Case : Molded plastic, P600
•
Lead : Axial leads, solderable per MIL-STD-202,
Method 208 guaranteed
.052(1.32)
.048(1.22)
1.0(25.4)
MIN.
•
Polarity: Color band denotes cathode end
•
Mounting Position : Any
•
Weight : Approximated 2.10 gram
Dimensions in inches and (millimeters)
Maximum ratings
(AT
PARAMETER
Peak power dissipation
Peak pulse current
T
A
=25 C unless otherwise noted)
CONDITIONS
with a 10/1000us waveform, Note 1 & Fig. 1
with a 10/1000us waveform
at T
L
=75°C lead length 0 . 375” (9 . 5 mm)
8.3mS single half sine-wave superimposed
on rated load (jedec method), note 2
at 100A for uni-directional types only, note 3
Symbol 3KP SERIES
P
PPM
I
PPM
P
M(AV)
I
FSM
V
F
T
J
T
STG
O
o
UNIT
W
A
W
A
V
O
3000
See table 1
6.5
300
3.5 / 5.0
-55~+150
-55~+150
Steady state power dissipation
Peak forward surge current
Maximum instantaneours forward voltage
Operating temperature range
Storage temperature range
C
C
O
Note 1. Non-repetitive current pulse, per Fig. 3 and derated above T
A
=25 C per Fig. 2
2. Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute maximum
3. V
F
<3.5V. for devices of V
BR
<= 220V, and V
F
<5.0V. for devices of V
BR
>201V
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/08/10
Revised Date
2010/03/10
Revision
B
Page.
8
Page 2
DS-222822
Electrical characteristics
(at T =25 C unless otherwise noted)
o
A
Table 1
Maximum
Reverse
Leakage
Current
I
R
@V
RWM
µA
5000
5000
2000
1000
250
150
50
20
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Reverse
Stand-off
Voltage
Part No.
V
RWM
Volts
3KP5.0(C)A
3KP6.0(C)A
3KP6.5(C)A
3KP7.0(C)A
3KP7.5(C)A
3KP8.0(C)A
3KP8.5(C)A
3KP9.0(C)A
3KP10(C)A
3KP11(C)A
3KP12(C)A
3KP13(C)A
3KP14(C)A
3KP15(C)A
3KP16(C)A
3KP17(C)A
3KP18(C)A
3KP20(C)A
3KP22(C)A
3KP24(C)A
3KP26(C)A
3KP28(C)A
3KP30(C)A
3KP33(C)A
3KP36(C)A
3KP40(C)A
3KP43(C)A
3KP45(C)A
3KP48(C)A
3KP51(C)A
3KP54(C)A
3KP58(C)A
3KP60(C)A
3KP64(C)A
3KP70(C)A
3KP75(C)A
3KP78(C)A
3KP85(C)A
3KP90(C)A
3KP100(C)A
3KP110(C)A
3KP120(C)A
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
Breakdown Voltage @I
T
V
BR Min
Volts
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47.8
50.0
53.3
56.7
60.0
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100.0
111.0
122.0
133.0
V
BR Max
Volts
7.00
7.37
7.98
8.60
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86.0
92.1
95.8
104.0
111.0
123.0
135.0
147.0
Test
Current
I
T
mA
50
50
50
50
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Maximum Clamping
Voltage @I
PP
V
C
Volts
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146
162
177
193
I
PP
A
326
291.3
367.9
250
232.6
220.6
206.4
194.8
176.4
184.8
150.6
139.4
129.4
123
115.4
106.6
102.8
92.6
84.4
77.2
71.2
66.0
62.0
56.2
51.6
46.4
43.2
41.3
38.8
36.4
34.4
32.1
31.0
29.1
26.5
24.8
23.8
21.9
20.5
18.5
16.9
15.5
Note 1. V
BR
measured after I
T
applied for 300us, I
T
=square wave pulse or equivalent
2. Surge current waveform per Fig. 3 and derated per Fig. 2
3. For bi-directional types having V
RWM
of 10 volts and less, the I
R
limit is doubled
4. Suffix ‘C’ denotes bi-directional devices. Suffix ‘A’ denotes 5% tolerance devices, no suffix denotes 10% tolerance devices.
5. All terms and symbols are consistent with ANS/IEEE C62.35
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/08/10
Revised Date
2010/03/10
Revision
B
Page.
8
Page 3
DS-222822
Transient Voltage Suppressor
3KP SERIES
Formosa MS
o
A
Electrical characteristics
(at T =25 C unless otherwise noted)
Reverse
Stand-off
Voltage
Part No.
V
RWM
Volts
3KP130(C)A
3KP150(C)A
3KP160(C)A
3KP170(C)A
3KP180(C)A
3KP190(C)A
3KP200(C)A
3KP210(C)A
3KP220(C)A
130
150
160
170
180
190
200
210
220
V
BR Min
Volts
144
167
178
189
200
211
222
233
244
V
BR Max
Volts
159
185
197
209
221
233
246
258
270
I
T
mA
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Volts
209
243
259
275
289
310
329
350
371
V
C
@I
PP
I
PP
(A)
14.4
12.3
11.6
10.9
10.4
9.7
9.1
8.6
8.1
Breakdown Voltage @I
T
Test
Current
Maximum Clamping
Voltage @I
PP
Table 1
Maximum
Reverse
Leakage
Current
I
R
@V
RWM
I
R
(uA)
10
10
10
10
10
10
10
10
10
Note 1. V
BR
measured after I
T
applied for 300us, I
T
=square wave pulse or equivalent
2. Surge current waveform per Fig. 5 and derated per Fig. 1
3. For bi-directional types having V
RWM
of 10 volts and less, the I
R
limit is doubled
4. Suffix ‘C’ denotes bi-directional devices. Suffix ‘A’ denotes 5% tolerance devices, no suffix denotes 10% tolerance devices.
5. All terms and symbols are consistent with ANS/IEEE C62.35
Fig. A - Transients of several thousand volts can be
clamped to a safe level by the TVS
Fig. B - Transient current is divered to ground thru
TVS; the voltage seen by the protected load
is limited to the clamping voltage level
Transient
Voltage
Clamping
Transient
Transient Peak
+
IC Failure Threshold
TVS Clamping
Voltage (V
C
)
Transient
Current
TVS
+30V
+20V
+12V
Protected
Load
Normal Operating
Voltage
-
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/08/10
Revised Date
2010/03/10
Revision
B
Page.
8
Page 4
DS-222822

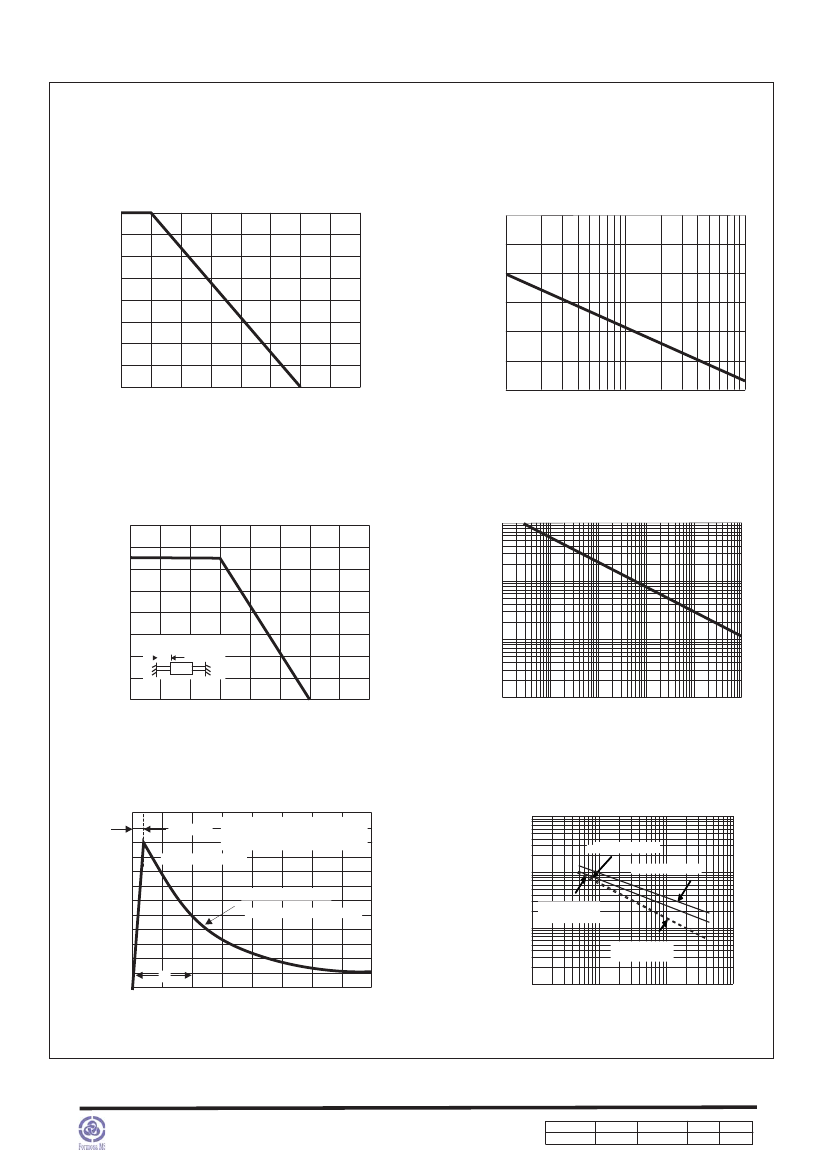

Rating and characteristic curves (3KP SERIES)
Peak Forward Surge Current, I
FSM
(A)
Fig.2 - Maximum Non-Repetitive
Forward Surge Current
Fig.1 - Pulse Derating Curve
Peak Pulse Power or Current
Derating in Percentage, %
100
400
75
300
50
200
25
0
0
25
50
75
100
125
150 175
200
100 1
10
100
Ambient Temperature, T
A
(°C)
Number of Cycles at 60Hz
Steady State Power Dissipation
(W)
Fig.3 - Steady State Power Derating Curve
8.0
Fig.4 - Pealk Pulse Power Rating Curve
Peak Pulse Power, P
PPM (KW)
100
6.0
10
4.0
L
=
0
.
375
” (
9
.
5mm
)
Lead Lengths
1.0
2.0
0
0
25
50
75
100
125
150 175
200
0.1
0.1u
1.0u
10u
100u
1.0m
10m
Lead Temperature, T
L
(°C)
Pulse Width, td ( sec)
Peak Pulse Current, I
PPM (%)
Junction Capacitance, C
J (pF)
Fig.5 - Pulse Waveform
tr=10us
100
pulse width (td) is defined
as the point where the peak
current decays to 50%
Fig.6 - Typical Junction Capacitance
1000000
peak value I
PPM
Bi
-
directional VR
=
0V
10000
Uni
-
directional VR
=
0V
half value I
PPM
/2
50
10/1000us waveform
Uni
-
directional
@
VRWM
100
Bi
-
directional
@
VRWM
0
0
td
1.0
2.0
3.0
4.0
1
1.0
10.0
100.0
1000.0
time, t (ms)
Breakdown Voltage, V
BR
(Volts)
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/08/10
Revised Date
2010/03/10
Revision
B
Page.
8
Page 5
DS-222822
