803-44-037-62-001000: DescriptionBoard Connector, 37 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size274KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

803-44-037-62-001000 Overview

Board Connector, 37 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, Socket, ROHS COMPLIANT

803-44-037-62-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (200)
Contact completed and terminated	TIN (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	803
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

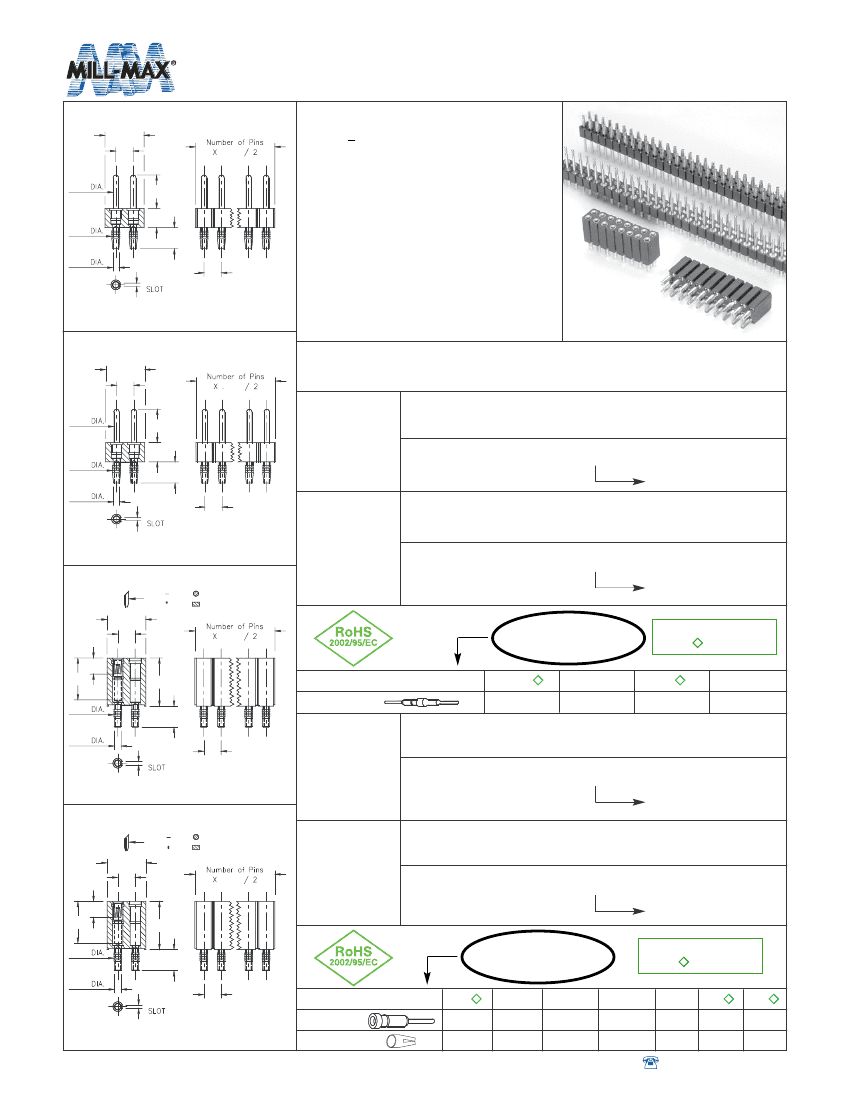

INTERCONNECTS

Solderless Press-Fit

Double Row

5,08

2,54

Series 802, 803

•

The unique compliant tail pins conform to

1,02 +0,76 finished hole without stressing

inner layers. Patent No. 4,799,904

•

Series 802 pin headers are offered in two

tail lengths for 1,52 - 2,54 (MM #5601)

and 2,29 - 3,3 (MM #5602) thick panels.

See page 178 for details.

0,76

4,85

2,79

1,14

2,64

0,89

0,46

2,54

Fig. 1

•

Series 803 sockets MM #4614 or #4615

use Hi-Rel, 6-finger BeCu #47 contacts

rated at 4.5 amps. Receptacles accept

0,76 diameter pins & 0,64 square pins.

See page 211 for details.

•

Insulators are high temp. thermoplastic.

5,08

2,54

Ordering Information

4,85

2,79

0,76

Fig. 1

3,63

2,54

Compliant Tail Pin Header

for 1,52 - 2,54 thick boards

802-XX-0 _ _-61-001000

Specify # of pins

02-64

Compliant Tail Pin Header

for 2,29 - 3,3 thick boards

802-XX-0 _ _-62-001000

Specify # of pins

02-64

For RoHS compliance

select plating code.



5,08µm Sn

1,14

0,89

0,46

Fig. 2

0,64

5,08

2,54

0,94

0,64

Fig. 2

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

2,24

6,1

7,01



0,25µm Au

5,08µm Sn/Pb

1,14

Pin Plating

2,64

1,02

2,54

0,46

Fig. 3

Compliant Tail Socket

for 1,52 - 2,54 thick boards

803-XX-_ _ _-61-001000

Specify # of pins

002-100

Compliant Tail Socket

for 2,29 - 3,3 thick boards

803-XX-_ _ _-62-001000

Specify # of pins

002-100

For RoHS compliance

select plating code.



0,64

5,08

2,54

0,94

0,64

2,54

Fig. 4

2,24

6,1

7,01

1,14

3,63

1,02

0,46

2,54

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=



0,76µm Au

10µ” Au

0,76µm Au

Fig. 4

Sleeve (Pin)

Contact (Clip)

0,25µm Au

200µ” Sn/P

5,08µm Sn/Pb 5,08µm Sn/Pb

200µ”Sn

5,08µm Sn 5,08µm Sn

5,08µm Sn/Pb

10µ” Au

0,76µm Au 5,08µm Sn

w w w. m i l l - m a x . c o m


