CSS20100.00151% datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CSS20100.00151%

CSS20100.00151%: DescriptionFixed Resistor, Metal Alloy, 1W, 0.0015ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size101KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

CSS20100.00151% Overview

Fixed Resistor, Metal Alloy, 1W, 0.0015ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT

CSS20100.00151% Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2122548748
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ULTRA PRECISION
JESD-609 code	e3
Manufacturer's serial number	CSS
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Minimum operating temperature	-65 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
Rated power dissipation(P)	1 W
Rated temperature	100 °C
resistance	0.0015 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	METAL ALLOY
Temperature Coefficient	50 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%

Preview

Download Datasheet

View All

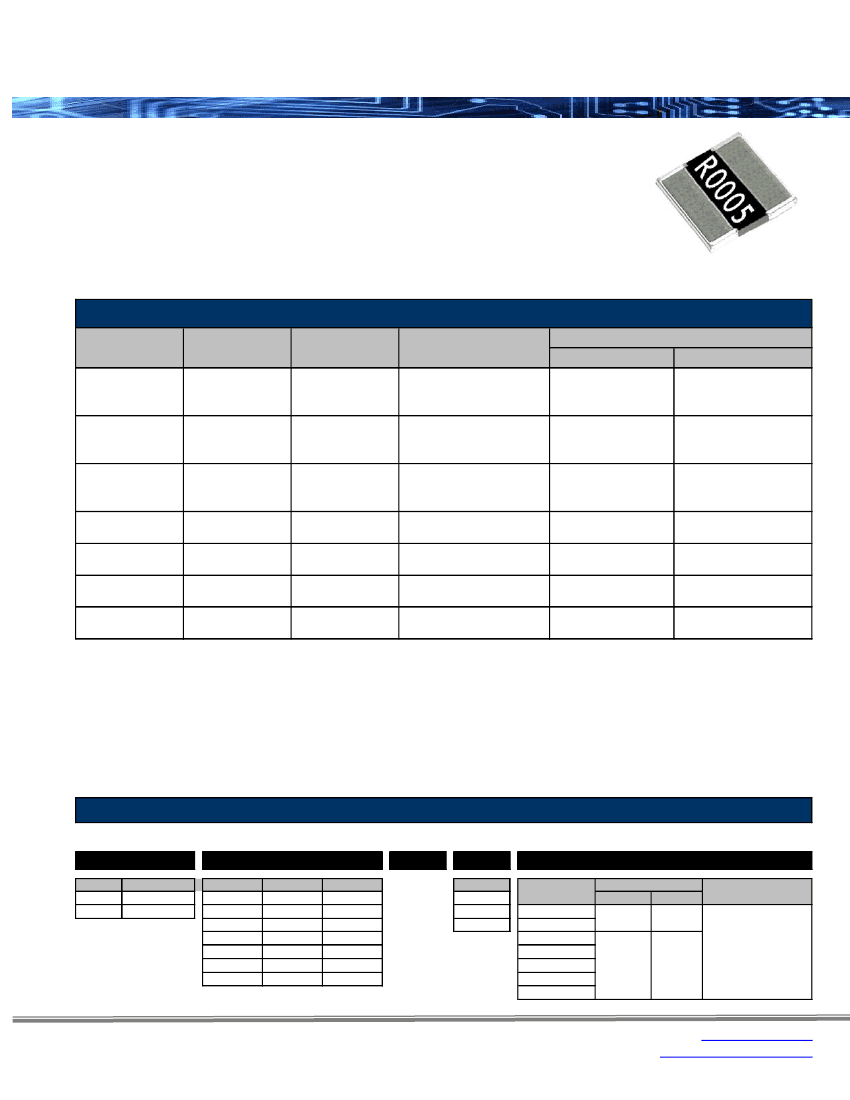

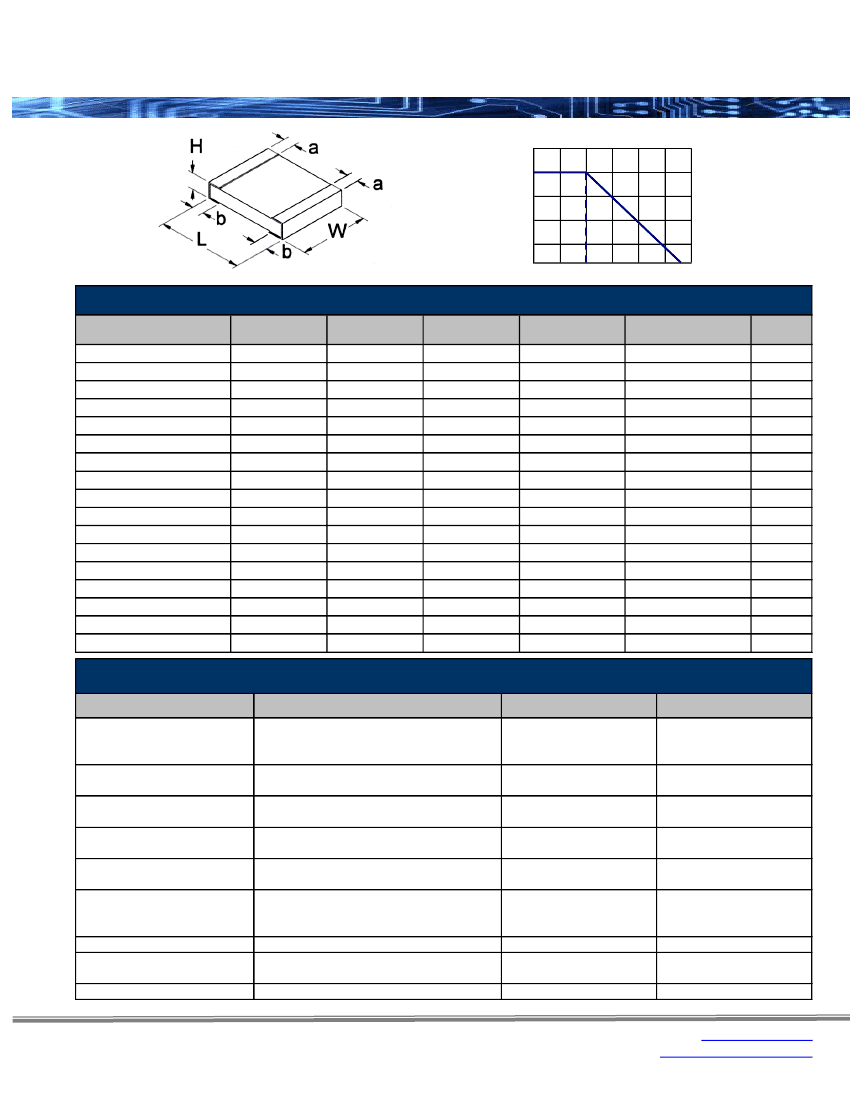

CSS / CSSH Series

Ultra Precision Current Sensing Chip Resistors

Features:

•

Stackpole Electronics, Inc.

Resistive Product Solutions

High power metal alloy current sense resistor

Very low inductance (0.5nH to 5nH)

High temperature performance: up to 275°C

Excellent frequency response

Low thermal EMF (<1µV/C)

Proprietary processing technique produces extremely low

resistance values

RoHS compliant / lead-free

Electrical Specifications

Type / Code

Package Type

Power Rating

(Watts) @ 100ºC

Resistance Temperature

Coefficient

±50 ppm/ºC

±25 ppm/ºC

±15 ppm/ºC

±50 ppm/ºC

±25 ppm/ºC

±15 ppm/ºC

±50 ppm/ºC

±25 ppm/ºC

±15 ppm/ºC

±50 ppm/ºC

±25 ppm/ºC

±50 ppm/ºC

±25 ppm/ºC

±15 ppm/ºC

±25 ppm/ºC

±15 ppm/ºC

Ohmic Range (Ω) and Tolerance

0.5%

0.007 - 0.015

0.0151 - 0.050

0.003 - 0.0069

0.007 - 0.1

0.007 - 0.075

0.007 - 0.01

0.004 - 0.007

0.0071 - 0.1

0.004 - 0.007

0.008 - 0.05

1%, 5%

0.001 - 0.004

0.0041 - 0.0150

0.0151 - 0.050

0.001 - 0.003

0.0031 - 0.0069

0.007 - 0.1

0.0005 - 0.003

0.0031 - 0.0069

0.007 - 0.075

0.0005 - 0.002

0.0021 - 0.01

0.00025 - 0.0009

0.001 - 0.003

0.004 - 0.007

0.0071 - 0.1

0.004 - 0.007

0.008 - 0.05

CSS 1206

1206

CSS 2010

2010

CSS 2512

CSSH 2512

CSS 2725

CSS 2728

CSSH 2728

2512

2725

2728

How to Order

SEI Type

Code

Nominal

Resistance

Tolerance

Packaging

CSS

Type

CSS

CSSH

Description

Metal Alloy

High Power

Code

1206

2010

2512

(H) 2512

2725

2728

(H) 2728

2725

Wattage

Size

1206

2010

2512

2725

2728

0.003

Tolerance

0.5%

SEI Types

CSS 1206

CSS 2010

CSS 2512

CSSH 2512

CSS 2725

CSS 2728

CSSH 2728

Quantity

Standard

Code

2,000

7" - Embossed Plastic

1,000

Description

Rev Date: 03/04/2010

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com
