5084-2071

Description
Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size124KB,1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric View All

5084-2071 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Locking, Receptacle

5084-2071 Parametric

Parameter NameAttribute value
Objectid304383212
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.252 inch
subject depth0.386 inch
body length1.321 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
contact modeRECTANGULAR
Contact styleRND PIN-SKT
insulator materialNYLON
Manufacturer's serial number5084
Plug contact pitch0.2 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.172 inch
Terminal pitch5.08 mm
Termination typeSOLDER
Total number of contacts7

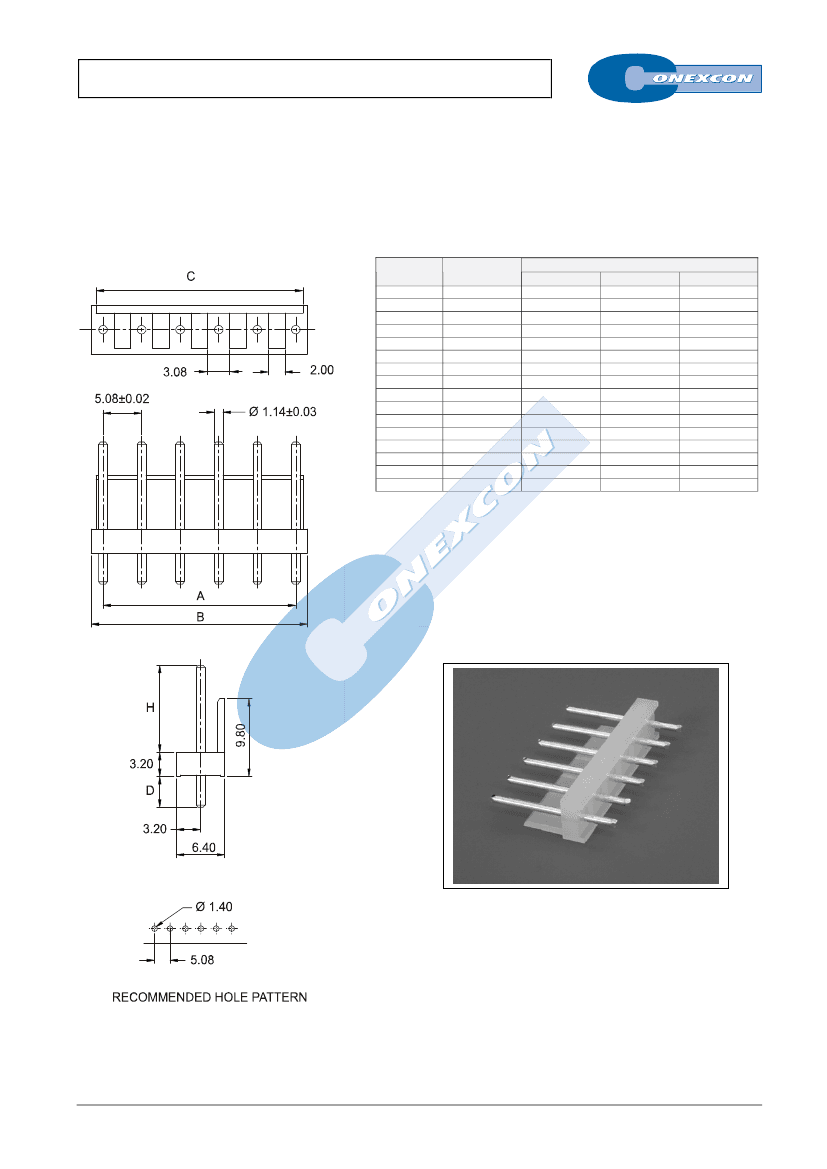

SINGLE ROW STRAIGHT POLARISED HEADER
5084 SERIES.
5.08mm(0.200”). Round Pin. For PCB Solder
Features
Available in 2 through 12 circuits
Material: Nylon 6/6 UL 94V-2
1.14mm(0.45") diameter round pin tin plated
Mates with 5080 series housing
Polarised with no friction lock
Pin omit options are available in any circuits
Ordering and Dimensional Information
Dimensions
A
5,08(0,200)
10,16(0,400)
15,24(0,600)
20,32(0,800)
25,40(1,000)
30,48(1,200)
35,56(1,400)
40,64(1,600)
45,72(1,800)
50,80(2,000)
55,88(2,200)
60.96 (2.400)
66.04 (2.600)
71.12 (2.800)
76.20 (3.000)
81.52 (3.209)
B
8.16(0.321)
13.24(0.521)
18.32(0.721)
23.40(0.921)
28.48(1.121)
33.56(1.321)
38.64(1.521)
43.72(1.721)
48.80(1.921)
53.88(2.121)
58.96(2.321)
64.04(2.521)
69.12(2.721)
74.20(2.921)
79.28(3.121)
84.36(3.321)
C
6.16(0.242)
11.24(0.442)
16.32(0.642)
21.40(0.842)
26.48(1.042)
31.56(1.242)
36.64(1.442)
41.72(1.642)
46.80(1.842)
51.88(2.042)
56.96(2.242)
62.04(2.442)
67.12(2.642)
72.20(2.842)
77.28(3.042)
82.36(3.242)
Dimensional Information
Circuit Size
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
Part Number
5084-
T02C
5084-
T03C
5084-
T04C
5084-
T05C
5084-
T06C
5084-
T07C
5084-
T08C
5084-
T09C
5084-
T10C
5084-
T11C
5084-
T12C
5084-
T13C
5084-
T14C
5084-
T15C
5084-
T16C
5084-
T17C
T = Contact Plating
T =
2.
Tin plated
T =
3.
Gold flash over 50µ” nickel.
C = Pin length
C =
1.
Dim. H = 11.48 mm. ; D = 4.38 mm.
