JTB450-00-1-21-3-M1 datasheet, PDF

Datasheet> All Categories > The connector> JTB450-00-1-21-3-M1

JTB450-00-1-21-3-M1: DescriptionBarrier Strip Terminal Block, 10A, 1 Row(s), 1 Deck(s),; CategoryThe connector; File Size135KB，1 Pages; ManufacturerJite Connectors Inc.; Environmental Compliance

Download Datasheet Parametric View All

JTB450-00-1-21-3-M1 Overview

Barrier Strip Terminal Block, 10A, 1 Row(s), 1 Deck(s),

JTB450-00-1-21-3-M1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8351941877
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: UL 94V-0, POLYAMIDE
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	21
Rated current	10 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	14 AWG

Preview

Download Datasheet

View All

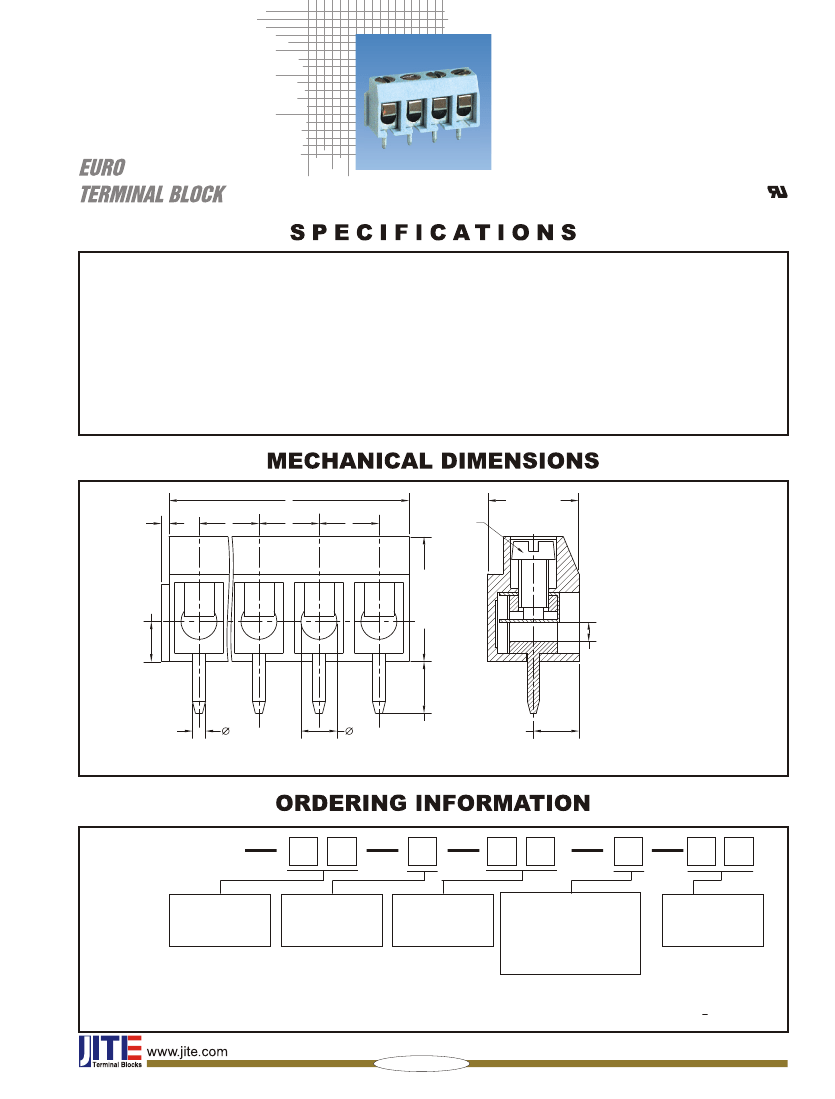

TYPE JTB450

WIRE ENTRANCE: .......................Parallel to PCB

CENTER SPACING: ......................5.08mm / 0.200 in.

5.00mm / 0.197 in.

WIRE RANGE: ..............................14--22 AWG

ELECTRICAL RATING: .................300V, 10A

BREAKDOWN VOLTAGE: .............4,000V

MOLDING: .....................................Polyamide, UL94, V-0

Self Extinguishing

MAX. TORQUE: .............................3lb-in.

WIRE PROTECTOR: .....................Brass, Ni Plated

SCREW: .........................................M3, Steel, Zinc Plated

TERMINAL BODY : ........................Brass, Tin Plated

OPERATING: ..................................-40

C to +105

-40

F to + 221

MAX. SOLDERING: ........................260

C , +500

for 5 seconds

0.65(.03)

7.60(.03)

1.10(.04)

3.00(.12)

4.30(.17)

3.80(.15)

JTB450

Styles

00 to 99

0 0

Spacing

1=5.00mm

2=5.08mm

Poles

02 to24

Color

0=Light Grey 1=Black

2=Blue

3=Green

4=Dark Grey

Options*:

M1~M9, For Customer Modification (Please provide sketch).

If more than one option is required, please separate each option with a dash ( ).

J-05-00-V1

P = Center to Center Spacing

Length of Connector (L)

L = No. of Poles X Center Spacing

Dimensions: mm (in.)

3.35(.13)

10.00(.39)

1.60(.06)

Options*
