Part Number

Search

455931605

Description
Telecom and Datacom Connector, 15 Contact(s), Male, Straight, Solder Terminal, Locking, Plug
CategoryThe connector    The connector
File Size1016KB,27 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

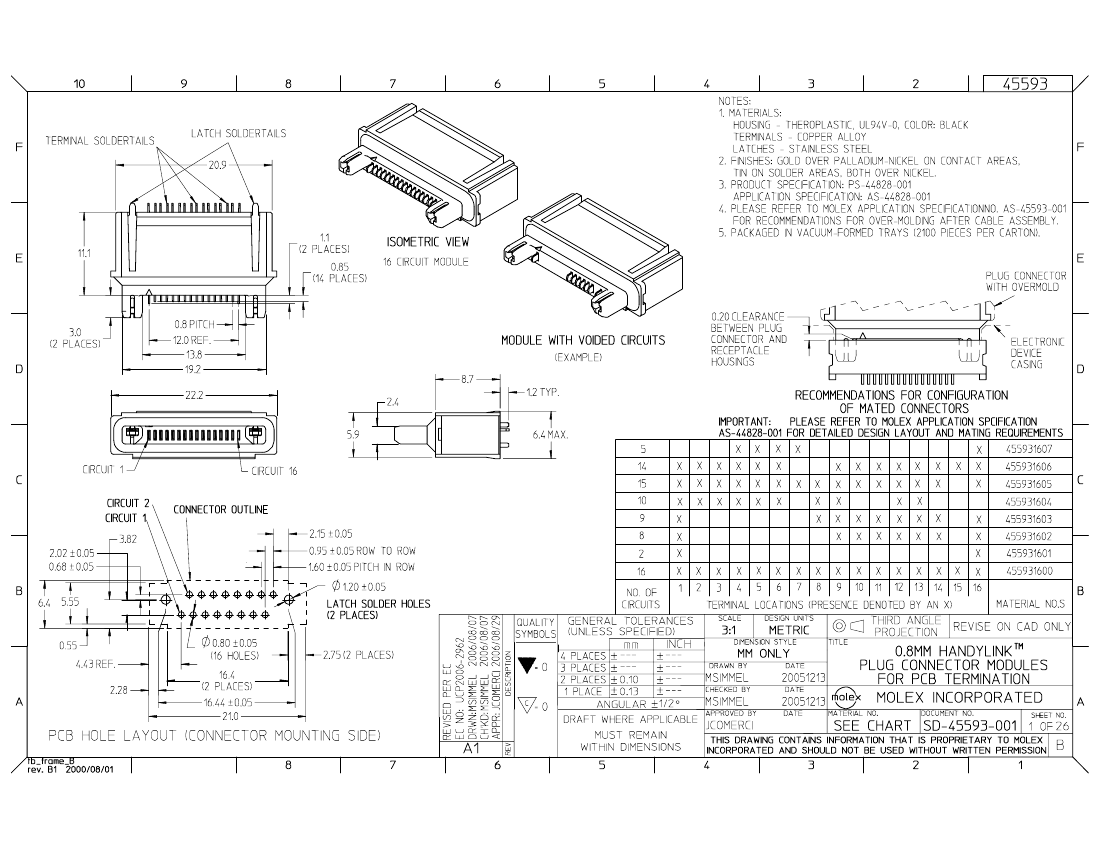

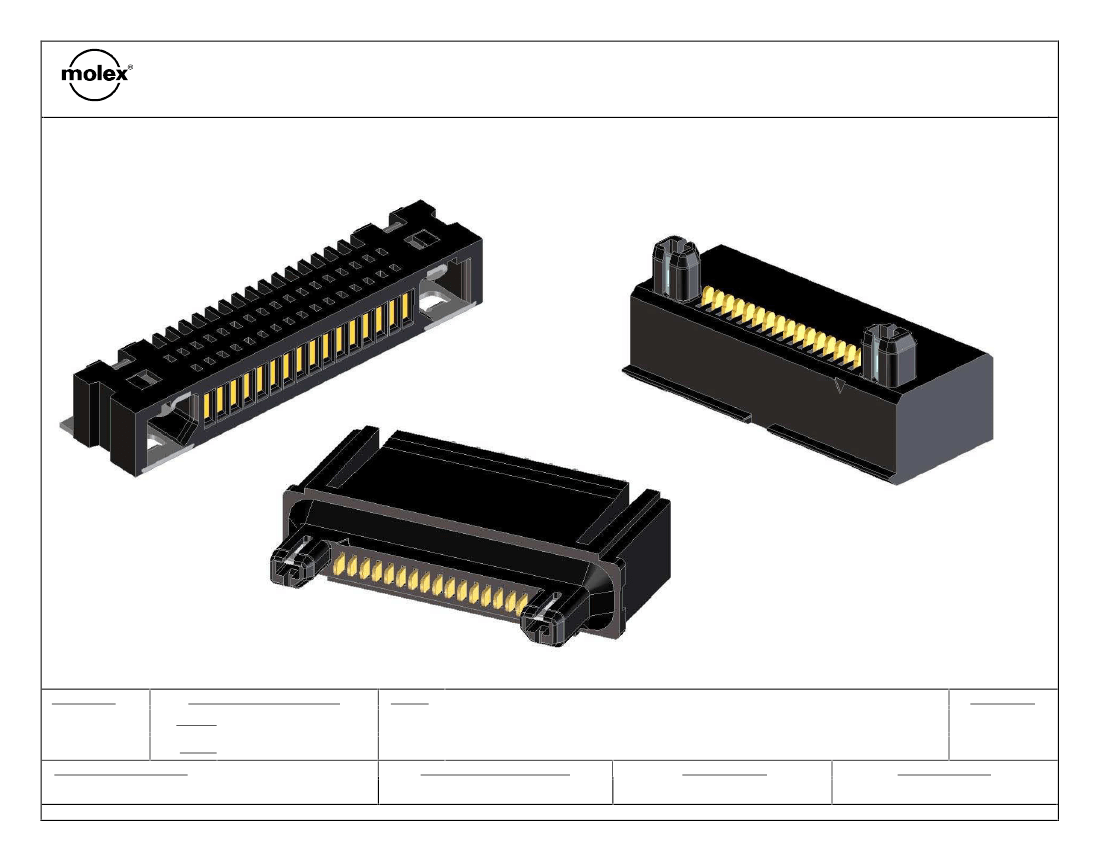

455931605 Overview

Telecom and Datacom Connector, 15 Contact(s), Male, Straight, Solder Terminal, Locking, Plug

455931605 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Other featuresHANDYLINK
Board mount optionsSOLDER HOLDING POSTS
body width0.252 inch
subject depth0.555 inch
body length0.874 inch
Body/casing typePLUG
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance50 mΩ
Contact styleBLADE PIN-SKT
DIN complianceNO
Dielectric withstand voltage300VAC V
Durability20000 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force1.3066 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.031 inch
Mixed contactsNO
Installation option 1LOCKING
Installation option 2FRICTION LOCK
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.6924 mm
polarization keyPOLARIZED KEY
Rated current (signal)1.5 A
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell materialPOLYETHYLENE
Terminal length0.047 inch
Terminal pitch1.6002 mm
Termination typeSOLDER
Total number of contacts15
UL Flammability Code94V-0
Evacuation force-minimum value.4726 N
Base Number Matches1
