9312S-P02-01-80 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 9312S-P02-01-80

9312S-P02-01-80: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size156KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9312S-P02-01-80 Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

9312S-P02-01-80 Parametric

Parameter Name	Attribute value
Objectid	1327456153
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.118 inch
subject depth	0.319 inch
body length	1.2 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	93
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

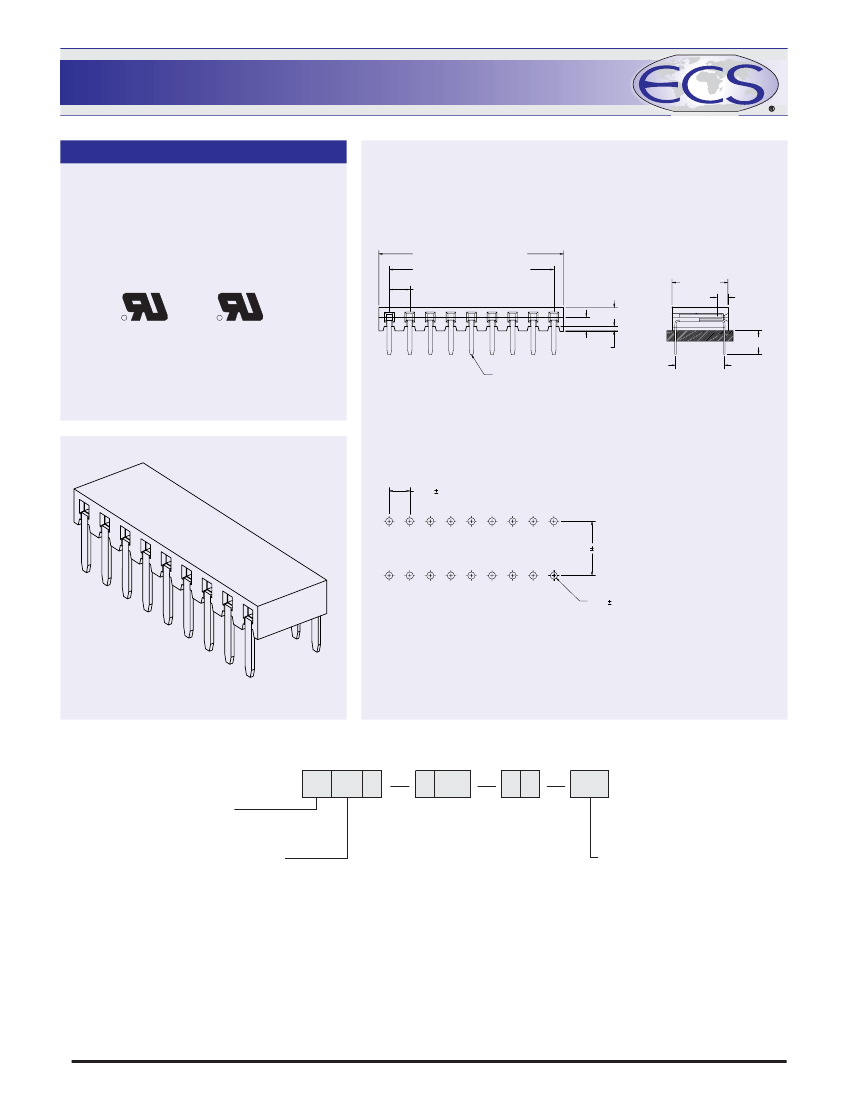

.100

[2.54] SOCKET, SIDE ENTRY TYPE

Specifications

Current Rating:

3 Amps

Insulator Resistance:

5000 Megohms min

Contact Resistance:

20m ohm max

Dielectric Withstanding: AC 1000V

Operating Temperature: -40° ~± 105° C

Max Processing Temp: 230° C to 60 seconds

Contact Material:

Phosphor Bronze

Insulator Material:

Polyester, UL 94V-0, PBT

Finish:

See Contact Plating

SMT

.100 [2.54] X (No of Positions)

.100 [2.54] (No of Contacts-1)

.319 [8.10]

.100 [2.54]

.075 [1.9]

.118 [3.0]

.074 [1.89]

.0157 [.40]

.310 [7.87]

PIN .030 [.70] X .010 [.25]

.118 [3.0]

Recognized under the recognized component

Program of Underwriters Laboratories, Inc.

Products specifications are subject to be changed

without notice.

.100 .002 [2.54]

.310 .002 [7.87]

.040 .002 [1.02] TYP.

Recommended P.C.B Layout

Dimensions are in inches [mm]

PART NUMBERING

93 XX S

SERIES CODE

NO. OF CONTACTS

P 02

CONTACT PLATING

Lead Free & RoHS Compliant

.000050” Nickel underplate

CONTACT

= Gold Flash

80 =

” Gold

85 =

” Gold

90 =

” Gold

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR DESIGN

WWW.ECSCONN.COM
