MB-2J5-021-220-4ATB datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> MB-2J5-021-220-4ATB

MB-2J5-021-220-4ATB: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size842KB，1 Pages; ManufacturerAirBorn; Environmental Compliance

Download Datasheet Parametric View All

MB-2J5-021-220-4ATB Overview

Connector Accessory

MB-2J5-021-220-4ATB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1389736987
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	MB

Preview

Download Datasheet

View All

CALL 512-863-5585

x6464

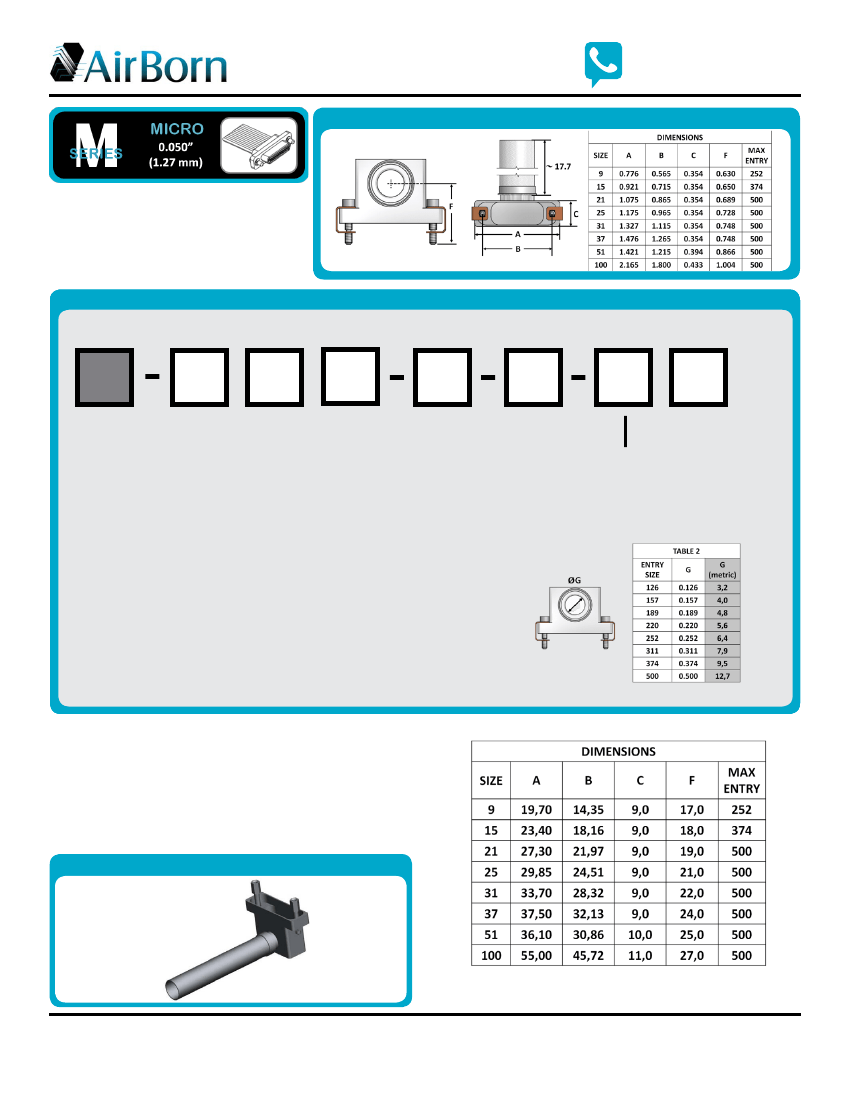

DIMENSIONS

(metric table below)

CONTACT CUSTOMER SERVICE

MB J – Braid Tail Backshell with

Boot Groove and Circular Side

Entry

For use with AirBorn rugged M-Series (MM)

and MIL-DTL-83513 style connectors.

ORDER FORM

ENTER

CODE

ENTER

CODE

ENTER

CODE

Sample Part Number Format: MB-3J3-051-XXX-22NB

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

SERIES

Micro Connector

Backshells

ROWS

2 – 2-Row

(Sizes 9-37)

3 – 3-Row

(Size 51)

4 – 4-Row

(Size 100)

BODY STYLE

J – Circular side

entry

BODY MATERIAL

2 – Nickel-plated

aluminum

3 – Cadmium-plated

aluminum *

5 – Passivated

stainless steel

SIZE

009 – 9 Contacts

015 – 15 Contacts

021 – 21 Contacts

025 – 25 Contacts

031 – 31 Contacts

037 – 37 Contacts

051 – 51 Contacts

100 – 100 Contacts

ENTRY SIZE

See Table 2 below

BRAID

NB – Nickel-plated

TB – Tin-plated

HARDWARE

00 – None

22 – Jackpost, 2-56 (sizes 9-51, only)

4A – Allen head jackscrew, 2-56 (sizes 9-51, only)

4B – Slot head jackscrew, 2-56 (sizes 9-51, only)

62 – Jackpost, 4-40 (size 100, only)

8A – Allen head jackscrew, 4-40 (size 100, only)

8C – Slot head jackscrew, 4-40 (size 100, only)

NOTES

* Option not RoHS-compliant

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

MATERIALS and FINISHES

Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy

Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½

Electrodeposited cadmium per SAE AMS-QQ-P-416, Type II, Class 2

Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640,

Type 1 or AISI-303 or EN 10088-3 1½4305

Passivated per SAE AMS-2700, Method 2

Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M

Passivated per SAE AMS-2700, Method 2

METRIC

(for reference, only)

MB-3J3-051-XXX-22NB

MBJ-PNB-1

www.airborn.com

(512 ) 863-5585
