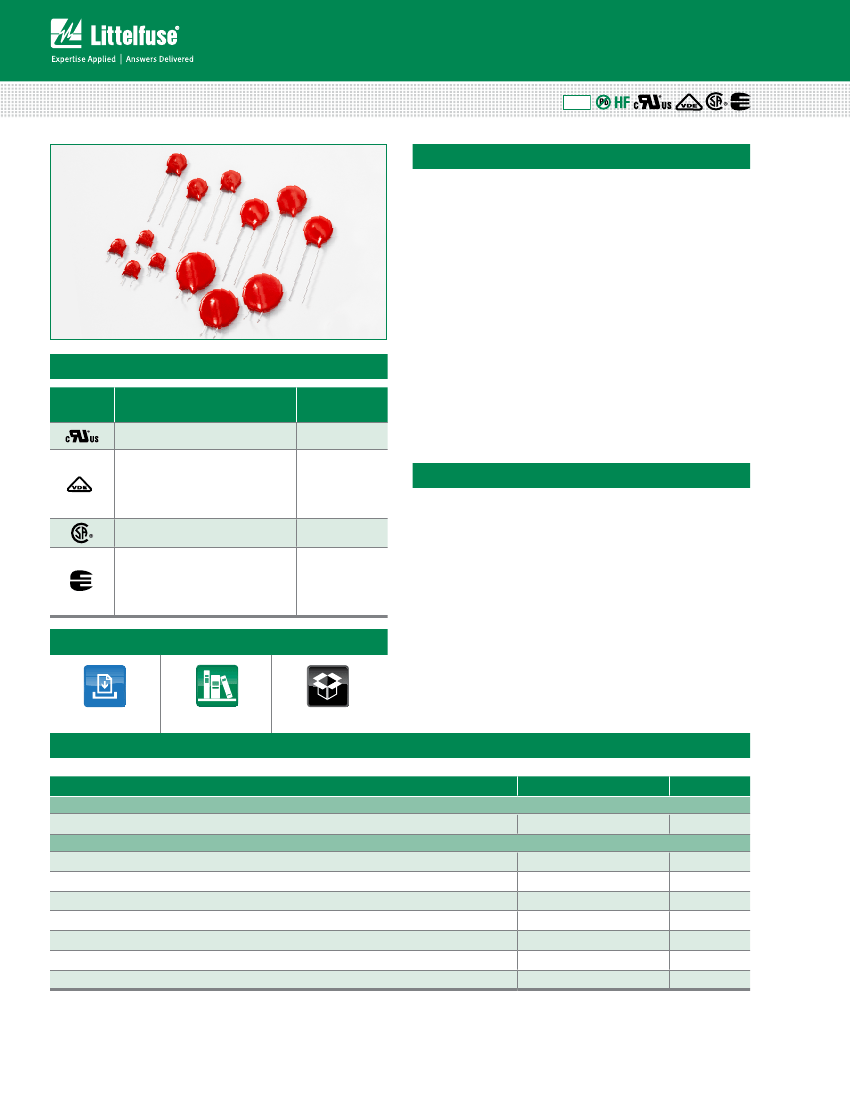

The UltraMOV™ Metal Oxide Varistor Series is designed
for applications requiring high peak surge current ratings
and high energy absorption capability. UltraMOV™
varistors are primarily intended for use in AC Line Voltage
applications such as Surge Protection Device (SPD),
Uninterruptable Power Supplies (UPS), AC Power Taps,
AC Power Meters, or other products that require voltage
clamping of high transient surge currents from sources
such as lightning, inductive load switching, or capacitor
bank switching.
Agency Approvals
Agency
Agency Approval
Agency File
Number
UL1449
CECC 42201-006
IEC 61051-1
IEC 61051-2
IEC 60950-1 (Annex Q) for 14mm
and 20mm only
22.2-1
CECC 42201-006
IEC 61051-1
IEC 61051-2
IEC 60950-1 (Annex Q) for 14mm
and 20mm only
E320116
These devices are produced in radial lead package
sizes of 7, 10,14 and 20mm and offered in a variety of
lead forms. UltraMOV™ varistor are manufactured with
recognized epoxy encapsulation and are rated for ambient
temperatures up to 85ºC with no derating. This Series is
LASER-branded and is supplied in bulk, ammo pack (fan-
fold), or tape and reel packaging.
Features
•
Lead–free, Halogen-Free
• Characterized for
and RoHS compliant.
maximum standby
current (Leakage)
• High peak surge
current rating (I
TM
) up
• Custom voltage
types available
to 10kA, single 8 x
20 pulse, (20mm)
• Standard lead form and
lead space options
• Standard operating
voltage range compatible
with common AC
line voltages (130
V
AC
to 625 V
AC
)
116895
91788
E1273/F
Additional Information
Datasheet
Resources
Samples
Absolute Maximum Ratings
• For ratings of individual members of a series, see Device Ratings and Specifications chart
Continuous
Steady State Applied Voltage:
AC Voltage Range (V
M(AC)RMS
)
Transients:
Single-Pulse Peak Current (I
TM
) 8x20µs Wave (See Figure 2)
Single-Pulse Energy Range (W
TM
) 2ms Square Wave
Operating Ambient Temperature Range (T
A
)
Storage Temperature Range (T
STG
)
Temperature Coefficient (a
V
) of Clamping Voltage (V
C
) at Specified Test Current
Hi-Pot Encapsulation (COATING Isolation Voltage Capability)
COATING Insulation Resistance
UltraMOV™ Varistor Series
130 to 625
Units
V
1,750 to 10,000
12.5 to 400
-55 to +85
-55 to +125
<0.01
2500
1000
A
J
ºC
ºC
%/ºC
V
MΩ
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
