26-29-1052: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size438KB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

26-29-1052 Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, Solder Terminal

26-29-1052 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	BOTTOM ENTRY
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	3215
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

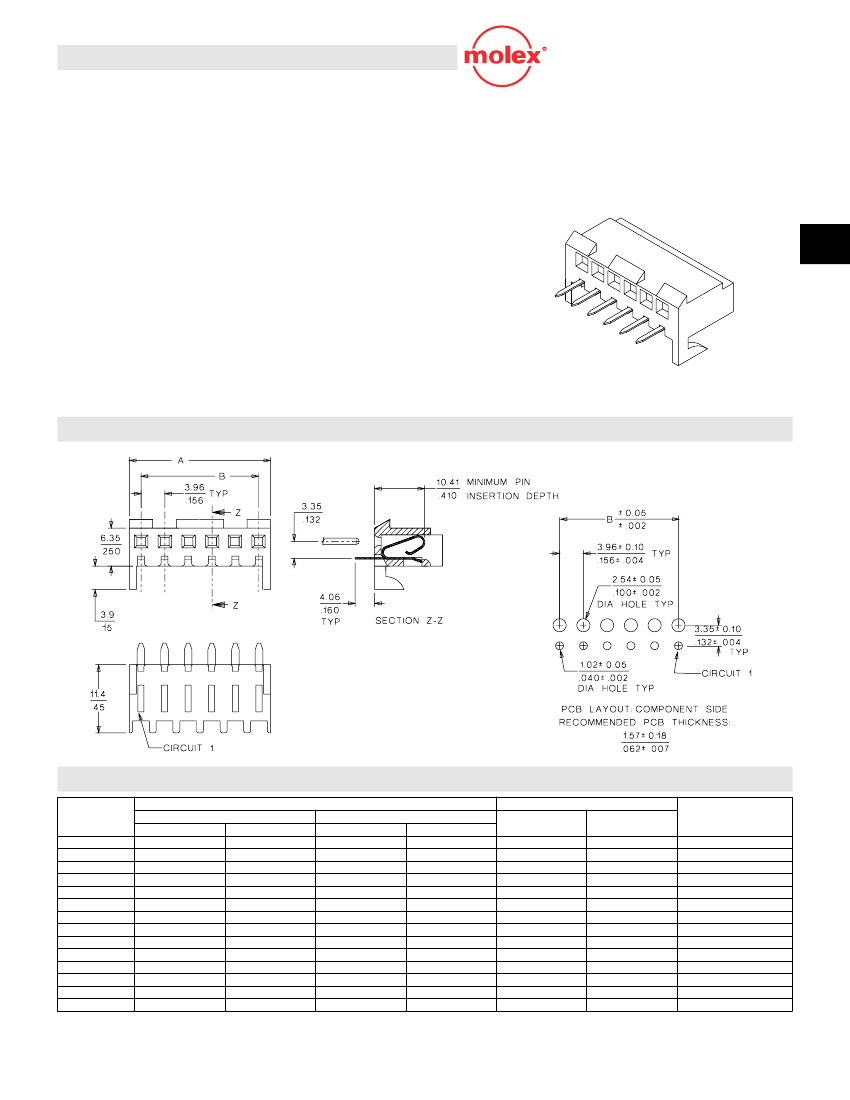

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 15 circuits

Mating headers must be long enough to accommodate

board thickness

Polarizing key available

Available without hooks

Various tail lengths available

Reference Information

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

Mates With: Molex KK 3.96mm (.156") locking headers

or 1.14mm (.045") pins

Designed In: Inches

Electrical

Voltage: 250V AC

Current: 5.0A max.*

Contact Resistance: 6m

Ω

max.

Dielectric Withstanding Voltage: 1500V AC

Insulation Resistance: 50K M

Ω

min.

Physical

Housing: Nylon, UL 94V-2

(see 41815 for polyester, UL 94V-0)

Contact: Brass or Phosphor Bronze

Plating: See Table

Operating Temperature: 0 to +75˚C

3.96mm (.156") Pitch

PC Board Connector

2145/3215

Bottom Entry

3.00 to 7.92mm (.118 to .312") Pitch

Note: 2145 shown

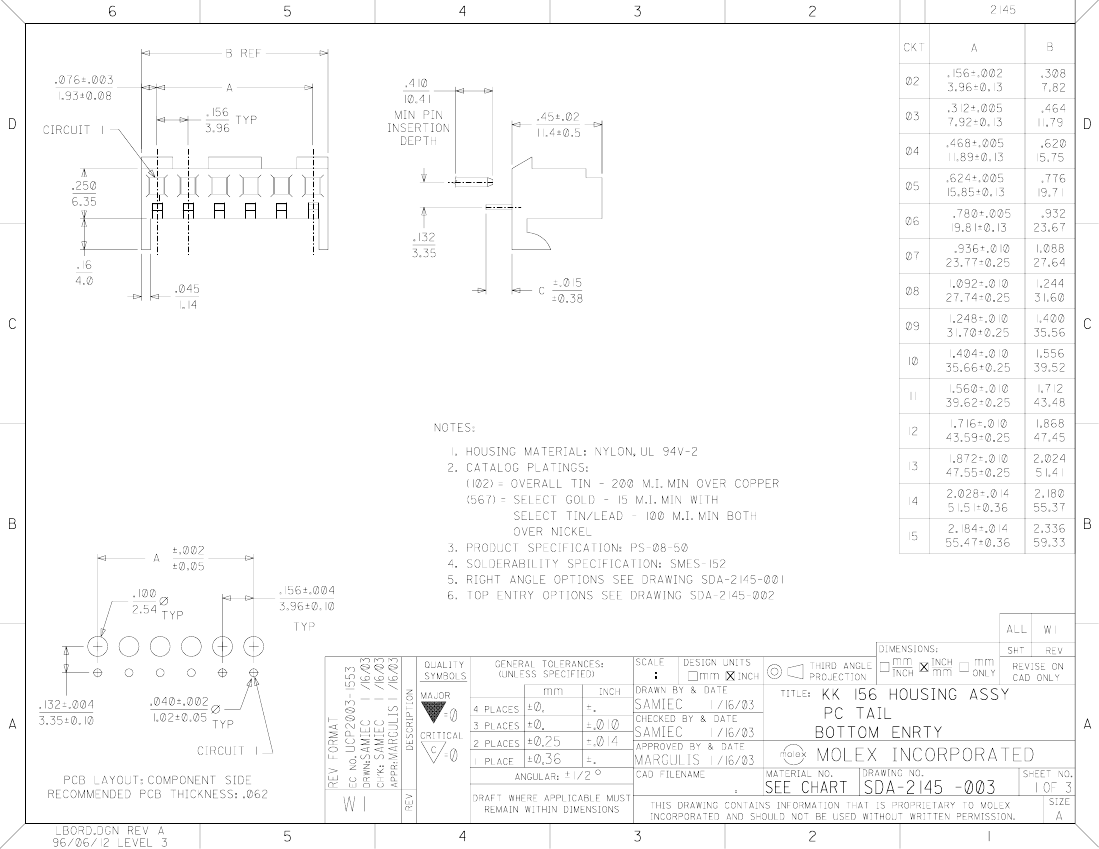

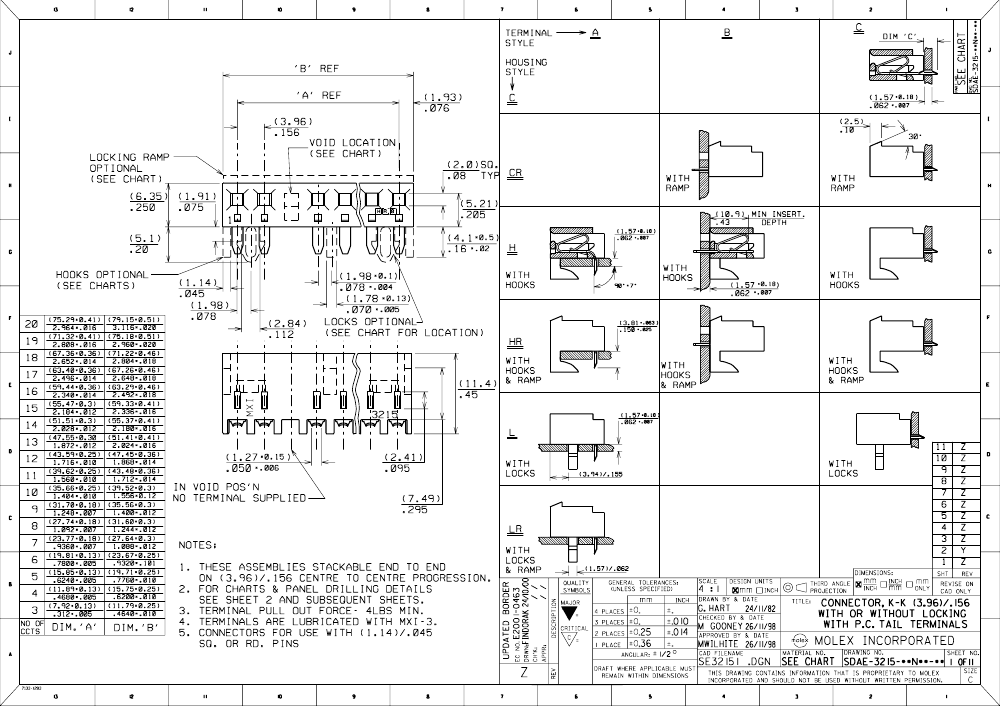

CATALOG DRAWING (FOR REFERENCE ONLY)

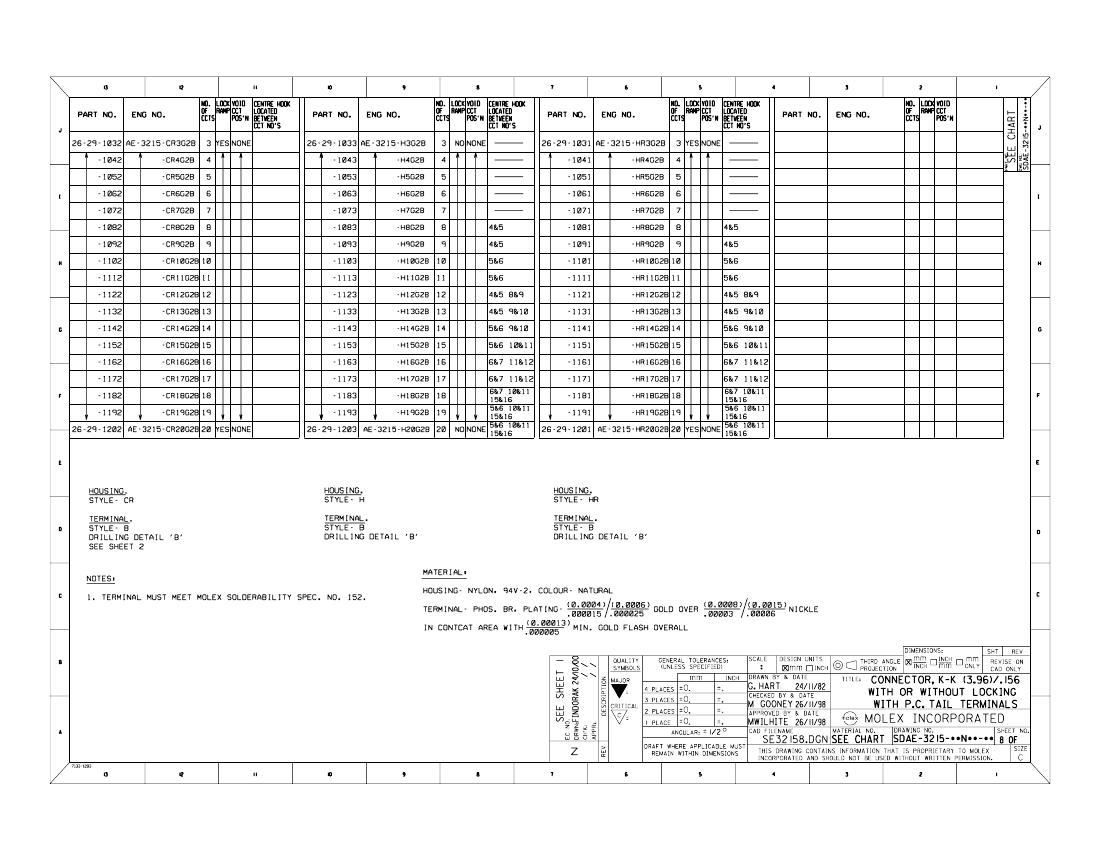

ORDERING INFORMATION AND DIMENSIONS

Order No.

Circuits

Tin

• 09-62-6024

• 09-62-6034

• 09-62-6044

• 09-62-6054

• 09-62-6064

• 09-62-6074

• 09-62-6084

• 09-62-6094

• 09-62-6104

• 09-62-6114

• 09-62-6124

• 09-62-6134

• 09-62-6144

• 09-62-6154

2145

Select Gold

• 09-62-3022

• 09-62-3032

• 09-62-3042

• 09-62-3052

• 09-62-3062

• 09-62-3072

• 09-62-3082

• 09-62-3092

• 09-62-3102

• 09-62-3112

• 09-62-3122

• 09-62-3132

• 09-62-3142

• 09-62-3152

Tin

26-11-6035

26-11-6045

26-11-6055

26-11-6065

26-11-6075

26-11-6085

26-11-6095

26-11-6105

26-11-6125

3215

†

Dimension

Select Gold

26-29-1031

26-29-1041

26-29-1051

26-29-1061

26-29-1071

26-29-1081

26-29-1091

26-29-1101

26-29-1111

26-29-1121

26-29-1131

26-29-1141

26-29-1151

7.82

11.79

15.75

19.71

23.07

27.64

31.60

35.56

39.52

43.48

47.45

51.41

55.37

59.33

(.308)

(.464)

(.620)

(.776)

(.932)

(1.088)

(1.244)

(1.400)

(1.556)

(1.712)

(1.868)

(2.024)

(2.180)

(2.336)

3.96

7.92

11.89

15.85

19.81

23.77

27.74

31.70

35.66

39.62

43.59

47.55

51.51

55.47

(.156)

(.312)

(.468)

(.624)

(.780)

(.936)

(1.092)

(1.248)

(1.404)

(1.560)

(1.716)

(1.872)

(2.028)

(2.184)

Center Hook(s) Location

(1) between circuits 4-5

(1) between circuits 5-6

(2) between circuits 4-5 and 8-9

26-11-6155

(2) between circuits 5-6 and 10-11

• US Standard Product, available through Molex franchised distributors

* Dependent upon PC board

†

Preferred version in Europe and the Far East

MX01

D-33
