Y14730R02000D9W Overview

res 0.02 ohm 2W .5% 3637

Preview

Download Datasheet

View All

CSM3637Z

Bulk Metal

Foil Technology Ultra High Precision, Current Sensing,

Power Surface Mount, Metal Strip Resistor with Improved TCR to ±5

ppm/°C Max, Resistance Value from 3 m, Rated Power to 3 W

FEATURES



Resistance range: 3 m to 50 m



Temperature coefficient of resistance (TCR):

± 5 ppm/°C maximum

(- 55 °C to + 125 °C, + 25 °C ref.)

INTRODUCTION

The CSM3637Z is a low value current sense resistor,

providing power and precision in a four terminal, surface

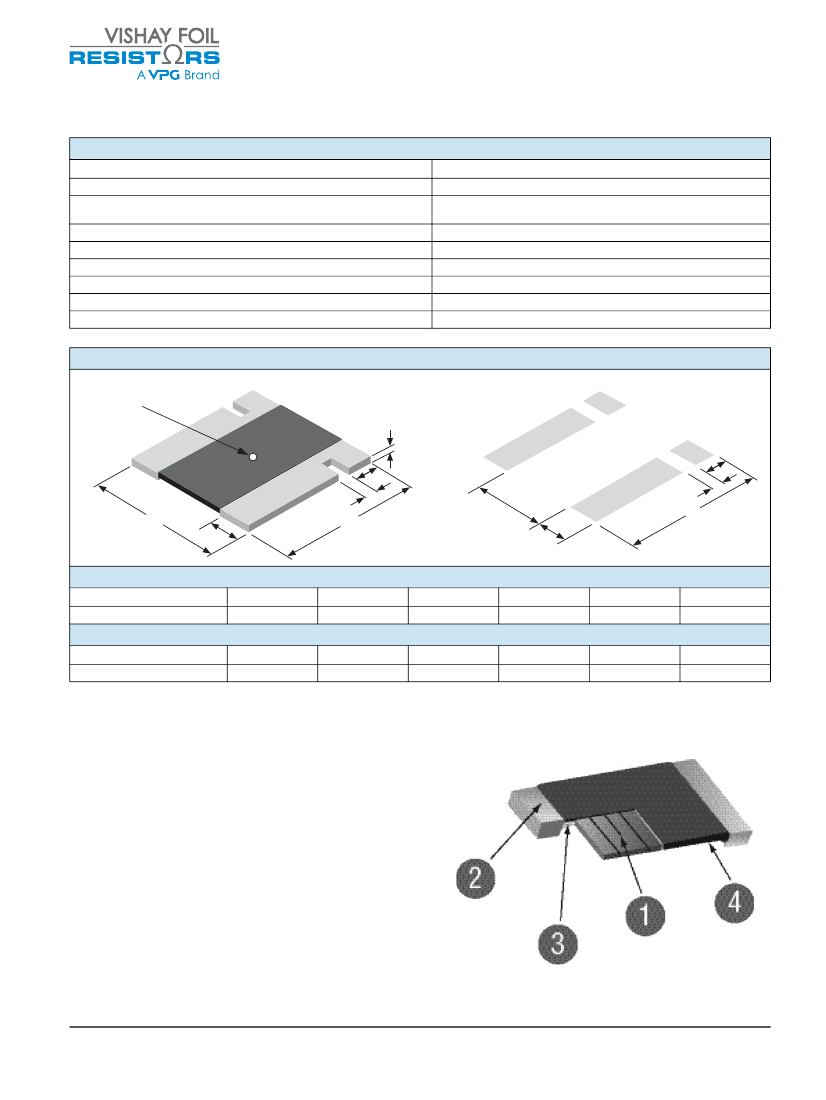

mount configuration. Its all welded construction is made up

of a Bulk Metal

resistive element with plated copper

terminations.

There are many current sense resistors on the market. Until

now the combination of very stable and precise resistors

with extremely low TCR as much as ± 5 ppm/°C maximum,

tight tolerance of ± 0.1 % and load life stability of ± 0.2 %

(2000 h, + 70 °C at rated power) was not easily available.

The key performance of the new CSM3637Z is its extremely

low TCR value.

These specifications are based on tests performed in

accordance with methods prescribed by appropriate

MIL-PRF standards (MIL-PRF-55342 and MIL-PRF-49465).

The four terminal device separates the current leads from

the voltage sensing leads. This configuration eliminates the

effect of the lead wire resistance from points A to B and

C to D.

In addition a key feature of the CSM3637Z is its low thermal

EMF design (very important for low ohmic value DC

applications). The welded terminals make intimate contact

with the chip thereby minimizing temperature differentials.

Our application engineering department is available to

advise and make recommendations.

For non-standard technical requirements and special

applications, please contact:

foil@vpgsensors.com



Load life stability to ± 0.2 % (70 °C, 2000 h at

rated power)



Power rating: to 3 W (see table 1)



Resistance tolerance: ± 0.1 %



Vishay Foil resistors are not restricted to standard values;

specific “as required” values can be supplied at no extra

cost or delivery (e.g. 10.2345 m vs. 10 m)



Short time overload: ± 0.1 % typical



Proprietary processing technique produces extremely low

resistance values with improved stability



All welded construction



Solderable terminations



Very low inductance 0.5 nH



Excellent frequency response to 50 MHz



Low thermal EMF < 3 µV/°C (DC offset error, significant for

low values)



Maximum current: up to 31 A



Four terminal (Kelvin) design: allows for precise and

accurate measurements



Terminal finish: lead (Pb)-free or tin/lead alloy



Prototype quantities available in just 5 working days

or sooner. For more information, please contact

foil@vpgsensors.com



For better performances please contact us

FIGURE 1 - POWER DERATING CURVE

+ 70 °C

Rated Power (%)

100

- 65 - 50

- 25

100

125

150

170

∞

Ambient Temperature (°C)

* This datasheet provides information about parts that are RoHS-compliant and/or parts that are non-RoHS-compliant. For example, parts with

lead (Pb) terminations are not RoHS-compliant. Please see the information/tables in this datasheet for details.

Document Number: 63208

Revision: 9-Mar-15

For any questions, contact

foil@vpgsensors.com

www.vishayfoilresistors.com
