RCWP-72259314FS83

Description
Fixed Resistor, Metal Glaze/thick Film, 0.6W, 9310000ohm, 200V, 1% +/-Tol, -300,300ppm/Cel, 2308,
CategoryPassive components    The resistor
File Size105KB，4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

RCWP-72259314FS83 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.6W, 9310000ohm, 200V, 1% +/-Tol, -300,300ppm/Cel, 2308,

RCWP-72259314FS83 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid921696697
Reach Compliance Codecompliant
Country Of OriginIsrael
ECCN codeEAR99
YTEOL6.6
Other featuresANTI-SULFUR
structureRectangular
JESD-609 codee0
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height0.51 mm
Package length5.84 mm
Package shapeRECTANGULAR PACKAGE
Package formSMT
Package width1.91 mm
method of packingTR
Rated power dissipation(P)0.6 W
GuidelineMIL-PRF-55342
resistance9310000 Ω
Resistor typeFIXED RESISTOR
seriesRCWP
size code2308
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient300 ppm/°C
Terminal surfaceTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Tolerance1%
Operating Voltage200 V

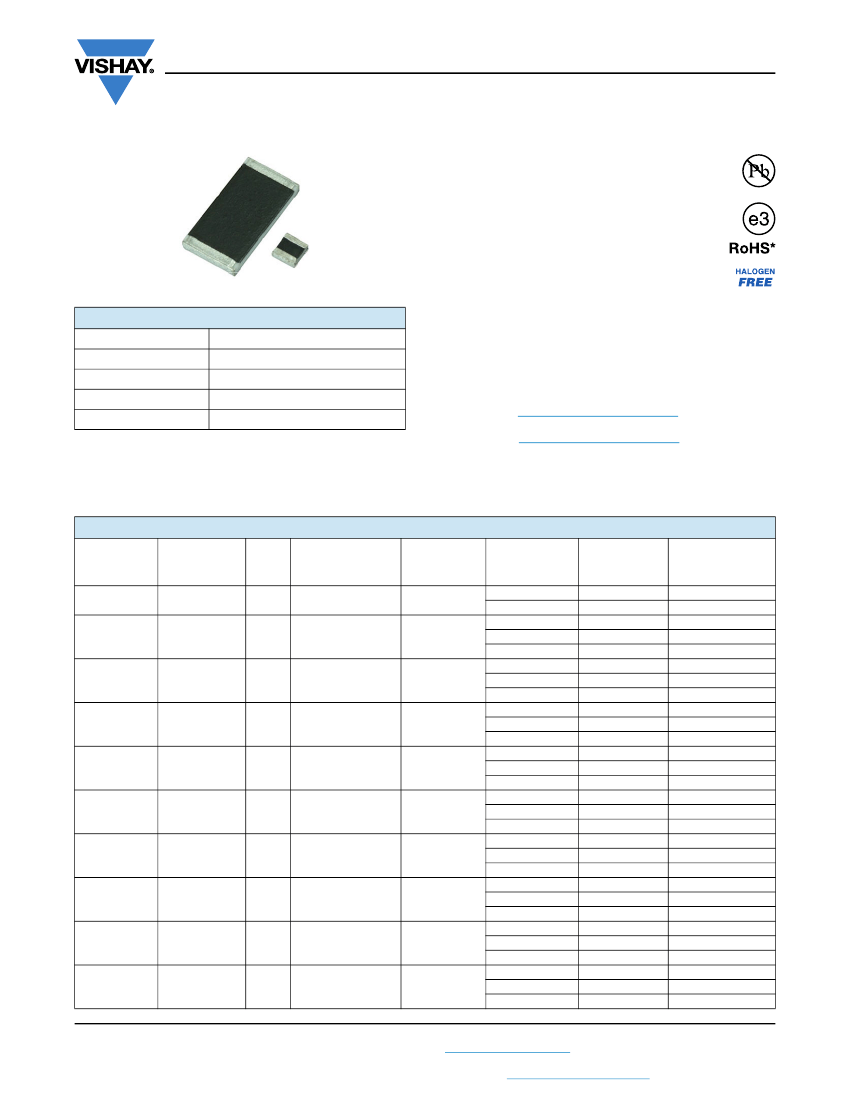

RCWP-72259314FS83 Preview

RCWP
www.vishay.com
Vishay Dale
Thick Film Chip Resistors, Industrial / High Reliability
FEATURES
• Same
materials
and
construction
as
MIL-PRF-55342 chip resistors
Available
• Undergoes group A testing to MIL-PRF-55342
(precap visual inspection, thermal shock,
DC resistance, 100 % visual inspection) prior to
shipping
• Construction is sulfur impervious against a high
Available
sulfur environment (ASTM B 809-95 test
method)
• Termination: Tin/lead wraparound termination
over nickel barrier. Also available with
lead
(Pb)-free wraparound terminations
• Capability to develop specific reliability programs
designed to customer requirements
• Size, value, packaging and materials can be customized
for special customer requirements
• Operating temperature range: -55 °C to +155 °C
• For zero ohm jumpers, see Vishay Dale’s RCWP Jumper
datasheet (www.vishay.com/doc?31017)
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details.
MATERIAL SPECIFICATIONS
Resistive element
Encapsulation
Substrate
Termination
Solder finish
Ruthenium oxide
Epoxy
96 % alumina
Solder-coated nickel barrier
Pure tin or tin/lead solder alloy
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
RCWP0201
RCWP0502
HISTORICAL
MODEL
RCWP-0201
RCWP-0502
CASE
SIZE
0201
0502
POWER RATING
(1)
P
70 °C
W
0.05
0.05
MAXIMUM
WORKING
VOLTAGE
(2)
V
30
40
RESISTANCE
RANGE
10 to 46
47 to 1M
1 to 9.1
10 to 22M
10 to 10M
1 to 9.1
10 to 22M
10 to 10M
1 to 9.1
10 to 22M
10 to 10M
1 to 5.1
5.6 to 22M
5.62 to 10M
1 to 9.1
10 to 22M
10 to 10M
1 to 9.1
10 to 22M
10 to 10M
1 to 5.1
5.6 to 22M
5.62 to 10M
1 to 5.1
5.6 to 22M
5.62 to 10M
1 to 5.1
5.6 to 22M
5.62 to 10M
TOLERANCE
±%
5, 10
1, 2, 5, 10
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
TEMPERATURE
COEFFICIENT
± ppm/°C
300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
RCWP0302
RCWP-0302
0302
0.04
15
RCWP0402
RCWP-0402
0402
0.05
30
RCWP0603
RCWP-0603
0603
0.10
50
RCWP0540
RCWP-540
0504
0.08
40
RCWP0550
RCWP-550
0505
0.125
50
RCWP0575
RCWP-575
0705
(3)
0.15
70
RCWP5100
RCWP-5100
1005
0.20
100
RCWP1206
RCWP-1206
1206
0.25
100
Revision: 17-Mar-16
Document Number: 31011
1
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RCWP
www.vishay.com
Vishay Dale
POWER RATING
(1)
P
70 °C
W
0.35
MAXIMUM
WORKING
VOLTAGE
(2)
V
125
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
HISTORICAL
MODEL
CASE
SIZE
RESISTANCE
RANGE
1 to 5.1
5.6 to 22M
5.62 to 10M
1 to 5.1
5.6 to 22M
5.62 to 10M
1 to 5.1
5.6 to 22M
5.62 to 10M
1 to 5.1
5.6 to 22M
5.62 to 10M
1 to 5.1
5.6 to 22M
5.62 to 10M
1 to 5.1
5.6 to 22M
5.62 to 10M
TOLERANCE
±%
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
2, 5, 10
1, 2, 5, 10
0.5
TEMPERATURE
COEFFICIENT
± ppm/°C
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
200, 300
100, 200, 300
100, 200, 300
RCWP5150
RCWP-5150
1505
RCWP1100
RCWP-1100
1010
0.50
100
RCWP1210
RCWP-1210
1210
0.50
200
RCWP7225
RCWP-7225
2208
0.60
200
RCWP2010
RCWP-2010
2010
0.80
200
RCWP2512
RCWP-2512
2512
1.0
200
Notes
• Consult factory for extended resistance range.
(1)
Power rating depends on the maximum temperature at the solder point, the component placement density and the substrate material.
(2)
Continuous working voltage shall be
P
x
R
or maximum working voltage, whichever is less.
(3)
MIL case size 0705 and EIA case size 0805 are dimensionally the same.
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: RCWP510010K0GMWB (preferred part numbering format)
R
GLOBAL
MODEL
C
W
P
5
1
0
0
1
0
K
0
G
M
W
B
SPECIAL
RESISTANCE
VALUE
R=
K = k
M = M
10R0
= 10
1K30
= 1.3 k
1M00
= 1.0 M
0000
= 0
Jumper
TOLERANCE
CODE
D
= ± 0.5 %
F
=±1%
G
=±2%
J
=±5%
K
= ± 10 %
Z
= 0
Jumper
TEMPERATURE
COEFFICIENT
K
= 100 ppm
N
= 200 ppm
M
= 300 ppm
S
= Special,
0
Jumper
PACKAGING CODE
(1)
(See Standard
Electrical
Specifications
table)
TP
= Tin/lead, T/R, plastic tape
Blank = Standard
(full reel; all except 0201 and 1210)
(Dash number)
S3
= Tin/lead, T/R, plastic tape
(Up to 2 digits)
(1000 pieces; all except 0201 and 1210) From
1 to 99
as
WB
= Tin/lead, waffle tray
applicable
S2
= Tin/lead, T/R, plastic tape
99 = 0
Jumper
(500 pieces; all except 0201 and 1210)
S6
= Tin/lead, T/R, plastic tape
(300 pieces; all except 0201 and 1210)
UA
= Tin/lead, T/R, paper tape
(full reel; 0201 and 1210 only)
UD
= Tin/lead, T/R, paper tape
(1000 pieces; 0201 and 1210 only)
UC
= Tin/lead, T/R, paper tape
(500 pieces; 0201 and 1210 only)
UB
= Tin/lead, T/R, paper tape
(300 pieces; 0201 and 1210 only)
EA
= Lead (Pb)-free, T/R (full)
EB
= Lead (Pb)-free, T/R (1000 pieces)
ET
= Lead (Pb)-free, waffle tray
EC
= Lead (Pb)-free, T/R (500 pieces)
ED
= Lead (Pb)-free, T/R (300 pieces)
Historical Part Number: RCWP-5100103G (will continue to be accepted)
RCWP-5100
HISTORICAL MODEL
103
RESISTANCE VALUE
G
TOLERANCE CODE
T03
PACKAGING CODE
Notes
• For additional information on packaging, refer to the Surface Mount Resistor Packaging document (www.vishay.com/doc?31543).
(1)
Tape and reel packaging with plastic tape standard for all case sizes except 0201 and 1210. For the 0201 and 1210 case sizes, the product
is only offered in tape and reel packaging with paper tape.
Revision: 17-Mar-16
Document Number: 31011
2
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RCWP
www.vishay.com
Vishay Dale
DERATING CURVE
Rated Power in %
120
100
80
60
40
20
0
- 55
- 25
0
25
50
75
100
125
150 175
70 Ambient Temperature in °C
DIMENSIONS
in inches (millimeters)
B
D
C
A
E
GLOBAL
MODEL
RCWP0201
RCWP0302
RCWP0402
RCWP0502
RCWP0540
RCWP0550
RCWP0575
RCWP0603
RCWP1100
RCWP1206
RCWP1210
RCWP2010
RCWP2512
RCWP5100
RCWP5150
RCWP7225
A
(LENGTH)
0.024 ± 0.002
(0.61 ± 0.05)
0.034 ± 0.004
(0.86 ± 0.10)
0.039 ± 0.003
(0.99 ± 0.08)
0.055 ± 0.005
(1.40 ± 0.13)
0.055 ± 0.005
(1.40 ± 0.13)
0.055 ± 0.005
(1.40 ± 0.13)
0.080 ± 0.005
(2.03 ± 0.13)
0.063 ± 0.005
(1.60 ± 0.13)
0.105 ± 0.005
(2.67 ± 0.13)
0.125 ± 0.005
(3.18 ± 0.13)
0.126 ± 0.008
(3.20 ± 0.20)
0.197 ± 0.006
(5.00 ± 0.15)
0.250 ± 0.006
(6.35 ± 0.15)
0.105 ± 0.005
(2.67 ± 0.13)
0.155 ± 0.005
(3.94 ± 0.13)
0.230 ± 0.005
(5.84 ± 0.13)
B
(WIDTH)
0.012 ± 0.002
(0.30 ± 0.05)
0.021 ± 0.003
(0.53 ± 0.08)
0.020 ± 0.003
(0.51 ± 0.08)
0.023 ± 0.003
(0.58 ± 0.08)
0.040 ± 0.005
(1.02 ± 0.13)
0.050 ± 0.005
(1.27 ± 0.13)
0.050 ± 0.005
(1.27 ± 0.13)
0.032 ± 0.005
(0.81 ± 0.13)
0.100 ± 0.005
(2.54 ± 0.13)
0.063 ± 0.005
(1.60 ± 0.13)
0.098 ± 0.008
(2.50 ± 0.20)
0.098 ± 0.005
(2.49 ± 0.13)
0.124 ± 0.005
(3.15 ± 0.13)
0.050 ± 0.005
(1.27 ± 0.13)
0.050 ± 0.005
(1.27 ± 0.13)
0.075 ± 0.005
(1.91 ± 0.13)
C
(HEIGHT)
0.009 ± 0.002
(0.23 ± 0.05)
0.013 ± 0.003
(0.33 ± 0.08)
0.013 ± 0.003
(0.33 ± 0.08)
0.015 ± 0.003
(0.38 ± 0.08)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.018 ± 0.005
(0.46 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.022 ± 0.002
(0.55 ± 0.05)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
D
(TOP TERM)
0.006 ± 0.003
(0.15 ± 0.08)
0.007 ± 0.005
(0.18 ± 0.13)
0.010 ± 0.005
(0.25 ± 0.13)
0.010 ± 0.005
(0.25 ± 0.13)
0.010 ± 0.005
(0.25 ± 0.13)
0.010 ± 0.005
(0.25 ± 0.13)
0.016 ± 0.008
(0.41 ± 0.20)
0.012 ± 0.005
(0.30 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.016 ± 0.008
(0.40 ± 0.20)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
E
(BOTTOM TERM)
0.006 + 0.002 - 0.004
(0.15 + 0.05 - 0.10)
0.008 ± 0.005
(0.20 ± 0.13)
0.010 ± 0.005
(0.25 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.010 ± 0.005
(0.25 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.018 ± 0.008
(0.45 ± 0.20)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
Revision: 17-Mar-16
Document Number: 31011
3
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

【CN0256】Isolated LVDS interface circuit
...
EEWORLD社区 ADI Reference Circuit
Papers on USB data acquisition
Does anyone have a paper on USB data acquisition based on msp430+ch375? Anything related is fine. I am writing a paper. QQ mailbox: [email]419681844@qq.com[/email],...
peonoeber1 MCU
【Keysight Essay Call】What I know about Keysight Oscilloscopes
[i=s] This post was last edited by IC Crawler on 2017-3-30 21:54 [/i] When I was in college, the oscilloscope of the Shide brand was called by another name -> Agilent. I had a deep impression of this ...
IC爬虫 Test/Measurement
Download Intel white papers and win exciting gifts
[b] Download Intel's white papers "Building Scalability to the Next Generation of Industrial Automation" and "Haswell Microarchitecture Illuminates Machine Vision" and you will have a chance to win a ...
nmg Embedded System
RF Power Measurement System Proposal Submission
thanksfor ADI...
lyzhangxiang ADI Reference Circuit
FPGA Learning - Introduction to Verilog
1. IntroductionVerilog HDL is a hardware description language specifically used to design digital systems, such as network switches, microprocessors, memories, and even simple flip-flops. Using Verilo...
YvanEE FPGA/CPLD
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. RNMF12FTD82R5
  2. 805-008-DA2M8-4ND-72
  3. SSB6CE30028016NN
  4. 51721-10008015AALF
  5. U17J52WGE12
  6. BLU1206-6813-FB25W
  7. 202S47W682MV4
  8. GUS-QS8ALF-006190-CA
  9. PDZ16BT/R13
  10. A2550M-TP-E-31P-L1270
  11. SE1216
  12. MFR01SF1001A10

Popular Articles

Technical ResourceMore

  1. Application of MAX038 in Precision Frequency Synthesis Waveform Generator
  2. MDK routine transplantation based on S3C2410
  3. Ultrasonic distance measurement digital tube display
  4. New IP tracking method using Raw IP
  5. 80W AC LED Street Light Solution
  6. Simple multifunctional LED display
  7. MAX9985 Data Sheet
  8. Research on LTE Uplink Channel Estimation Technology
  9. Improved algorithm of association rules based on item coding
  10. Chapter 8_Busbar Protection

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2668  932  2927  1885  677  54  19  59  38  14
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
