Y47012K03000B0L datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> Y47012K03000B0L

Y47012K03000B0L: DescriptionFixed Resistor, Metal Foil, 0.3W, 2030ohm, 300V, 0.1% +/-Tol, -.2,.2ppm/Cel, 2309,; CategoryPassive components The resistor; File Size271KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

Y47012K03000B0L Overview

Fixed Resistor, Metal Foil, 0.3W, 2030ohm, 300V, 0.1% +/-Tol, -.2,.2ppm/Cel, 2309,

Y47012K03000B0L Parametric

Parameter Name	Attribute value
Objectid	267358343
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	10
structure	Conformally Coated
Lead diameter	0.635 mm
Lead length	25.4 mm
lead spacing	5.08 mm
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	5.5 mm
Package length	5.8 mm
Package form	Radial
Package width	2.2 mm
method of packing	Bulk
Rated power dissipation(P)	0.3 W
resistance	2030 Ω
Resistor type	FIXED RESISTOR
series	AUR
size code	2309
technology	METAL FOIL
Temperature Coefficient	0.2 ppm/°C
Tolerance	0.1%
Operating Voltage	300 V

Y47012K03000B0L Preview

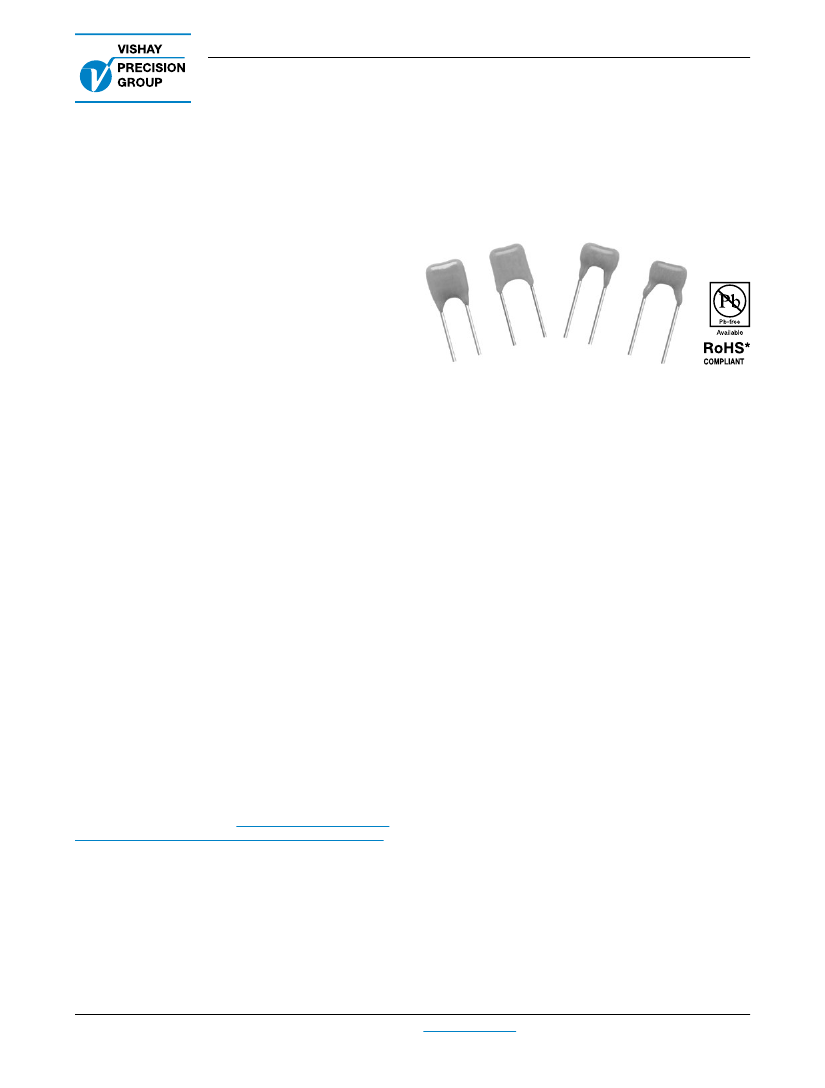

AUR (Z-Foil for Audio)

Vishay Foil Resistors

U g- rcoh uh o uHigh-PrecisionaotAd pcowCDw0pmCMetalitrndoeazo

t ih esnr Ultrak eZTcnoLwo ofr Cad o pan t Ro n5 /oHr ocs on s tbtn

r P iiT og- e Mt®o hog, Pe n my eui i t sh

HBl a- e l y rC o lThrough-Hole t0p L, a n

taNiS ia

l Fl

o l

fr A l i i

o ° w m Doi ,

Bulk

Z-Foil Technology, Low Profile Conformally Coated for

Audio Applications with TCR Down to 0.05 ppm/°C,

Low Harmonic Distortion, and Noise Stabilization

FEATURES

• Temperature coefficient of resistance (TCR):

±0.05 ppm/°C nominal (0°C to +60°C)

±0.2 ppm/°C nominal (–55°C to +125°C, +25°C ref.)

(see Table 1)

• Tolerance: to ±0.01%

• Power rating: to 300 mW at +70°C

• Load life stability: to ±0.01% at 70°C, 2000 h at rated

power

• Resistance range: 5 Ω to 120 kΩ

• Vishay Foil resistors are not restricted to standard

values; specific “as required” values can be supplied at

no extra cost or delivery (e.g., 1K2345 vs. 1K)

• Significantly lower microphonics than any other resistor

technology

• Thermal stabilization time: <1 s (within 10 ppm of

steady state value)

• Electrostatic discharge (ESD): up to 25 kV

• Maximum working voltage: 300 V

• Non-inductive, non-capacitive design

• Rise time: 1 ns effectively no ringing

• Current noise of 0.010 μV

rms

/ V of applied voltage

(<–40 dB)

• Voltage coefficient <0.1 ppm/V

• Non-inductive: <0.08 μH

• Non hot spot design

• Terminal finish: lead (Pb)-free or tin/lead alloy

• Matched sets are available per request

AUR2

AUR2J

AUR

Hear the Difference

AURJ

They resign themselves to making constant adjustments

and troubleshooting. But in fact these can be avoided.

Instability is often traceable to a few supposedly “fixed”

resistors which are not really fixed at all. If these resistors

would only retain their original values, there would be

no need for costly controls and other compensating

circuitry. That’s why the only resistor for applications

such as these is Z Bulk Metal

Foil. In high-end audio

equipment, careful selection of resistors is one of the

best ways to avoid or minimize noise and distortion in the

signal path. Noise is an unwanted wide spectrum signal

that may be superimposed on any useful signal, including

DC. Resistors, like other passive components, are noise

sources to various degrees, depending upon resistance

value, temperature, applied voltage, and resistor type.

Many experiments have been done to show why some

resistors are “noisier” than others. But the only test

that audio experts and audiophiles have agreed on is

comparing the level of fidelity that results when different

resistor technologies are used in actual audio systems.

High-end analog audio applications require low intrinsic

noise, high linearity of amplification, and minimal dynamic

distortion. The typical audio amplifier consists of a voltage

preamplifier (preamp) and power amplifier (final driver).

The voltage preamplifier deals with low-level signals.

That is why its intrinsic noise level is critical. Resistors are

among the principal noise sources in the amplifiers. The

main requirements for the audio power amplifier are high

linearity of amplification and minimal dynamic distortion.

Vishay Foil resistors are characterized by very low intrinsic

non-linearity of the resistive element, which is made from

cold-rolled bulk metal.

The AUR, composed of VFR’s Bulk Metal

Z-foil

technology, with improved sound quality, provides

a combination of low noise and low inductance/

capacitance, making it unrivalled for applications requiring

low noise and distortion-free properties.

RELATED FACTS AT A GLANCE

Please refer to FACTS #106,

Selecting Resistors for Pre-

Amp, Amplifier, and Other High-End Audio Applications.

INTRODUCTION

Many manufacturers and users of precision electronic

equipment suffer needlessly from unexplained instabilities

and drifts due to noise effects and harmonic distortion.

Document No.: 63244

Revision: 02-Oct-2013

For questions, contact

foil@vishaypg.com

www.vishayfoilresistors.com

AUR (Z-Foil for Audio)

Vishay Foil Resistors

FIGURE 1—STANDARD IMPRINTING AND DIMENSIONS

in Millimeters (Inches)

Resistance Value Code

Tolerance

Symbol

Date Code

Year Week

AUR

1345

10K0

Type

AUR

AURJ

5.8 ±0.5

(0.228 ±0.02)

5.5 ±1

(0.216 ±0.04)

2.2 ±0.5

(0.086 ±0.02)

3.81 ±0.25

(0.150 ±0.01)

5.08 ±0.25

(0.200 ±0.01)

3.81 ±0.25

(0.150 ±0.01)

5.08 ±0.25

(0.200 ±0.01)

25.4

(1.0 min.)

Lead Material #22 AWG (0.025 Diameter)

Solder Coated Copper

AUR2

AUR2J

6.7 ±0.5

(0.263 ±0.02)

8 ±1

(0.315 ±0.04)

2.78 ±0.5

(0.110 ±0.02)

Note

Letter J indicates a difference in lead spacing and -2 is an extension range.

Resistor

AUR2, AUR2J

Resistance

Value

(Ω)

60k to 120k

50 to <60k

Typical TCR and

Max. Spread

(ppm/°C)

±0.2 ±1.8

±0.2 ±2.8

±0.2 ±4.8

±0.2 ±6.8

Tolerance

(%)

±0.02%

±0.01%

±0.02%

±0.05%

Percent of Rated Power

TABLE 1—TOLERANCE AND TCR VS.

RESISTANCE VALUE

(–55°C to +125°C, +25°C Ref.)

FIGURE 2—POWER DERATING CURVE

100

+ 70 °C

AUR, AURJ

20 to <50

10 to <20

5 to <10

- 75

- 50

- 25

+ 25

+ 50

+ 75 + 100 + 125 + 150 + 175

Ambient Temperature (°C)

TABLE 2—PERFORMANCE SPECIFICATIONS

Test

Moisture Resistance

Pressure Cooker Test

Short Time Overload

Resistance to Solder Heat

Terminal Strength

Insulation Resistance

Dielectric Withstanding Voltage

Thermal Shock

Shock

Vibration

Load Life Stability

Thermal EMF

Current Noise

Low Temperature Storage

Low Temperature Operation

High Temperature Exposure

Conditions

MIL-STD-202, method 106

2 atmospheres absolute pressure,

121°C, 100% R.H. for 100 h

6.25 x Pnom, 5 s

+260°C, 20 s

2 lbs, 10 s

DC 100 V, 2 min

AC 300 V, 1 min

–65°C to +150°C, 5 cycles

MIL-STD-202, method 213, condition I

MIL-STD-202, method 204, condition D

0.3 W, +70°C, 2000 h

—

Quan-Tech

24 h at –65°C

45 min at –65°C

+150°C

∆R (%), Typical

±0.005

±0.2

±0.005

±0.01

±0.0025

>10 000M

±0.0025

±0.01

±0.005

±0.01

0.07 μV/°C

–40 dB

±0.005

±0.01

∆R (%), Maximum

±0.03

±0.4

±0.05

±0.03

>10 000M

±0.03

±0.02

±0.03

0.015

0.1 μV/°C

–40 dB

±0.01

±0.03

www.vishayfoilresistors.com

For questions, contact

foil@vishaypg.com

Document No.: 63244

Revision: 02-Oct-2013

AUR (Z-Foil for Audio)

Vishay Foil Resistors

FIGURE 3—TRIMMING TO VALUES

(conceptual illustration)

Interloop

Capacitance

Reduction

in Series

Mutual Inductance

Reduction due

to Change in

Current Direction

Current Path

Before Trimming

Current Path After Trimming

Trimming Process

Removes this Material

from Shorting Strip Area

Changing Current Path

and Increasing

Resistance

Note

To acquire a precision resistance value,

the Bulk Metal

Foil chip is trimmed by

selectively removing built-in “shorting bars.”

To increase the resistance in known increments,

marked areas are cut, producing progressively

smaller increases in resistance. This method

reduces the effect of “hot spots” and improves

the long-term stability of the Vishay Foil resistors.

Foil shown in black, etched spaces in white

POST MANUFACTURING OPERATIONS

(PMO)

Many audio analog applications can include requirements

for performance under conditions of stress beyond the

normal and over extended periods of time. This calls for

more than just selecting a standard device and applying

it to a circuit. The standard device may turn out to be all

that is needed but an analysis of the projected service

conditions should be made and it may well dictate a

routine of stabilization known as post manufacturing

operations or PMO. The PMO operations that will be

discussed are only applicable to Bulk Metal Foil resistors.

They stabilize Bulk Metal Foil resistors while they are

harmful to other types. Short time overload, accelerated

load life, and temperature cycling are the three PMO

exercises that do the most to remove the anomalies down

the road. VFR Bulk Metal Foil resistors are inherently

stable as manufactured. These PMO exercises are only

of value on Bulk Metal Foil resistors and they improve the

performance by small but significant amounts. Users are

encouraged to contact Vishay Foil Resistors’ applications

engineering for assistance in choosing the PMO

operations that are right for their application.

be reduced by reducing resistance, temperature, or signal

bandwidth.

Shot or fluctuation noise is caused by the discrete nature

of charge carriers and fluctuation of their number in the

unit of volume. Shot noise can be reduced by reducing

bandwidth or increasing current. The spectral density

of voltage in both thermal and shot noises is uniformly

distributed in entire range of frequencies (“white” noise).

The level of these types of noise does not depend on

resistor type (resistive element material).

Current (excess, flicker) noise has 1/f type spectral

density of voltage (“pink” noise). Its level essentially

depends on resistor material. Current noise can be

reduced by (a) avoiding use of the low frequency band,

(b) reducing current, (c) increasing the volume of resistive

material, i.e. by using resistors with higher rated power

than is needed for proper power dissipation, or (d) using

less noisy resistive materials.

Carbon composition resistors are the noisiest such device

type followed by Thick Film and Thin Film resistors. The

least noisy are bulk metals and metal alloys (foil, wire). At

that, negligible capacitance/inductance of foil resistors

(when compared to wirewound resistors) significantly

reduces probability of self-excitation or “ringing” of

amplification circuit.This is why Bulk Metal

foil resistors

are such a good choice for low-noise applications.

SEVERAL TYPES OF NOISE

FOUND IN RESISTORS

Thermal noise is caused by thermal movement of

electrons in resistive material and gets worse as

resistance and temperature increase. Thermal noise can

Document No.: 63244

Revision: 02-Oct-2013

For questions, contact

foil@vishaypg.com

www.vishayfoilresistors.com

AUR (Z-Foil for Audio)

Vishay Foil Resistors

TABLE 4—GLOBAL PART NUMBER INFORMATION

(1)

NEW GLOBAL PART NUMBER: Y470012K7560T9L (preferred part number format)

DENOTES PRECISION

VALUE

=Ω

= kΩ

CHARACTERISTICS

= standard

= lead (Pb)-free

1 to 999

= custom

PRODUCT CODE

4700 =

AUR

4701 =

AURJ

4702 =

AUR2

4703 =

AUR2J

RESISTANCE TOLERANCE

= ±0.01%

= ±0.02%

= ±0.05%

= ±0.10%

= ±0.25%

= ±0.5%

= ±1.0%

PACKAGING

= bulk

FOR EXAMPLE: ABOVE GLOBAL ORDER Y4700 12K7560 T 9 B:

TYPE: AUR

VALUES: 12.7560 kΩ

ABSOLUTE TOLERANCE: 0.01 %

TERMINATION: lead (Pb)-free

PACKAGING: bulk

HISTORICAL PART NUMBER: AUR T 12K756 T B (will continue to be used)

AUR

MODEL

AUR

AURJ

AUR2

AUR2J

TERMINATION

= lead (Pb)-free

None = tin/lead alloy

12K756

RESISTANCE

VALUE

12.756 kΩ

TOLERANCE

= ±0.01%

= ±0.02%

= ±0.05%

= ±0.10%

= ±0.25%

= ±0.5%

= ±1.0%

PACKAGING

= bulk

Note

(1) For non-standard requests, please contact Application Engineering

www.vishayfoilresistors.com

For questions, contact

foil@vishaypg.com

Document No.: 63244

Revision: 02-Oct-2013

Legal Disclaimer Notice

Vishay Precision Group, Inc.

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf

(collectively, “VPG”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in

any other disclosure relating to any product.

The product specifications do not expand or otherwise modify VPG’s terms and conditions of purchase, including but

not limited to, the warranty expressed therein.

VPG makes no warranty, representation or guarantee other than as set forth in the terms and conditions of purchase.

To the maximum extent permitted by applicable law, VPG disclaims (i) any and all liability arising out of the

application or use of any product, (ii) any and all liability, including without limitation special, consequential or

incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose,

non-infringement and merchantability.

Information provided in datasheets and/or specifications may vary from actual results in different applications and

performance may vary over time. Statements regarding the suitability of products for certain types of applications

are based on VPG’s knowledge of typical requirements that are often placed on VPG products. It is the customer’s

responsibility to validate that a particular product with the properties described in the product specification is suitable for

use in a particular application. You should ensure you have the current version of the relevant information by contacting

VPG prior to performing installation or use of the product, such as on our website at vpgsensors.com.

No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or by any

conduct of VPG.

The products shown herein are not designed for use in life-saving or life-sustaining applications unless otherwise

expressly indicated. Customers using or selling VPG products not expressly indicated for use in such applications do

so entirely at their own risk and agree to fully indemnify VPG for any damages arising or resulting from such use or sale.

Please contact authorized VPG personnel to obtain written terms and conditions regarding products designed for such

applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document No.: 63999

Revision: 15-Jul-2014

www.vpgsensors.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

One of the incandescent lamp dimming circuits using thyristors a

Travel shaver power conversion circuit

Low voltage power supply remote control switch circuit_1

Large water tower automatic water supply control circuit

Integrated operational amplifier F007 basic application circuit

845E computer motherboard circuit diagram_14

eboot download nk problem via usb: After working on eboot for a long time, the network download always fails. I have no choice but to debug the USB port. If I use the USB port to download NK, how should I set it up on the host? Do I ne...; carmack Embedded System

Location of temporary variables in the UCOS II task stack: As the title says, I know that when switching tasks, each register of the MCU has specific instructions for stacking and popping, but I don't know where the temporary variables of the task itself are ...; 732460449 Real-time operating system RTOS

Please translate this into English...: There is a sentence in the MSP430 chip data sheet: 16-Bit Timer_B With Seven Capture/Compare-with-Shadow Registers. What does Compare-with-Shadow mean?...; qk333333 Microcontroller MCU

Universal LCD control and driver single chip: [i=s]This post was last edited by shhhdz on 2016-6-15 10:55[/i] [align=left][/align][align=left]BL550XX[font=宋体] series is a general-purpose LCD control and driver single chip, suitable for commonly u...; shhhdz MCU

Please help. LMFlashProgrammer cannot be run after installation?: I installed Win7 on my own machine, but a DOS window popped up when I ran it, and then it couldn't run.I don’t know what the reason is. Has anyone encountered such a situation? What is the reason?[[i]...; pacemaker Microcontroller MCU

CCS import routine: [font=宋体]After importing the routine, an error will occur after rebuilding the project. Please guide me. [/font]...; 半夏琉璃 DSP and ARM Processors

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
