PS1MR85-121SDB-U: DescriptionBoard Connector, 21 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size191KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS1MR85-121SDB-U Overview

Board Connector, 21 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

PS1MR85-121SDB-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166176038
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.435 inch
body length	2.11 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PS1MR85
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	21

Preview

Download Datasheet

View All

F

emale Header 2.54mm

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

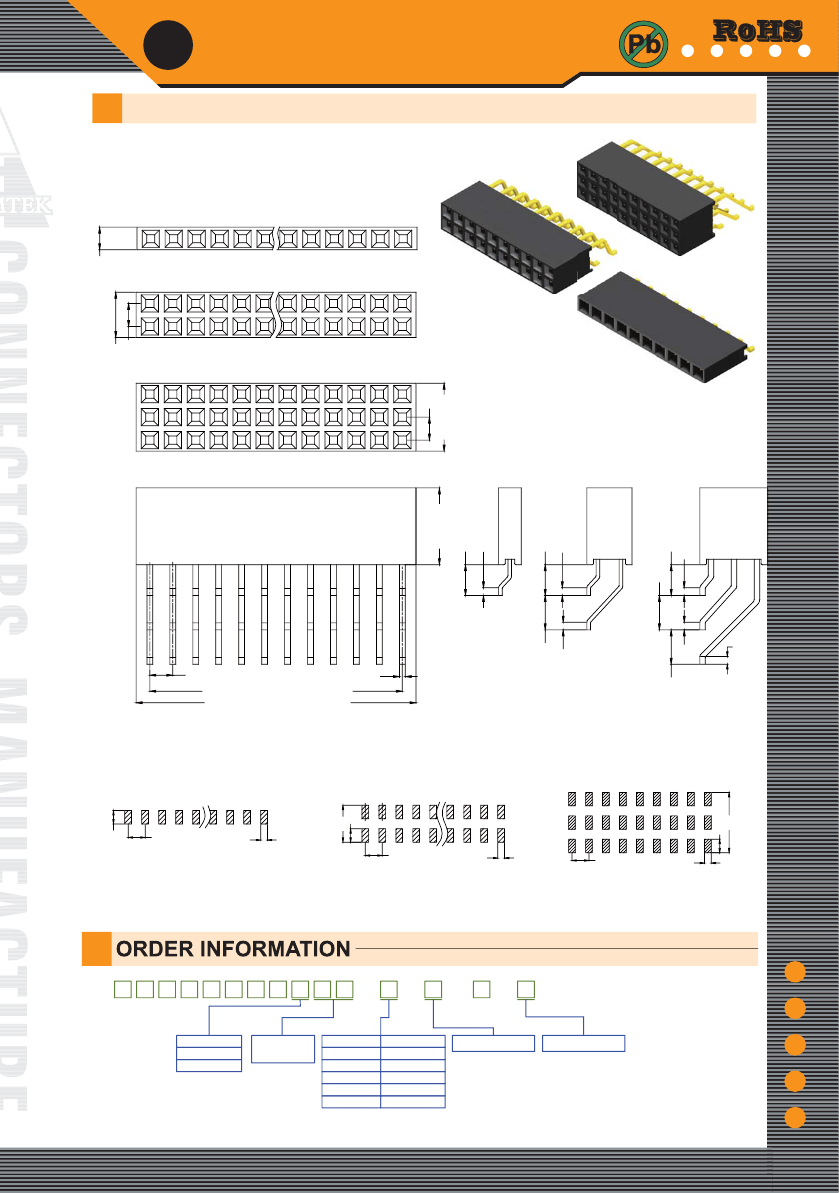

Female Header 2.54mm H=8.5mm SMT Right Angle Type

Specifications

Current Rate:3 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

1

2

3

2.50±0.15

2

1

4

3

5.00±0.15

2.54±0.05

3

2

1

6

5

4

8.50±0.15

2.54

7.50±0.15

3.40±0.25

3.80±0.25

3.40±0.25

0.85

0.85±0.25

3.80±0.25

5.50

2.00

3.80±0.25

2.54±0.10

PIN 0.64X0.60

2.54xNo.of Contacts/2-2.54±0.20

2.54xNo.of Positions+0.25±0.30

0.85±0.25

0.85

2.00

2.54

1.00

2.54

1.00

2.54

1.00

Recommended P.C.B Layout(TOP Side)

(PCB BOARD TOLERANCE±0.05)

P S 1 M R 8 5

- X X X

X

B

-

U

1:Single Row

2:Dual Row

3:Triple Row

No. of Contacts

Per Row (02~40)

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

B:Black Insulator

U:RoHS + Nylon 6T

Standard Recommended

www.amtek-co.com.tw

2-117

2.00

9.00
