MPH24SG: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size243KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

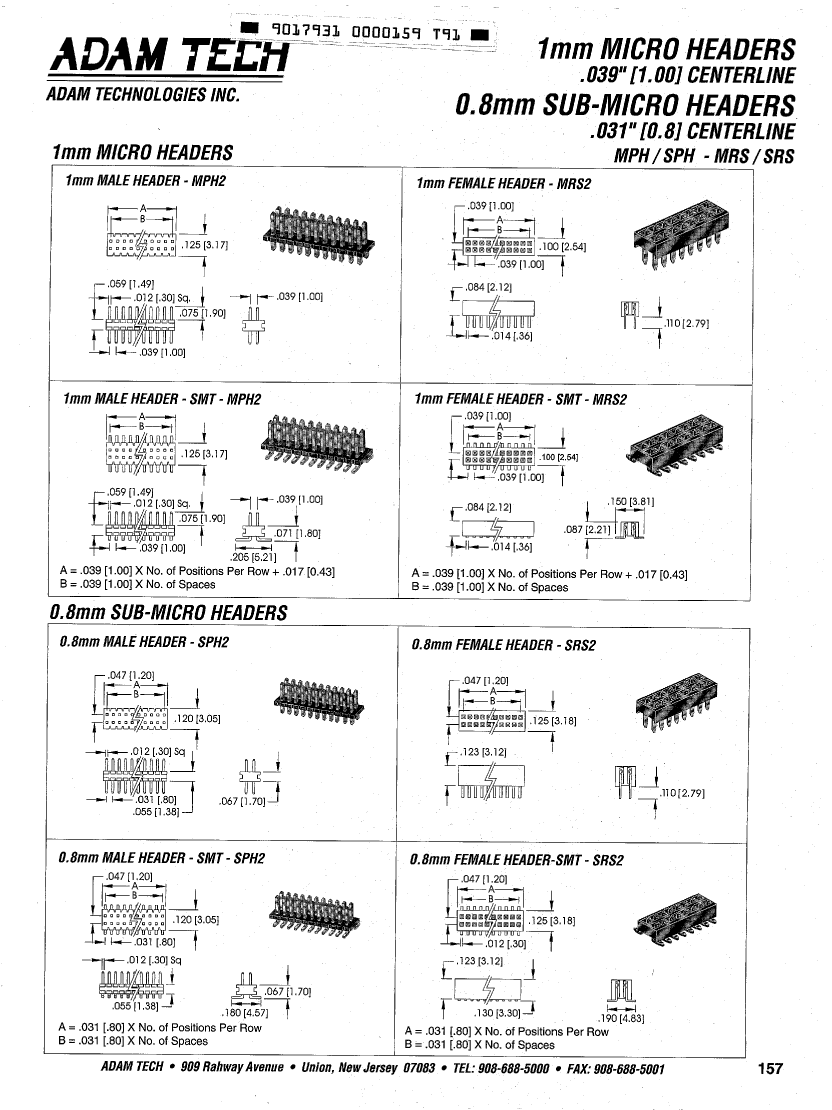

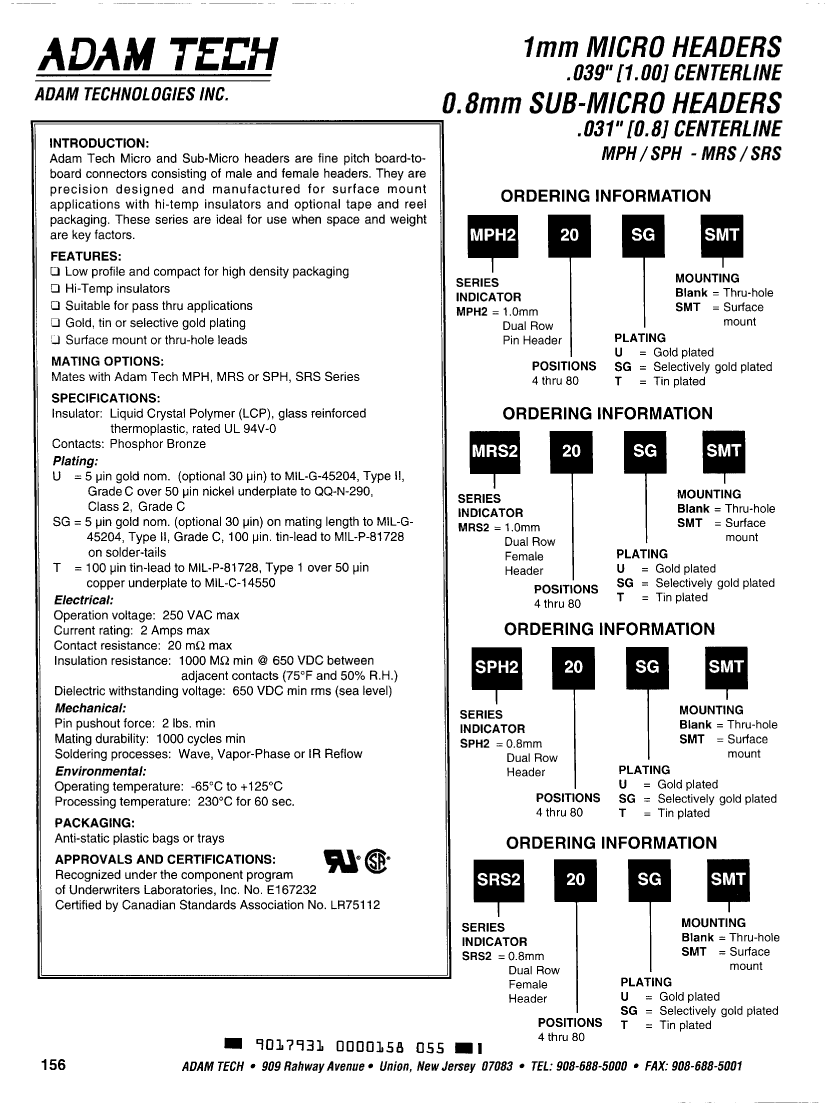

MPH24SG Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Objectid	1157662115
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	2
body width	0.125 inch
subject depth	0.059 inch
body length	0.095 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	650VDC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	MPH2
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	.9906 mm
Plating thickness	5u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	4
Evacuation force-minimum value	8.896 N
