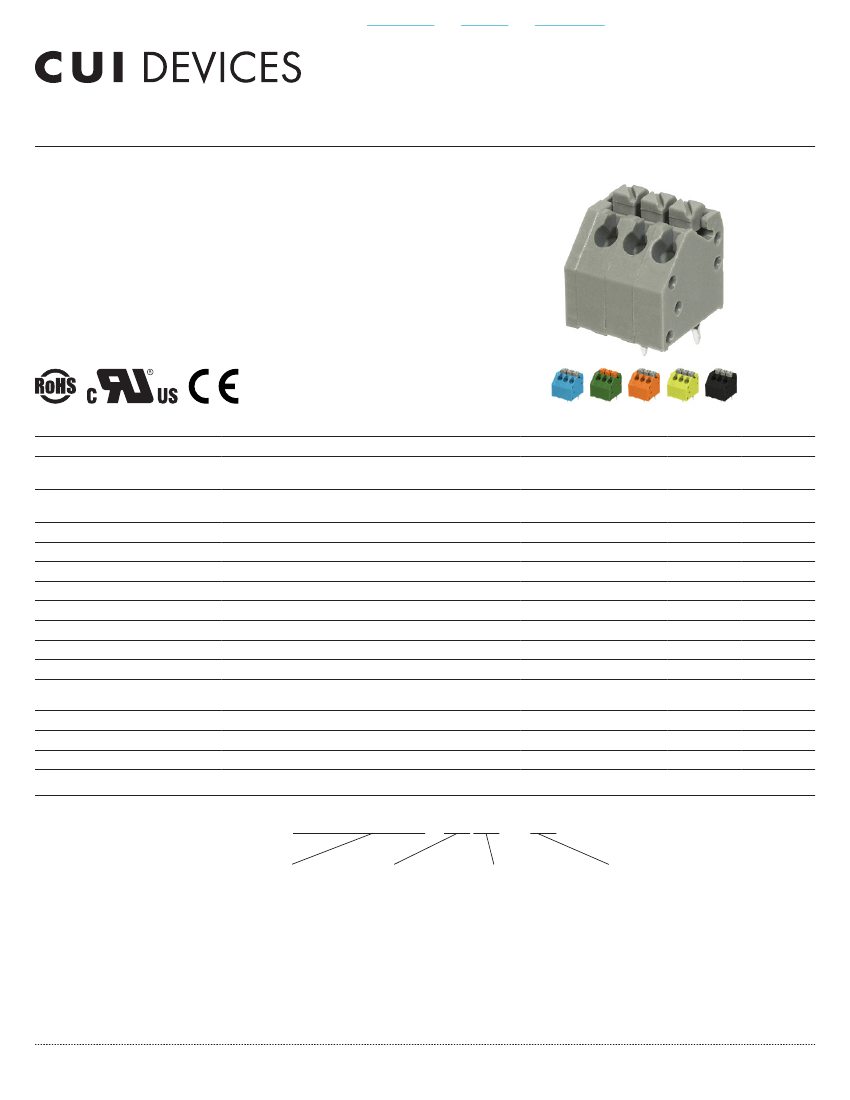

*Standard housing color is gray with gray push button. All other colors are subject to higher MOQ. Please inquire with CUI Devices sales for details.
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
TBL002A-350
│
DESCRIPTION:
TERMINAL BLOCK
date
04/20/2020│
page
2 of 3

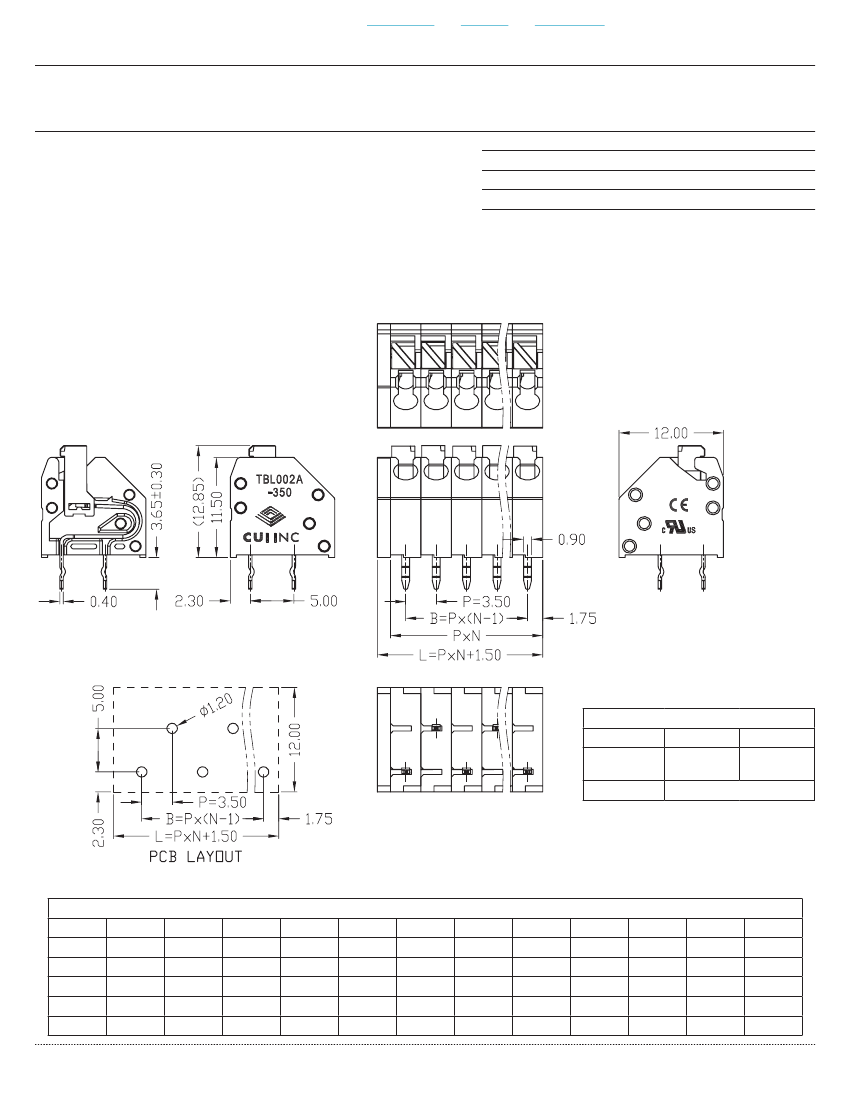

MECHANICAL DRAWING
units: mm
tolerance (per module):
X≤6.00: ±0.25 mm
6.00<X≤30.00: ±0.40 mm
unless otherwise noted
DESCRIPTION
housing
contacts
MATERIAL
PA66 (UL94V-0)
phosphor bronze
tin
PLATING/COLOR
A pin
when N is even, the number is N/2;
when N is odd, the number is (N+1)/2.
B pin
when N is even, the number is N/2;
when N is odd, the number is (N-1)/2.
A
B
A
B
A
B
A
B
B
A
B
B
A
A
A
B
A
B
WIRE ASSEMBLY
UL
IEC
0.2~0.75
mm
2
A
Wire Range
Strip Length
24~20 AWG
8~9 mm
This series is constructed of 1 pole modules where L is the total length, P is the pitch, and N is the number of poles.
N
L
B
N
L
B
01
5.00
--
13
47.00
42.00
02
8.50
3.50
14
50.50
45.50
03
12.00
7.00
15
54.00
49.00
04
15.50
10.50
16
57.50
52.50
05
19.00
14.00
17
61.00
56.00
06
22.50
17.50
18
64.50
59.50
07
26.00
21.00
19
68.00
63.00
08
29.50
24.50
20
71.50
66.50
09
33.00
28.00
21
75.00
70.00
10
36.50
31.50
22
78.50
73.50
11
40.00
35.00
23
82.00
77.00
12
43.50
38.50
24
85.50
80.50
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
TBL002A-350
│
DESCRIPTION:
TERMINAL BLOCK
date
04/20/2020│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
description
initial release
brand update
updated datasheet
date
04/17/2019
02/06/2020
04/20/2020
The revision history provided is for informational purposes only and is believed to be accurate.
CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website.
CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no
responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any
component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or
