RES NET,THICK FILM,33K OHMS,50WV,5% +/-TOL,-200,200PPM TC,1206 CASE
CN1J4RTTDD333J Parametric
Parameter Name
Attribute value
Objectid
1225101144
package instruction
SMT, 1206
Reach Compliance Code
unknown
ECCN code
EAR99
Other features
ANTI-SULFUR
structure
Chip
JESD-609 code
e3
Network Type
Isolated
Number of terminals
8
Maximum operating temperature
125 °C
Minimum operating temperature
-55 °C
Package height
0.6 mm
Package length
3.2 mm
Package form
SMT
Package width
1.6 mm
method of packing
TR, Paper, 10 Inch
Rated power dissipation(P)
0.063 W
resistance
33000 Ω
Resistor type
ARRAY/NETWORK RESISTOR
size code
1206
technology
METAL GLAZE/THICK FILM
Temperature Coefficient
200 ppm/°C
Terminal surface
Matte Tin (Sn)
Tolerance
5%
Operating Voltage
50 V

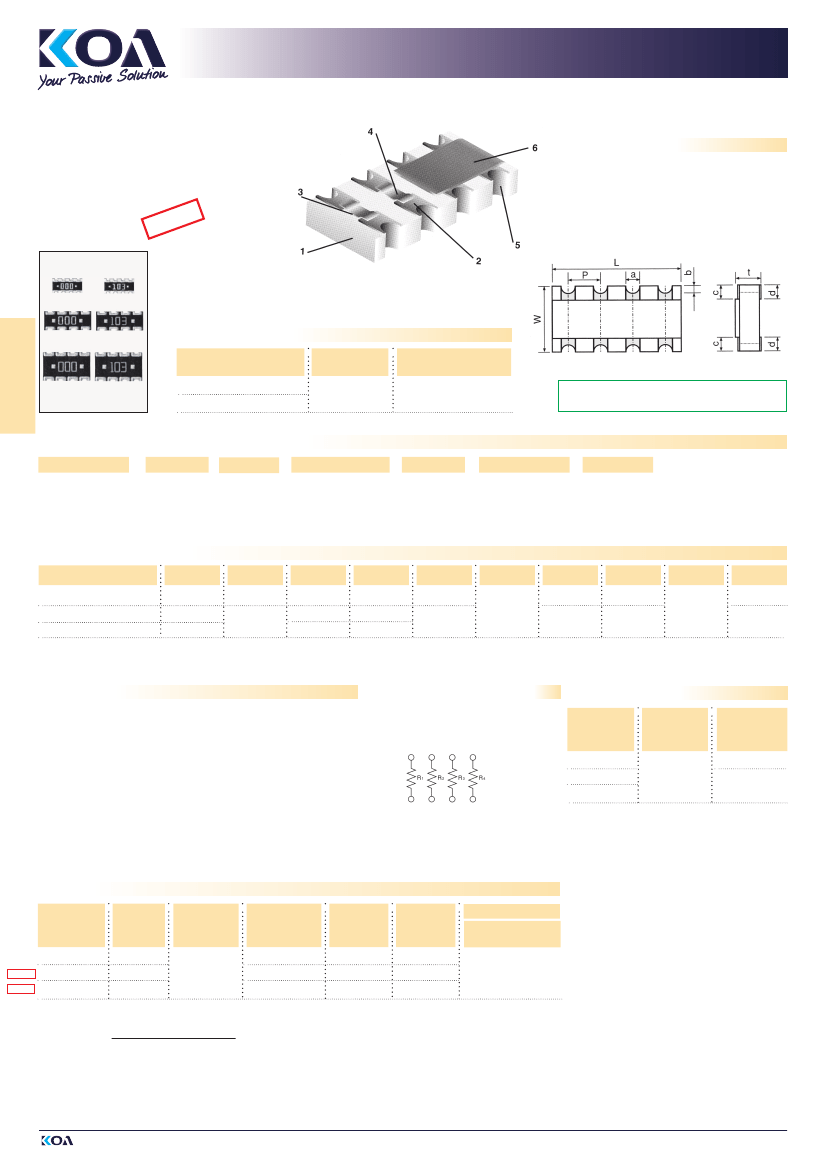

CN1J4RTTDD333J Preview
NETWORKS
CONCAVE TERMINATIONS
ANTI SULFURATION
CN RT • CNZ RT
W
NE
THICK FILM R-NETWORK
STRUCTURE
1
2
3
4
5
6
Ceramic substrate
Inner electrode
RuO
2
resistive film
Inner glass passivation
Outer electrode
Protective coating
NETWORKS
(PASSIVE COMPONENTS)
IDENTIFICATION
TYPE
CN RT
CNZ RT
COATING
COLOR
Black
MARKING
White, 3 digits
+2 marks
All these products have Pb-free terminations
and meet EU-RoHS requirements
CN
PRODUCT CODE
CN (Resistors)
CNZ (Jumpers)
1J
STYLE
1J, 2A, 2B
4
NO. OF
RESISTORS
4
RT
TERMINATION
SURFACE MATERIAL
RT: Sn
TD
TAPING*
TD, TE, BK
*Please see “PACKAGING”
103
NOMINAL
RESISTANCE**
3 digits
** Blank in case of CNZ-series
J
RESISTANCE
TOLERANCE**
J: (±5%)
Contact us when you have
control request for environmen-
tal hazardous material other
than the substance specified
by EU-RoHS
DIMENSIONS (mm)
SIZE
1206 (4 x 0603)
2008 (4 x 0805)
2012 (4 x 1206)
TYPE
CN 1J 4 RT
CN 2A 4 RT
CN 2B 4 RT
L ±0.2
3.2
5.08
W ±0.2
1.6
2.0
3.2
c
0.3 ± 0.2
0.4 ± 0.2
0.5 ± 0.3
d ±0.1
0.40
0.55
t ±0.1
0.6
a (top)
0.5 ± 0.1
0.8 ± 0.1
a (bottom)
0.4 ± 0.15
0.75 ± 0.1
b ±0.1
0.15
P (ref.)
(0.80)
(1.27)
FEATURES
■
Excellent anti-sulfuration characteristic due to using high sulfuration-proof
inner top electrode material
■
Less board space than individual chip resistors
■
High cost reduction efficiency by eliminating mounter operations
■
Higher self-alignment effect in reflow soldering process
■
Suitable for image recognition systems due to square corner design
■
Meets or exceeds IEC 60115-1, JIS C 5201-1
■
Rated ambient temperature: +70°C
■
Operating temperature range: -55°C ... +125°C
■
Ideal for use as damping, as pull-up/pull-down termination resistors,
for digital circuits or for LED current limiting
■
Suitable for reflow and wave soldering
CIRCUIT CONSTRUCTION
CN 1J 4 RT
CN 2A 4 RT
CN 2B 4 RT
RATING (Jumper)
TYPE
CNZ 1J 4 RT
CNZ 2A 4 RT
CNZ 2B 4 RT
MAXIMUM
RESISTANCE
50 mΩ
CURRENT
RATING*
0.5 A
1.0 A
*at 70° C per element
R
1
= R
2
= R
3
= R
4
RATING
SIZE
TYPE
T.C.R.
(ppm/K)
±200
POWER RATING
(per element)*
0.063 W
0.1 W
0.125 W
MAX.
WORKING
VOLTAGE
50 V
100 V
200 V
MAX.
OVERLOAD
VOLTAGE
100 V
200 V
400 V
RESISTANCE RANGE
J (±5%)
E24
NEW
NEW
1206 (4 x 0603)
CN 1J 4 RT
2008 (4 x 0805)
CN 2A 4 RT
2012 (4 x 1206)
CN 2B 4 RT
10 Ω … 1 MΩ
* For resistors operated at an ambient temperature of +70°C or above, the power rating shall be derated.
Please note that network resistors generate higher heat rather than single flat chip resistors even under rated power output.
A few cross talks will occur in network resistors. In case of using them for a high frequency circuit, please design circuits taking the effect by the cross talks into consideration.
Rated voltage = Power rating x resistance value or max. working voltage, whichever is lower.
