HLSWSS-149-S-04-GT-001-S datasheet, PDF

HLSWSS-149-S-04-GT-001-S: DescriptionBoard Connector, 49 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Plug; CategoryThe connector The connector; File Size134KB，1 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/

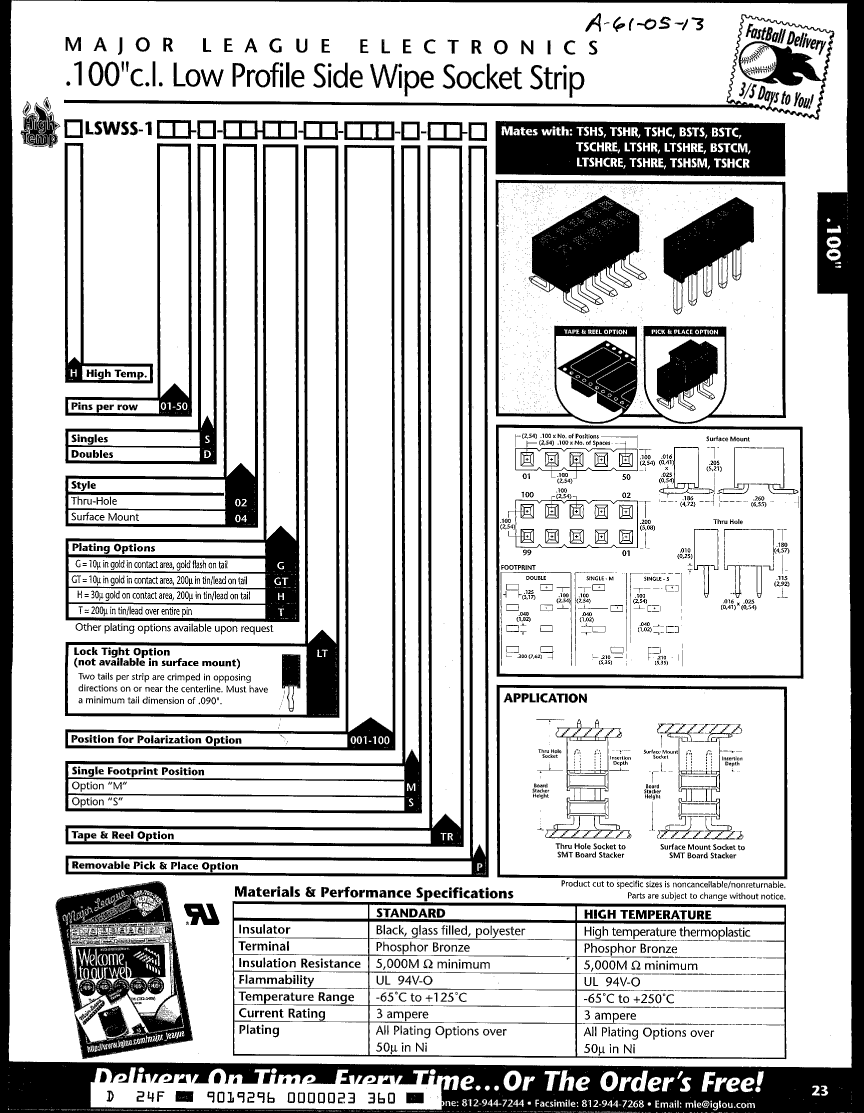

Download Datasheet Parametric View All

HLSWSS-149-S-04-GT-001-S Overview

Board Connector, 49 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Plug

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1163012115
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH TEMPERATURE
body width	0.1 inch
subject depth	0.18 inch
body length	4.9 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	HLSWSS
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	250 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.159 mm
Plating thickness	10u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	5.08 mm
Total number of contacts	49
