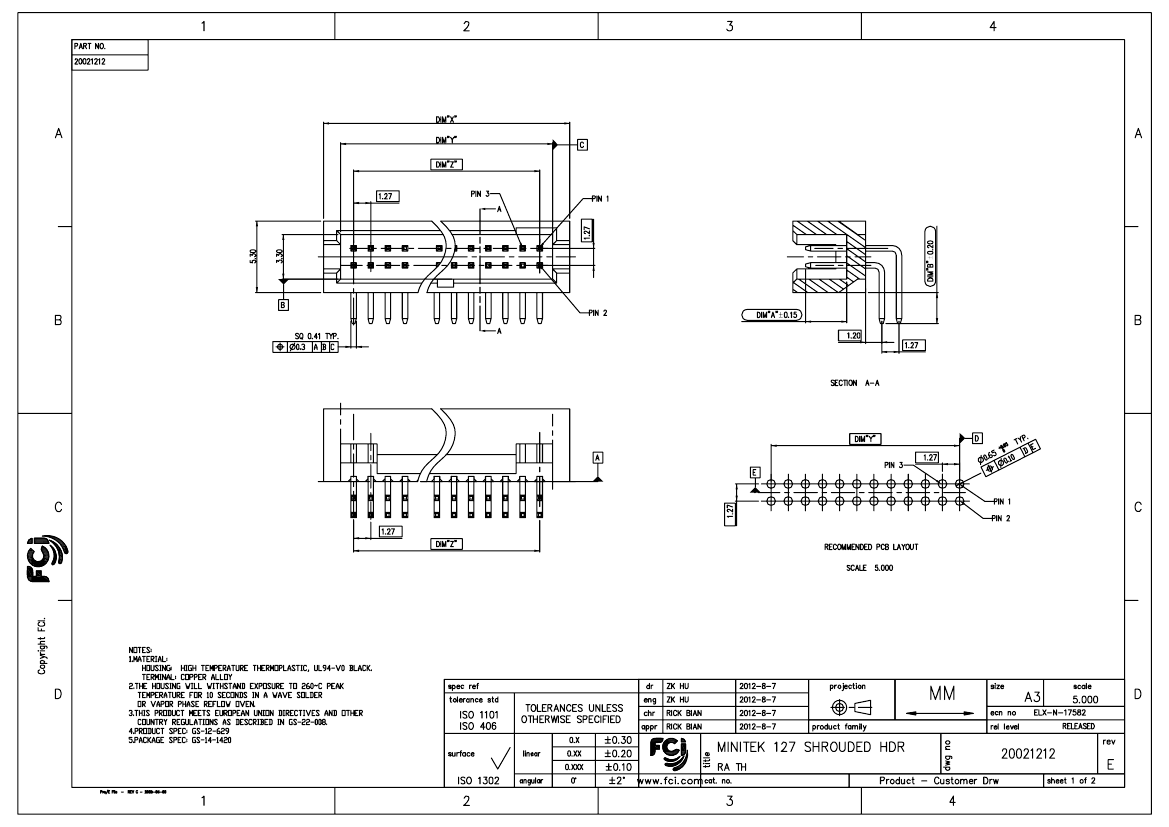

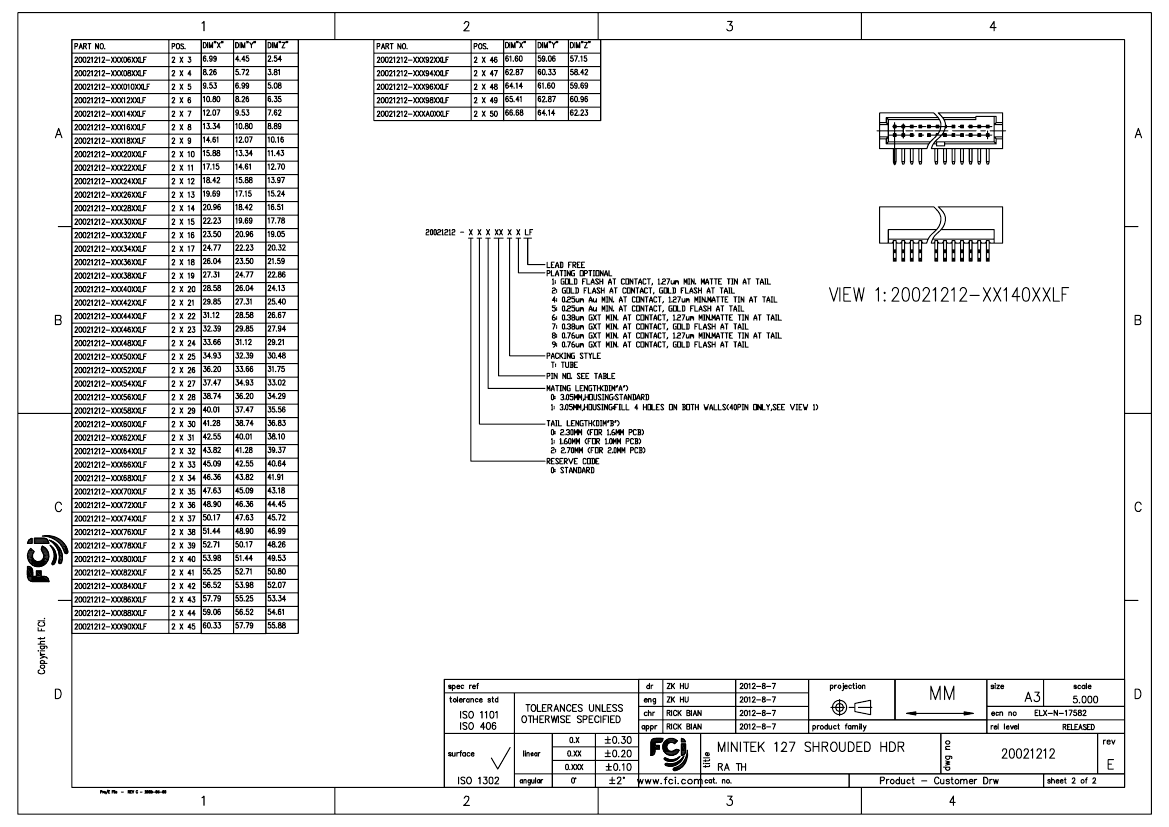

20021212-02060T1LF datasheet, PDF

20021212-02060T1LF: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size177KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

20021212-02060T1LF Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1315933733
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.15
body width	0.209 inch
body length	1.625 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Durability	100 Cycles
maximum insertion force	2.1684 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
Terminal length	0.106 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	60
Evacuation force-minimum value	.1946 N

PDS: Rev :E

STATUS:Released

Printed: Apr 30, 2014
