MCC
Micro Commercial Components
TM
omponents
20736 Marilla
Street Chatsworth
!"#
$
% !"#
BAS70T
BAS70-04T
BAS70-05T
BAS70-06T
150mWatt, 70Volt
Schottky Barrier Diode
Features
•
•
•
•
•
•
Ultra-Small Surface Mount Package
Low turn on Voltage
Fast Switching
PN Junction Guard Ring for Transient andESD Protection
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
MCC
Part Number
BAS70T
BAS70-04T
BAS70-05T
BAS70-06T
Device
Marking
7C
7D
7E
7F
Pin
Configuration
Figure 1
Figure 2
Figure 3
Figure 4
Type
Single
Dual
Dual
Dual
SOT-523
A
D
Maximum Ratings
DC Blocking Voltage
Forward Continuous Current
Non-Repetitive Peak Forward Current t<1s
Total Power Dissipation @ T
A
= 25°C
Storage Temperature Range
Junction Temperature
V
R
I
F
I
FSM
P
D
T
stg
T
j
70V
70mA
100mA
150mW
-55°C to 150°C
-55°C to 150°C
E
B
C
G
H
J
K
DIMENSIONS
INCHES
MIN
MAX
.059
.067
.030
.033
.057
.069
.020 Nominal
.035
.043
.000
.004
.028
.031
.004
.008
.010
.014
MM
MIN
MAX
1.50
1.70
0.75
0.85
1.45
1.75
0.50Nominal
0.90
1.10
.000
.100
.70
0.80
.100
.200
.25
.35
Electrical Characteristics @ 25°C Unless Otherwise Specified
Ratings
Forward Voltage
Reverse Current
Reverse Breakdown
Voltage
Total Capacitance
Reverse Recovery
Time
Symbol
V
F
I
R
V
(BR)
C
T
t
rr
Max.
410mV
1000mV
100nA
>70V
2pF
5nS
Notes
I
F
=1mA
I
F
=15mA
V
R
= 50V
I
R
=10uA
Measured at
1.0MHz, V
R
=0V
I
F
=I
R
= 10mA ;
Irr=0.1*I
R
R
L
= 100Ω
DIM
A
B
C
D
E
G
H
J
K
NOTE
www.mccsemi.com
Revision: A
1 of 3
2011/01/01
BAS70T/ -04T/ -05T/ -06T
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
100
T
A
= 125ºC
T
A
= 75ºC
T
A
= 25ºC
MCC
Micro Commercial Components
TM
10
1.0
T
A
= 0ºC
0.1
0
0.2
0.4
T
A
= -40ºC
0.6
0.8
1.0
1.2
1.4
1.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

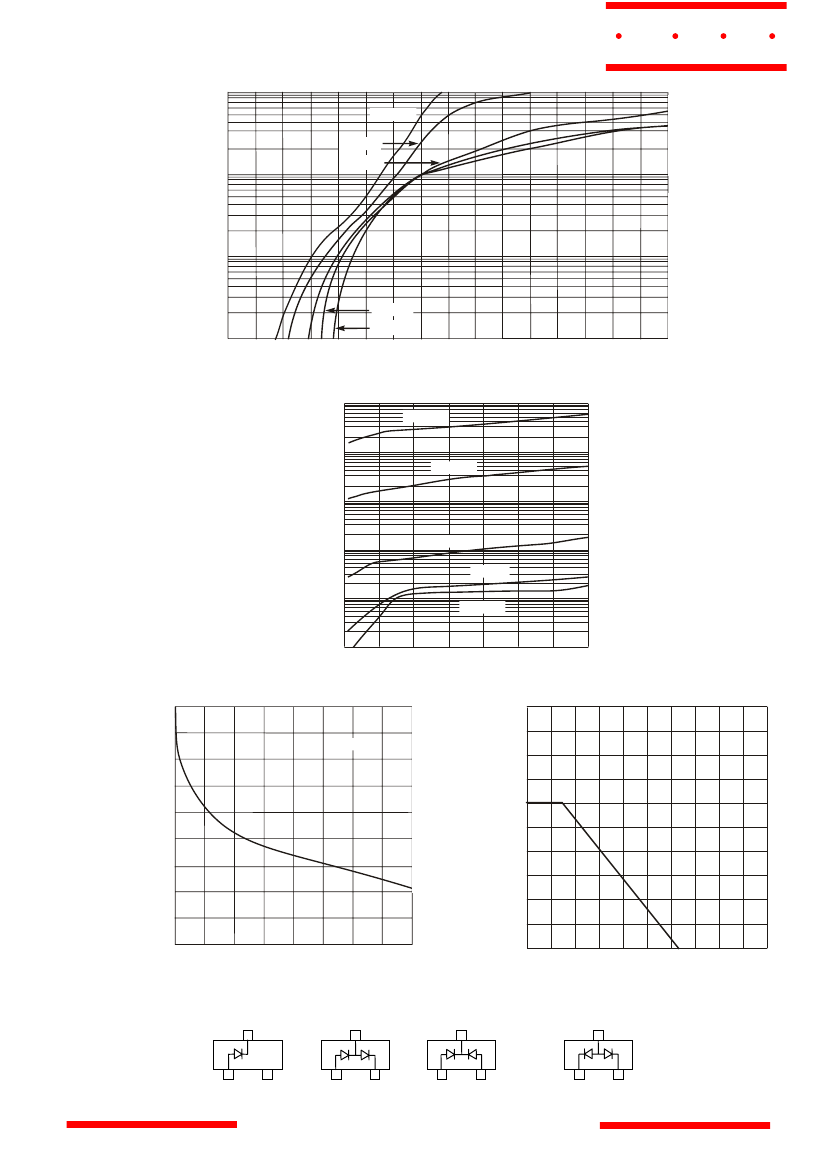

Fig. 1 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10000
T
A
= 125ºC
1000
T
A
= 75ºC
100
10
T
A
= 25ºC
T
A
= 0ºC
1
T
A
= -40ºC
0.1
0
10
20
30
40
50
60
70
V
R
, REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
1.8
1.6
250
f = 1.0MHz
P
d
, POWER DISSIPATION (mW)
40
C
T
, TOTAL CAPACITANCE (pF)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
5
10
15
20
25
30
35
200
150
100
50
0
0
100
200
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Capacitance
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 4 Power Derating Curve, Total Package
Pin Configuration - Top View
Figure 1
Revision: A
www.mccsemi.com
2 of 3
Figure 2
Figure 3
Figure 4
2011/01/01
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-TP
Packing
Tape&Reel:
3Kpcs/Reel
***IMPORTANT NOTICE***
Micro Commercial Components Corp.
reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components
Corp .
does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold
Micro Commercial Components Corp .
and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express written
approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited
below.
Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage.
MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources.
MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
www.mccsemi.com
Revision: A
3 of 3
2011/01/01
