RP132x SERIES
Low Voltage 1A Voltage Regulator (LDO Regulator)
NO.EA-265-190408
OUTLINE
The RP132x is a voltage-regulator with a built-in low ON-resistance transistor and output current is 1A
capability. This IC has two versions: fixed output voltage type and externally adjustable output voltage type.
The minimum output voltage can be set from 1.4V. Otherwise, the load regulation of RP132x has much
improved when compared with conventional regulators. It's Typ.5mV at I
OUT
½0.1mA
to 1A.

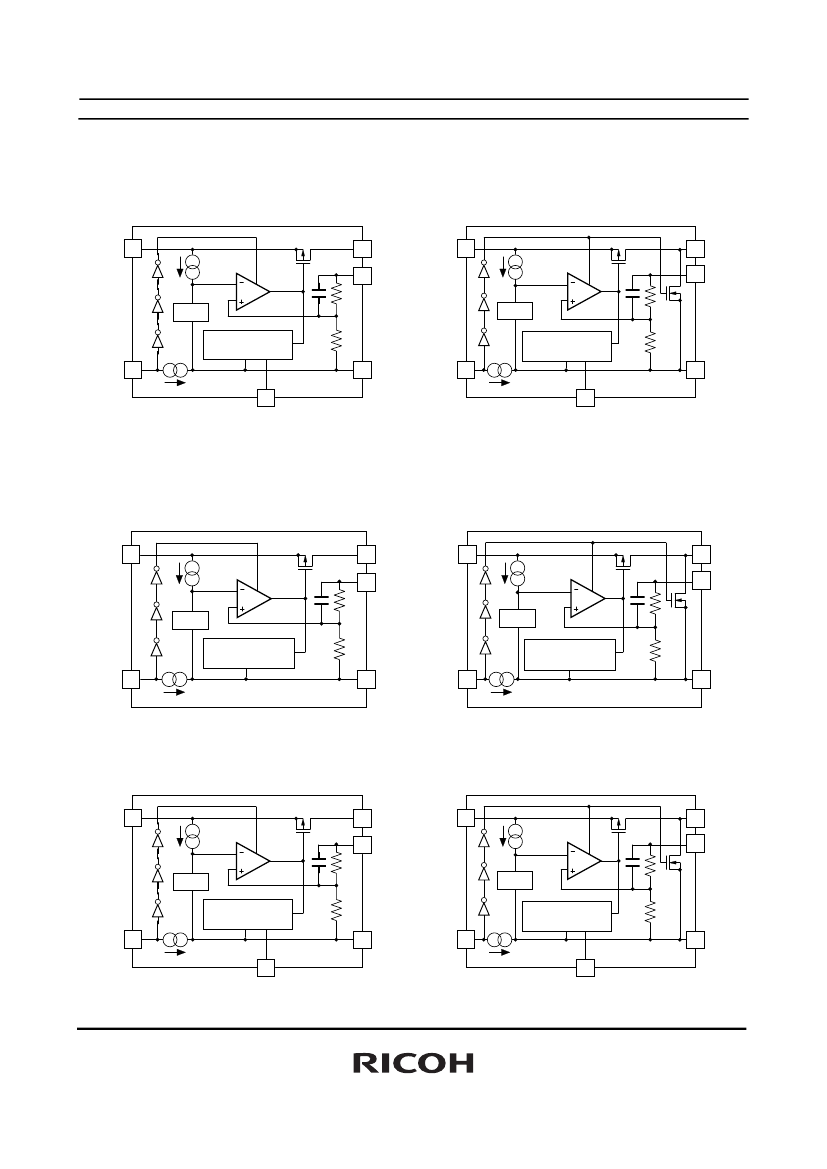

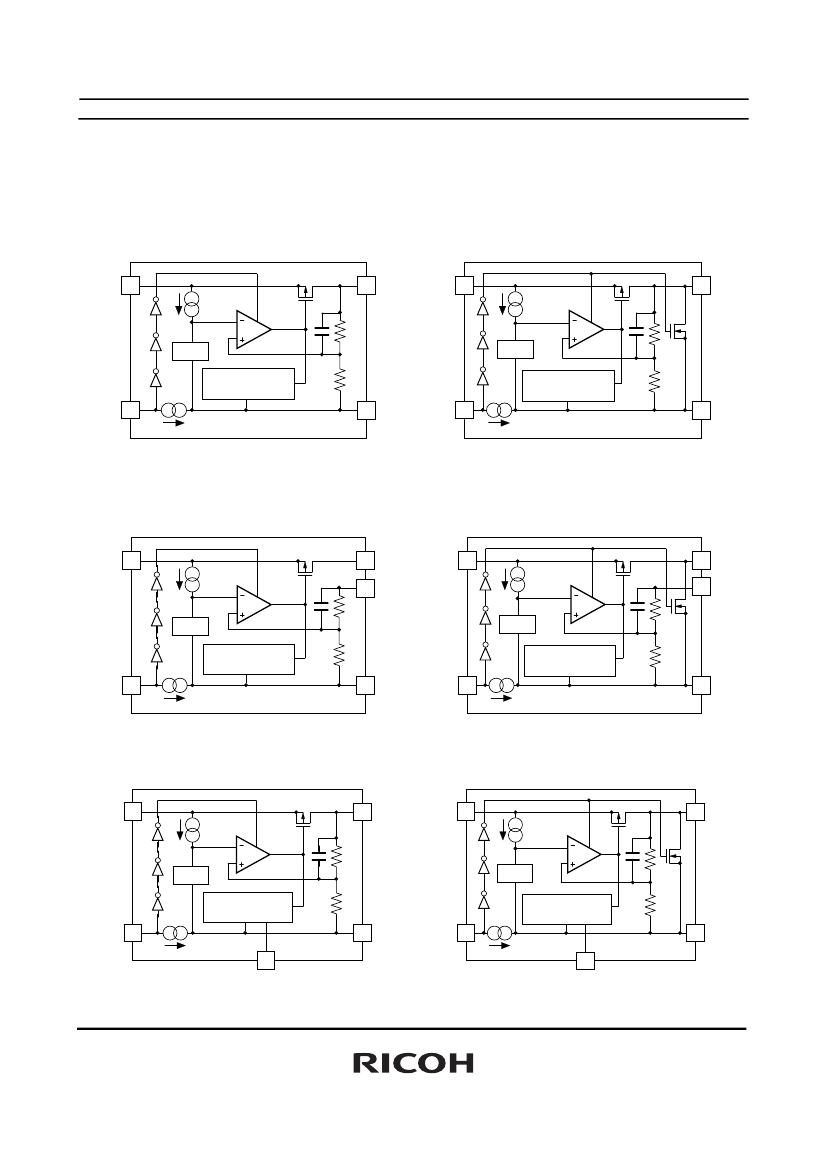

This IC consists of a voltage reference unit, an error amplifier, a resistor net for setting output voltage, current
limit circuits to prevent over-current and a thermal-shutdown circuit. A standby mode with ultra low supply
current can be realized with the chip enable function. Additionally, E/F Version with delay pin for inrush current
limit time setting are also available.
The packages for these ICs are DFN(PLP)1820-6, SOT-89-5, HSOP-6J and TO-252-5-P2. DFN(PLP)1820-6
is suitable for high density mounting of the ICs on boards. SOT-89-5, HSOP-6J and TO-252-5-P2 are
supporting high wattage.
FEATURES
Output Current ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Min. 1A
Supply Current ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 65µA
Standby Current ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 0.15µA
Input Voltage Range ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 1.4V to 6.5V
Output Voltage Range ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Fixed Output Voltage Type: 0.8V to 5.5V (0.1V steps)
Adjustable Output Voltage Type: 0.8V to 5.5V
(
For other voltages, please refer to MARK INFORMATIONS.)
Dropout Voltage ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 0.52V (V
OUT
=2.8V, I
OUT
=1A)
Ripple Rejection ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 70dB (f=1kHz, V
OUT
=2.8V)
Output Voltage Accuracy ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ
1.0%
Output Voltage Temperature-Drift Coefficient ꞏꞏꞏꞏꞏꞏ Typ.
60ppm/C
Line Regulation ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 0.052%/V
Load Regulation ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 3mV at I
OUT
=300mA, Typ. 5mV at I
OUT
=1A
Packages ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ DFN(PLP)1820-6, SOT-89-5, HSOP-6J,TO-252-5-P2
Inrush Current Limit Circuit ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 500mA
B/D version: Inrush current limit time is 500s.
E/F version: Inrush current limit time is adjustable.
Fold-Back Protection Circuit ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 250mA (Current at short mode)
Thermal Shutdown Circuit ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Thermal Shutdown Temperature: Typ. 165C
Released Temperature: Typ. 95C
Auto Discharge Function ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ D, F version
Ceramic capacitors are recommended to be used with this IC ꞏꞏꞏꞏ 2.2F or more (V
OUT
≤ 3.6V)
4.7F or more (V
OUT
3.6V)
1
RP132x
NO.EA-265-190408
APPLICATIONS
Power source for battery-powered equipment.
Power source for portable communication equipment
Power source for electrical appliances such as cameras, VCRs and camcorders.
Power source for home appliances and Notebook PC.
SELECTION GUIDE
The output voltage, the auto discharge function
(1)
, and the package type for the IC can be selected at the user’s
request.
Product Name
RP132K001-TR
RP132Kxx1-TR
RP132H001-T1-FE
RP132Hxx1-T1-FE
RP132S001-E2-FE
RP132Sxx1-E2-FE
RP132J001-T1-FE
RP132Jxx1-T1-FE
Package
DFN(PLP)1820-6
SOT-89-5
HSOP-6J
TO-252-5-P2
Quantity per Reel
5,000 pcs
1,000 pcs
1,000 pcs
3,000 pcs
Pb Free
Yes
Yes
Yes
Yes
Halogen Free
Yes
Yes
Yes
Yes
RP132x001x is the adjustable output voltage type.
xx: The output voltage can be designated in the range from 0.8V(08) to 5.5V(55) in 0.1V step.
The voltage in 0.05 V step is shown as follows:
Ex. 1.05 V : RP132x101x5
Contact our sales representatives for other voltages.
The combination of the auto discharge function and delay pin (for setting inrush current limit time) are
as follows.
B: without auto discharge function
D: with auto discharge function
E: without auto discharge function, with delay pin (for setting inrush current limit time)
F: with auto discharge function and delay pin (for setting inrush current limit time)
The
auto discharge function at off state are options as follows.
B: without auto discharge function at off state
D: with auto discharge function at off state
(1)
Auto-discharge function quickly lowers the output voltage to 0V, when the chip enable signal is switched from the
active mode to the standby mode, by releasing the electrical charge accumulated in the external capacitor.
2
RP132x
NO.EA-265-190408
PIN DESCRIPTIONS
Top View
6
5
4
Bottom View
4
5
6
5
4
6
5
4
1
2
3
3
2
1
1
2
3
1
2
3
1
2
3
4
5
RP132K
(DFN(PLP)1820-6)
RP132H
SOT-89-5)
RP132S
HSOP-6J)
RP132J
(TO-252-5-P2)
RP132K
(1)
(DFN(PLP)1820-6) Pin Description
Pin No.
1
2
3
4
5
6
Symbol
VOUT
VFB
GND
CE
NC
DELAY
VDD
Output Pin
(2)
Feed Back Pin
(2)
Ground Pin
Chip Enable Pin ("H" Active)
Pin Description
No Connection (RP132K001B/D, RP132Kxx1B/D)
Delay Pin for setting inrush current limit time (RP132K001E/F, RP132Kxx1E/F)
Input Pin
Tab is GND level. (They are connected to the reverse side of this IC.) The tab is better to be connected to the GND, but
leaving it open is also acceptable.
(1)
When using Adjustable Output Voltage Type (RP132K001x), please follow "Notes on the Adjustable Output Voltage
Type Settings".
(2)
When using Fixed Output Voltage Type(RP132Kxx1x), the VOUT pin and the VFB pin should be connected.
