CL21F223ZBANNNE datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CL21F223ZBANNNE

CL21F223ZBANNNE: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 0.022uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size215KB，17 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

CL21F223ZBANNNE Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 0.022uF, Surface Mount, 0805, CHIP

CL21F223ZBANNNE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1098433501
package instruction	, 0805
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Philippines, South Korea
ECCN code	EAR99
YTEOL	7.78
capacitance	0.022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.65 mm
JESD-609 code	e3
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	80%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	80%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	Y5V
Temperature Coefficient	-82/+22% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

General Capacitors

Feature

•Wide

selection of size : from 0402 to 2220

•Highly

reliable tolerance and high speed automatic chip placement on PCBs

•Wide

capacitance range

•Wide

temperature compensation and voltage range

: from C0G to Y5V and from 6.3V to 50V

•Highly

reliable performance

•Highly

resistant termination metal

•Tape

& reel for surface mount assembly

Application

•HHP,

DSC, DVC, LCD, TV, Memory Module, PDA, Game Machine

•Tuner

(Product code C is suitable.)

Medical, Aviation, Automobile device should be following a special specification.

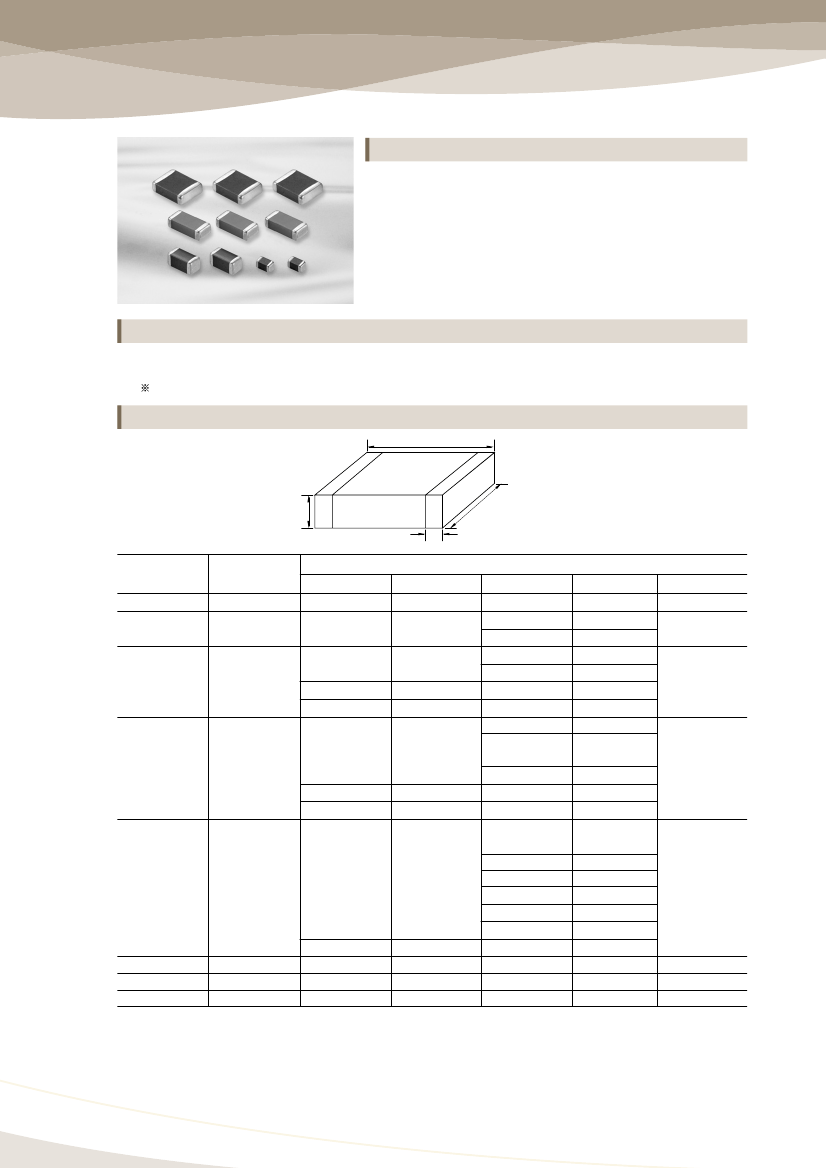

Structure and Dimensions

Size Code

EIA Code

0402

0603

Dimension(mm)

1.00±0.05

1.60±0.10

2.00±0.10

0.50±0.05

0.80±0.10

1.25±0.10

1.25±0.15

1.25±0.20

1.60±0.20

0.50±0.05

0.50+0.0/-0.1

0.80±0.10

0.85±0.10

1.25±0.10

1.25±0.15

1.25±0.20

0.60±0.10

0.85±0.15

0.85±0.10(*)

1.15±0.10

1.25±0.15

1.60±0.20

0.85±0.15

0.85±0.10(*)

0.90±0.10

1.60±0.20

1.80±0.20

2.00±0.20

2.50±0.20

2.50±0.30

2.00±0.20

3.20±0.30

Thickness Code

0.50±0.30

0.2+0.15/-0.1

0.30±0.20

0805

2.00±0.15

2.00±0.20

3.20±0.20

0.5+0.2/-0.3

1206

3.20±0.15

3.20±0.20

1.60±0.15

1.60±0.20

1210

3.20±0.30

2.50±0.20

0.60±0.30

1808

1812

2220

3.20±0.40

4.50±0.40

5.70±0.40

2.50±0.30

2.00±0.20

3.20±0.30

5.00±0.40

0.80±0.30

1.00±0.30

■

* Mark is only applicable to “L” code , 12

code in part number.
