VOLTAGE CONTROLLED
OSCILLATOR
Features
■
■
■
■
Low Noise Bipolar Transistor
Borad Tuning Range
Operating Case Temp. -55 ºC to + 85 ºC
Environmental Screening available
Available as:
TOM9090, 4 Pin TO-8 (T4)
TON9090, 4 Pin Surface Mount (SM3)
TOP9090, 4 Pin Flatpack (FP4)
BXO9090, Connectorized Housing (H1)
Specifications
CHARACTERISTIC
Frequency
Output Power (dBm)
Power Flatness (dB)
Tuning Voltage Range (v)
Tuning Voltage
Sensitivity (MHz/V)
Harmonics (dBc)
Spurious (dBc)
3dB Modulation BW,
Zg = 50 Ohms
Pushing (MHz/V)
Pulling (MHz); 12 dB RL
Frequency Drift (MHz/ºC
Power
Vdc
mA
Note: Care should always be taken to effectively ground the case of each unit.
TYPICAL
Ta = 25 ºC
MIN/MAX
Ta = -55 ºC to +85 ºC
Maximum Ratings
Ambient Operating Temperature ....................... -55ºC to + 100 ºC
Storage Temperature ......................................... -62ºC to + 125 ºC
Case Temperature ........................................................... + 125 ºC
DC Voltage .................................................................... + 20 Volts
Maximum DC Tuning Voltage ........................................ + 20 Volts
Minimum DC Tuning Voltage .............................................. 0 Volts

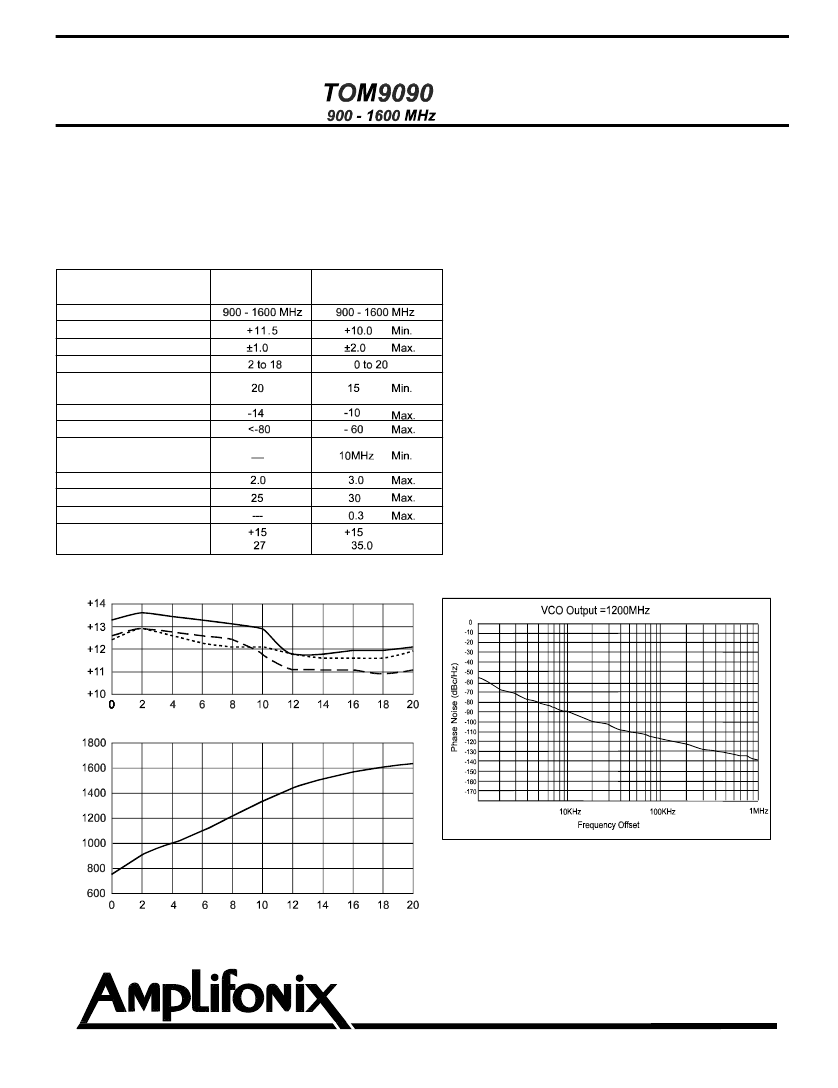

Typical Performance Data
Output Power
(dBm)
Tuning Voltage (Volts)
Frequency
(MHz)
Tuning Voltage (Volts)
Legend ------------- + 25 ºC -- -- -- +85 ºC - - - - - - -55ºC
Notes:
1. Phase Noise is measured using the Aeroflex PN9000.
2. Worst case phase noise @ 100KHz offset across
frequency range and temperature extremes is -110 dBc/
Hz.
2707 Black Lake Place, Philadelphia, PA 19154
TEL 215-464-4000
· · · ·
FAX 215-464-4001
Rev.A 04/11/02
