BS2-018-H430-55/2E datasheet, PDF

Datasheet> All Categories > The connector> The connector> BS2-018-H430-55/2E

BS2-018-H430-55/2E: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size330KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BS2-018-H430-55/2E Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug

BS2-018-H430-55/2E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-tec Interconnect Ltd.
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.157 inch
subject depth	0.169 inch
body length	0.732 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BS
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
Base Number Matches	1

Preview

Download Datasheet

View All

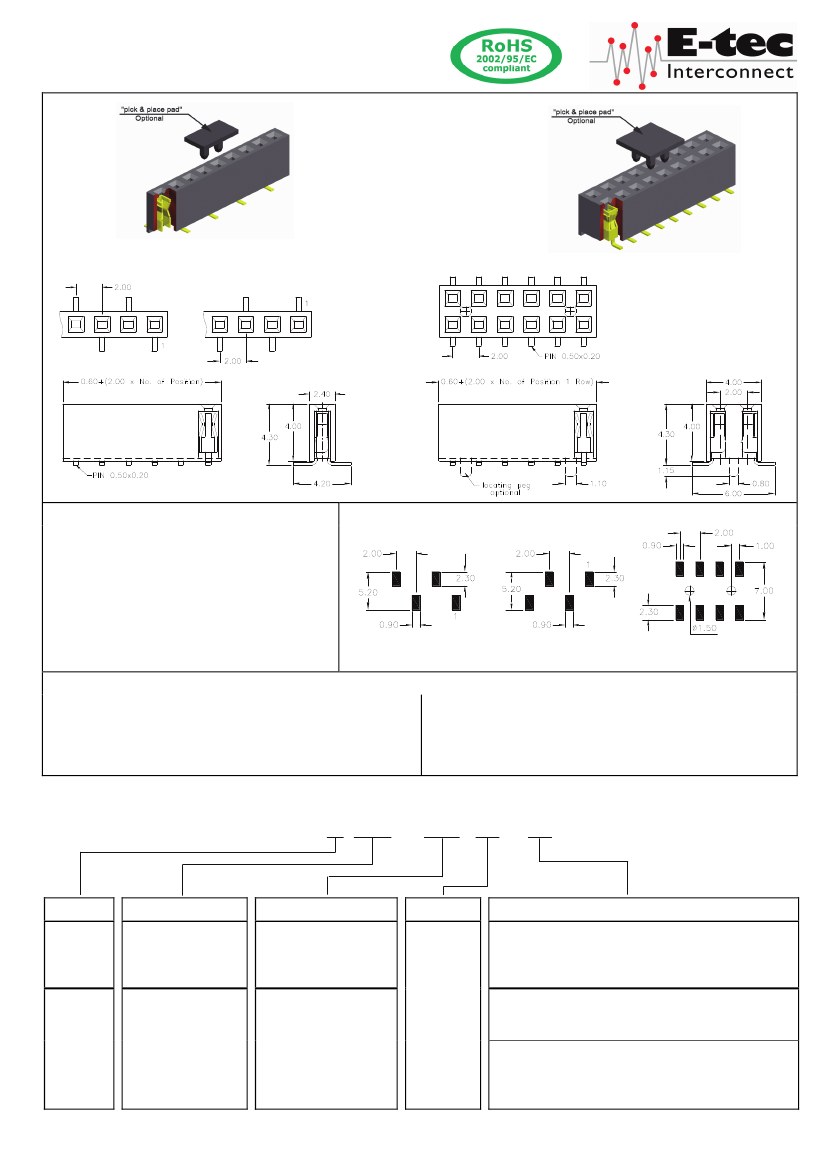

2.00mm pitch

- SMT -

Female Header

4.30mm profile

430

Foot style

431

430

APPLICATION

AND

FEATURES

PCB

Surface Mount Layout

Standard: tube packing and

without “pick & place pad”

Low profile, 4.30mm height.

Hi-rel dual beam contacts

Mating with 2.00mm pitch,

0.50mm square, or round pin headers

Foot style:

430

431

430

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

1000 MΩ min.

20 mΩ max.

500 V AC

Operating temperature

Processing temperature

Contact material

Insulator material

(RoHS compliant)

- 40°C to +105°C

+250°C

+0/-5°C

for 10sec.

Phosphor Bronze

Nylon UL 94 V-0

How to order

BS x - xxx - H xxx -

/ 2 X

Rows

single row

Nbr of contacts

003

040

Foot style

430

(standard)

431

(option)

Pls. choose

430

style

if odd pin count

Plating

Packing and “pick & place pad” Option

tube packing; with pick & place pad

reel packing; with pick & place pad

= gold

Other platings

on request

dual row

006

080

430

without “locating pegs”

A =

tube packing; with pick & place pad

B =

reel packing; with pick & place pad

with “locating pegs”

C =

tube packing; without pick & place pad

D =

tube packing; with pick & place pad

E =

reel packing; with pick & place pad
