FXM08DRKI datasheet, PDF - EEWORLD Datasheet

FXM08DRKI: DescriptionCard Edge Connector, 16 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Solder Terminal, #4-40, Green Insulator, Receptacle; CategoryThe connector The connector; File Size424KB，3 Pages; ManufacturerSullins Connector Solutions

Download Datasheet Parametric View All

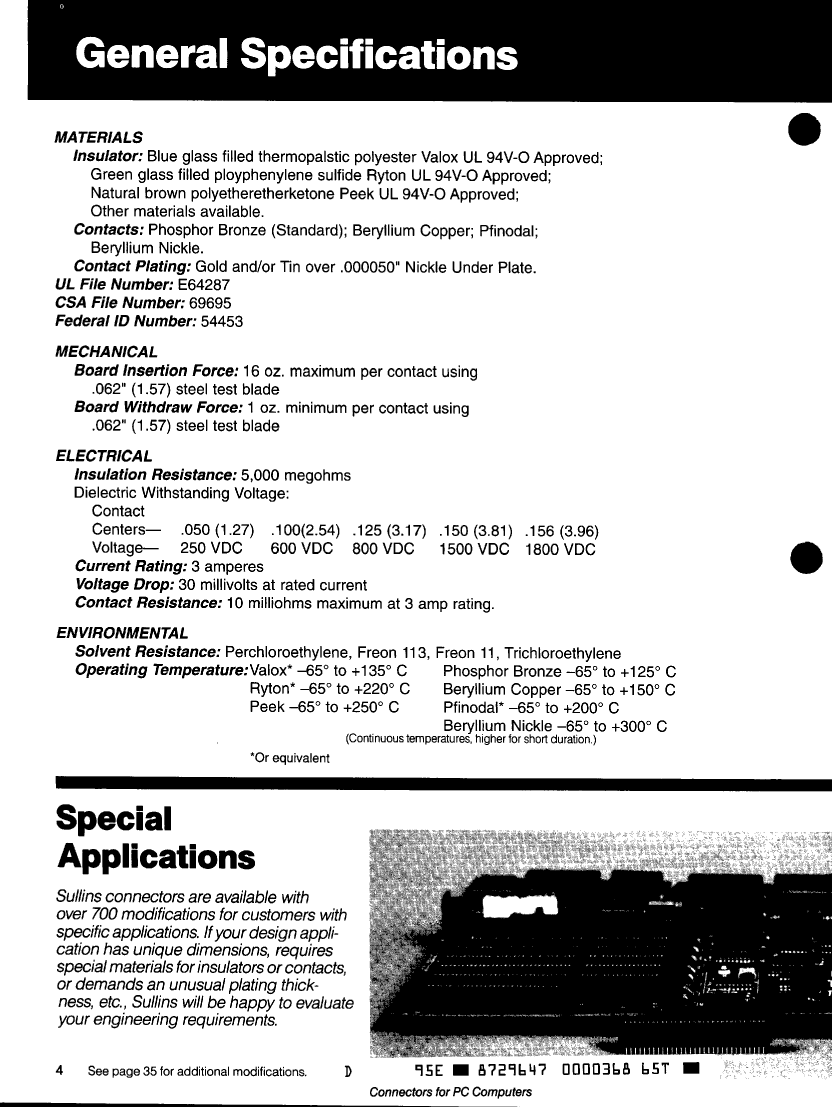

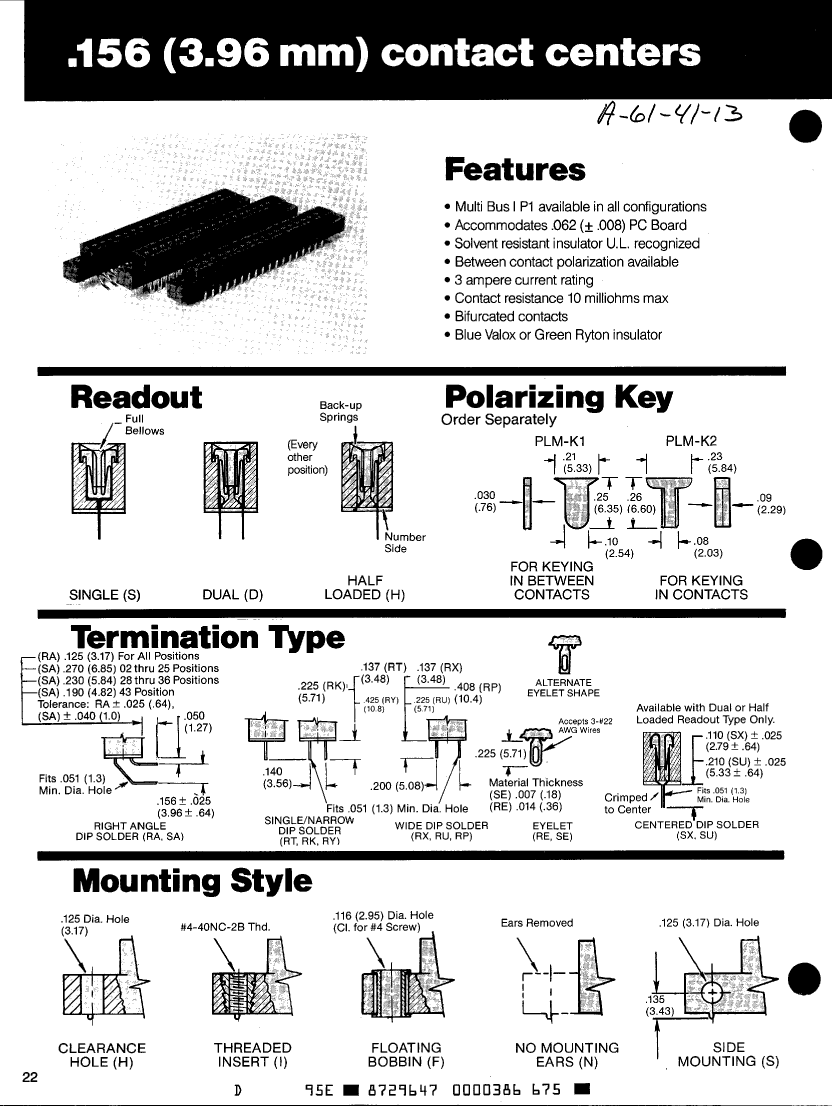

FXM08DRKI Overview

Card Edge Connector, 16 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Solder Terminal, #4-40, Green Insulator, Receptacle

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1157217159
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	MOUNTING FLANGE

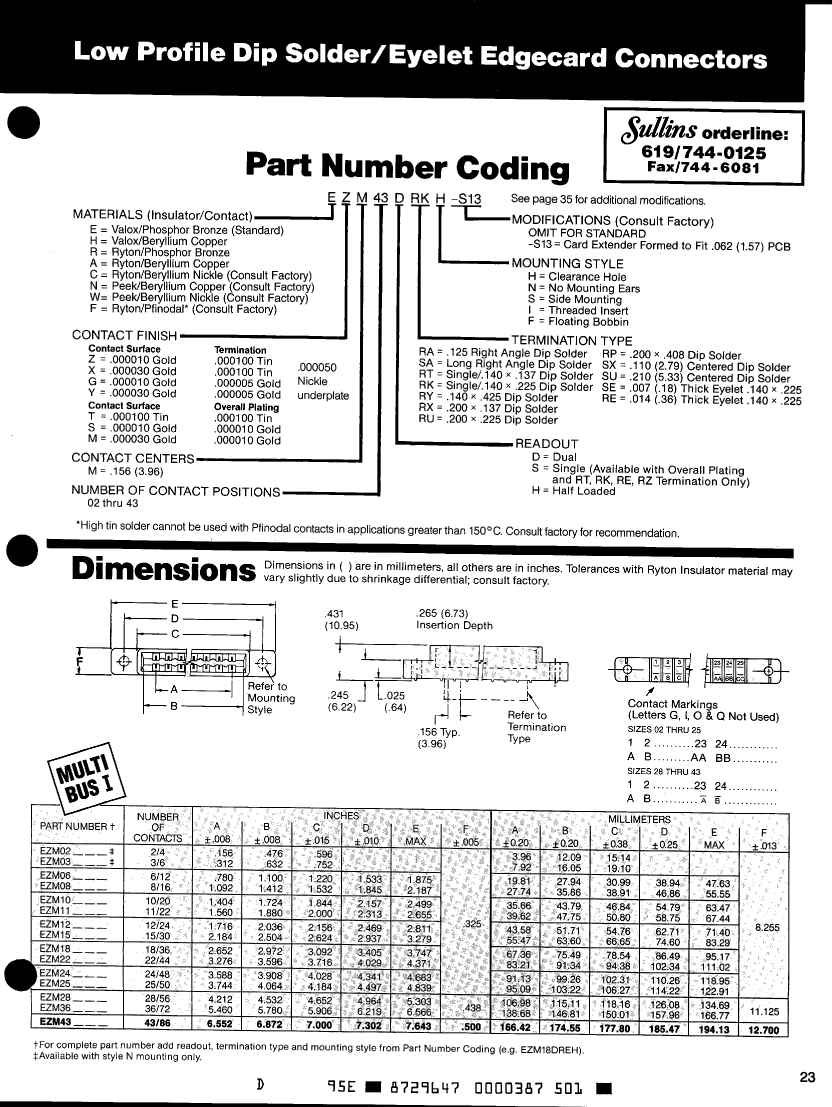

body width	0.325 inch
subject depth	0.431 inch
body length	2.187 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1800VDC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e0
Plug contact pitch	0.156 inch
Match contact row spacing	0.14 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.556 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.225 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	16
Evacuation force-minimum value	.278 N
