FYM28DRPS-S92 datasheet, PDF - EEWORLD Datasheet

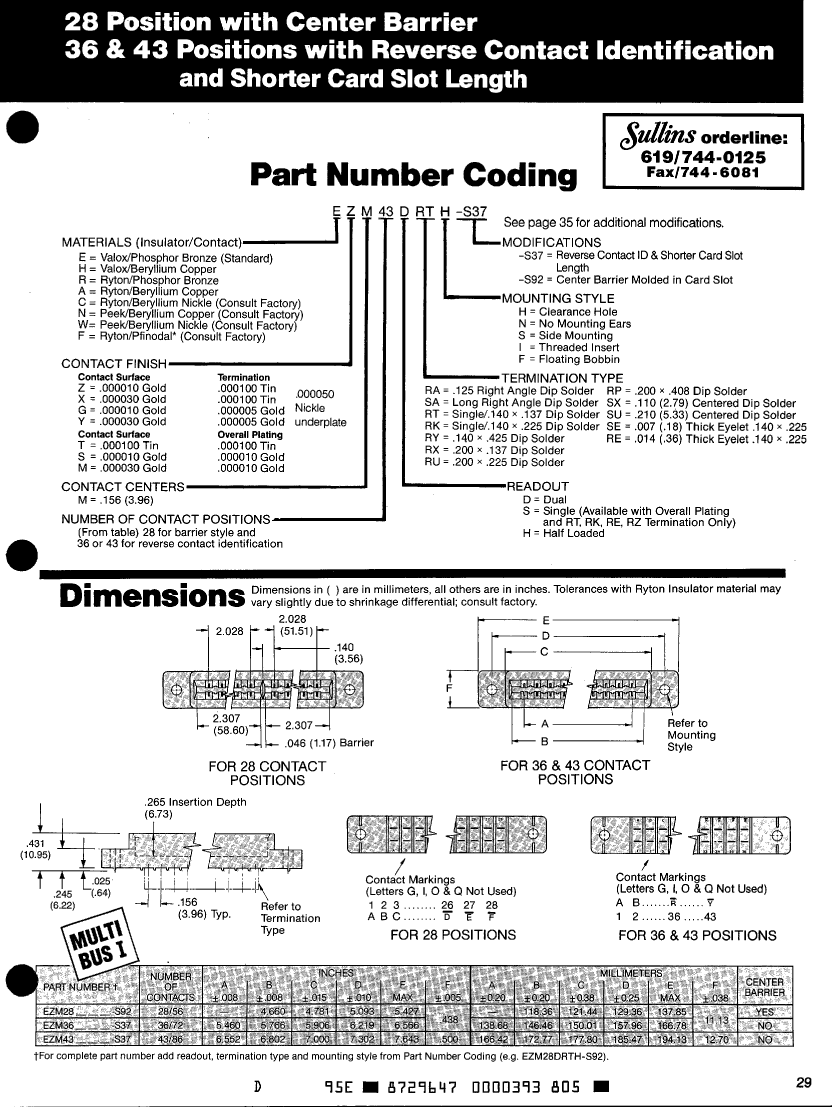

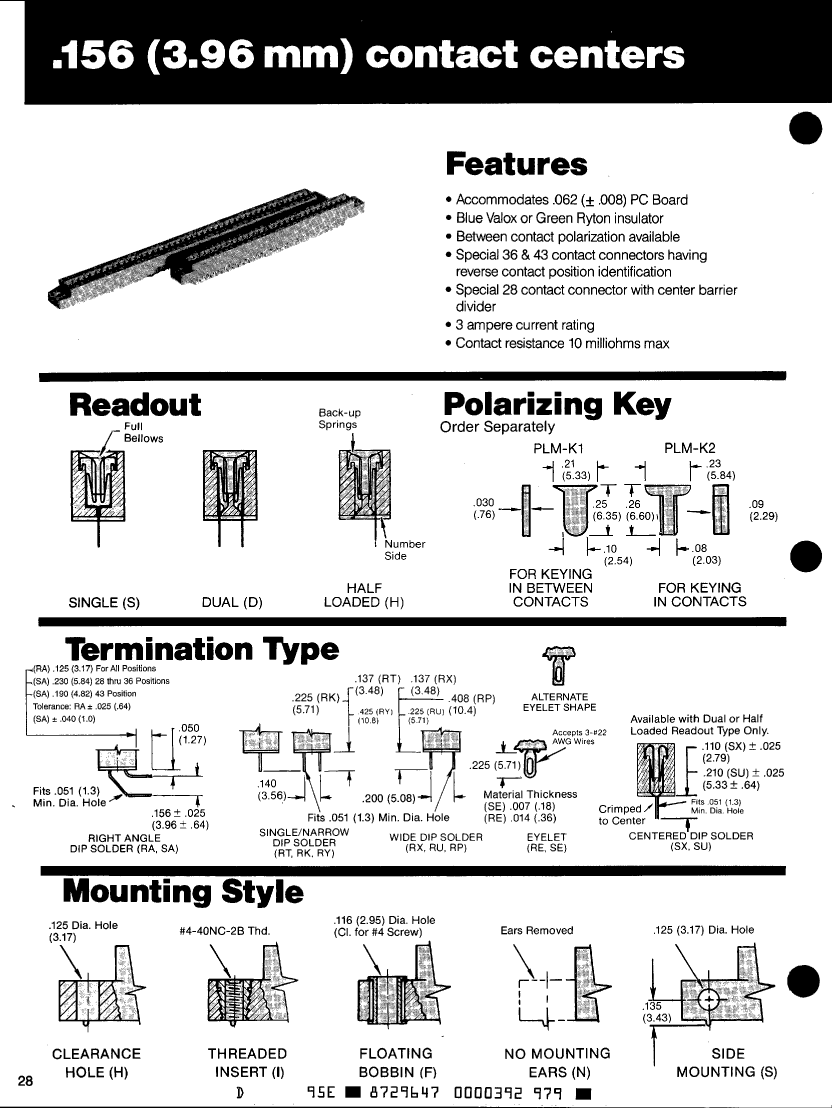

FYM28DRPS-S92: DescriptionCard Edge Connector, 56 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Green Insulator, Receptacle; CategoryThe connector The connector; File Size414KB，3 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

FYM28DRPS-S92 Overview

Card Edge Connector, 56 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Hole .125-.137, Green Insulator, Receptacle

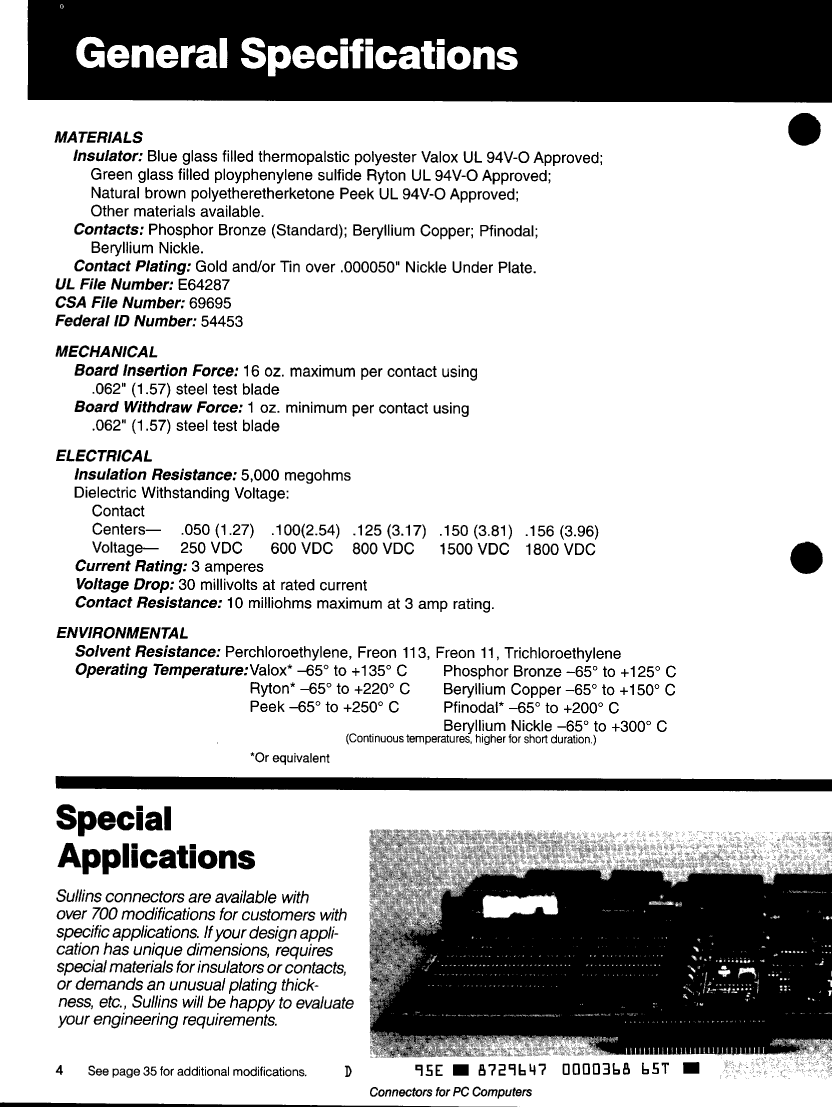

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1157220040
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.6
Other features	NONE
Board mount options	MOUNTING FLANGE
body width	0.438 inch
subject depth	0.431 inch
body length	5.427 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1800VDC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e4
Plug contact pitch	0.156 inch
Match contact row spacing	0.2 inch
Installation option 1	HOLE .125-.137
Installation option 2	HORIZONTAL DRILL
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.408 inch
Terminal pitch	3.9624 mm
Termination type	WIRE WRAP
Total number of contacts	56
Evacuation force-minimum value	.278 N
